BASIC SERVICE PROCEDURE
EC-47
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

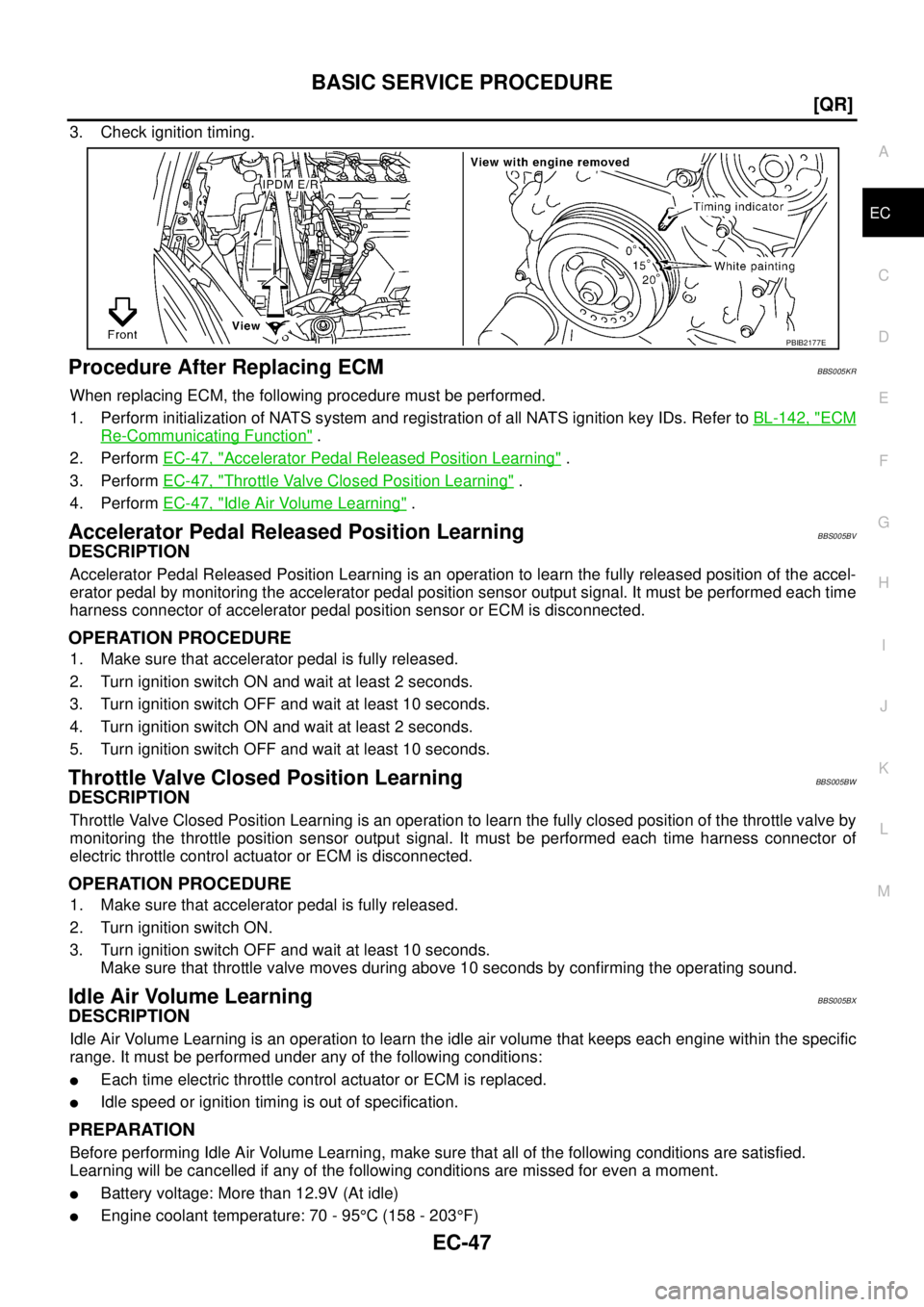

3. Check ignition timing.
Procedure After Replacing ECMBBS005KR
When replacing ECM, the following procedure must be performed.
1. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to BL-142, "
ECM
Re-Communicating Function" .
2. Perform EC-47, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-47, "
Throttle Valve Closed Position Learning" .
4. Perform EC-47, "
Idle Air Volume Learning" .
Accelerator Pedal Released Position LearningBBS005BV
DESCRIPTION
Accelerator Pedal Released Position Learning is an operation to learn the fully released position of the accel-
erator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each time
harness connector of accelerator pedal position sensor or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON and wait at least 2 seconds.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and wait at least 2 seconds.
5. Turn ignition switch OFF and wait at least 10 seconds.
Throttle Valve Closed Position LearningBBS005BW
DESCRIPTION
Throttle Valve Closed Position Learning is an operation to learn the fully closed position of the throttle valve by
monitoring the throttle position sensor output signal. It must be performed each time harness connector of
electric throttle control actuator or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.
Idle Air Volume LearningBBS005BX
DESCRIPTION
Idle Air Volume Learning is an operation to learn the idle air volume that keeps each engine within the specific
range. It must be performed under any of the following conditions:
Each time electric throttle control actuator or ECM is replaced.
Idle speed or ignition timing is out of specification.
PREPARATION
Before performing Idle Air Volume Learning, make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.
Battery voltage: More than 12.9V (At idle)
Engine coolant temperature: 70 - 95°C (158 - 203°F)
PBIB2177E
EC-48
[QR]
BASIC SERVICE PROCEDURE
PNP switch: ON
Electric load switch: OFF
(Air conditioner, head lamp, rear window defogger)
Steering wheel: Neutral (Straight-ahead position)
Vehicle speed: Stopped
Transmission: Warmed-up
With CONSULT-II: Drive vehicle until “FLUID TEMP SE” in “DATA MONITOR” mode of “A/T” system indi-
cates less than 0.9V.
Without CONSULT-II: Drive vehicle for 10 minutes.
OPERATION PROCEDURE
With CONSULT-II
1. Perform EC-47, "Accelerator Pedal Released Position Learning" .
2. Perform EC-47, "
Throttle Valve Closed Position Learning" .
3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.

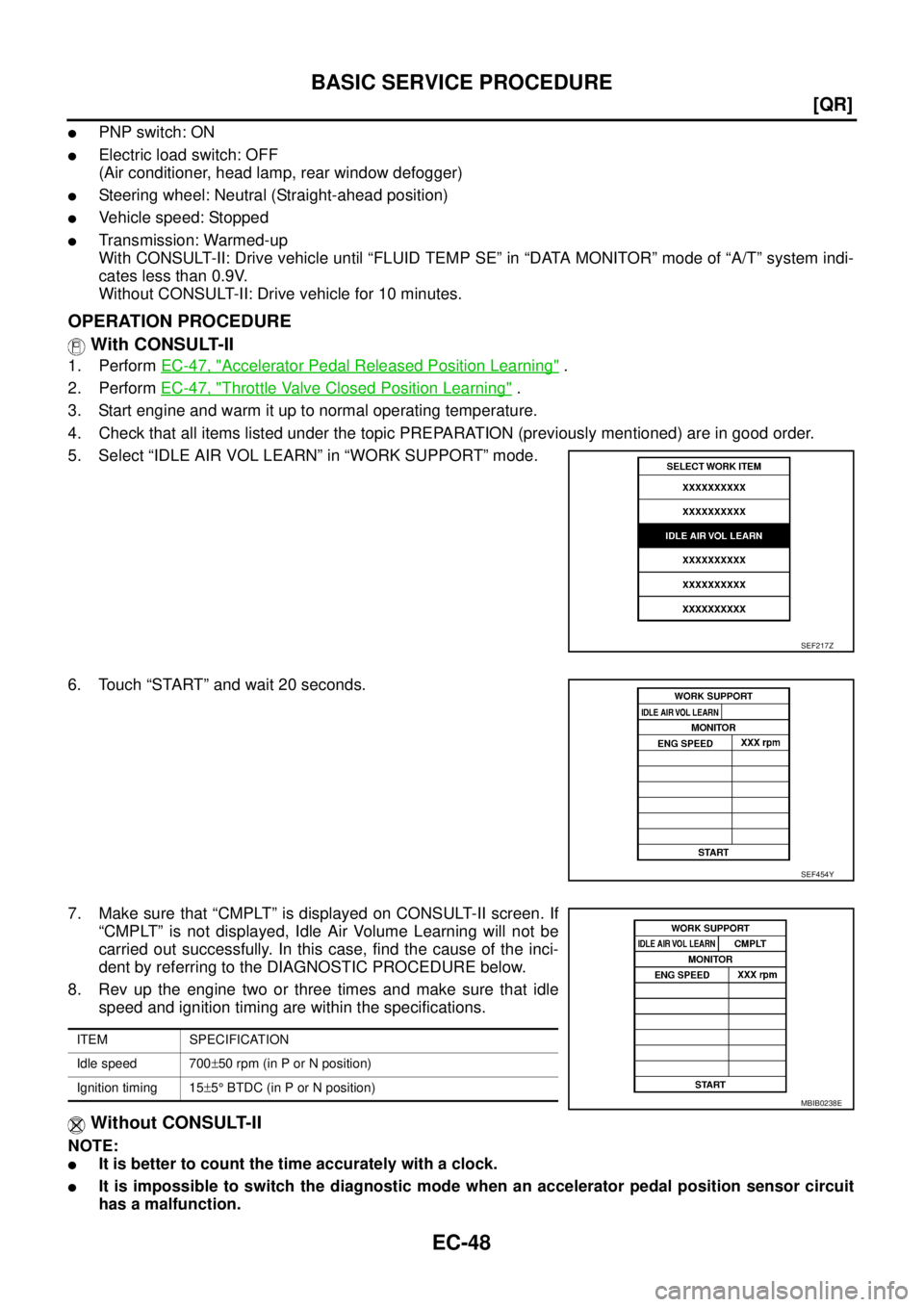

5. Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.
6. Touch “START” and wait 20 seconds.
7. Make sure that “CMPLT” is displayed on CONSULT-II screen. If
“CMPLT” is not displayed, Idle Air Volume Learning will not be
carried out successfully. In this case, find the cause of the inci-
dent by referring to the DIAGNOSTIC PROCEDURE below.
8. Rev up the engine two or three times and make sure that idle
speed and ignition timing are within the specifications.
Without CONSULT-II
NOTE:
It is better to count the time accurately with a clock.
It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.
SEF217Z
SEF454Y
ITEM SPECIFICATION
Idle speed 700±50 rpm (in P or N position)
Ignition timing 15±5° BTDC (in P or N position)
MBIB0238E
EC-58
[QR]
TROUBLE DIAGNOSIS
DTC Inspection Priority ChartBBS005C0
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC U1000 and/or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC
U1000 and U1001. Refer to EC-113, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
Priority Detected items (DTC)
1
U1000 U1001 CAN communication line
P0102 P0103 Mass air flow sensor
P0117 P0118 Engine coolant temperature sensor
P0122 P0123 P0222 P0223 P1225 P1226 P2135 Throttle position sensor
P0327 P0328 Knock sensor
P0335 Crankshaft position sensor (POS)
P0340 Camshaft position sensor (PHASE)
P0500 Vehicle speed sensor
P0605 ECM
P1229 Sensor power supply
P1610-P1615 NATS
P1706 Park/Neutral position (PNP) switch
P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor
2
P0132 P0134 Heated oxygen sensor 1
P0550 Power steering pressure sensor
P1065 ECM power supply
P1122 Electric throttle control function
P1124 P1126 Throttle control motor relay
P1128 Throttle control motor
P1720 Vehicle speed sensor
P1805 Brake switch
3
P0011 Intake valve timing control
P1121 Electric throttle control actuator
P1217 Engine over temperature (OVERHEAT)
EC-60
[QR]
TROUBLE DIAGNOSIS
Symptom Matrix ChartBBS005C2
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-295
Fuel pressure regulator system334444444 4EC-49
Fuel injector circuit 11232 22 2EC-289
Evaporative emission system 334444444 4EC-27
Air Positive crankcase ventilation sys-
tem334444444 41EC-30
Incorrect idle speed adjustment 33 1111 1EC-40
Electric throttle control actuator 112332222 2 2EC-197
,
EC-200
,
EC-207
,
EC-213
IgnitionIncorrect ignition timing adjustment33111 11 1EC-40
Ignition circuit 11222 22 2EC-329
Main power supply and ground circuit 22333 33 23EC-106
Mass air flow sensor circuit 11222 22 2EC-124
Engine coolant temperature sensor circuit 11222322312EC-131
Throttle position sensor circuit 12 22222 2EC-136
,
EC-157
,
EC-229
,
EC-231
,
EC-265
Accelerator pedal position sensor circuit3212 2EC-233
,
EC-251
,
EC-258
,
EC-272
Heated oxygen sensor 1 circuit 1232 22 2EC-143
,
EC-150
,
EC-301
Knock sensor circuit 2 2 3EC-164
Crankshaft position sensor (POS) circuit 2 2EC-169
Camshaft position sensor (PHASE) circuit 2 2EC-176
Vehicle speed signal circuit 2 3 3 3EC-183
Power steering pressure sensor circuit 2 3333EC-185
TROUBLE DIAGNOSIS
EC-61
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
1 - 6: The numbers refer to the order of inspection.
(continued on next page)ECM 22333333333EC-190
,
EC-193
Intake valve timing control solenoid valve cir-
cuit332 13223 3EC-116
PNP switch circuit 3 33333 3EC-238
Refrigerant pressure sensor circuit 2 3 3 3 3 4EC-339
Electrical load signal circuit 3 3 3 3EC-280
Air conditioner circuit223333333 3 2AT C - 3 4
ABS actuator and electric unit (control unit) 4BRC-8
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
EC-62
[QR]
TROUBLE DIAGNOSIS
SYSTEM — ENGINE MECHANICAL & OTHER
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank
5
5FL-8
Fuel piping 5 5 5 5 5 5EM-34
Vapor lock—
Valve deposit
5 555 55 5—
Poor fuel (Heavy weight gaso-
line, Low octane)—
Air Air duct
55555 5EM-17
Air cleaner
Air leakage from air duct
(Mass air flow sensor —electric
throttle control actuator)
5555
Electric throttle control actuator
EM-19
Air leakage from intake manifold/
Collector/Gasket
Cranking Battery
111111 11SC-4
Alternator circuitSC-27
Starter circuit 3SC-14
Signal plate/Flywheel/Drive plate 6EM-81
PNP switch 4AT- 1 6 1
Engine Cylinder head
55555 55 5EM-65
Cylinder head gasket 4 3
Cylinder block
66666 66 64
EM-81
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Va l v e
mecha-
nismTiming chain
55555 55 5EM-53
CamshaftEM-41
Intake valve timing controlEM-53
Intake valve
3EM-65
Exhaust valve
TROUBLE DIAGNOSIS
EC-75
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
22
23
41
42R/Y
R/B
LG/R
R/WFuel injector No. 3
Fuel injector No. 1
Fuel injector No. 4
Fuel injector No. 2[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on
rpm at idleBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
24 O/BHeated oxygen sensor 1
heater[Engine is running]
Warm-up condition
Engine speed: Below 3,600 rpmApproximately 7.0V
[Engine is running]
Engine speed: Above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
29 BSensor ground
[Camshaft position sensor
(PHASE)][Engine is running]
Warm-up condition
Idle speedApproximately 0V
30 BSensor ground
[Crankshaft position sensor
(POS)][Engine is running]
Warm-up condition
Idle speedApproximately 0V
34 L/YIntake air temperature sen-
sor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with intake
air temperature.
35 W/B Heated oxygen sensor 1[Engine is running]
Warm-up condition
Engine speed: 2,000 rpm0 - Approximately 1.0V
(Periodically change)
46 BR/WSensor power supply
(Refrigerant pressure sen-
sor)[Ignition switch: ON]Approximately 5V
47 GSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0529E
PBIB0530E
PBIB0519E
TROUBLE DIAGNOSIS
EC-77
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
65 LG/BSensor power supply
(Power steering pressure
sensor)[Ignition switch: ON]Approximately 5V
66 BSensor ground
(Throttle position sensor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
67 BSensor ground
(Mass air flow sensor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
68 R Throttle position sensor 2[Ignition switch: ON]
Shift lever: D
Accelerator pedal: Fully releasedLess than 4.75V
[Ignition switch: ON]
Shift lever: D
Accelerator pedal: Fully depressedMore than 0.36V
69 W Refrigerant pressure sensor[Engine is running]
Warm-up condition
Both A/C switch and blower fan switch:
ON
(Compressor operates)1.0 - 4.0V
72 LGEngine coolant tempera-
ture sensor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with engine
coolant temperature.
73 B/WSensor ground
(Engine coolant tempera-
ture sensor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
74 BSensor ground
(Heated oxygen sensor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
82 BSensor ground
(Accelerator pedal position
sensor 1)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
83 GSensor ground
(Accelerator pedal position
sensor 2)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
85 O DATA link connector[Ignition switch: ON]
CONSULT-II: DisconnectedBATTERY VOLTAGE
(11 - 14V)
86 P CAN communication line[Ignition switch: ON]1.0 - 2.5V
90 R/WSensor power supply
(Accelerator pedal position
sensor 1)[Ignition switch: ON]Approximately 5V
91 PSensor power supply
(Accelerator pedal position
sensor 2)[Ignition switch: ON]Approximately 5V
94 L CAN communication line[Ignition switch: ON]2.5 - 4.0V TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
