2003 NISSAN TEANA check engine

AT-184
TROUBLE DIAGNOSIS FOR SYMPTOMS

8. SYMPTOM CHECK
Check again. Refer to AT- 5 0 , "
Cruise Test — Part 1" or AT- 5 1 , "Cruise Test — Part 2" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 9.
9. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
A/T Does Not Shift: D1 → D2 or Does Not Kickdown: D4 → D2BCS0014H
SYMPTOM:

A/T does not shift from D1 to D2 at the specified speed on “Cruise Test — Part 1”.

A/T does not shift from D4 to D2 when depressing accelerator pedal fully at the specified speed
on “Cruise Test — Part 2”.
DIAGNOSTIC PROCEDURE
1. SYMPTOM CHECK
Check symptom. Refer to AT- 4 8 , "
Check at Idle" and AT- 5 0 , "Cruise Test — Part 1" .
Does vehicle creep forward in
“D”, “3”, “2” or “1” position, and start from D1 ?
YES >> GO TO 2.
NO >> Go to AT- 1 8 1 , "
Vehicle Does Not Creep Forward in “D”, “3”, “2” or “1” Position" and AT- 1 8 2 , "Ve h i -
cle Cannot Be Started From D1" .
2. CHECK A/T POSITION
Check A/T position. Refer to AT- 2 1 5 , "
Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust A/T position. Refer to AT- 2 1 5 , "
Adjustment of A/T Position" .
3. CHECK VEHICLE SPEED SENSOR·A/T AND VEHICLE SPEED SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 8 0 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 8 6 , "VEHICLE SPEED SENSOR MTR"
.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and/or vehicle speed sensor·MTR
circuits.
4. CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to EC-272, "
DTC P2138 APP SENSOR" (QR engine) or EC-
652, "DTC P2138 APP SENSOR" (VQ engine).
OK or NG
OK >> GO TO 5.
NG >> Repair or replace accelerator pedal position (APP) sensor.

AT-186
TROUBLE DIAGNOSIS FOR SYMPTOMS

A/T Does Not Shift: D2 → D3BCS0014I
SYMPTOM:
A/T does not shift from D2 to D3 at the specified speed on “Cruise Test — Part 1” and “Cruise Test —
Part 2”.
DIAGNOSTIC PROCEDURE
1. SYMPTOM CHECK
Check symptom. Refer to AT- 4 8 , "
Check at Idle" and AT- 5 0 , "Cruise Test — Part 1" .
Does vehicle creep forward in
“D”, “3”, “2” or “1” position, and start from D1 ?
YES >> GO TO 2.
NO >> Go to AT- 1 8 1 , "
Vehicle Does Not Creep Forward in “D”, “3”, “2” or “1” Position" and AT- 1 8 2 , "Ve h i -
cle Cannot Be Started From D1" .
2. CHECK A/T POSITION
Check A/T position. Refer to AT- 2 1 5 , "
Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust A/T position. Refer to AT- 2 1 5 , "
Adjustment of A/T Position" .
3. CHECK VEHICLE SPEED SENSOR·A/T AND VEHICLE SPEED SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 8 0 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 8 6 , "VEHICLE SPEED SENSOR MTR"
.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and/or vehicle speed sensor·MTR
circuits.
4. CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to EC-272, "
DTC P2138 APP SENSOR" (QR engine) or EC-
652, "DTC P2138 APP SENSOR" (VQ engine).
OK or NG
OK >> GO TO 5.
NG >> Repair or replace accelerator pedal position sensor.
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 4 6 , "
Components" .
2. Check A/T fluid condition. Refer to AT- 4 3 , "
A/T Fluid Condition Check" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-189
D
E
F
G
H
I
J
K
L
MA
B
AT

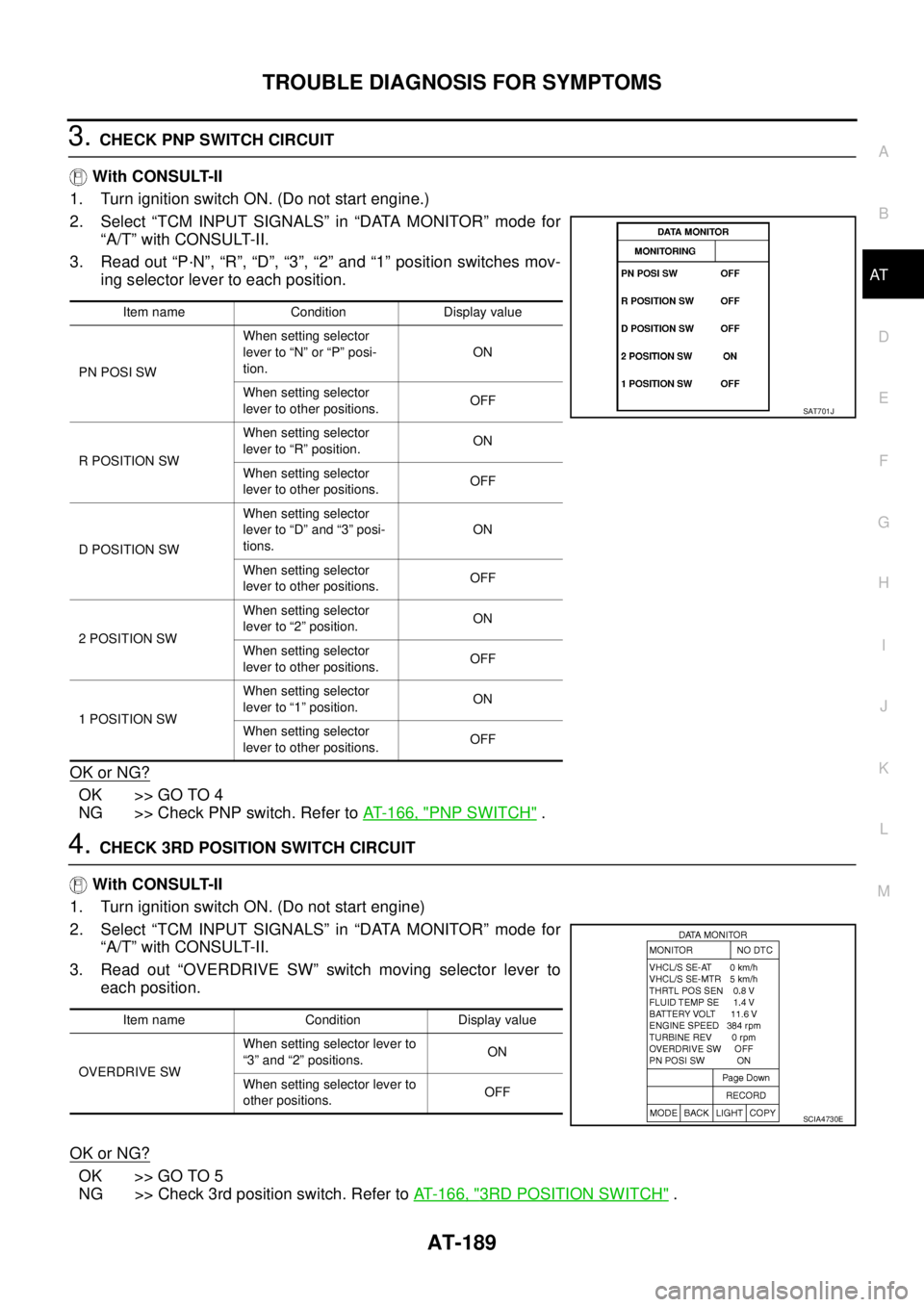

3. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P·N”, “R”, “D”, “3”, “2” and “1” position switches mov-
ing selector lever to each position.
OK or NG?
OK >> GO TO 4
NG >> Check PNP switch. Refer to AT- 1 6 6 , "
PNP SWITCH" .
4. CHECK 3RD POSITION SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “OVERDRIVE SW” switch moving selector lever to
each position.
OK or NG?
OK >> GO TO 5
NG >> Check 3rd position switch. Refer to AT- 1 6 6 , "
3RD POSITION SWITCH" .
Item name Condition Display value
PN POSI SWWhen setting selector
lever to “N” or “P” posi-
tion.ON
When setting selector
lever to other positions.OFF
R POSITION SWWhen setting selector
lever to “R” position.ON
When setting selector
lever to other positions.OFF
D POSITION SWWhen setting selector
lever to “D” and “3” posi-
tions.ON
When setting selector
lever to other positions.OFF
2 POSITION SWWhen setting selector
lever to “2” position.ON
When setting selector
lever to other positions.OFF
1 POSITION SWWhen setting selector
lever to “1” position.ON
When setting selector
lever to other positions.OFF
SAT701J
Item name Condition Display value
OVERDRIVE SWWhen setting selector lever to
“3” and “2” positions.ON
When setting selector lever to
other positions.OFF
SCIA4730E

AT-190
TROUBLE DIAGNOSIS FOR SYMPTOMS

5. CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to EC-272, "
DTC P2138 APP SENSOR" (QR engine) or EC-
652, "DTC P2138 APP SENSOR" (VQ engine).
OK or NG
OK >> GO TO 6.
NG >> Repair or replace accelerator pedal position sensor.
6. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 4 6 , "
Components" .
2. Check A/T fluid condition. Refer to AT- 4 3 , "
A/T Fluid Condition Check" .
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Overrun clutch control valve
–Shift solenoid valve A
–Overrun clutch solenoid valve
–Pilot valve
–Pilot filter
3. Disassemble A/T. Refer to AT- 2 5 5 , "
Disassembly" .
4. Check the following items:
–Servo piston assembly
–Brake band
–Torque converter. Refer to AT- 2 5 5 , "Disassembly" .
–Oil pump assembly. Refer to AT- 2 7 5 , "Oil Pump" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
8. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Overrun clutch control valve
– Shift solenoid valve A
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.

AT-192
TROUBLE DIAGNOSIS FOR SYMPTOMS

2. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P·N”, “R”, “D”, “3”, “2” and “1” position switches mov-
ing selector lever to each position.
OK or NG?
OK >> GO TO 3
NG >> Check PNP switch. Refer to AT- 1 6 6 , "
PNP SWITCH" .
3. CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to EC-272, "
DTC P2138 APP SENSOR" (QR engine) or EC-
652, "DTC P2138 APP SENSOR" (VQ engine).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace accelerator pedal position sensor.
Item name Condition Display value
PN POSI SWWhen setting selector
lever to “N” or “P” posi-
tion.ON
When setting selector
lever to other positions.OFF
R POSITION SWWhen setting selector
lever to “R” position.ON
When setting selector
lever to other positions.OFF
D POSITION SWWhen setting selector
lever to “D” and “3” posi-
tions.ON
When setting selector
lever to other positions.OFF
2 POSITION SWWhen setting selector
lever to “2” position.ON
When setting selector
lever to other positions.OFF
1 POSITION SWWhen setting selector
lever to “1” position.ON
When setting selector
lever to other positions.OFF
SAT701J

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-195
D
E
F
G
H
I
J
K
L
MA
B
AT

Lock-up Is Not ReleasedBCS0014M
SYMPTOM:
Lock-up is not released when accelerator pedal is released on “Cruise Test — Part 1”.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to EC-82, "
SELF-DIAG RESULTS MODE" (QR engine) or EC-427, "SELF-
DIAG RESULTS MODE" (VQ engine).
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning systems. Refer to EC-82, "SELF-DIAG RESULTS MODE" (QR engine)
or EC-427, "
SELF-DIAG RESULTS MODE" (VQ engine).
NO >> GO TO 2.
2. SYMPTOM CHECK
Check again. Refer to AT- 5 0 , "
Cruise Test — Part 1" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Engine Speed Does Not Return To Idle (Light Braking D4 → D3 )BCS0014N
SYMPTOM:
Engine speed does not smoothly return to idle when A/T shifts from D4 to D3 on “Cruise Test — Part
1”.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 6 9 , "
SELF-DIAGNOSTIC RESULT MODE" or AT- 7 6 , "Diagnostic Proce-
dure Without CONSULT-II" .
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning systems. Refer to AT- 6 9 , "SELF-DIAGNOSTIC RESULT MODE" or AT-
77, "Judgement of Self-Diagnosis Code" .
NO >> GO TO 2.
2. CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to EC-272, "
DTC P2138 APP SENSOR" (QR engine) or EC-
652, "DTC P2138 APP SENSOR" (VQ engine).
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position sensor.

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-197
D
E
F
G
H
I
J
K
L
MA
B
AT

A/T Does Not Shift: D4 → 33 , When A/T Selector Lever “D” → “3”BCS0014P
SYMPTOM:
A/T does not shift from D4 to 33 when changing A/T selector lever from “D” → “3” position on “Cruise
Te s t — P a r t 3 ” .
DIAGNOSTIC PROCEDURE
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT- 6 9 , "
SELF-DIAGNOSTIC RESULT MODE" or AT- 7 6 , "Diagnostic Pro-
cedure Without CONSULT-II" .
Is a malfunction in CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 1 3 3 , "CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK 3RD POSITION SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “OVERDRIVE SW” switch moving selector lever to
each position.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Check voltage between A/T device harness connector terminal
and ground. Refer to AT- 1 6 8 , "
Wiring Diagram — AT — NON-
DTC" .
OK or NG
OK >> Go to AT- 1 8 6 , "A/T Does Not Shift: D2 → D3" .
NG >> Check 3rd position switch. Refer to AT- 1 6 6 , "
3RD POSITION SWITCH" .
Item name Condition Display value
OVERDRIVE SWWhen setting selector lever to
“3” and “2” positions.ON
When setting selector lever to
other positions.OFF
SCIA4730E
Item Connector Terminal ConditionData
(Approx.)
3rd position
switchM62 1 - GroundWhen setting
selector lever to
“3” and “2” posi-
tions.0V
When setting
selector lever to
other positions.Battery volt-
age
SCIA7858E

AT-198
TROUBLE DIAGNOSIS FOR SYMPTOMS

A/T Does Not Shift: 33 → 22 , When Selector Lever “3” → “2” PositionBCS0014Q
SYMPTOM:
A/T does not shift from 33 to 22 when changing selector lever from “3” to “2” position on “Cruise Test
— Part 3”.
DIAGNOSTIC PROCEDURE
1. SYMPTOM CHECK
Check symptom. Refer to AT- 5 0 , "
Cruise Test — Part 1" .
Is
“A/T Does No Shift: D1 →D2 or Does Not Kickdown: D4 →D2 ” OK?
YES (With CONSULT-II)>>GO TO 2.
YES (Without CONSULT-II)>>GO TO 3.
NO >> Go to AT- 1 8 4 , "
A/T Does Not Shift: D1 → D2 or Does Not Kickdown: D4 → D2" .
2. CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P·N”, “R”, “D”, “3”, “2” and “1” position switches mov-
ing selector lever to each position.
OK or NG
OK >>INSPECTION END.
NG >> Check PNP switch. Refer to AT- 1 6 6 , "
PNP SWITCH" .
Item name Condition Display value
PN POSI SWWhen setting selector lever to
“N” or “P” position.ON
When setting selector lever to
other positions.OFF
R POSITION SWWhen setting selector lever to
“R” position.ON
When setting selector lever to
other positions.OFF
D POSITION SWWhen setting selector lever to
“D” and “3” positions.ON
When setting selector lever to
other positions.OFF
2 POSITION SWWhen setting selector lever to
“2” position.ON
When setting selector lever to
other positions.OFF
1 POSITION SWWhen setting selector lever to
“1” position.ON
When setting selector lever to
other positions.OFF
SAT701J
