2003 NISSAN PATHFINDER Owners Manual

erate properly and smoothly, and are installed
securely. Check the belt webbing for cuts, fray-
ing, wear or damage.
Accelerator pedal:
Check the pedal for smooth operation and make
sure the pedal does not catch or require uneven
effort. Keep the floor mats away from the pedal.
Clutch pedal*:
Make sure the pedal operates smoothly and
check that it has the proper free travel.
Brakes:
Check that the brakes do not pull the vehicle to
one side when applied.
Brake pedal and booster*:
Check the pedal for smooth operation and make
sure it has the proper distance under it when
depressed fully. Check the brake booster func-
tion. Be certain to keep floormats away from the
pedal.
Parking brake*:
Check that the lever has the proper travel and
confirm that your vehicle is held securely on a
fairly steep hill with only the parking brake ap-
plied.Automatic transmission P (Park) position
mechanism:
On a fairly steep hill check that your vehicle is
held securely with the selector lever in the P
position without applying any brakes.
Under the hood and vehicleThe maintenance items listed here should be
checked periodically e.g. each time you check
the engine oil or refuel.
Windshield washer fluid*:
Check that there is adequate fluid in the tank.
Engine oil level*:
Check the level after parking the vehicle on a
level spot and turning off the engine. (Be sure to
wait a few minutes to allow the oil to drain back
into the sump.)
Brake and clutch fluid levels*:
Make sure that the brake and clutch fluid level is
between the MAX and MIN lines on the reservoir.
Power steering fluid level* and lines:
Check the level when the fluid is cold and the
engine is turned off. Check the lines for proper
attachment, leaks, cracks, etc.Automatic transmission fluid level*:
Check the level after putting the selector lever in
P (Park) with the engine idling.
Engine coolant level*:
Check the coolant level when the engine is cold.
Radiator and hoses:
Check the front of the radiator and clean off any
dirt, insects, leaves, etc., that may have accumu-
lated. Make sure the hoses have no cracks,
deformation, rot or loose connections.
Engine drive belts*:
Make sure that no belt is frayed, worn, cracked
or oily.
Battery*:
Check the fluid level in each cell. It should be
between the MAX and MIN lines.
Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
Exhaust system:
Make sure there are no loose supports, cracks or
holes. If the sound of the exhaust seems unusual
or there is a smell of exhaust fumes, immediately
locate the trouble and correct it. See “Precau-
tions when starting and driving” in the “5. Start-
8-4
Maintenance and do-it-yourself


03.1.28/R50-D/V5


ing and driving” section for exhaust gas (carbon
monoxide).
Underbody:
The underbody is frequently exposed to corro-
sive substances such as those used on icy roads
or to control dust. It is very important to remove
these substances, otherwise rust will form on the
floor pan, frame, fuel lines and around the ex-
haust system. At the end of winter, the under-
body should be thoroughly flushed with plain
water, being careful to clean those areas where
mud and dirt may accumulate. For additional
information, see “Cleaning exterior” in the “7.
Appearance and care” section.
Fluid leaks:
Check under the vehicle for fuel, oil, water or
other fluid leaks after the vehicle has been
parked for a while. Water dripping from the air
conditioner after use is normal. If you should
notice any leaks or if gasoline fumes are evident,
check for the cause and have it corrected imme-
diately.When performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precau-
tions which should be closely observed.

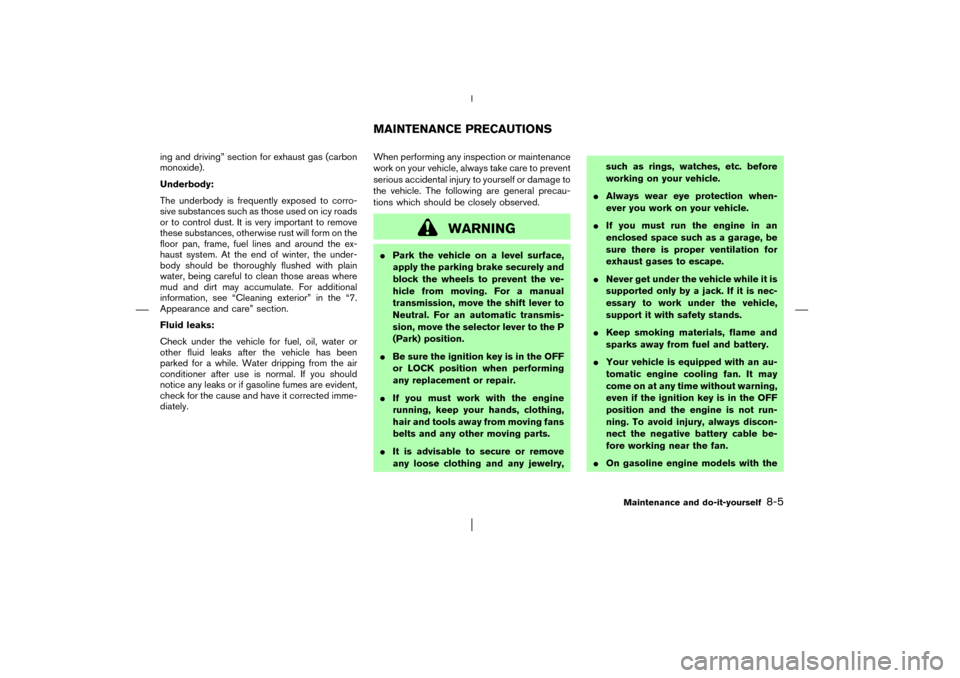

WARNING

Park the vehicle on a level surface,
apply the parking brake securely and
block the wheels to prevent the ve-
hicle from moving. For a manual
transmission, move the shift lever to
Neutral. For an automatic transmis-
sion, move the selector lever to the P
(Park) position.

Be sure the ignition key is in the OFF
or LOCK position when performing
any replacement or repair.

If you must work with the engine
running, keep your hands, clothing,
hair and tools away from moving fans
belts and any other moving parts.

It is advisable to secure or remove
any loose clothing and any jewelry,such as rings, watches, etc. before
working on your vehicle.

Always wear eye protection when-
ever you work on your vehicle.

If you must run the engine in an
enclosed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.

Never get under the vehicle while it is
supported only by a jack. If it is nec-
essary to work under the vehicle,
support it with safety stands.

Keep smoking materials, flame and
sparks away from fuel and battery.

Your vehicle is equipped with an au-
tomatic engine cooling fan. It may
come on at any time without warning,
even if the ignition key is in the OFF
position and the engine is not run-
ning. To avoid injury, always discon-
nect the negative battery cable be-
fore working near the fan.

On gasoline engine models with theMAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself
8-5


03.1.28/R50-D/V5

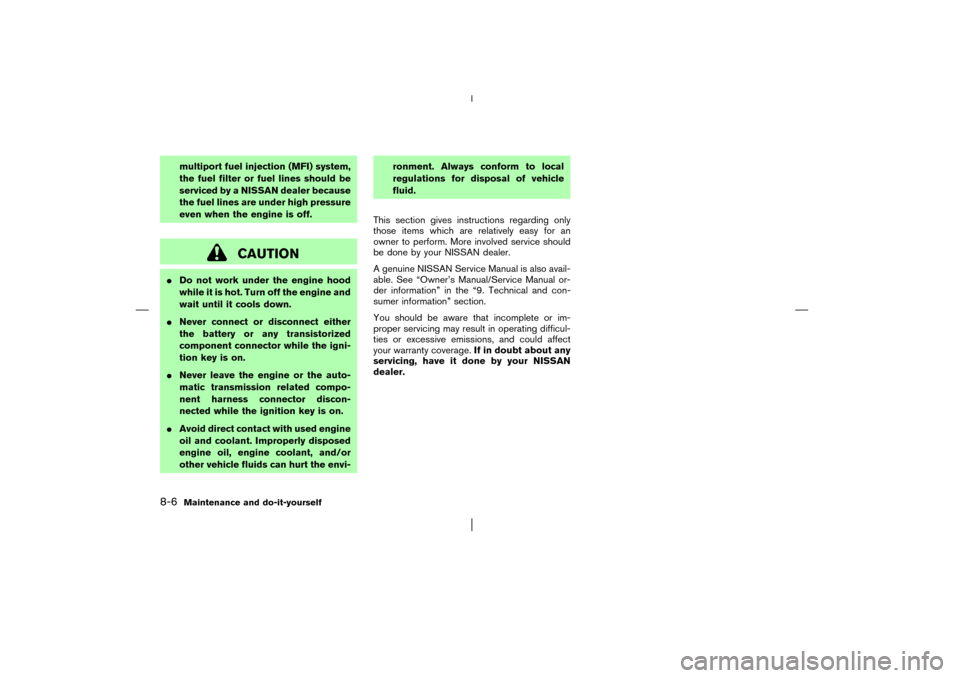

multiport fuel injection (MFI) system,
the fuel filter or fuel lines should be
serviced by a NISSAN dealer because
the fuel lines are under high pressure
even when the engine is off.
CAUTION

Do not work under the engine hood
while it is hot. Turn off the engine and
wait until it cools down.

Never connect or disconnect either
the battery or any transistorized
component connector while the igni-
tion key is on.

Never leave the engine or the auto-
matic transmission related compo-
nent harness connector discon-
nected while the ignition key is on.

Avoid direct contact with used engine
oil and coolant. Improperly disposed
engine oil, engine coolant, and/or
other vehicle fluids can hurt the envi-ronment. Always conform to local
regulations for disposal of vehicle
fluid.
This section gives instructions regarding only
those items which are relatively easy for an
owner to perform. More involved service should
be done by your NISSAN dealer.
A genuine NISSAN Service Manual is also avail-
able. See “Owner’s Manual/Service Manual or-
der information” in the “9. Technical and con-
sumer information” section.
You should be aware that incomplete or im-
proper servicing may result in operating difficul-
ties or excessive emissions, and could affect
your warranty coverage.If in doubt about any
servicing, have it done by your NISSAN
dealer.8-6
Maintenance and do-it-yourself


03.1.28/R50-D/V5


SDI1482
VQ35DE engine ENGINE COMPARTMENT CHECK
LOCATIONS
Maintenance and do-it-yourself
8-7


03.1.28/R50-D/V5


SDI0418A
VG33E engine8-8
Maintenance and do-it-yourself


03.1.28/R50-D/V5


The engine cooling system is filled at the factory
with a high-quality, year-round, anti-freeze cool-
ant solution. The anti-freeze solution contains
rust and corrosion inhibitors, therefore additional
cooling system additives are not necessary.

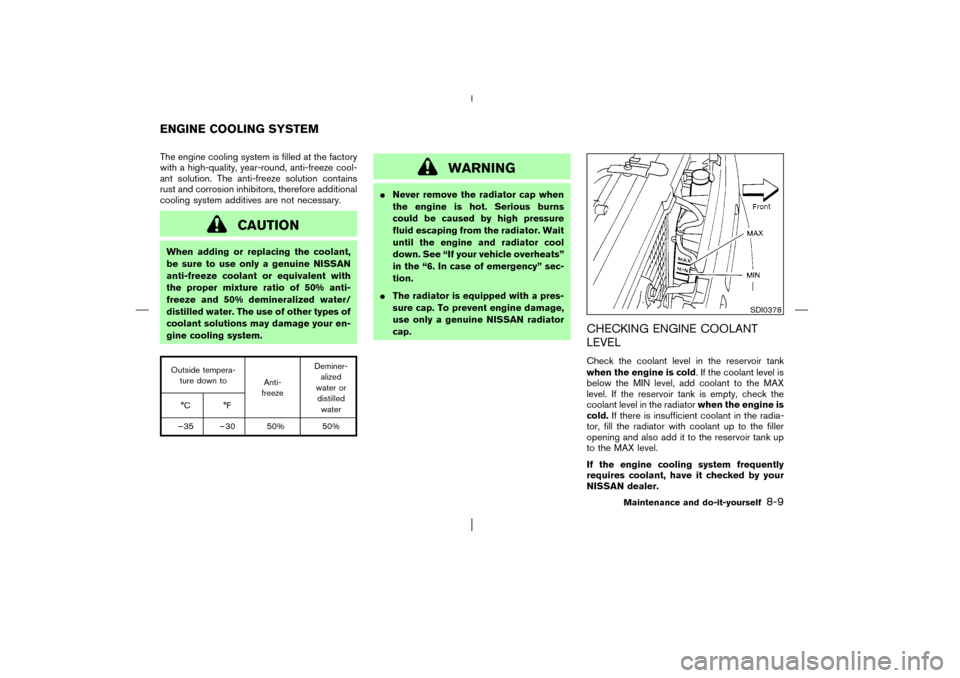

CAUTION
When adding or replacing the coolant,
be sure to use only a genuine NISSAN
anti-freeze coolant or equivalent with
the proper mixture ratio of 50% anti-
freeze and 50% demineralized water/
distilled water. The use of other types of
coolant solutions may damage your en-
gine cooling system.Outside tempera-
ture down to
Anti-
freezeDeminer-
alized
water or
distilled
water °C °F
−35 −30 50% 50%
WARNING

Never remove the radiator cap when
the engine is hot. Serious burns
could be caused by high pressure
fluid escaping from the radiator. Wait
until the engine and radiator cool
down. See “If your vehicle overheats”
in the “6. In case of emergency” sec-
tion.

The radiator is equipped with a pres-
sure cap. To prevent engine damage,
use only a genuine NISSAN radiator
cap.
CHECKING ENGINE COOLANT
LEVELCheck the coolant level in the reservoir tank
when the engine is cold. If the coolant level is
below the MIN level, add coolant to the MAX
level. If the reservoir tank is empty, check the
coolant level in the radiatorwhen the engine is
cold.If there is insufficient coolant in the radia-
tor, fill the radiator with coolant up to the filler
opening and also add it to the reservoir tank up
to the MAX level.
If the engine cooling system frequently
requires coolant, have it checked by your
NISSAN dealer.
SDI0378
ENGINE COOLING SYSTEM
Maintenance and do-it-yourself
8-9


03.1.28/R50-D/V5


CHANGING ENGINE COOLANT
Major cooling system repairs should be per-
formed by your NISSAN dealer. The service
procedures can be found in the appropriate
NISSAN Service Manual.

Improper servicing can result in reduced
heater performance and engine overheating.

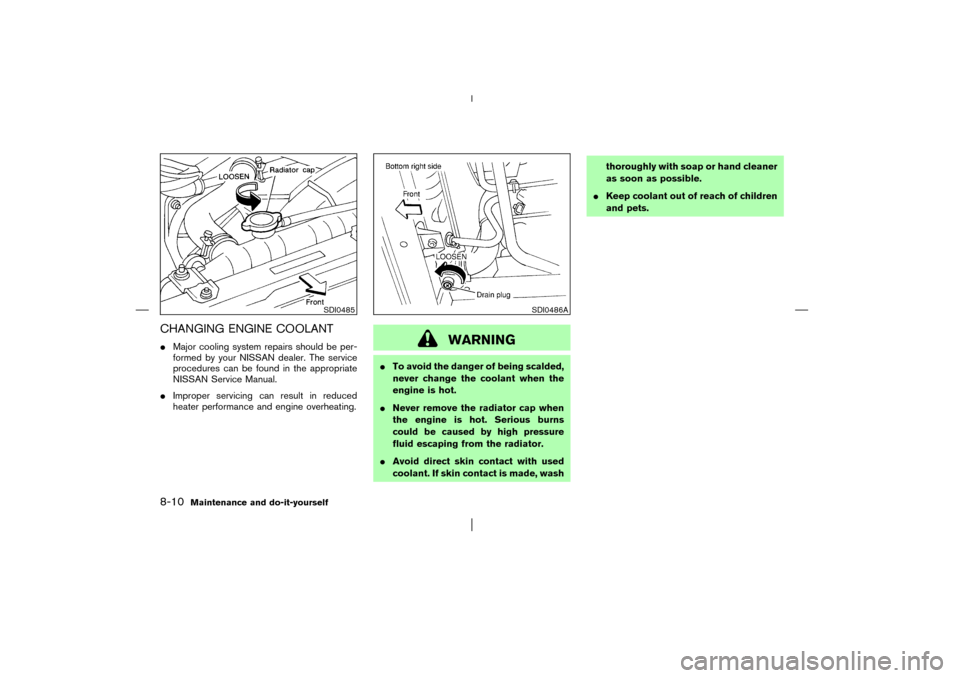

WARNING

To avoid the danger of being scalded,
never change the coolant when the
engine is hot.

Never remove the radiator cap when
the engine is hot. Serious burns
could be caused by high pressure
fluid escaping from the radiator.

Avoid direct skin contact with used
coolant. If skin contact is made, washthoroughly with soap or hand cleaner
as soon as possible.

Keep coolant out of reach of children
and pets.
SDI0485
SDI0486A
8-10
Maintenance and do-it-yourself


03.1.28/R50-D/V5


1. Perform the following procedure to open the
heater water cock.

Turn the ignition key from OFF to ON.

Move the heater or air conditioner tem-
perature control dial to the maximum hot
position then turn the ignition key to OFF.
2. Open the radiator drain plugs and radiator
cap.
Open the drain plugs on the engine block.
SDI1109SDI1118
SDI0409ASDI0410A
Maintenance and do-it-yourself
8-11


03.1.28/R50-D/V5
