2003 NISSAN PATHFINDER Owners Manual

MEMO2-50
Instruments and controls


03.1.28/R50-D/V5


3 Pre-driving checks and adjustmentsKeys ........................................................................................... 3-2
Doors......................................................................................... 3-2
Locking with key ............................................................... 3-3
Front window open/close with key.............................. 3-3
Locking with inside lock knob...................................... 3-3
Locking with power door lock switch (if so
equipped) ........................................................................... 3-4
Child safety rear door lock ............................................ 3-4
Remote keyless entry system ............................................. 3-5
How to use remote keyless entry system.................. 3-5
Battery replacement ........................................................ 3-8
Hood ......................................................................................... 3-9
Back door .............................................................................. 3-10
Key operation.................................................................. 3-10
Spare tire carrier (if so equipped) .................................. 3-10
Glass hatch ........................................................................... 3-11Opener operation (if so equipped) ........................... 3-11
Key operation.................................................................. 3-12
Fuel filler lid ........................................................................... 3-13
Opener operation .......................................................... 3-13
Fuel filler cap .................................................................. 3-13
Steering wheel ..................................................................... 3-15
Tilt operation ................................................................... 3-15
Sun visors.............................................................................. 3-15
Using the sun visors ..................................................... 3-16
Mirrors .................................................................................... 3-16
Inside mirror .................................................................... 3-16
Outside mirrors .............................................................. 3-16
Automatic seat positioner (if so equipped) .................. 3-17
Automatic seat positioner operation ......................... 3-17
Cancel switch ................................................................. 3-19


03.1.28/R50-D/V5


You can only drive your vehicle using the master
keys which are registered to the Nissan Vehicle
Immobilizer System components in your vehicle.
These keys have a transponder chip in the key
head.
The keys can be used for the door, back door or
glove box locks.
Never leave these keys in the vehicle.
Record the key number on the key number plate
supplied with your keys and keep it in a safe
place (such as your wallet), not in the vehicle.
NISSAN does not record any key number so it is
very important to keep track of your key number
plate.A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by your NISSAN dealer.
Nissan Vehicle Immobilizer System keys:
The key number is necessary when you need
extra Nissan Vehicle Immobilizer System keys.
As many as 5 Nissan Vehicle Immobilizer System
keys can be used with one vehicle. New keys
must be registered to the Nissan Vehicle Immo-
bilizer System components in your vehicle by
your NISSAN dealer. At this time, you should
bring all Nissan Vehicle Immobilizer System keys
that you have to your NISSAN dealer for regis-
tration. This is because the registration process
will erase all memory of the Nissan Vehicle
Immobilizer System components.

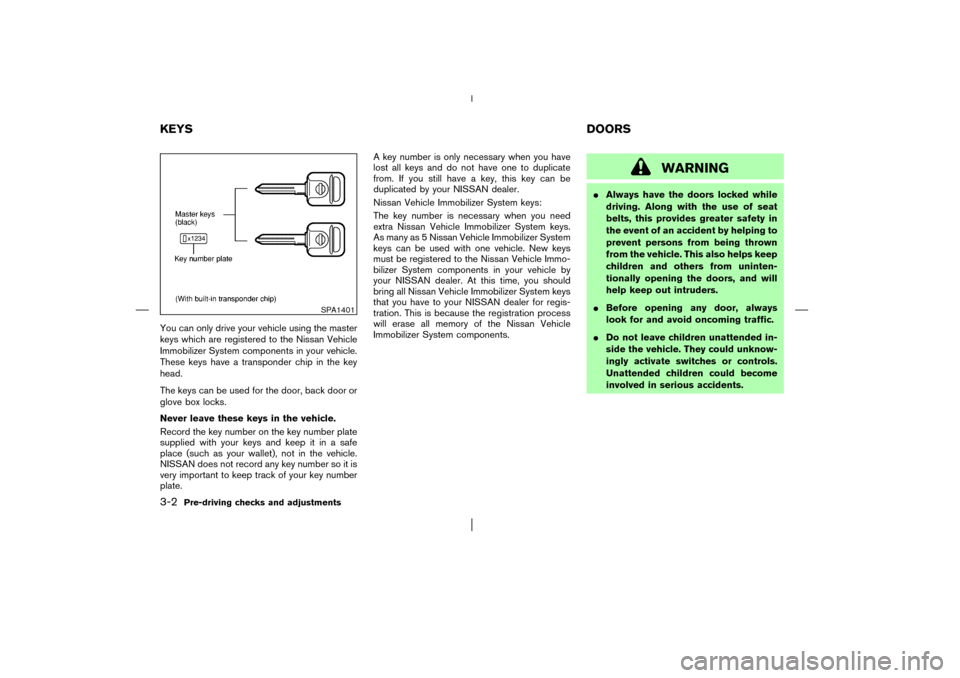

WARNING

Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from uninten-
tionally opening the doors, and will
help keep out intruders.

Before opening any door, always
look for and avoid oncoming traffic.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.
SPA1401
KEYSDOORS3-2
Pre-driving checks and adjustments


03.1.28/R50-D/V5


LOCKING WITH KEY
ManualTo lock the door, turn the key towards the front
of the vehicle. To unlock, turn it towards the rear.PowerThe power door lock system allows you to lock
or unlock all doors including the back door
simultaneously.

Turning the driver’s door key to the front of
the vehicle will lock all doors.

Turning the driver’s door key one time to therear of the vehicle will unlock the correspond-
ing door. From that position, returning the key
to neutral (where the key can only be re-
moved and inserted.) and turning it to the rear
again within 5 seconds will unlock all doors.
FRONT WINDOW OPEN/CLOSE
WITH KEYTurn the driver’s door key to the unlock position
and hold for about 1 second, the front windows
will begin to lower.
To stop opening, turn the key to the neutral
position.
To close the front windows with the door key
cylinder, turn the key to the lock position and
hold for about 1 second.
To stop closing, turn the key to the neutral
position.
In the event of a hand in the way, or other
obstruction, the auto reverse function will acti-
vate.
LOCKING WITH INSIDE LOCK
KNOBPushing or pulling the door inside lock knobto
the lock or unlock will lock or unlock the corre-
sponding door.
To lock from the outside without a key, move the
inside lock knobto the LOCK position. Then
close the door. When locking the door this way,
be certain not to leave the key inside the vehicle.
SPA1500
PD1160M
Pre-driving checks and adjustments
3-3


03.1.28/R50-D/V5


LOCKING WITH POWER DOOR
LOCK SWITCH (if so equipped)Operating the lock-unlock switch will lock or
unlock all doors including the back door simul-
taneously.
All door locks will be engaged when the power
door lock switch is moved to the LOCK position
with the driver’s or front passenger’s door open.
Then close the door and all doors will be locked.
When the power door lock switch is moved to
the LOCK position while any front doors is open
and a key is in the ignition switch, all doors will
lock once and then unlock automatically.
CHILD SAFETY REAR DOOR LOCKChild safety locking helps prevent doors from
being opened accidentally, especially when
small children are in the vehicle.
When the lever is in the lock position, the
rear door can be opened only from the
outside.
SPA1443B
SPA0944C
SPA0841
3-4
Pre-driving checks and adjustments


03.1.28/R50-D/V5


It is possible to lock/unlock all doors and acti-
vate the panic alarm by using the keyfob from
outside the vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfobcan operate at a distance of approxi-
mately 33 ft (10 m) from the vehicle. (The
effective distance depends upon the conditions
around the vehicle.)
As many as four keyfobs can be used with one
vehicle. For information concerning the purchase
and use of additional keyfobs, contact your
NISSAN dealer.
The keyfobwill not function when:

the battery is dead,

the distance between the vehicle and the
keyfobis over 33 ft (10 m).
The panic alarm will not activate when the
key is in the ignition switch.

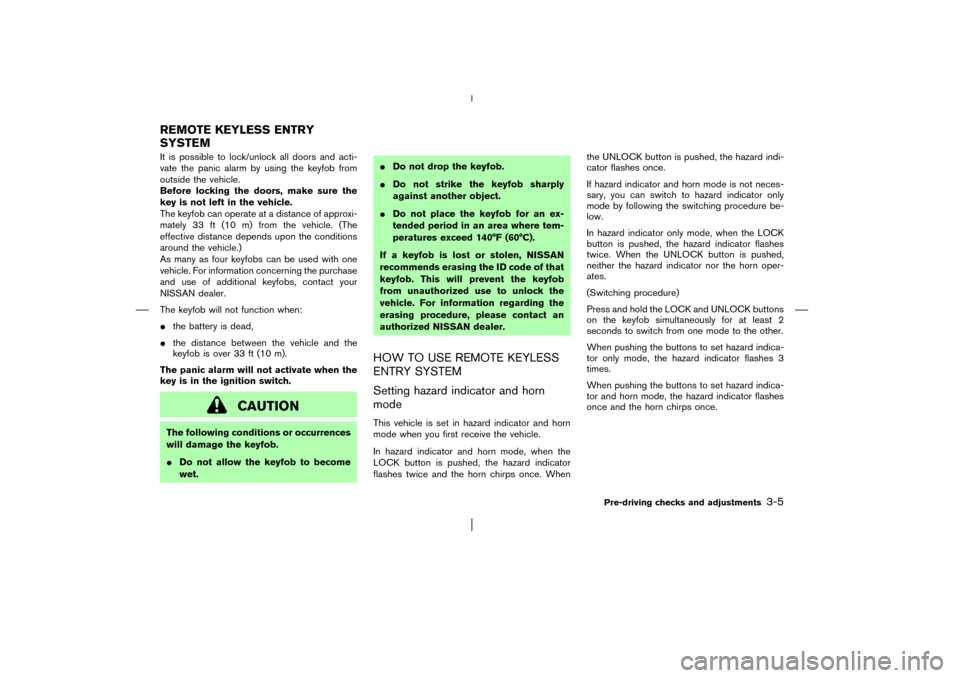

CAUTION
The following conditions or occurrences
will damage the keyfob.

Do not allow the keyfob to become
wet.
Do not drop the keyfob.

Do not strike the keyfob sharply
against another object.

Do not place the keyfob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C).
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact an
authorized NISSAN dealer.
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Setting hazard indicator and horn
modeThis vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK button is pushed, the hazard indicator
flashes twice and the horn chirps once. Whenthe UNLOCK button is pushed, the hazard indi-
cator flashes once.
If hazard indicator and horn mode is not neces-
sary, you can switch to hazard indicator only
mode by following the switching procedure be-
low.
In hazard indicator only mode, when the LOCK
button is pushed, the hazard indicator flashes
twice. When the UNLOCK button is pushed,
neither the hazard indicator nor the horn oper-
ates.
(Switching procedure)
Press and hold the LOCK and UNLOCK buttons
on the keyfobsimultaneously for at least 2
seconds to switch from one mode to the other.
When pushing the buttons to set hazard indica-
tor only mode, the hazard indicator flashes 3
times.
When pushing the buttons to set hazard indica-
tor and horn mode, the hazard indicator flashes
once and the horn chirps once.
REMOTE KEYLESS ENTRY
SYSTEM
Pre-driving checks and adjustments
3-5


03.1.28/R50-D/V5


Locking doors1. Remove the ignition key.*1
2. Close all the doors.*2
3. Push the LOCK button on the keyfob.
4. All the doors will lock.
All of the doors will lock when the LOCK
button on the keyfob is pushed even
though a door remains open and/or the
ignition key is in the ONposition.
5. The hazard indicator flashes twice and the
horn chirps once.
When the LOCK button is pushed with all
doors locked, the hazard indicator flashes
twice and the horn chirps once as a reminder
that the doors are already locked.
*1: Doors lock with the keyfobwhile a key is in
the ignition switch. However, the panic
alarm will not activate when the ignition
switch is in the ACC or ON position.
*2: Doors lock with the keyfobwhile any door is
open. However, hazard indicator and horn
mode will not function.
SPA1260
3-6
Pre-driving checks and adjustments


03.1.28/R50-D/V5


Unlocking doors1. Push the UNLOCK button on the keyfob
once.

Only the driver’s door unlocks
The hazard indicator flashes once if all doors
are completely closed with the ignition key in
any position except the ON position.

The interior light turns on and the light timer
activates for 30 seconds when the switch is
in the centerposition with the ignition keyin any position except the ON position.
2. Push the UNLOCK button on the keyfob
again within 5 seconds.

All doors unlock

The hazard indicator flashes once if all doors
are completely closed.
If the following operation is not carried out
within 5 minutes after pressing the
UNLOCK button, all doors will be locked
automatically.

any door is opened.

the ignition key is turned to the ON
position
The interior light can be turned off without
waiting for 30 seconds by turning the ignition
switch to the ON position or by locking the
doors with the keyfob.
Opening the front windowPush the UNLOCK button on the keyfob.
The driver’s door will unlock.
Continue to press the UNLOCK button for 3
seconds. The driver’s and front passenger’s
windows will be lowered.
Continue to press the UNLOCK button until
windows are fully open.
SPA1373
Pre-driving checks and adjustments
3-7
