tioner temperature control to maximum hot
and fan control to high speed.
3. If engine overheating is caused by climbing a
long hill on a hot day, run the engine at a fast
idle (approximately 1,500 rpm) until the tem-
perature gauge indication returns to normal.
4. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radiator
before opening the hood. Wait until no steam
or coolant can be seen before proceeding.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check drive belts for damage or
looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the cooling fan belt is missing or loose or the
cooling fan does not run, stop the engine.
WARNING

Be careful not to allow your hands,
hair, jewelry or clothing to come into
contact with, or to get caught in, the
cooling fan, or drive belt.

The engine cooling fan can start at
any time when the coolant tempera-
ture is high.
7. After the engine cools down, check the cool-
ant level in the reservoir tank with the engine
running. Add coolant to the reservoir tank if
necessary. Have your vehicle repaired at the
nearest NISSAN dealer.When towing your vehicle, all State (Provincial in
Canada) and local regulations for towing must
be followed. Incorrect towing equipment could
damage your vehicle. Towing instructions are
available from your NISSAN dealer. Local ser-
vice operators are generally familiar with the
applicable laws and procedures for towing. To
assure proper towing and to prevent accidental
damage to your vehicle, NISSAN recommends
having a service operator tow your vehicle. It is
advisable to have the service operator carefully
read the following precautions:
WARNING

Never ride in a vehicle that is being
towed.

Never get under your vehicle after it
has been lifted by a tow truck.
CAUTION

When towing, make sure that the
transmission, axles, steering system
and powertrain are in working condi-TOWING YOUR VEHICLE
6-12
In case of emergency


03.1.28/R50-D/V5


tion. If any unit is damaged, dollies
must be used.

Always attach safety chains before
towing.
SCE0196
SCE0197B
In case of emergency
6-13


03.1.28/R50-D/V5


TOWING RECOMMENDED BY
NISSAN
Two wheel drive modelsNISSAN recommends that your vehicle be
towed with the driving (rear) wheels off the
ground or place the vehicle on a flat bed truck as
illustrated.
CAUTION

Never tow automatic transmission
models with the rear wheels on the
ground or four wheels on the ground
(forward or backward), as this may
cause serious and expensive damage
to the transmission. If it is necessary
to tow the vehicle with the front
wheels raised, always use towing
dollies under the rear wheels.

When towing automatic or manual
transmission models with the front
wheels on the ground or on towing
dollies:

Turn the ignition key to the OFF
position, and secure the steeringwheel in a straightahead position
with a rope or similar device. Never
secure the steering wheel by turn-
ing the ignition key to the LOCK
position. This may damage the
steering lock mechanism.

If you have to tow manual transmis-
sion models with the rear wheels on
the ground or four wheels on the
ground (if you do not use towing
dollies):

Always release the parking brake.

Move the transmission shift lever
to the N(Neutral) position.

Observe the following restricted tow-
ing speeds and distances for manual
transmission models only:

Speed: Below 60 MPH (95 km/h)

Distance: Less than 500 miles (800
km)
If the speed or distance must necessarily be
greater, remove the propeller shaft before tow-
ing to prevent damage to the transmission.
Part time four wheel drive modelsNISSAN recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.
SCE0198
6-14
In case of emergency


03.1.28/R50-D/V5

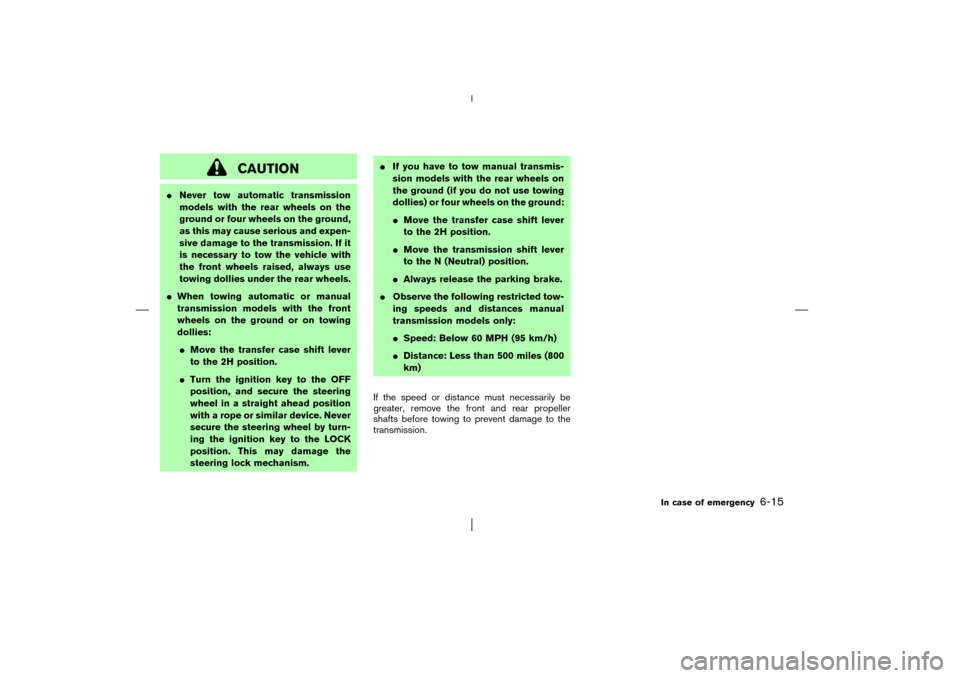

CAUTION

Never tow automatic transmission
models with the rear wheels on the
ground or four wheels on the ground,
as this may cause serious and expen-
sive damage to the transmission. If it
is necessary to tow the vehicle with
the front wheels raised, always use
towing dollies under the rear wheels.

When towing automatic or manual
transmission models with the front
wheels on the ground or on towing
dollies:

Move the transfer case shift lever
to the 2H position.

Turn the ignition key to the OFF
position, and secure the steering
wheel in a straight ahead position
with a rope or similar device. Never
secure the steering wheel by turn-
ing the ignition key to the LOCK
position. This may damage the
steering lock mechanism.
If you have to tow manual transmis-
sion models with the rear wheels on
the ground (if you do not use towing
dollies) or four wheels on the ground:

Move the transfer case shift lever
to the 2H position.

Move the transmission shift lever
to the N(Neutral) position.

Always release the parking brake.

Observe the following restricted tow-
ing speeds and distances manual
transmission models only:

Speed: Below 60 MPH (95 km/h)

Distance: Less than 500 miles (800
km)
If the speed or distance must necessarily be
greater, remove the front and rear propeller
shafts before towing to prevent damage to the
transmission.
In case of emergency
6-15


03.1.28/R50-D/V5


All-mode four wheel drive modelsNISSAN recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.

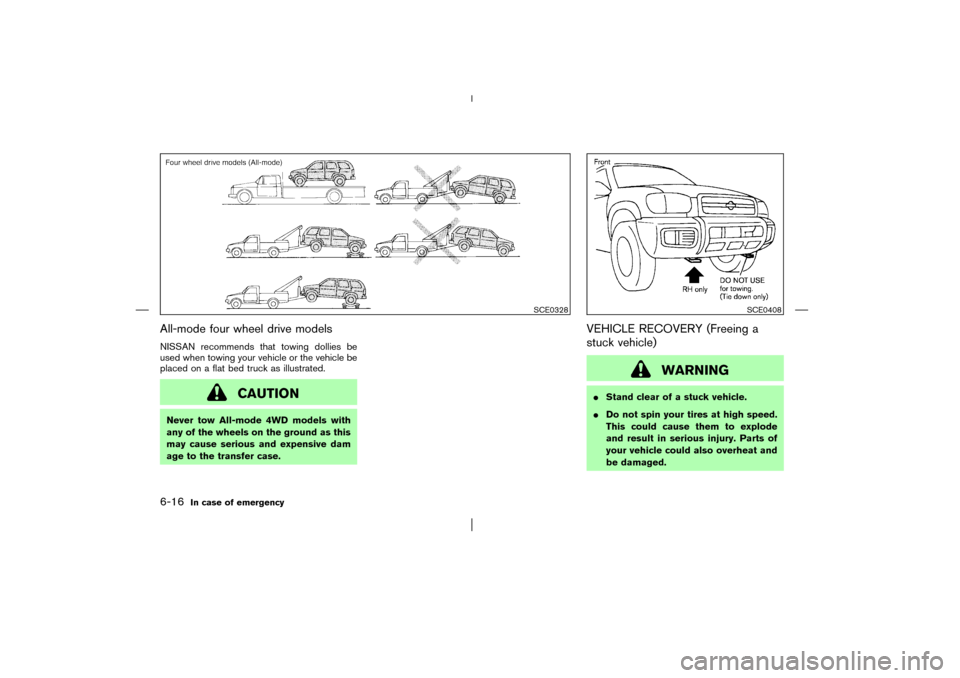

CAUTION
Never tow All-mode 4WD models with
any of the wheels on the ground as this
may cause serious and expensive dam
age to the transfer case.
VEHICLE RECOVERY (Freeing a
stuck vehicle)
WARNING

Stand clear of a stuck vehicle.

Do not spin your tires at high speed.
This could cause them to explode
and result in serious injury. Parts of
your vehicle could also overheat and
be damaged.
SCE0328
SCE0408
6-16
In case of emergency


03.1.28/R50-D/V5

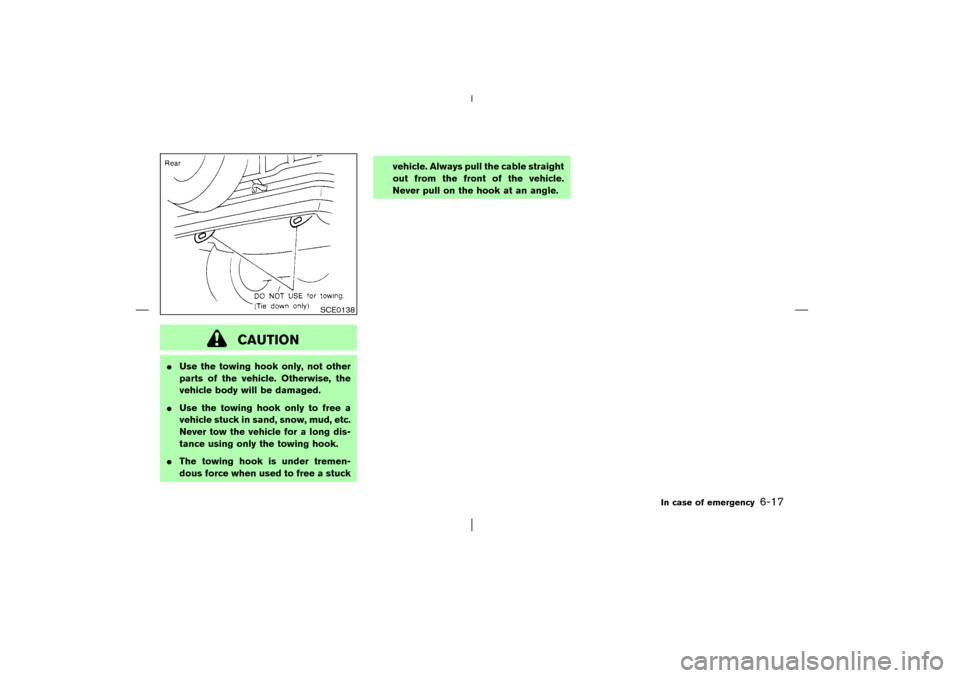

CAUTION

Use the towing hook only, not other
parts of the vehicle. Otherwise, the
vehicle body will be damaged.

Use the towing hook only to free a
vehicle stuck in sand, snow, mud, etc.
Never tow the vehicle for a long dis-
tance using only the towing hook.

The towing hook is under tremen-
dous force when used to free a stuckvehicle. Always pull the cable straight
out from the front of the vehicle.
Never pull on the hook at an angle.
SCE0138
In case of emergency
6-17


03.1.28/R50-D/V5
