2003 NISSAN PATHFINDER Owners Manual

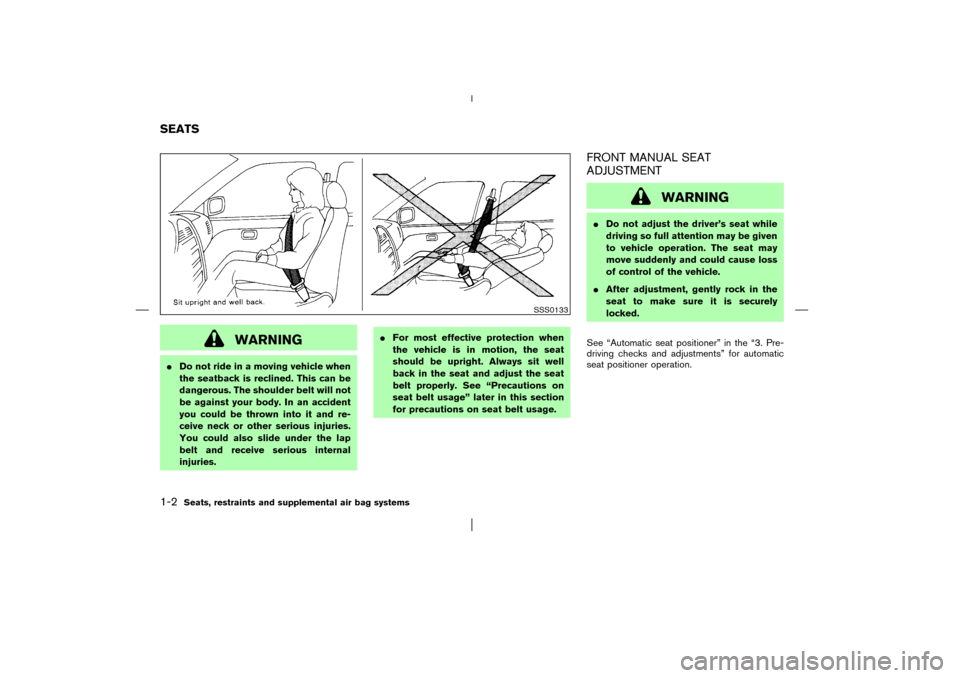

WARNING

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal
injuries.
For most effective protection when
the vehicle is in motion, the seat
should be upright. Always sit well
back in the seat and adjust the seat
belt properly. See “Precautions on
seat belt usage” later in this section
for precautions on seat belt usage.
FRONT MANUAL SEAT
ADJUSTMENT
WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.

After adjustment, gently rock in the
seat to make sure it is securely
locked.
See “Automatic seat positioner” in the “3. Pre-
driving checks and adjustments” for automatic
seat positioner operation.
SSS0133
SEATS1-2
Seats, restraints and supplemental air bag systems


03.1.28/R50-D/V5


Forward and backwardPull the lever up while you slide the seat forward
or backward to the desired position. Release the
lever to lock the seat in position.
RecliningTo recline the seatback, pull the lever up and
lean back. To bring the seatback forward again,
pull the lever and move your body forward. The
seatback will move forward.
Seat lifter (if so equipped for driver’s
seat)Turn either dial to adjust the angle and height of
the seat cushion to the desired position.
SSS0169
SSS0168
Seats, restraints and supplemental air bag systems
1-3


03.1.28/R50-D/V5


Lumbar support (if so equipped for
driver’s seat)Turn the lever forward or backward to adjust the
seat lumbar area.
FRONT POWER SEAT
ADJUSTMENT

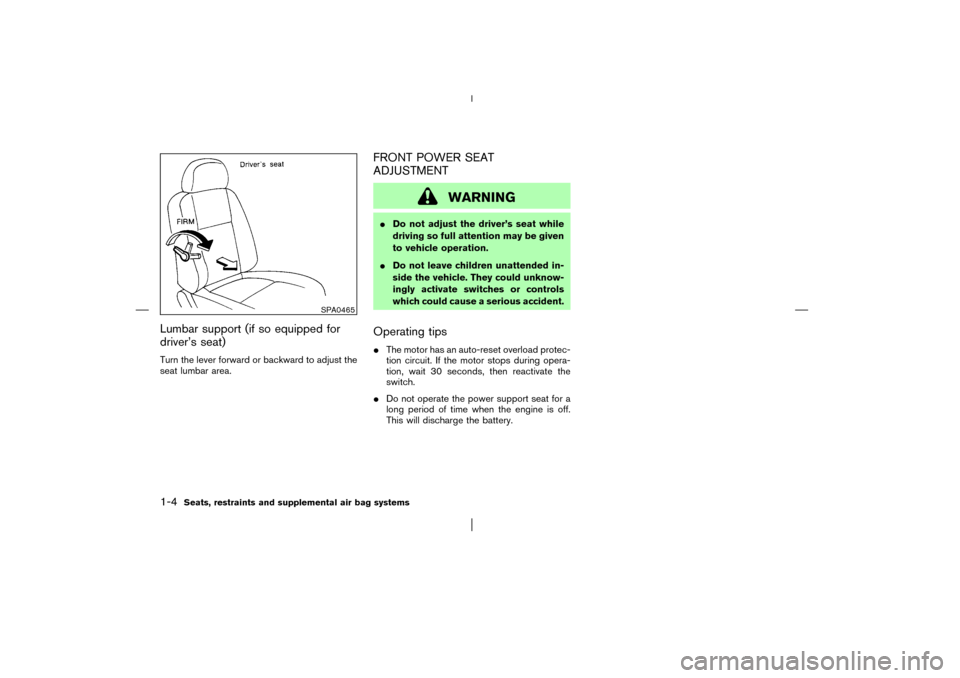

WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls
which could cause a serious accident.Operating tips
The motor has an auto-reset overload protec-
tion circuit. If the motor stops during opera-
tion, wait 30 seconds, then reactivate the
switch.

Do not operate the power support seat for a
long period of time when the engine is off.
This will discharge the battery.
SPA0465
1-4
Seats, restraints and supplemental air bag systems


03.1.28/R50-D/V5


Forward and backwardMoving the switch forward or backward will slide
the seat forward or backward to the desired
position.
RecliningMove the recline switch backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward.
Seat lifterPush the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
SSS0148
SSS0166
Seats, restraints and supplemental air bag systems
1-5


03.1.28/R50-D/V5


Lumbar support (if so equipped for
driver’s seat)Turn the lever forward or backward to adjust the
seat lumbar area.
REAR SEAT ADJUSTMENTBefore folding down the seat, put the buckle in
its storage area in the seatback to avoid drop-
ping it under the seat cushion.
SPA0465
SPA0189
1-6
Seats, restraints and supplemental air bag systems


03.1.28/R50-D/V5


Folding1. Remove the head restraints.
2. Pull the strap forward and fold the seat
cushion up.
3. Pull the lever and pull the seatback forward to
fold it down.
4. When resetting the seat, be sure to install the
head restraints.

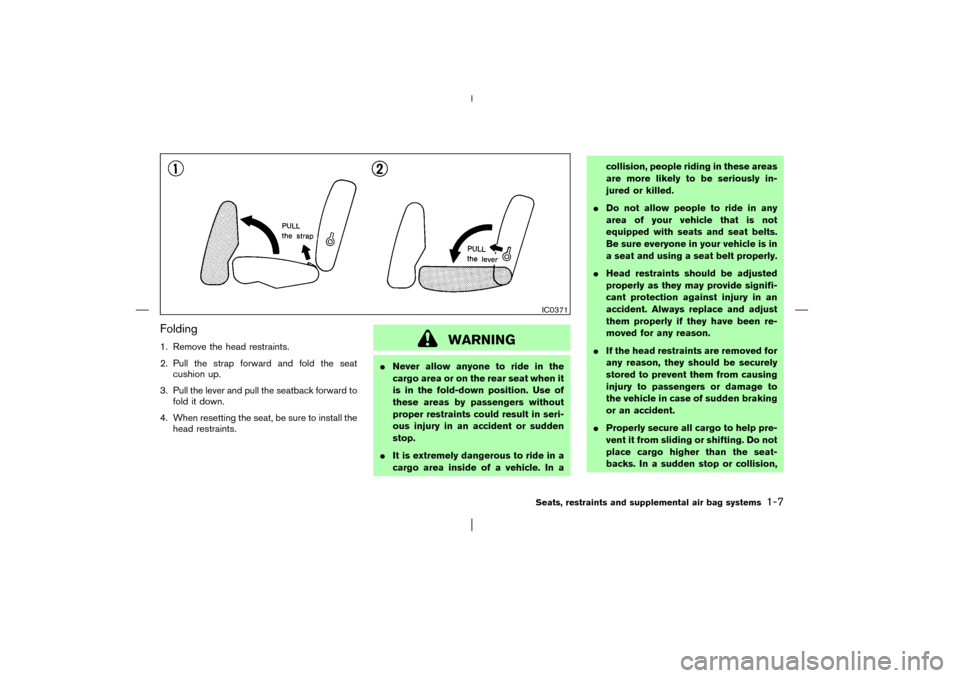

WARNING

Never allow anyone to ride in the
cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury in an accident or sudden
stop.

It is extremely dangerous to ride in a
cargo area inside of a vehicle. In acollision, people riding in these areas
are more likely to be seriously in-
jured or killed.

Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
Be sure everyone in your vehicle is in
a seat and using a seat belt properly.

Head restraints should be adjusted
properly as they may provide signifi-
cant protection against injury in an
accident. Always replace and adjust
them properly if they have been re-
moved for any reason.

If the head restraints are removed for
any reason, they should be securely
stored to prevent them from causing
injury to passengers or damage to
the vehicle in case of sudden braking
or an accident.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
IC0371Seats, restraints and supplemental air bag systems
1-7


03.1.28/R50-D/V5

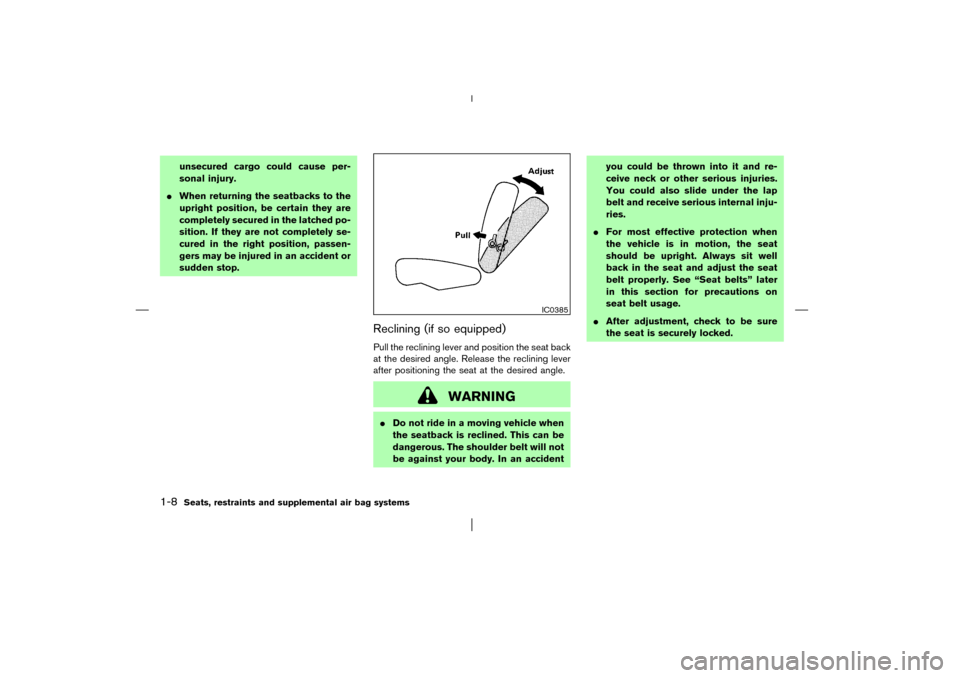

unsecured cargo could cause per-
sonal injury.

When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured in the right position, passen-
gers may be injured in an accident or
sudden stop.
Reclining (if so equipped)Pull the reclining lever and position the seat back
at the desired angle. Release the reclining lever
after positioning the seat at the desired angle.
WARNING

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accidentyou could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal inju-
ries.

For most effective protection when
the vehicle is in motion, the seat
should be upright. Always sit well
back in the seat and adjust the seat
belt properly. See “Seat belts” later
in this section for precautions on
seat belt usage.

After adjustment, check to be sure
the seat is securely locked.
IC0385
1-8
Seats, restraints and supplemental air bag systems


03.1.28/R50-D/V5


HEAD RESTRAINT ADJUSTMENT

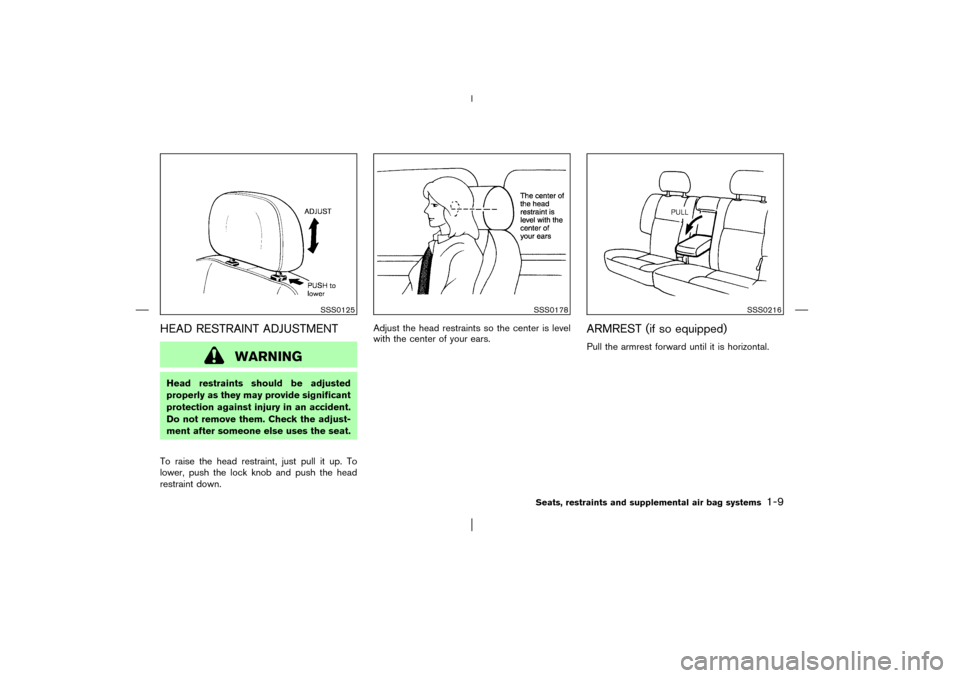

WARNING
Head restraints should be adjusted
properly as they may provide significant
protection against injury in an accident.
Do not remove them. Check the adjust-
ment after someone else uses the seat.
To raise the head restraint, just pull it up. To
lower, push the lock knoband push the head
restraint down.Adjust the head restraints so the center is level
with the center of your ears.
ARMREST (if so equipped)Pull the armrest forward until it is horizontal.
SSS0125
SSS0178
SSS0216
Seats, restraints and supplemental air bag systems
1-9


03.1.28/R50-D/V5
