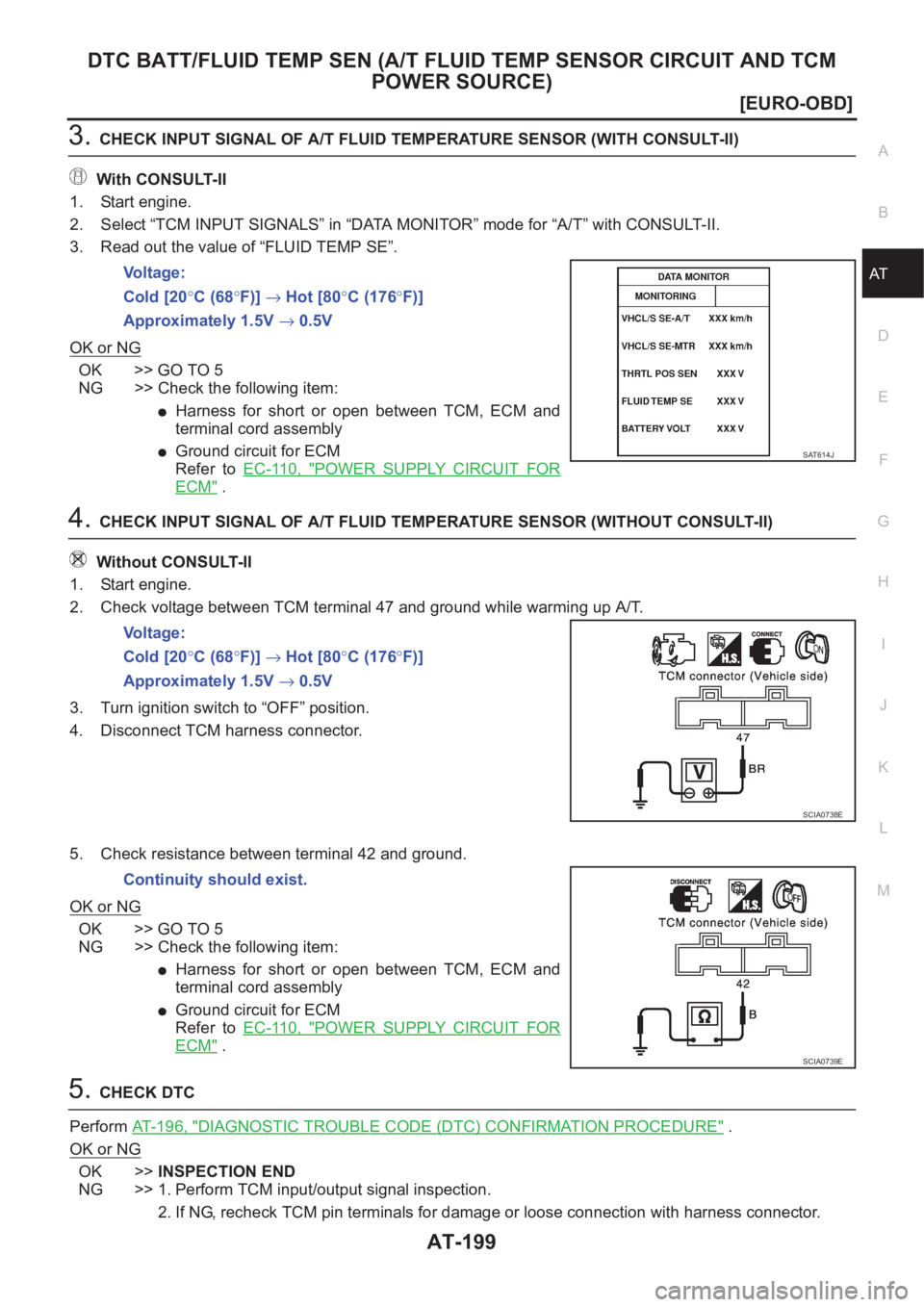

DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-199
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “FLUID TEMP SE”.
OK or NG
OK >> GO TO 5
NG >> Check the following item:
●Harness for short or open between TCM, ECM and
terminal cord assembly
●Ground circuit for ECM
Refer to EC-110, "
POWER SUPPLY CIRCUIT FOR
ECM" .
4.CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 47 and ground while warming up A/T.
3. Turn ignition switch to “OFF” position.
4. Disconnect TCM harness connector.
5. Check resistance between terminal 42 and ground.
OK or NG
OK >> GO TO 5
NG >> Check the following item:
●Harness for short or open between TCM, ECM and
terminal cord assembly
●Ground circuit for ECM
Refer to EC-110, "
POWER SUPPLY CIRCUIT FOR
ECM" .
5.CHECK DTC
Perform AT- 1 9 6 , "
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Vo l t a g e :
Cold [20°C (68°F)]→ Hot [80°C (176°F)]
Approximately 1.5V → 0.5V
SAT614J
Vo l t a g e :
Cold [20°C (68°F)]→ Hot [80°C (176°F)]
Approximately 1.5V → 0.5V
SCIA0738E
Continuity should exist.
SCIA0739E

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-245
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

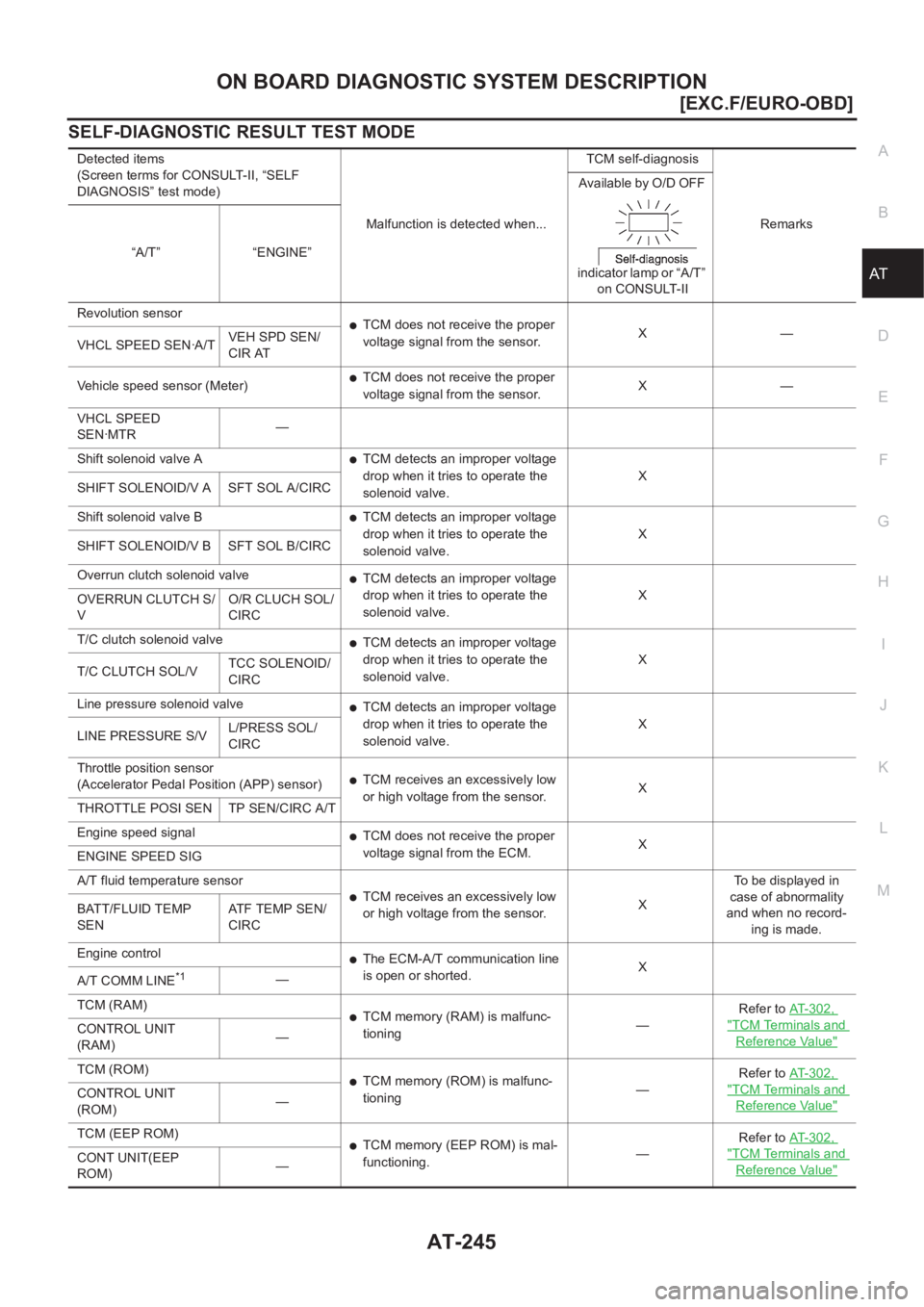

SELF-DIAGNOSTIC RESULT TEST MODE
Detected items
(Screen terms for CONSULT-II, “SELF
DIAGNOSIS” test mode)
Malfunction is detected when...TCM self-diagnosis
Remarks Available by O/D OFF
indicator lamp or “A/T”
on CONSULT-II “A/T” “ENGINE”
Revolution sensor
●TCM does not receive the proper
voltage signal from the sensor.X—
VHCL SPEED SEN·A/TVEH SPD SEN/
CIR AT
Vehicle speed sensor (Meter)
●TCM does not receive the proper
voltage signal from the sensor.X—
VHCL SPEED
SEN·MTR—
Shift solenoid valve A
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X
SHIFT SOLENOID/V A SFT SOL A/CIRC
Shift solenoid valve B
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X
SHIFT SOLENOID/V B SFT SOL B/CIRC
Overrun clutch solenoid valve
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X
OVERRUN CLUTCH S/
VO/R CLUCH SOL/
CIRC
T/C clutch solenoid valve
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X
T/C CLUTCH SOL/VTCC SOLENOID/
CIRC
Line pressure solenoid valve
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X
LINE PRESSURE S/VL/PRESS SOL/
CIRC
Throttle position sensor
(Accelerator Pedal Position (APP) sensor)
●TCM receives an excessively low
or high voltage from the sensor.X
THROTTLE POSI SEN TP SEN/CIRC A/T
Engine speed signal
●TCM does not receive the proper
voltage signal from the ECM.X
ENGINE SPEED SIG
A/T fluid temperature sensor
●TCM receives an excessively low
or high voltage from the sensor.XTo be displayed in
case of abnormality
and when no record-
ing is made. BATT/FLUID TEMP
SENATF TEMP SEN/
CIRC
Engine control
●The ECM-A/T communication line
is open or shorted.X
A/T COMM LINE
*1—
TCM (RAM)
●TCM memory (RAM) is malfunc-
tioning—Refer to AT- 3 0 2 , "TCM Terminals and
Reference Value"CONTROL UNIT
(RAM)—
TCM (ROM)
●TCM memory (ROM) is malfunc-
tioning—Refer to AT- 3 0 2 , "TCM Terminals and
Reference Value"CONTROL UNIT
(ROM)—
TCM (EEP ROM)
●TCM memory (EEP ROM) is mal-
functioning.—Refer to AT- 3 0 2 , "TCM Terminals and
Reference Value"CONT UNIT(EEP
ROM)—

AT-254
[EXC.F/EURO-OBD]

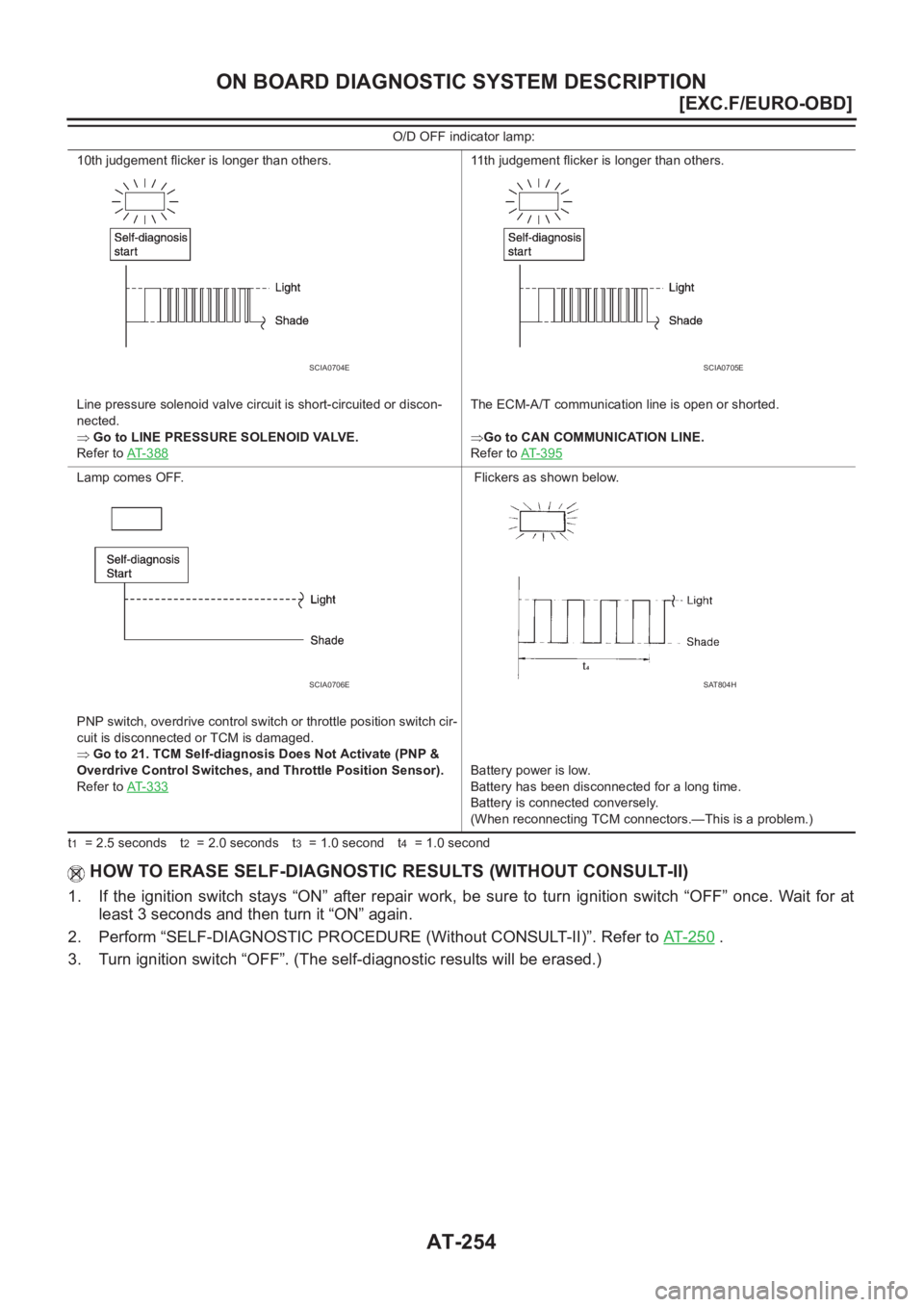

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
t1 = 2.5 seconds t2 = 2.0 seconds t3 = 1.0 second t4 = 1.0 second
HOW TO ERASE SELF-DIAGNOSTIC RESULTS (WITHOUT CONSULT-II)
1. If the ignition switch stays “ON” after repair work, be sure to turn ignition switch “OFF” once. Wait for at
least 3 seconds and then turn it “ON” again.
2. Perform “SELF-DIAGNOSTIC PROCEDURE (Without CONSULT-II)”. Refer to AT- 2 5 0
.
3. Turn ignition switch “OFF”. (The self-diagnostic results will be erased.)
10th judgement flicker is longer than others.
Line pressure solenoid valve circuit is short-circuited or discon-
nected.
 Go to LINE PRESSURE SOLENOID VALVE.
Refer to AT-38811th judgement flicker is longer than others.
The ECM-A/T communication line is open or shorted.
Go to CAN COMMUNICATION LINE.
Refer to AT- 3 9 5
Lamp comes OFF.
PNP switch, overdrive control switch or throttle position switch cir-
cuit is disconnected or TCM is damaged.
 Go to 21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sensor).
Refer to AT-333 Flickers as shown below.
Battery power is low.
Battery has been disconnected for a long time.
Battery is connected conversely.
(When reconnecting TCM connectors.—This is a problem.) O/D OFF indicator lamp:
SCIA0704ESCIA0705E
SCIA0706ESAT804H

AT-304
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
*1: A circuit tester cannot be used to test this item.
*2: These terminals are connected to the ECM.
*3: These terminals are connected to the data link connector.30 *
3G/B CONSULT- II (RX) — —
31 *
3GY/L CONSULT- II (TX) — —
32 *
2RThrottle position
sensor
(Power source)
or When turning ignition switch to “ON”. 4.5 - 5.5V
When turning ignition switch to
“OFF”.0V
34 W/GPNP switch “D”
position
and When setting selector lever to “D”
position.Battery voltage
When setting selector lever to other
positions.0V
35 G/WPNP switch “R”
positionWhen setting selector lever to “R”
position.Battery voltage
When setting selector lever to other
positions.0V
36 GPNP switch “N” or
“P” positionWhen setting selector lever to “N” or
“P” position.Battery voltage
When setting selector lever to other
positions.0V
39 *
2L/OREngine speed sig-
nal
and EC-XX, “ECM INSPECTION TABLE”.
40 L/BVehicle speed
sensorWhen moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for 1 m (3 ft) or more.Voltage varies
between less
than 0V and
more than 4.5V
41*
2GYThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed
throttle: 0.5V
Fully-open throt-
tle: 4V
42*
2BSensor
Ground—
——
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V
48 B Ground — — 0V Te r m i -
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)

CAN COMMUNICATION
AT-305
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

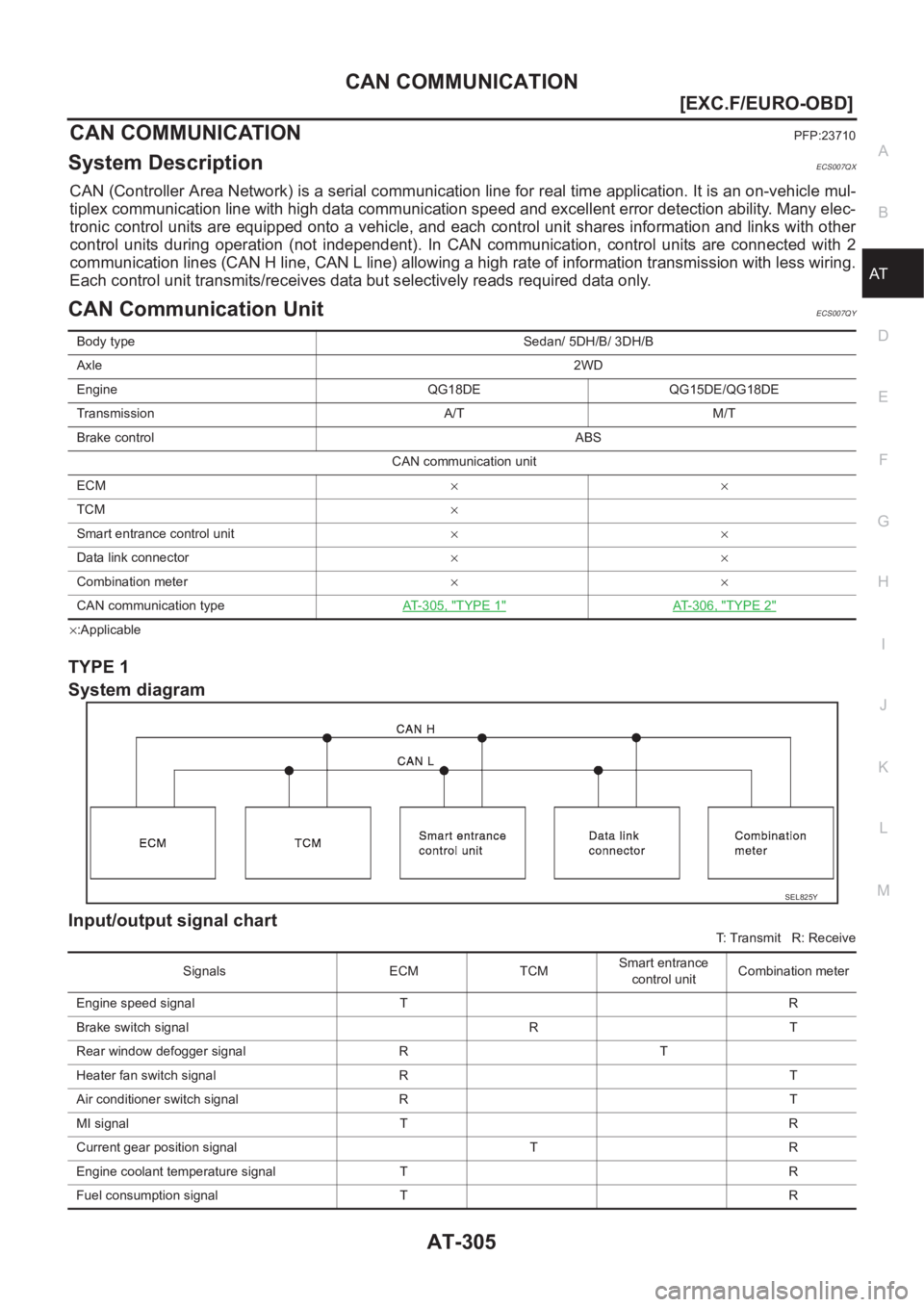

CAN COMMUNICATIONPFP:23710
System DescriptionECS007QX
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitECS007QY
×:Applicable
TYPE 1
System diagram
Input/output signal chart
T: Transmit R: Receive Body type Sedan/ 5DH/B/ 3DH/B
Axle2WD
Engine QG18DE QG15DE/QG18DE
Transmission A/T M/T
Brake controlABS
CAN communication unit
ECM××
TCM×
Smart entrance control unit××
Data link connector××
Combination meter××
CAN communication type AT-305, "
TYPE 1"AT- 3 0 6 , "TYPE 2"
SEL825Y
Signals ECM TCMSmart entrance
control unitCombination meter
Engine speed signal T R
Brake switch signal R T
Rear window defogger signal R T
Heater fan switch signal R T
Air conditioner switch signal R T
MI signal T R
Current gear position signal T R
Engine coolant temperature signal T R
Fuel consumption signal T R

AT-306
[EXC.F/EURO-OBD]
CAN COMMUNICATION
TYPE 2
System diagram
Input/output signal chart
T: Transmit R: Receive Vehicle speed signal R T
Seat belt reminder signalRT
Headlamp switch signalTR
Flashing indicator signalTR
Engine cooling fan speed signal T R
Child lock indicator signalTR
Door switches state signalTR
A/C compressor signal T R
Accelerator pedal position signal T R
Output shaft revolution signal R T
OD OFF switch signal R T
OD OFF indicator signal T R
A/T self-diagnosis signal R TSignals ECM TCMSmart entrance
control unitCombination meter
SEL826Y
Signals ECMSmart entrance control
unitCombination meter
Engine speed signal T R
Rear window defogger signal R T
Heater fan switch signal R T
Air conditioner switch signal R T
MI signal T R
Engine coolant temperature signal T R
Fuel consumption signal T R
Vehicle speed signal R T
Seat belt reminder signal R T
Headlamp switch signal T R
Flashing indicator signal T R
Engine cooling fan speed signal T R
Child lock indicator signal T R
Door switches state signal T R
A/C compressor signal T R

AT-346
[ALL]

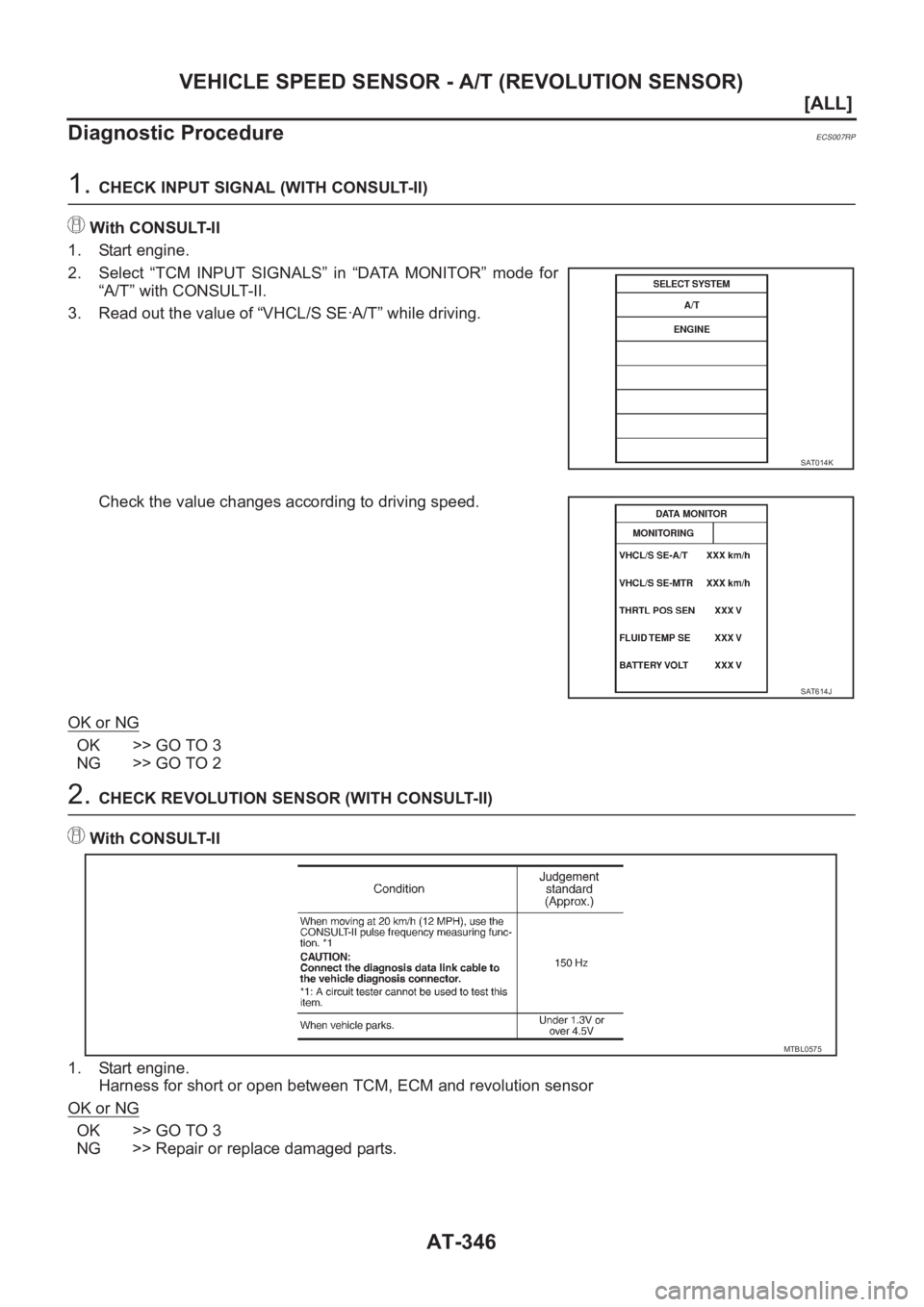

VEHICLE SPEED SENSOR - A/T (REVOLUTION SENSOR)
Diagnostic Procedure
ECS007RP
1. CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE·A/T” while driving.
Check the value changes according to driving speed.
OK or NG
OK >> GO TO 3
NG >> GO TO 2
2. CHECK REVOLUTION SENSOR (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
Harness for short or open between TCM, ECM and revolution sensor
OK or NG
OK >> GO TO 3
NG >> Repair or replace damaged parts.
SAT014K
SAT614J
MTBL0575

ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-355
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS007RV
1.CHECK DTC WITH ECM
●Check DTC with CONSULT-II “ENGINE”.
Turn ignition switch ON and select “SELF DIAGNOSTIC RESULTS” mode for “ENGINE” with CONSULT-II.
Refer to EC-37, "
Emission-related Diagnostic Information" (EURO OBD) or EC-429, "Emission-related Diag-
nostic Information" (Except EURO OBD).
OK or NG
OK (With CONSULT-II)>>GO TO 2
OK (Without CONSULT-II)>>GO TO 3
NG >> Perform trouble diagnosis for the DTC for engine control.
2.CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “THRTL POS SEN”.
OK or NG
OK >> GO TO 4
NG >> Check harness for short or open between ECM and TCM regarding throttle position sensor circuit.
SAT014K
Vo l t a g e :
Fully-closed throttle :Approximately 0.5V
Fully-open throttle :Approximately 4V
SAT614J
