ACCELE RATOR PEDAL POSITION (APP) SENSOR
3. CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 41 and 48 while acceler-
ator pedal is depressed slowly.
(Voltage rises gradually in response to throttle position.)
OK or NG
OK >> GO TO 4
NG >> Check harness for short or open between ECM and
TCM regarding throttle position sensor circuit.
4. CHECK DTC
Perform AT-353, "
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Voltage:
Fully-closed throttle valve :Approximately 0.5V
Fully-open throttle valve :Approximately 4V
MCIB0006E

BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
AT-381
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

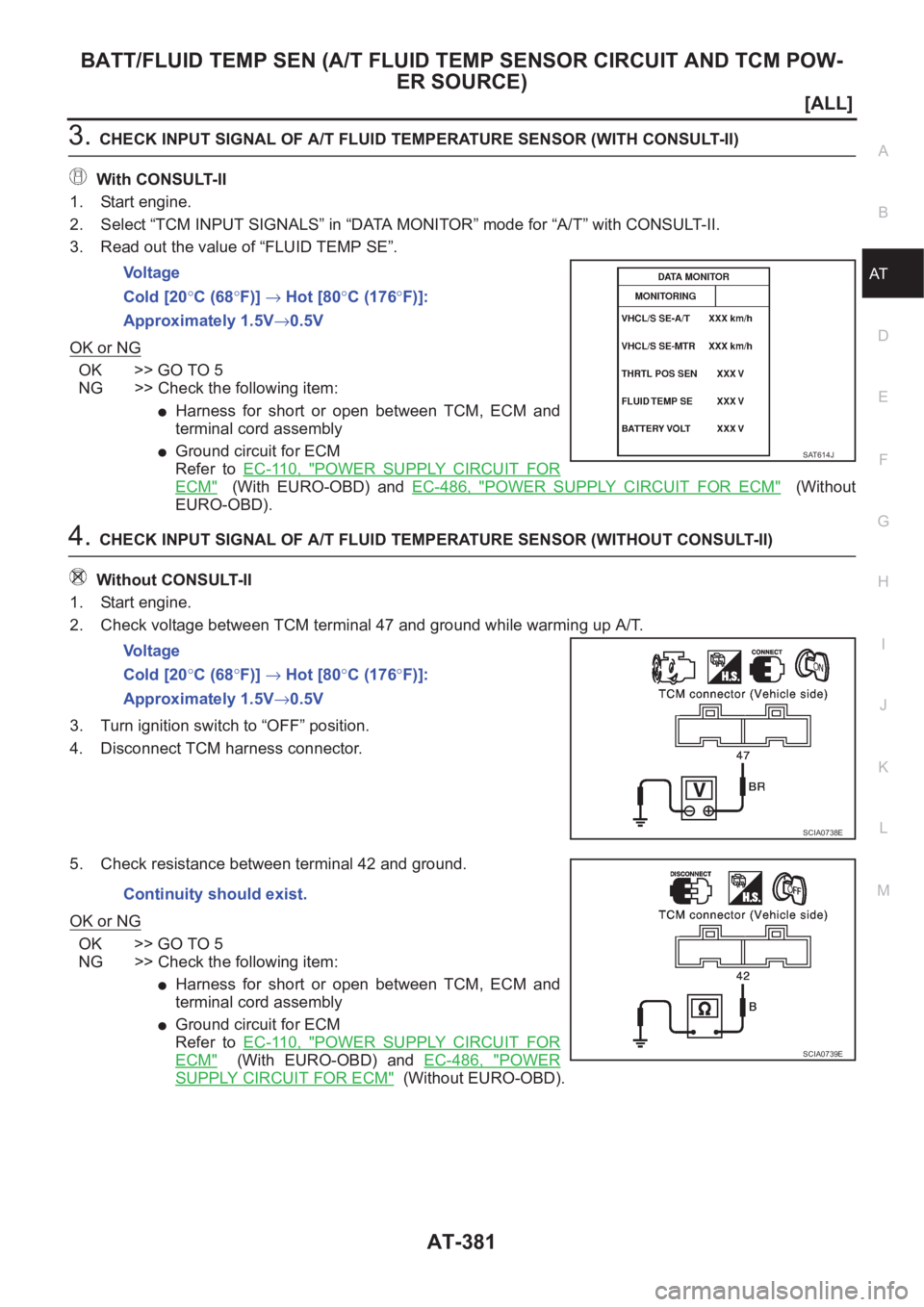

3.CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “FLUID TEMP SE”.
OK or NG
OK >> GO TO 5
NG >> Check the following item:
●Harness for short or open between TCM, ECM and
terminal cord assembly
●Ground circuit for ECM
Refer to EC-110, "
POWER SUPPLY CIRCUIT FOR
ECM" (With EURO-OBD) and EC-486, "POWER SUPPLY CIRCUIT FOR ECM" (Without
EURO-OBD).
4.CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 47 and ground while warming up A/T.
3. Turn ignition switch to “OFF” position.
4. Disconnect TCM harness connector.
5. Check resistance between terminal 42 and ground.
OK or NG
OK >> GO TO 5
NG >> Check the following item:
●Harness for short or open between TCM, ECM and
terminal cord assembly
●Ground circuit for ECM
Refer to EC-110, "
POWER SUPPLY CIRCUIT FOR
ECM" (With EURO-OBD) and EC-486, "POWER
SUPPLY CIRCUIT FOR ECM" (Without EURO-OBD). Vo l t a g e
Cold [20°C (68°F)]→ Hot [80°C (176°F)]:
Approximately 1.5V→0.5V
SAT614J
Vo l t a g e
Cold [20°C (68°F)]→ Hot [80°C (176°F)]:
Approximately 1.5V→0.5V
SCIA0738E
Continuity should exist.
SCIA0739E

ENGINE SPEED SIGNAL
AT-383
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

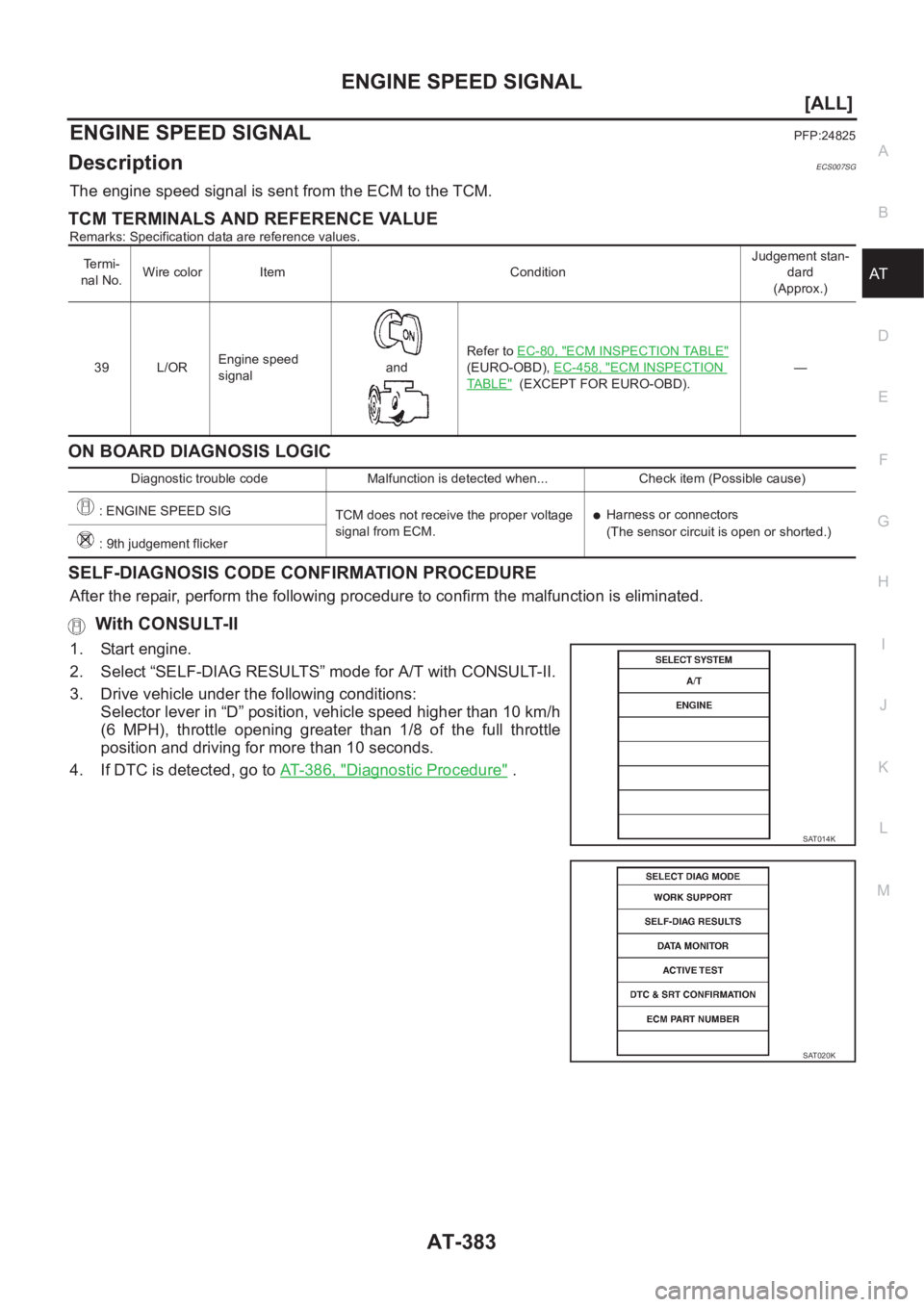

ENGINE SPEED SIGNALPFP:24825
DescriptionECS007SG
The engine speed signal is sent from the ECM to the TCM.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/8 of the full throttle
position and driving for more than 10 seconds.
4. If DTC is detected, go to AT- 3 8 6 , "
Diagnostic Procedure" .
Termi-
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
39 L/OREngine speed
signalandRefer to EC-80, "
ECM INSPECTION TABLE"
(EURO-OBD), EC-458, "ECM INSPECTION
TABLE" (EXCEPT FOR EURO-OBD).—
Diagnostic trouble code Malfunction is detected when... Check item (Possible cause)
: ENGINE SPEED SIG
TCM does not receive the proper voltage
signal from ECM.
●Harness or connectors
(The sensor circuit is open or shorted.)
: 9th judgement flicker
SAT014K
SAT020K

AT-386
[ALL]
ENGINE SPEED SIGNAL

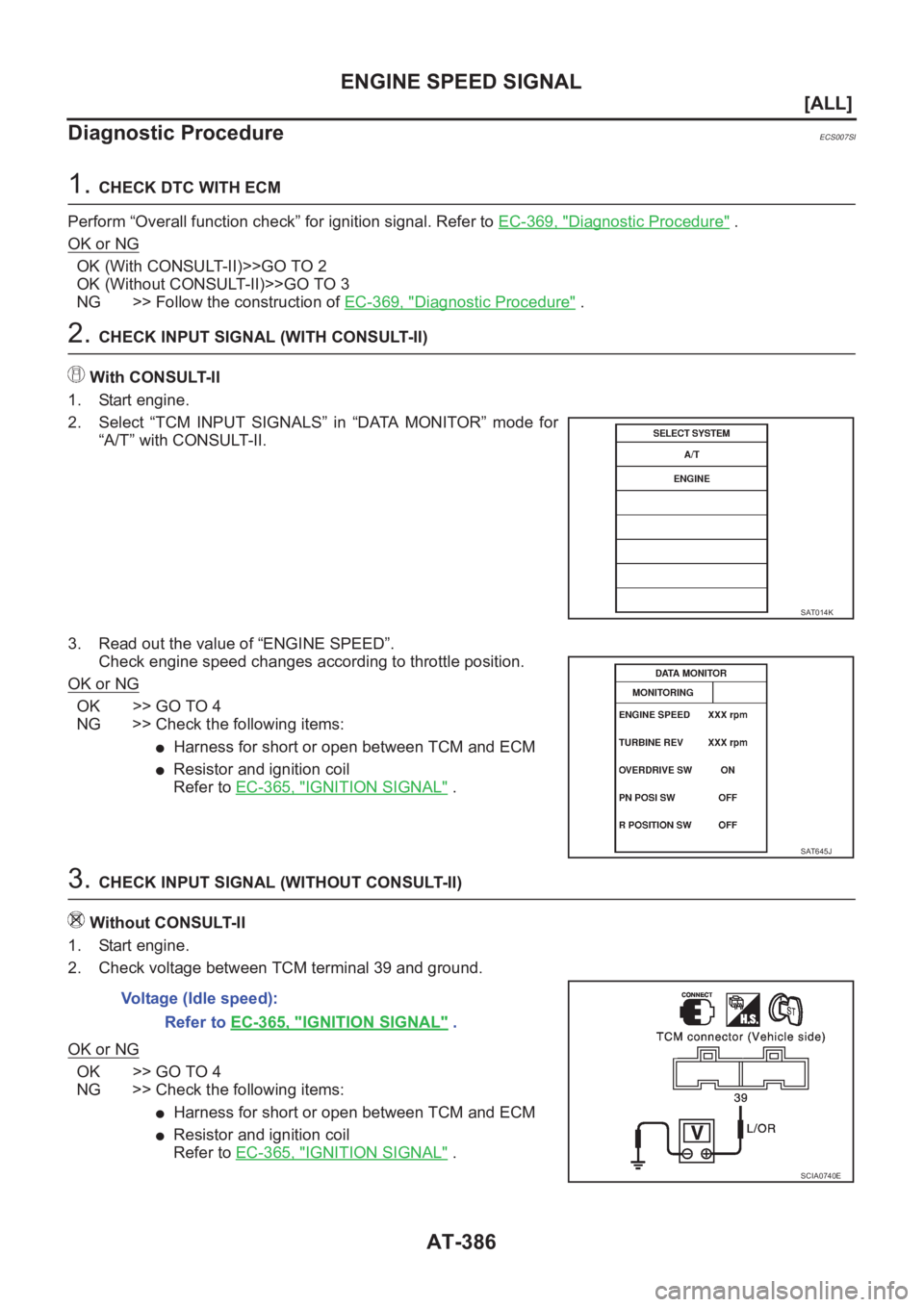

Diagnostic Procedure
ECS007SI
1. CHECK DTC WITH ECM
Perform “Overall function check” for ignition signal. Refer to EC-369, "
Diagnostic Procedure" .
OK or NG
OK (With CONSULT-II)>>GO TO 2
OK (Without CONSULT-II)>>GO TO 3
NG >> Follow the construction of EC-369, "
Diagnostic Procedure" .
2. CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “ENGINE SPEED”.
Check engine speed changes according to throttle position.
OK or NG
OK >> GO TO 4
NG >> Check the following items:
●Harness for short or open between TCM and ECM
●Resistor and ignition coil
Refer to EC-365, "
IGNITION SIGNAL" .
3. CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 39 and ground.
OK or NG
OK >> GO TO 4
NG >> Check the following items:
●Harness for short or open between TCM and ECM
●Resistor and ignition coil
Refer to EC-365, "
IGNITION SIGNAL" .
SAT014K
SAT645J
Voltage (Idle speed):
Refer to EC-365, "
IGNITION SIGNAL" .
SCIA0740E

CAN COMMUNICATION LINE
AT-395
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
CAN COMMUNICATION LINEPFP:31940
DescriptionECS007SN
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
*: This terminal is connected to the ECM.
On Board Diagnosis LogicECS007SO
**: A/T COMM LINE means CAN communication line.
Self-Diagnosis Code Confirmation ProcedureECS007SP
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Wait at least 6 seconds or start engine and wait for at least 6
seconds.
4. If DTC is detected, go to AT- 3 9 7 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Turn ignition switch “ON”.
2. Wait at least 6 seconds or start engine and wait at least 6 sec-
onds.
3. Perform self-diagnosis.
Refer to AT-250, "
Diagnostic Procedure Without CONSULT-II" .
4. If DTC is detected, go to AT- 3 9 7 , "
Diagnostic Procedure" .
Termi-
nal No.Wire color Item ConditionJudgement
standard
(Approx.)
5 L CAN (H) — — —
6 R CAN (L) — — —
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: A/T COMM LINE**
The ECM-AT communication line is open
or shorted.
●Harness or connectors
(The solenoid circuit is open or shorted.)
●Line pressure solenoid valve
: 11th judgement flicker
SAT014K
SCIA0705E

REFRIGERATION SYSTEM
ATC-15
C
D
E
F
G
H
I
K
L
MA
B
AT C
REFRIGERATION SYSTEMPFP:KA990
Refrigerant CycleEJS001Z0
REFRIGERANT FLOW
The refrigerant flows in the standard pattern, that is, through the compressor, the condenser with liquid tank,
through the evaporator, and back to the compressor. The refrigerant evaporation through the evaporator coil is
controlled by an externally equalized expansion valve, located inside the evaporator case.
FREEZE PROTECTION
Under usual operating conditions, when the A/C is switched on, the compressor runs continuously, and the
evaporator pressure, and therefore, temperature is controlled by the CSV613 displacement compressor to
prevent freeze up.
Refrigerant System ProtectionEJS001Z1
REFRIGERANT PRESSURE SENSOR (WITH GASOLINE ENGINE)
The refrigerant system is protected against excessively high or low pressures by the refrigerant pressure sen-
sor, located on the liquid tank. If the system pressure rises above, or falls below the specifications, the refriger-
ant pressure sensor detects the pressure inside the refrigerant line and sends the voltage signal to the ECM.
ECM makes the A/C relay go OFF and stops the compressor when pressure on the high pressure side
detected by refrigerant pressure sensor is over about 2,746 kPa (27.5 bar, 28 kg/cm
2 , 398 psi), or below
about 134 kPa (1.37 bar, 1.4 kg/cm
2 , 20 psi).
DUAL-PRESSURE SWITCH (WITH DIESEL ENGINE)
The refrigerant system is protected against excessively high or low pressures by the dual-pressure switch,
located on the liquid tank. If the system pressure rises above or falls below the specifications, the dual-pres-
sure switch opens to interrupt the compressor operation.
PRESSURE RELIEF VALVE
The refrigerant system is also protected by a pressure relief valve, located in the rear head of the compressor.
When the pressure of refrigerant in the system increases to an unusual level [more than 3,727 kPa (37.3 bar,
38 kg/cm
2 , 540 psi)], the release port on the pressure relief valve automatically opens and releases refriger-
ant into the atmosphere.
RHA682H

ATC-24
AIR CONDITIONER CONTROL
FAN SPEED CONTROL
Blower speed is automatically controlled based on temperature setting, ambient temperature, in-vehicle tem-
perature, intake temperature, amount of sunload and air mix door position.
With FAN switch set to AUTO, the blower motor starts to gradually increase air flow volume.
When engine coolant temperature is low, the blower motor operation is delayed to prevent cool air from flow-
ing.
INTAKE DOOR CONTROL
The intake doors are automatically controlled by: The temperature setting, ambient temperature, in-vehicle
temperature, intake temperature, amount of sunload and ON-OFF operation of the compressor.
OUTLET DOOR CONTROL
The outlet door is automatically controlled by: The temperature setting, ambient temperature, in-vehicle tem-
perature, intake temperature and amount of sunload.
MAGNET CLUTCH CONTROL
The ECM controls compressor operation using input signals from the refrigerant pressure sensor (with QG
engine), throttle position sensor and auto amplifier.
SELF-DIAGNOSTIC SYSTEM
The self-diagnostic system is built into the auto amplifier (LCU) to quickly locate the cause of problems.
Overview of Control systemEJS001Z7
The control system consists of input sensors, switches, the automatic amplifier (microcomputer) and outputs.
The relationship of these components is shown in the diagram below:
RJIA0687E

ATC-76
TROUBLE DIAGNOSIS
SYSTEM DESCRIPTION

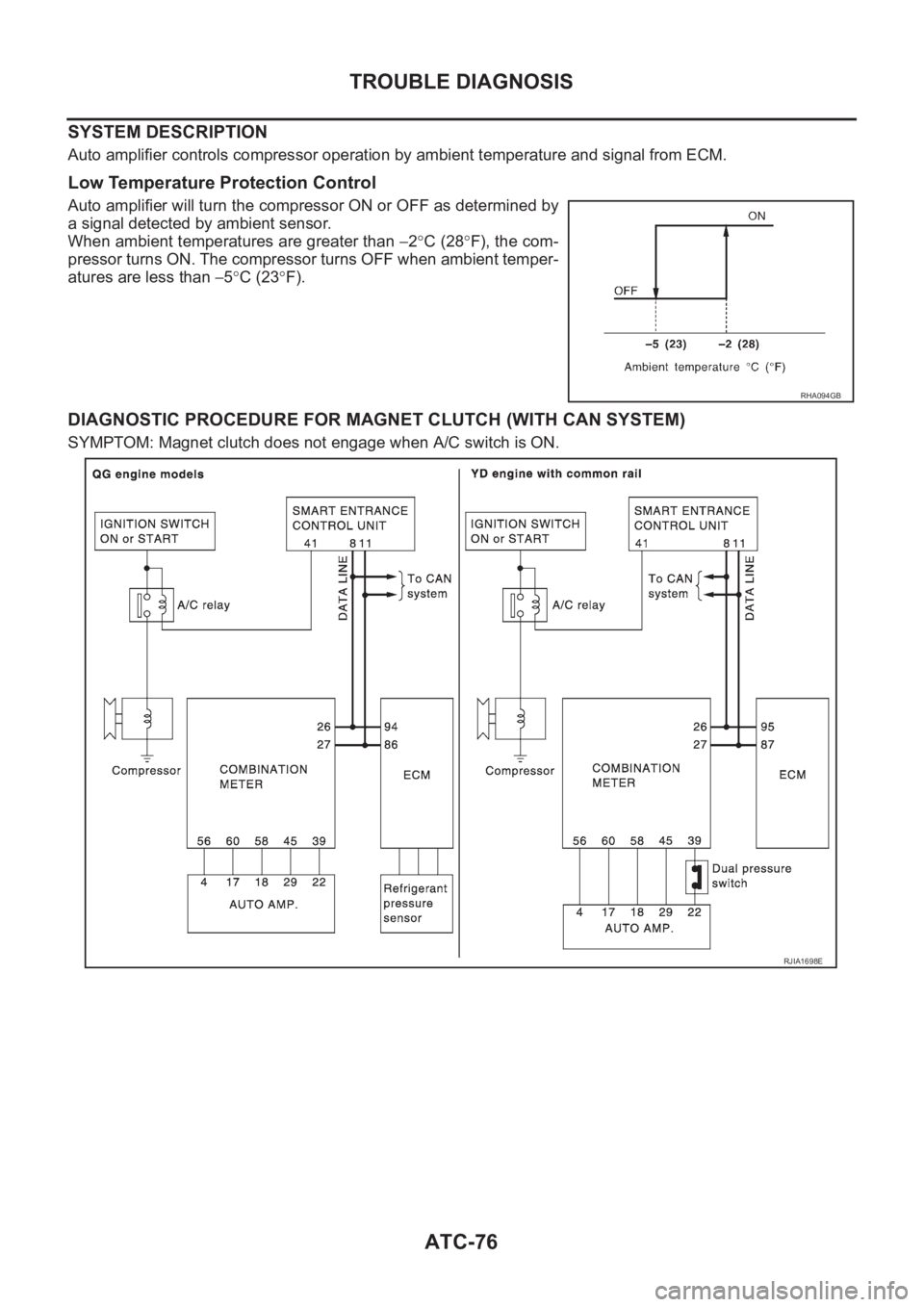

Auto amplifier controls compressor operation by ambient temperature and signal from ECM.
Low Temperature Protection Control
Auto amplifier will turn the compressor ON or OFF as determined by
a signal detected by ambient sensor.
When ambient temperatures are greater than −2°C (28°F), the com-
pressor turns ON. The compressor turns OFF when ambient temper-
atures are less than −5°C (23°F).
DIAGNOSTIC PROCEDURE FOR MAGNET CLUTCH (WITH CAN SYSTEM)
SYMPTOM: Magnet clutch does not engage when A/C switch is ON.
RHA094GB
RJIA1698E
