SYMPTOMDIAGNOSTIC PROCEDURE
(Reference page)SYSTEM
(Malfunctioning part or mode)REFERENCE PART NO. OF
ILLUSTRATION ON SYSTEM
DIAGRAM
Security ind. dose not blink just
after ignition switch is turned to
ON.
Engine can not be started*PROCEDURE 9
(EL-408, “Diagnostic Proce-
dure 9”)Open or short circuit starter
motor between smart entrance
control unit—
*: CONSULT-II Self-diagnostic results display screen “no malfunction isdetected”.
DIAGNOSTIC SYSTEM DIAGRAMNJEL0590S04
SIIA1667E
SEL152X
DIAGNOSTIC PROCEDURE 1NJEL0590S05Self-diagnostic results:
“ECM INT CIRC-IMMU” displayed on CONSULT-II screen
1. Confirm SELF-DIAGNOSTIC RESULTS “ECM INT CIRC-
IMMU” displayed on CONSULT-II screen.
2. Replace ECM.
Ref. part No. B
3. Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II operation manual
NATS”.
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/QG and YD Engine Models with Common Rail (Cont’d)
EL-396

DIAGNOSTIC PROCEDURE 2=NJEL0590S06Self-diagnostic results:
“CHAIN OF ECM-IMMU” displayed on CONSULT-II screen
1 CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS “CHAIN OF ECM-IMMU” displayed on CONSULT-II screen.
NOTE:
In rare case, “CHAIN OF ECM-IMMU” might be stored during key registration procedure, even if the system is not mal-
functioning.
SEL292W
Is CONSULT-II screen displayed as above?
Ye s G O T O 2 .
No GO TO EL-394, “SYMPTOM MATRIX CHART 1”.
2 CHECK POWER SUPPLY CIRCUIT FOR IMMU
1. Disconnect IMMU connector.
2. Check voltage between IMMU (Smart entrance control unit) harness connector M195 terminal 56 (R/B) and ground
CONSULT-II or tester.
SIIA1669E
Battery voltage should exist.
OK or NG
OK GO TO 3.
NGCheck the following
10A fuse [No. 12, located in the fuse block (J/B)]
Harness for open or short between fuse and IMMU connector
Ref. Part No. C1
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/QG and YD Engine Models with Common Rail (Cont’d)
EL-397

3 CHECK IGN SW. ON SIGNAL
1. Turn ignition switch ON.
2. Check voltage between IMMU (Smart entrance control unit) harness connector M42 terminal 29 (Y/G) and ground with
CONSULT-II or tester.
SIIA1668E
Battery voltage should exist.
OK or NG
OK GO TO 4.
NoCheck the following
10A fuse [No. 10, located in the fuse block (J/B)]
Harness for open or short between fuse and IMMU connector
Ref. part No. C2
4 CHECK GROUND CIRCUIT FOR IMMU
1. Turn ignition OFF.
2. Check continuity between IMMU (Smart entrance control unit) harness connector M195 terminal 53 (B) and ground.
SIIA1565E
Continuity should exist.
OK or NG
OK GO TO 5.
NG Repair harness.Ref. part No. C3
5 REPLACE IMMU (SMART ENTRANCE CONTROL UNIT)
1. Replace IMMU (Smart entrance control unit)Ref. part No. A
2. Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II operation manual NATS”.
Does the engine start?
OK IMMU (Smart entrance control unit) is malfunctioning.
No ECM is malfunctioning.
Replace ECM.Ref. part No. B
Perform initialization with CONSULT-II
For initialization, refer to “CONSULT-II operation manual NATS”
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/QG and YD Engine Models with Common Rail (Cont’d)
EL-398

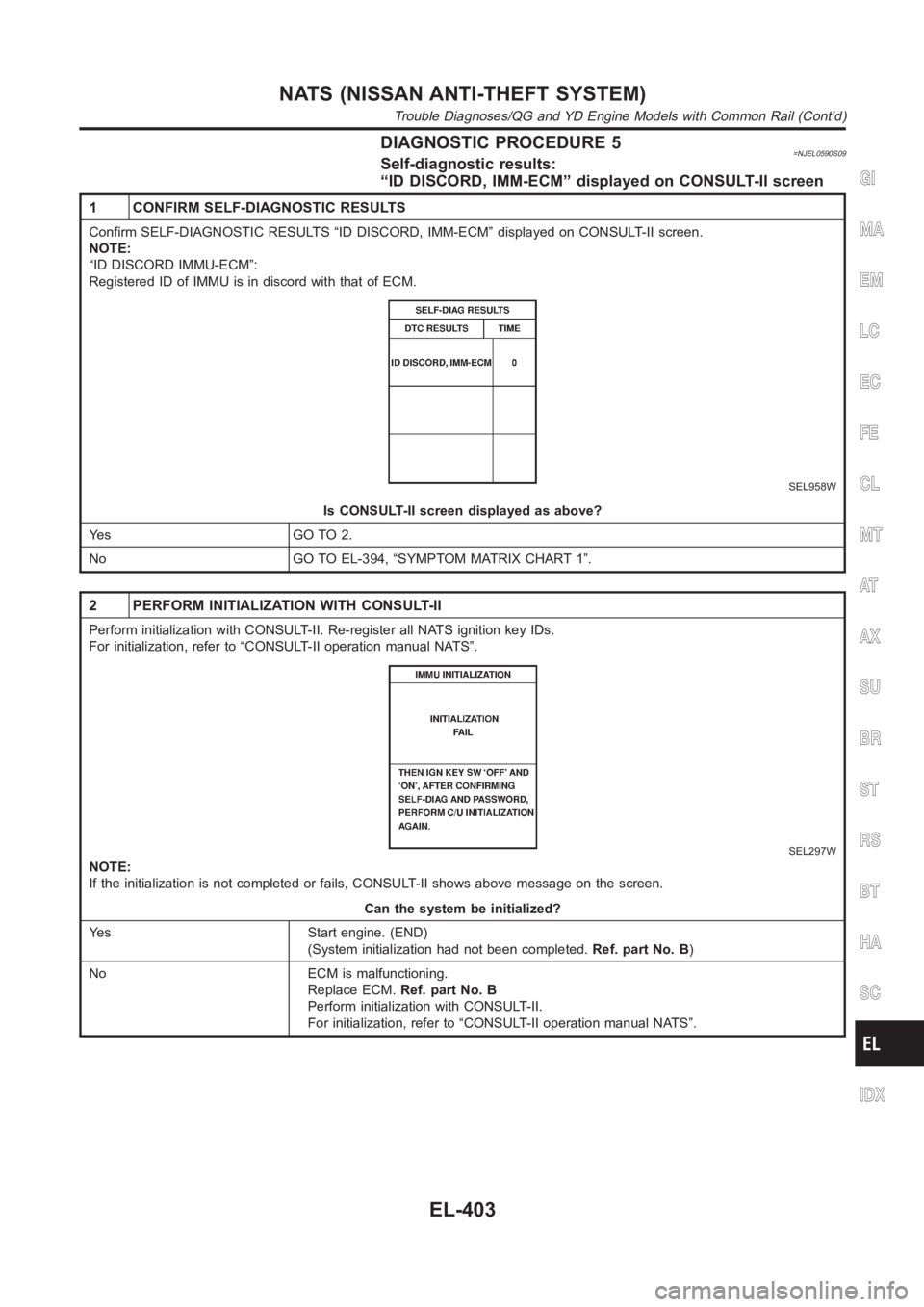

DIAGNOSTIC PROCEDURE 5=NJEL0590S09Self-diagnostic results:
“ID DISCORD, IMM-ECM” displayed on CONSULT-II screen
1 CONFIRM SELF-DIAGNOSTIC RESULTS
Confirm SELF-DIAGNOSTIC RESULTS “ID DISCORD, IMM-ECM” displayed on CONSULT-II screen.
NOTE:
“ID DISCORD IMMU-ECM”:
Registered ID of IMMU is in discord with that of ECM.
SEL958W
Is CONSULT-II screen displayed as above?
Ye s G O T O 2 .
No GO TO EL-394, “SYMPTOM MATRIX CHART 1”.
2 PERFORM INITIALIZATION WITH CONSULT-II
Perform initialization with CONSULT-II. Re-register all NATS ignition key IDs.
For initialization, refer to “CONSULT-II operation manual NATS”.
SEL297W
NOTE:
If the initialization is not completed or fails, CONSULT-II shows above message on the screen.
Can the system be initialized?
Yes Start engine. (END)
(System initialization had not been completed.Ref. part No. B)
No ECM is malfunctioning.
Replace ECM.Ref. part No. B
Perform initialization with CONSULT-II.
For initialization, refer to “CONSULT-II operation manual NATS”.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses/QG and YD Engine Models with Common Rail (Cont’d)
