2003 NISSAN ALMERA N16 fuel

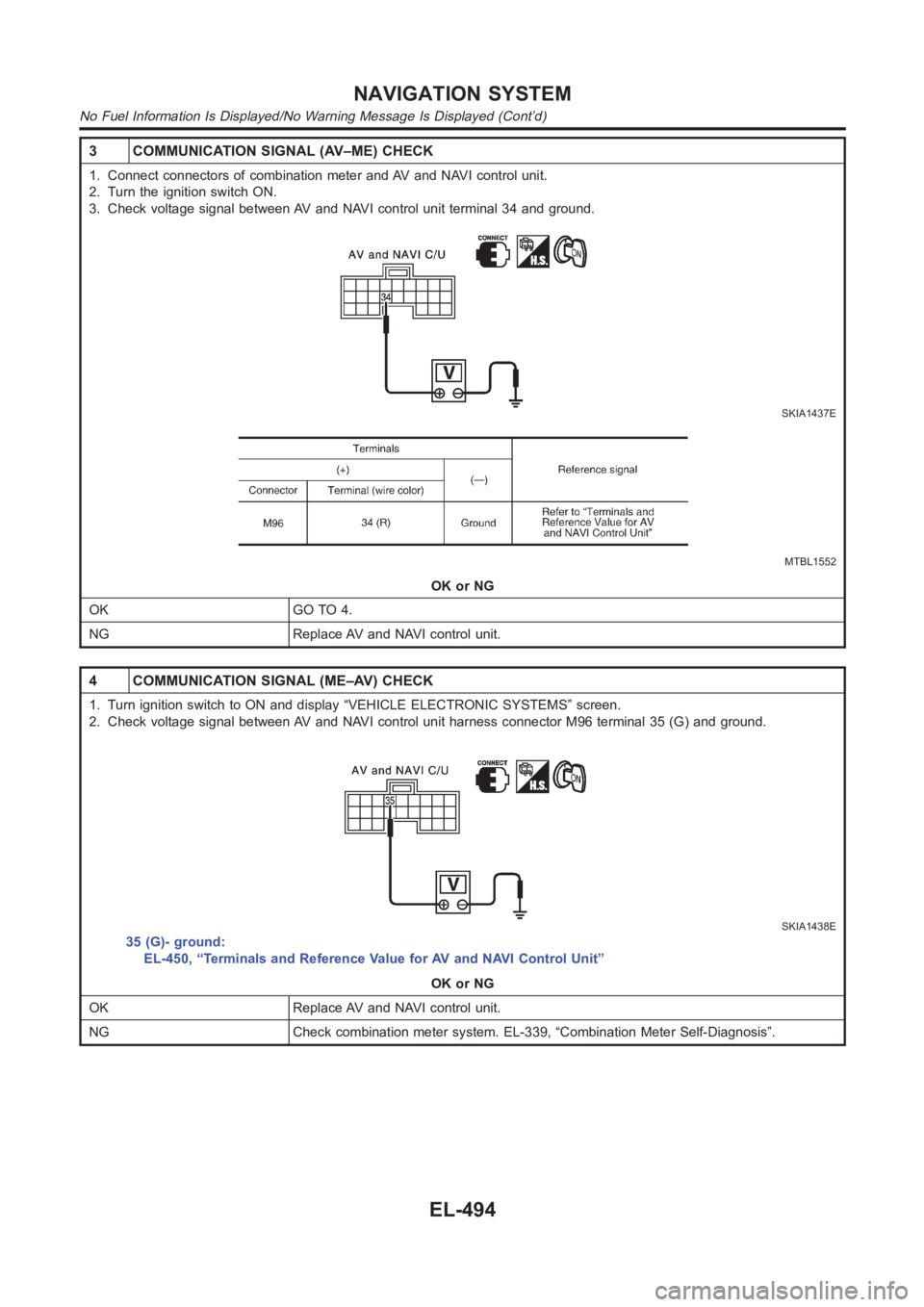

3 COMMUNICATION SIGNAL (AV–ME) CHECK
1. Connect connectors of combination meter and AV and NAVI control unit.
2. Turn the ignition switch ON.
3. Check voltage signal between AV and NAVI control unit terminal 34 and ground.
SKIA1437E
MTBL1552
OK or NG
OK GO TO 4.
NG Replace AV and NAVI control unit.
4 COMMUNICATION SIGNAL (ME–AV) CHECK
1. Turn ignition switch to ON and display “VEHICLE ELECTRONIC SYSTEMS” screen.
2. Check voltage signal between AV and NAVI control unit harness connectorM96 terminal 35 (G) and ground.
SKIA1438E
35 (G)- ground:
EL-450, “Terminals and Reference Value for AV and NAVI Control Unit”
OK or NG
OK Replace AV and NAVI control unit.
NG Check combination meter system. EL-339, “Combination Meter Self-Diagnosis”.
NAVIGATION SYSTEM
No Fuel Information Is Displayed/No Warning Message Is Displayed (Cont’d)
EL-494

TYPE 1=NJEL0536S01System DiagramNJEL0536S0101
SEL825Y
Input/Output Signal ChartNJEL0536S0102T: Transmit R: Receive
Signals ECM TCMSmart entrance
control unitCombination meter
Engine speed signal T R
Brake switch signal R T
Rear window defogger signal R T
Heater fan switch signal R T
Air conditioner switch signal R T
MI signal T R
Current gear position signal T R
Engine coolant temperature signal T R
Fuel consumption signal T R
Vehicle speed signal R T
Seat belt reminder signalRT
Headlamp switch signalTR
Flashing indicator signalTR
Engine cooling fan speed signal T R
Child lock indicator signalTR
Door switches state signal T R
A/C compressor signal T R
Accelerator pedal position signal T R
Output shaft revolution signal R T
OD OFF switch signal R T
OD OFF indicator signal T R
A/T self-diagnosis signal R T
CAN COMMUNICATION
CAN Communication Unit (Cont’d)
EL-510

TYPE 2=NJEL0536S02System DiagramNJEL0536S0201
SEL826Y
Input/Output Signal ChartNJEL0536S0202T: Transmit R: Receive
Signals ECMSmart entrance control
unitCombination meter
Engine speed signal T R
Rear window defogger signal R T
Heater fan switch signal R T
Air conditioner switch signal R T
MI signal T R
Engine coolant temperature signal T R
Fuel consumption signal T R
Vehicle speed signal R T
Seat belt reminder signal R T
Headlamp switch signal T R
Flashing indicator signal T R
Engine cooling fan speed signal T R
Child lock indicator signal T R
Door switches state signal T R
A/C compressor signal T R
