2003 NISSAN ALMERA N16 fuel

NEL796
Electrical Components InspectionNJEL0051FUEL WARNING LAMP OPERATION CHECKNJEL0051S011. Turn ignition switch “OFF”.
2. Disconnect fuel level sensor unit harness connector B29.
3. Connect a resistor (80Ω) between fuel level sensor unit har-
ness connector terminals 4 and 1.
4. Turn ignition switch “ON”.
The fuel warning lamp should come on.
NOTE:
For QG Engine Only
ECM might store the DTC P0180 during this inspection. If the DTC
is stored in ECM memory, erase the DTC after reconnecting the
fuel level sensor unit and fuel pump harness connector. Refer to
EC-48 (With EURO-OBD), 430 (Without EURO-OBD), “HOW TO
ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION”,
“Emission-related Diagnostic Information”, “ON BOARD DIAG-
NOSTIC SYSTEM DESCRIPTION”.
MEL425F
OIL PRESSURE SWITCH CHECKNJEL0051S02
Oil pressure
kPa (bar, kg/cm2, psi)Continuity
Engine runningMore than 10 - 20
(0.10 - 0.20, 0.1 - 0.2,
1-3)No
Engine not runningLess than 10 - 20
(0.10 - 0.20, 0.1 - 0.2,
1-3)Ye s
Check the continuity between the terminals of oil pressure switch
and body ground.
SEL901F
DIODE CHECKNJEL0051S03Check continuity using an ohmmeter.
Diode is functioning properly if test results are as shown in the
figure at left.
Check diodes at the combination meter harness connector
instead of on the combination meter assembly. Refer to
EL-130, “WARNING LAMP” wiring diagrams.
NOTE:
Specification may vary depending on the type of tester. Before
performing this inspection, be sure to refer to the instruction
manual for the tester to be used.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
WARNING LAMPS
Electrical Components Inspection
EL-135

YEL827D
1. Press “INFO” switch to display vehicle information display.
2. Indication can be changed by in the following order by push-
ing multifunction switch.
Range
Journey distance
Journey time
Average fuel economy
Average vehicle speed
Board computer Display
Range (km or MILES) Displays range to empty with a range of 000.0 to 999.9.
Journey distance (km or MILES) Displays journey distance with a range of 000.0 to 9999
Journey time Displays journey time with a range of 0000:00:00 to 9999:59:59.
Average fuel consumption (/100 km or
MPG)Displays fuel consumption with a range of 00.0 to 999.
Average vehicle speed (km/h or MPH) Displays average vehicle speed with a range of 000 to 999.
RangeNJEL0555S0401The elapsed time indication provides driver with an estimation
of the distance that can be driven before refuelling.The range
is conducted by fuel tank level sensor unit (fuel remaining),
ECM pulse signal (fuel consumption) and vehicle speed signal.
Indication will be renewed every 30 seconds.
When fuel remaining is less than approx. 7.8(6-7/8 Imp qt),
indication will blink as a warning. If the fuel remaining less than
approx. 6.8(6 Imp qt), “– –.–” will be indicated. In this case,
the mode will change to the RANGE mode automatically even
though the display is showing a different item. (See NOTE.)
The range mode includes a low range warning feature: when
the fuel level is low, the range mode is automatically selected
and the digits blink in order to draw the driver′s attention. Press
the “INFO” switch if you wish to return to the mode that was
selected before the warning occurred. The range mark will
remain blinking until next refuelling. When the fuel level drops
even lower, the range display will change to “– – – –”.
Journey DistanceNJEL0555S0402Journey distance indication is conducted by vehicle speed sig-
nal.
If journey distance is reset, journey time will be reset at the
same time.
When pushing “INFO” switch more than approximately 1
second, driving distance will be reset.
Journey TimeNJEL0555S0403Journey time indication is conducted by integration of ignition
ON time.
If journey time is reset, journey distance will be reset at the
same time.
Average Fuel ConsumptionNJEL0555S0404Average fuel consumption indication is conducted by ECM
pulse signal and vehicle speed signal after system is reset.
Indication will be renewed every 30 seconds.
VFD DISPLAY
System Description (Cont’d)
EL-216

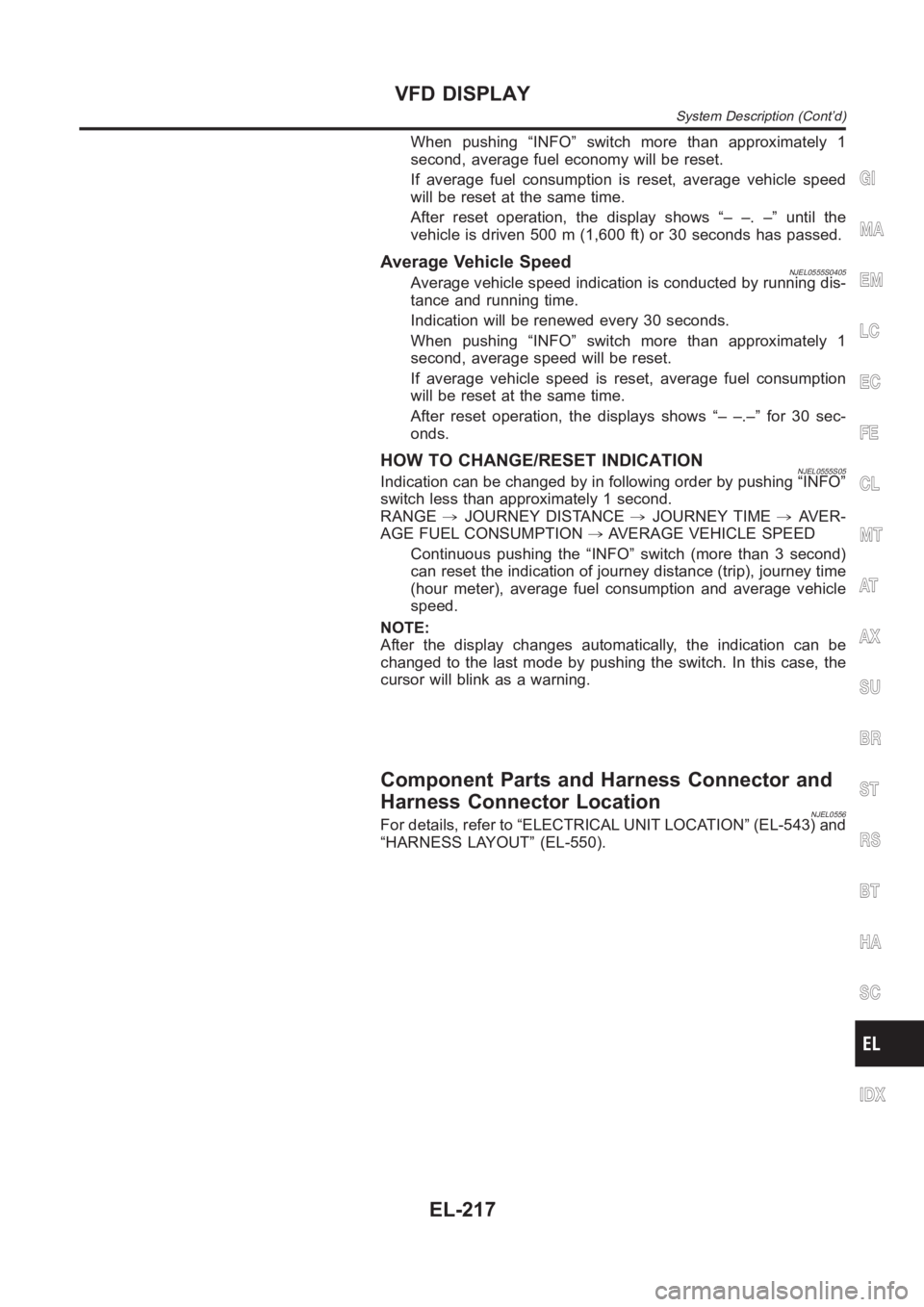

When pushing “INFO” switch more than approximately 1
second, average fuel economy will be reset.
If average fuel consumption is reset, average vehicle speed
will be reset at the same time.
After reset operation, the display shows “– –. –” until the
vehicle is driven 500 m (1,600 ft) or 30 seconds has passed.
Average Vehicle SpeedNJEL0555S0405Average vehicle speed indication is conducted by running dis-
tance and running time.
Indication will be renewed every 30 seconds.
When pushing “INFO” switch more than approximately 1
second, average speed will be reset.
If average vehicle speed is reset, average fuel consumption
will be reset at the same time.
After reset operation, the displays shows “– –.–” for 30 sec-
onds.
HOW TO CHANGE/RESET INDICATIONNJEL0555S05Indication can be changed by in following order by pushing “INFO”
switch less than approximately 1 second.
RANGE,JOURNEY DISTANCE,JOURNEY TIME,AVER-
AGE FUEL CONSUMPTION,AVERAGE VEHICLE SPEED
Continuous pushing the “INFO” switch (more than 3 second)
can reset the indication of journey distance (trip), journey time
(hour meter), average fuel consumption and average vehicle
speed.
NOTE:
After the display changes automatically, the indication can be
changed to the last mode by pushing the switch. In this case, the
cursor will blink as a warning.
Component Parts and Harness Connector and
Harness Connector Location
NJEL0556For details, refer to “ELECTRICAL UNIT LOCATION” (EL-543) and
“HARNESS LAYOUT” (EL-550).
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
VFD DISPLAY
System Description (Cont’d)
EL-217

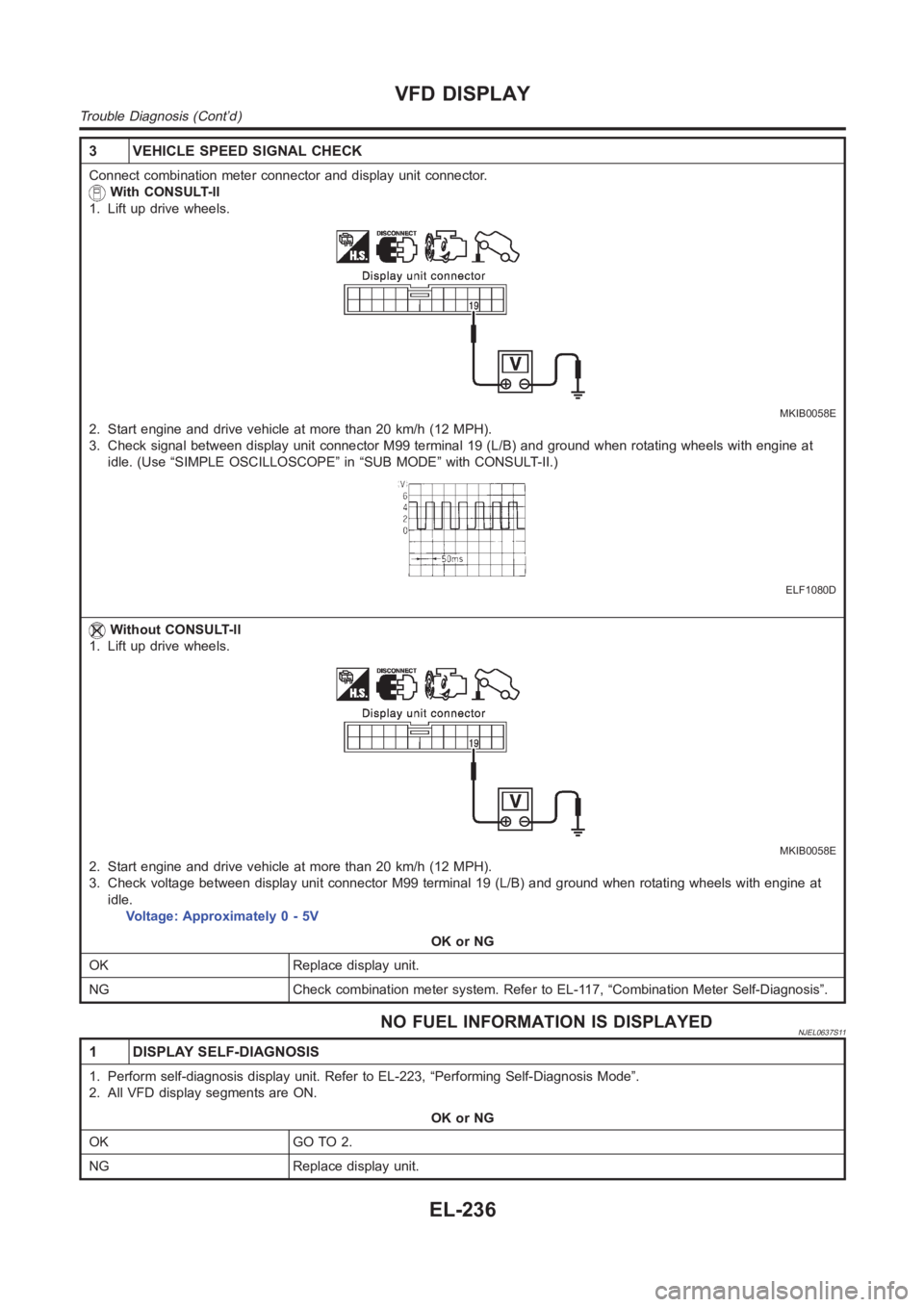

3 VEHICLE SPEED SIGNAL CHECK
Connect combination meter connector and display unit connector.
With CONSULT-ll
1. Lift up drive wheels.
MKIB0058E
2. Start engine and drive vehicle at more than 20 km/h (12 MPH).
3. Check signal between display unit connector M99 terminal 19 (L/B) and ground when rotating wheels with engine at
idle. (Use “SIMPLE OSCILLOSCOPE” in “SUB MODE” with CONSULT-II.)
ELF1080D
Without CONSULT-ll
1. Lift up drive wheels.
MKIB0058E
2. Start engine and drive vehicle at more than 20 km/h (12 MPH).
3. Check voltage between display unit connector M99 terminal 19 (L/B) and ground when rotating wheels with engine at
idle.
Voltage: Approximately 0 - 5V
OK or NG
OK Replace display unit.
NG Check combination meter system. Refer to EL-117, “Combination Meter Self-Diagnosis”.
NO FUEL INFORMATION IS DISPLAYEDNJEL0637S11
1 DISPLAY SELF-DIAGNOSIS
1. Perform self-diagnosis display unit. Refer to EL-223, “Performing Self-Diagnosis Mode”.
2. All VFD display segments are ON.
OK or NG
OK GO TO 2.
NG Replace display unit.
VFD DISPLAY
Trouble Diagnosis (Cont’d)
EL-236

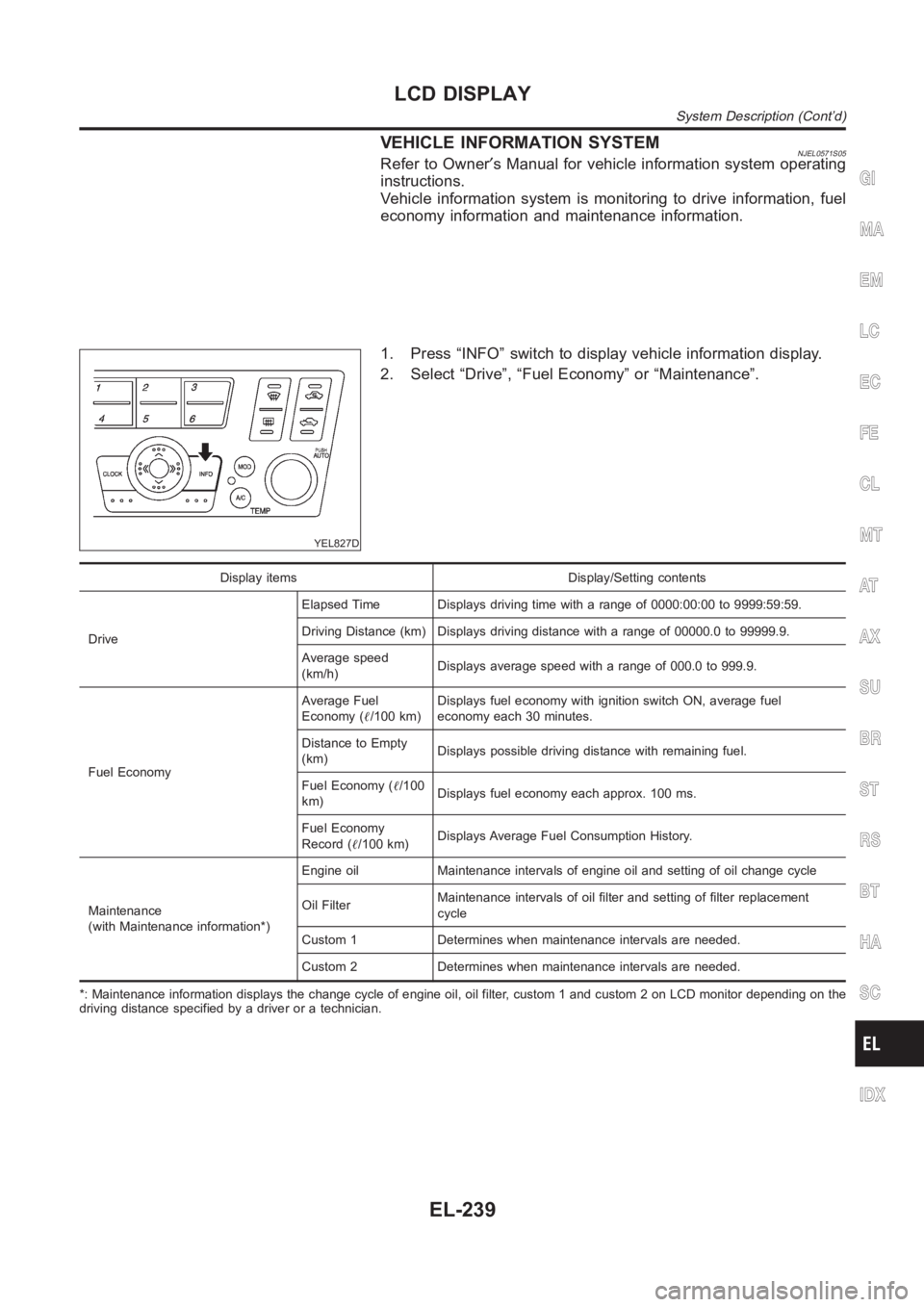

VEHICLE INFORMATION SYSTEMNJEL0571S05Refer to Owner′s Manual for vehicle information system operating
instructions.
Vehicle information system is monitoring to drive information, fuel
economy information and maintenance information.
YEL827D
1. Press “INFO” switch to display vehicle information display.
2. Select “Drive”, “Fuel Economy” or “Maintenance”.
Display items Display/Setting contents
DriveElapsed Time Displays driving time with a range of 0000:00:00 to 9999:59:59.
Driving Distance (km) Displays driving distance with a range of 00000.0 to99999.9.
Average speed
(km/h)Displays average speed with a range of 000.0 to 999.9.
Fuel EconomyAverage Fuel
Economy (/100 km)Displays fuel economy with ignition switch ON, average fuel
economy each 30 minutes.
Distance to Empty
(km)Displays possible driving distance with remaining fuel.
Fuel Economy (/100
km)Displays fuel economy each approx. 100 ms.
Fuel Economy
Record (/100 km)Displays Average Fuel Consumption History.
Maintenance
(with Maintenance information*)Engine oil Maintenance intervals of engine oil and setting of oil change cycle
Oil FilterMaintenance intervals of oil filter and setting of filter replacement
cycle
Custom 1 Determines when maintenance intervals are needed.
Custom 2 Determines when maintenance intervals are needed.
*: Maintenance information displays the change cycle of engine oil, oil filter, custom 1 and custom 2 on LCD monitor depending on the
driving distance specified by a driver or a technician.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
LCD DISPLAY
System Description (Cont’d)
EL-239

MKIB0144E
Drive InformationNJEL0571S05011. Select “Drive”.
2. Elapsed time, driving distance and average speed are dis-
played as drive information. When pushing “ENTER”, elapsed
time, driving distance and average speed are all reset.
MKIB0145E
Fuel Economy InformationNJEL0571S05021. Select “Fuel Economy”.
2. Average Fuel Economy, Distance to Empty, Fuel Economy are
displayed as Fuel Economy information.
SKIA0772E
3. Select “Fuel Economy Record”. The average fuel consumption
history will be displayed in graph along with the average for the
previous Reset – to – Reset period.
MKIB0146E
Maintenance InformationNJEL0571S05031. Select “Maintenance”.
2. Engine Oil, Oil Filter, Custom 1 and Custom 2 are displayed as
maintenance information.
WARNING INDICATIONSNJEL0571S06When combination meter receives warning signal from some con-
trol units or sensors, then combination meter warning lamp is illu-
minated.
Then combination meter sends warning signal to display unit warn-
ing indications on the screen.
LCD DISPLAY
System Description (Cont’d)
EL-240

Warning indicatorsWarning lamps in
instrument panelWarning detection and cancel conditions Cases of malfunction
ENGINE ENGINEDetection conditionWarning lamp ON signal is
detected while engine is running.
ECM malfunction
Cancel conditionWarning lamp OFF signal is
detected.
ENGINE OIL PRES-
SUREEngine oil
pressureDetection conditionWarning lamp ON signal is
detected for at least approx. 5
seconds while engine is running.Engine oil pressure
decreases.
Cancel conditionWarning lamp OFF signal is
detected.
AIR BAG Air bagDetection conditionWarning lamp ON signal is
detected for at least approx. 10
seconds after ignition switch is
turned ON.SRS air bag system mal-
function
Cancel conditionWarning lamp OFF signal is
detected.
LOW BRAKE FLUID BrakeDetection conditionWarning lamp ON signal (fluid
level) is detected.
Low brake fluid level
Cancel conditionWarning lamp OFF signal is
detected.
OVERHEATING –Detection conditionEngine coolant temperature as
being approx. 119°C (246°F) min.
Engine cooling system
malfunction
Cancel conditionEngine coolant temperature as
being approx. 105°C (221°F)
max.
CHARGE ChargeDetection conditionWarning lamp ON signal is
detected while engine is running.
Charging system malfunctionCharging system mal-
function
Cancel conditionWarning lamp OFF signal is
detected.
LOW WASHER FLUID –Detection conditionWasher liquid level falls below
approx. 0.8(1-3/8 Imp pt)
Low washer liquid level
Cancel condition Except above condition.
LOW FUEL Fuel levelDetection conditionAfter warning lamp ON signal is
detected, vehicle is driven for
over specified distance. [Fuel
level: Approx. 9.6(8-1/2 Imp
pt)]Low fuel level
Cancel conditionWarning lamp OFF signal is
detected.
PARKING BRAKE BrakeDetection conditionParking brake ON signal is
detected while vehicle is running
[approx. 5 km/h (3 MPH) or
faster].Parking brake remains
engaged.
Cancel conditionVehicle is stopped, or parking
brake OFF signal is detected.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
LCD DISPLAY
System Description (Cont’d)
EL-241

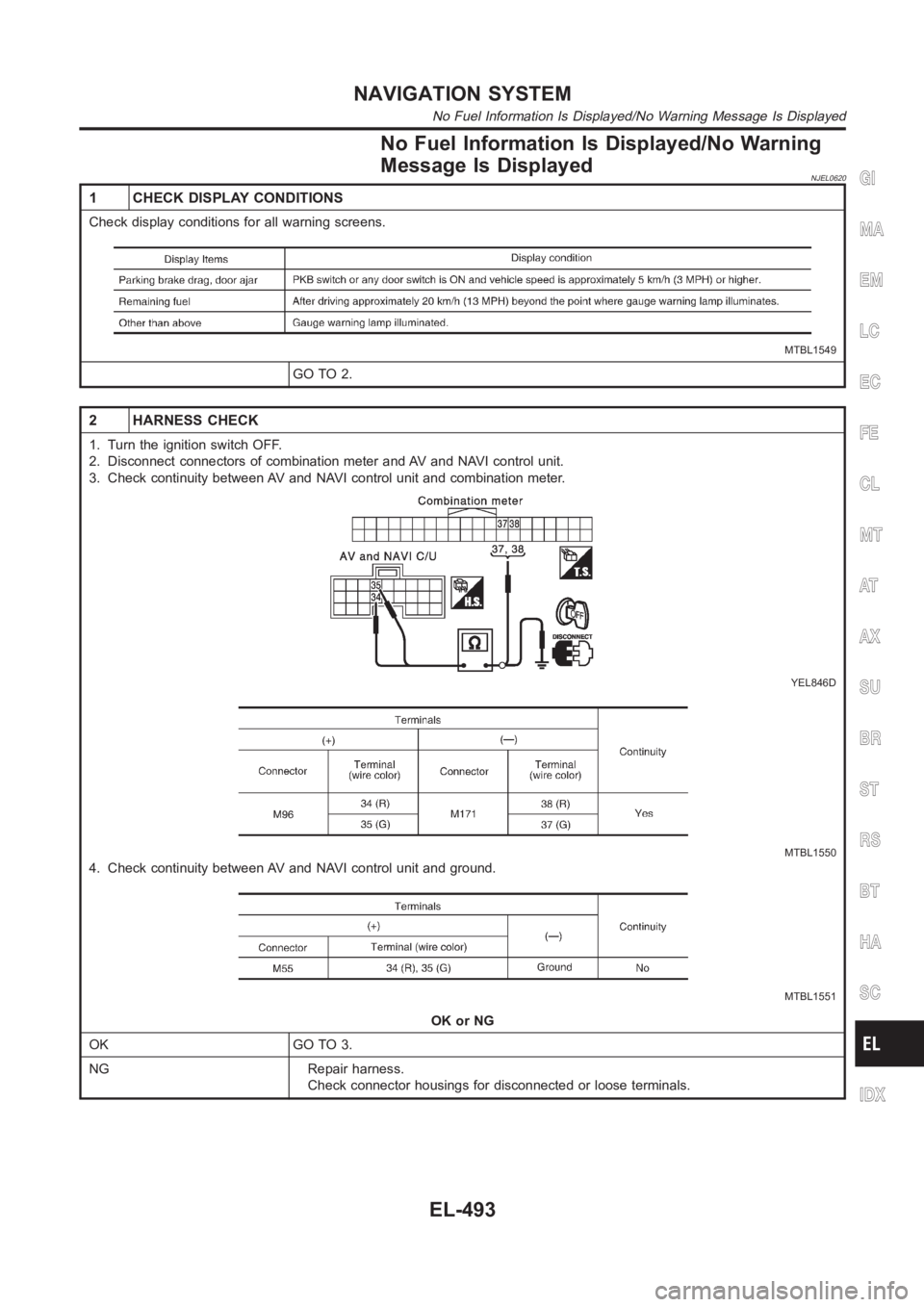

No Fuel Information Is Displayed/No Warning
Message Is Displayed
NJEL0620
1 CHECK DISPLAY CONDITIONS
Check display conditions for all warning screens.
MTBL1549
GO TO 2.
2 HARNESS CHECK
1. Turn the ignition switch OFF.
2. Disconnect connectors of combination meter and AV and NAVI control unit.
3. Check continuity between AV and NAVI control unit and combination meter.
YEL846D
MTBL1550
4. Check continuity between AV and NAVI control unit and ground.
MTBL1551
OK or NG
OK GO TO 3.
NG Repair harness.
Check connector housings for disconnected or loose terminals.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NAVIGATION SYSTEM
No Fuel Information Is Displayed/No Warning Message Is Displayed
EL-493
