2003 MITSUBISHI SHOGUN ESP

Installation of accessories
EB24A-Cb
Before fitting any accessories, please con-
sult your authorized MITSUBISHI dealer.
(1) The installation of accessories, optional
parts, etc., should only be carried out
within the limits prescribed by law in
your country, and in accordance with
the guidelines and warnings con-
tained within the documents accompa-
nying this vehicle.
Only MITSUBISHI approved accesso-
ries should be fitted to your vehicle.
(2) Improper installation of electrical parts
could cause fire, please refer to the
Modifications/Alterations to the electri-
cal or fuel systems section within this
manual.
(3) When using a communication system
such as a cellular phone or a radio set
inside the vehicle, a separate exter-
nal antenna must be fitted. When a cel-
lular phone or a radio set is used by
using an internal antenna alone, it may
interfere with the vehicle’s electrical
system and adversely affect safe
operation of the vehicle.
(4) Tyres and wheels which do not meet
specifications must not be used.
Refer to the“Specifications”section for
information regarding wheel and tyre
sizes.(5) Do not fail to read all relative instruc-
tions before first putting into service and
prior to the attachment or installation of
accessories, parts or other modifica-
tions to the vehicle!
Important points!
Due to the large number of accessory and
replacement parts of different manufactur-
ers in the market, it is not possible, not only
for MITSUBISHI, but also an authorized
MITSUBISHI dealer, to check whether the
attachment or installation of such parts
affects the driving safety of your
MITSUBISHI-vehicle.
Even when such parts are officially autho-
rized, for example by a“general opera-
tors permit”(an appraisal for the part) or
through the execution of the part in an offi-
cially approved manner of construction, or
when a single operation permit following
the attachment or installation of such parts,
it cannot be deduced from that alone, that
the driving safety of your vehicle has not
been affected.Consider also that there basically exists no
liability on the part of the appraiser or the
official. Only in the case of parts
(MITSUBISHI original replacement or
exchange parts as well as MITSUBISHI
accessories) that are recommended and
released by an authorized MITSUBISHI
dealer and that are attached or installed by
an authorized MITSUBISHI dealer can you
assume, that optimal safety has been pro-
vided. The same also pertains to modifi-
cations of MITSUBISHI vehicles with
respect to the production specifications. For
your own safety, in such cases as well, you
should only undertake modifications
according to the recommendations of an
authorized MITSUBISHI dealer.
General information
1-10Div:
Out put date:

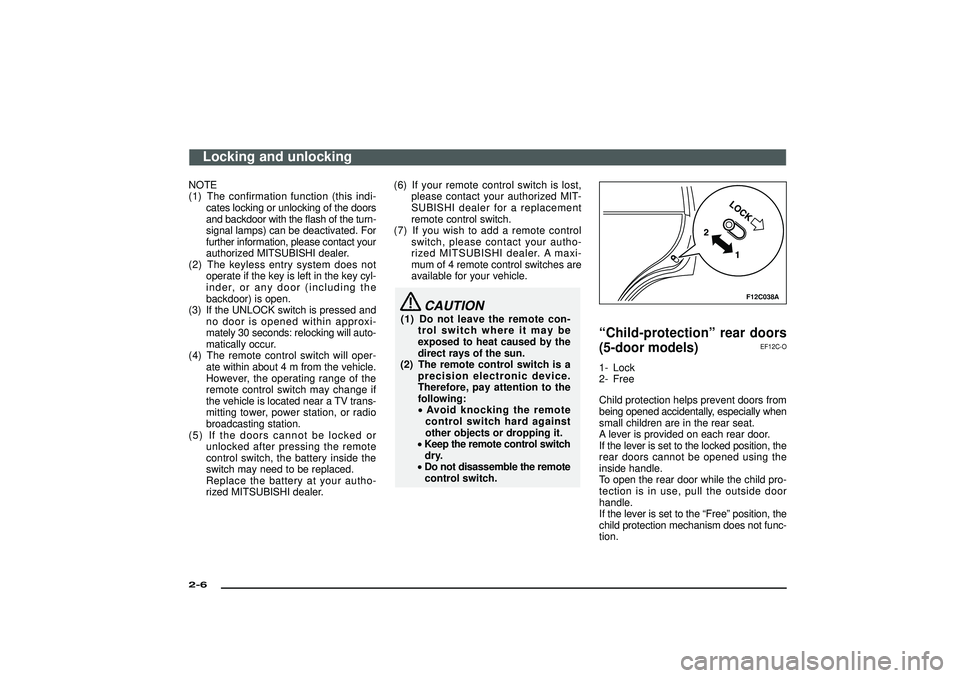

NOTE
(1) The confirmation function (this indi-
cates locking or unlocking of the doors
and backdoor with the flash of the turn-
signal lamps) can be deactivated. For
further information, please contact your
authorized MITSUBISHI dealer.
(2) The keyless entry system does not
operate if the key is left in the key cyl-
inder, or any door (including the
backdoor) is open.
(3) If the UNLOCK switch is pressed and
no door is opened within approxi-
mately 30 seconds: relocking will auto-
matically occur.
(4) The remote control switch will oper-
ate within about 4 m from the vehicle.
However, the operating range of the
remote control switch may change if
the vehicle is located near a TV trans-
mitting tower, power station, or radio
broadcasting station.
(5) If the doors cannot be locked or
unlocked after pressing the remote
control switch, the battery inside the
switch may need to be replaced.
Replace the battery at your autho-
rized MITSUBISHI dealer.(6) If your remote control switch is lost,
please contact your authorized MIT-
SUBISHI dealer for a replacement
remote control switch.
(7) If you wish to add a remote control
switch, please contact your autho-
rized MITSUBISHI dealer. A maxi-
mum of 4 remote control switches are
available for your vehicle.
CAUTION
(1) Do not leave the remote con-
trol switch where it may be
exposed to heat caused by the
direct rays of the sun.
(2) The remote control switch is a
precision electronic device.
Therefore, pay attention to the
following:
•Avoid knocking the remote
control switch hard against
other objects or dropping it.
•Keep the remote control switch
dry.
•Do not disassemble the remote
control switch.
F12C038A
“Child-protection”rear doors
(5-door models)
EF12C-O
1- Lock
2- Free
Child protection helps prevent doors from
being opened accidentally, especially when
small children are in the rear seat.
A lever is provided on each rear door.
If the lever is set to the locked position, the
rear doors cannot be opened using the
inside handle.
To open the rear door while the child pro-
tection is in use, pull the outside door
handle.
If the lever is set to the“Free”position, the
child protection mechanism does not func-
tion.
Locking and unlocking
2-6Div:
Out put date:

F17A183A
LHDEach door window opens or closes while
the corresponding switch is operated.
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window (5-door models)
4- Rear right door window (5-door models)
5- Lock switch
F17A184A
RHD
WARNING
(1) Before operating the electric win-
dow control, make sure that
nothing is capable of being
trapped (head, hand, finger, etc.).
(2) Never leave the vehicle without
removing the key.
(3) Never leave a child (or other per-
son who might not be capable of
safe operation of the electric
window control) in the vehicle
alone.
NOTE
Repeated operation with the engine
stopped will run down the battery. Oper-
ate the window switches only while the
engine is running.
Driver’s switchesThe driver’s switches can be used to oper-
ate all door windows. A window can be
opened or closed by operating the corre-
sponding switch.
Press the switch down to open the win-
dow, and pull up the switch to close it.
If the switch for the driver’s window is fully
pressed down/pulled up, the door win-
dow automatically opens/closes com-
pletely.
If you want to stop the window move-
ment, operate the switch lightly.
Locking and unlocking
2-13
Div:
Out put date:

F17A022A
Passenger’s switchesThe passenger’s switches can be used to
operate the corresponding passenger’s
door windows.
Press the switch down for opening the win-
dow, and pull up the switch for closing.
NOTE
The rear door windows only open half-
way.
F17A185A
Lock switchWhen this switch is operated, the passen-
ger’s switches cannot be used to open or
close the door windows.
To unlock, press it once again.
1- Lock
2- Unlock
NOTE
The driver’s switch can open or close any
door windows.
WARNING
A child may tamper with the switch at
the risk of its hands or head being
trapped in the window. When driv-
ing with a child in the vehicle, please
press the window lock switch to dis-
able the passenger’s switches.
Safety mechanism
If a hand or head is trapped in the clos-
ing window, the window glass will lower
automatically.
Nonetheless, make sure that nobody puts
his head or hand out of the window when
closing a window.
The lowered window will become opera-
tional after a few seconds.
CAUTION
The safety mechanism is cancelled
just before the window is fully closed.
This allows the window to close com-
pletely. Therefore be especially care-
ful not to trap a finger by the window.
Locking and unlocking
2-14Div:
Out put date:

To tilt downPress the switch (2).To openThe sunroof automatically opens if the
switch (3) is pressed.
To stop the moving sunroof, press the
switch (1) or (2).To closeThe sunroof automatically closes if the
switch (2) is pressed.
To stop the moving sunroof, press the
switch (1) or (3).Safety mechanism
If a hand or head is trapped in the clos-
ing sunroof, it will re-open automatically.
Nonetheless, make sure that nobody puts
his head or hand out of the sunroof when
opening or closing.
The opened sunroof will become opera-
tional after a few seconds.
If the safety mechanism should be acti-
vated for 5 times or more consecutively,
normal closing of the sunroof will be
aborted. In such an event, the following
steps should be taken:
1. Press the switch (2) repeatedly, set-
ting the sunroof in the tilt up condition.
2. Once the tilt up condition has been
reached, press and hold the switch (2)
for a period of at least 3 seconds.
3. Press the switch (2) once again to fully
close the sunroof.
4. After pressing the switch (3) to per-
form full opening, press the switch (2) to
fully close the sunroof. Following this
action, it should be possible to oper-
ate the sunroof in the normal manner.NOTE
Avoiding stopping the sunroof before it
reaches the opening or closing end dur-
ing operations in steps 3 and 4 above. If
this should accidentally be allowed to hap-
pen, repeat the process from step 1.
CAUTION
The safety mechanism is cancelled
just before the sunroof is fully
closed. This allows the sunroof to
close completely.
Therefore be especially careful not to
trap a finger by the sunroof.
Locking and unlocking
2-16Div:
Out put date:

G26B022A
Confirm that the height adjusting knobs (A)
are correctly adjusted as shown in the illus-
tration, and also lift the head restraints to
ensure that they do not come out of the
seatback.
WARNING
It is dangerous to drive with incor-
rectly adjusted head restraints or
without head restraints installed;
always have them correctly fitted
when using the vehicle. Failure to do
so could cause serious injury if
involved in an accident.
G26B033A
CAUTION
The head restraints for the seats dif-
fer in shape and size. When install-
ing head restraints, make sure the
head restraints are fitted in their
respective seats.
Seat belts
EG28ABMa
To protect you and your passengers in the
event of an accident, it is most important
that the seat belts are worn correctly when
you drive.
The front seat belts have pre-tensioners.
These belts are used the same way as
conventional seat belts.
Refer to“Pre-tensioner seat belt system”on
page 3-56.
WARNING
(1) Never wear the shoulder por-
tion of the seat belt under the
arm or other position which is
incorrect.
(2) One seat belt should be used by
only one person. Doing other-
wise can be dangerous.
(3) The seat belt will provide its
wearer with maximum protec-
tion if the recliner seatback is
placed in fully upright position.
When the seatback is reclined,
there is greater risk that the pas-
senger will slide under the belt,
especially in a forward impact
accident, and may be injured by
the belt or by striking the instru-
ment panel or seatbacks.
Seat and seat belts
3-30Div:
Out put date:

When the impact sensors detect an impact
of sufficient frontal or side force, an auto-
mated circuit ignites materials in the infla-
tor to generate gas and inflate the air bags.
The air bags deployment produces a sud-
den, loud noise, and releases some smoke
and powder, but these conditions are not
injurious, and do not indicate a fire in the
vehicle. People with respiratory problems
may feel some temporary irritation from
chemicals used to produce the deployment;
open the windows after air bag deploy-
ment, if safe to do so.
The air bags deflate very rapidly after
deployment, so there is little danger of
obscured vision.
The time required from the sensors detect-
ing an impact to deflation of the air bags
after deployment is shorter than a blink of
an eye.
CAUTION
Air bags are inflated at an extremely
rapid speed. In certain situations,
contact with inflating air bags can
result in light cuts, bruises, and the
like.
G28G242A
Driver’s and passenger’s front air
bag system
EG29C-D
The driver’s air bag is located under the
padded cover in the middle of the steer-
ing wheel. The front passenger air bag is
contained in the instrument panel above the
upper glove box.
The driver air bag and the front passen-
ger air bag are designed to inflate at the
same time even if the passenger seat is not
occupied.
Seat and seat belts
3-46Div:
Out put date:

G28L080D
The front air bags MAY NOT DEPLOY when…
With certain types of frontal collisions, the vehicle’s body struc-
ture is designed to absorb the shock to help protect the occu-
pants from harm. (The vehicle body’s front area may deform
significantly as it absorbs the impact.) Under such circum-
stances, the front air bags may not deploy irrespective of the defor-
mation and damage to the vehicle body.
Examples of some typical conditions are shown in the illustration:
1- Collision with a utility pole, tree or other narrow object
2- Vehicle slides under the rear body of a truck
3- Oblique frontal impacts
Because the front air bags do not protect the occupant in all types
of frontal collisions, be sure to always properly wear your seat
belts.
Seat and seat belts
3-48Div:
Out put date:
