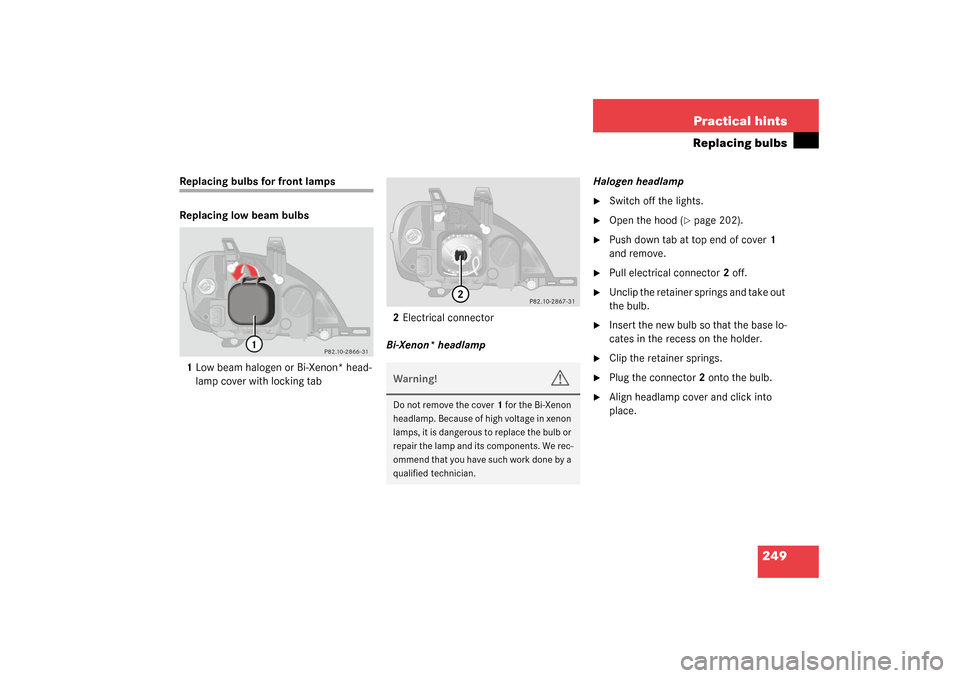

Page 249 of 321
249 Practical hints
Replacing bulbs
Replacing bulbs for front lamps
Replacing low beam bulbs
1Low beam halogen or Bi-Xenon* head-
lamp cover with locking tab2Electrical connector
Bi-Xenon* headlampHalogen headlamp
Switch off the lights.
Open the hood (
page 202).
Push down tab at top end of cover1
and remove.
Pull electrical connector2 off.
Unclip the retainer springs and take out
the bulb.
Insert the new bulb so that the base lo-
cates in the recess on the holder.
Clip the retainer springs.
Plug the connector2 onto the bulb.
Align headlamp cover and click into
place.
Warning!
G
Do not remove the cover1 for the Bi-Xenon
headlamp. Because of high voltage in xenon
lamps, it is dangerous to replace the bulb or
repair the lamp and its components. We rec-
o mme n d th at y o u h av e s uc h wo rk don e by a
qualified technician.
Page 250 of 321
250 Practical hintsReplacing bulbsHigh beam bulbs
1High beam headlamp cover with lock-
ing tab
Switch off the lights.
Open the hood (
page 202).
Twist cover1 counterclockwise and re-
move.2Electrical connector
Pull electrical connector2 off.
Unclip the retainer springs and take out
the bulb.
Insert the new bulb so that the base lo-
cates in the recess on the holder.
Clip the retainer springs.
Plug the connector2 onto the bulb.
Align headlamp cover and click into
place.Turn signal, parking, standing and side
marker lamp bulbs
1Bulb socket
Switch off the lights.
Open the hood (
page 202).
Twist bulb socket1 counterclockwise
and pull out.
Push bulb into socket, turn counter-
clockwise and remove.
Insert new bulb in socket, push in and
twist clockwise.
Reinstall the bulb socket.

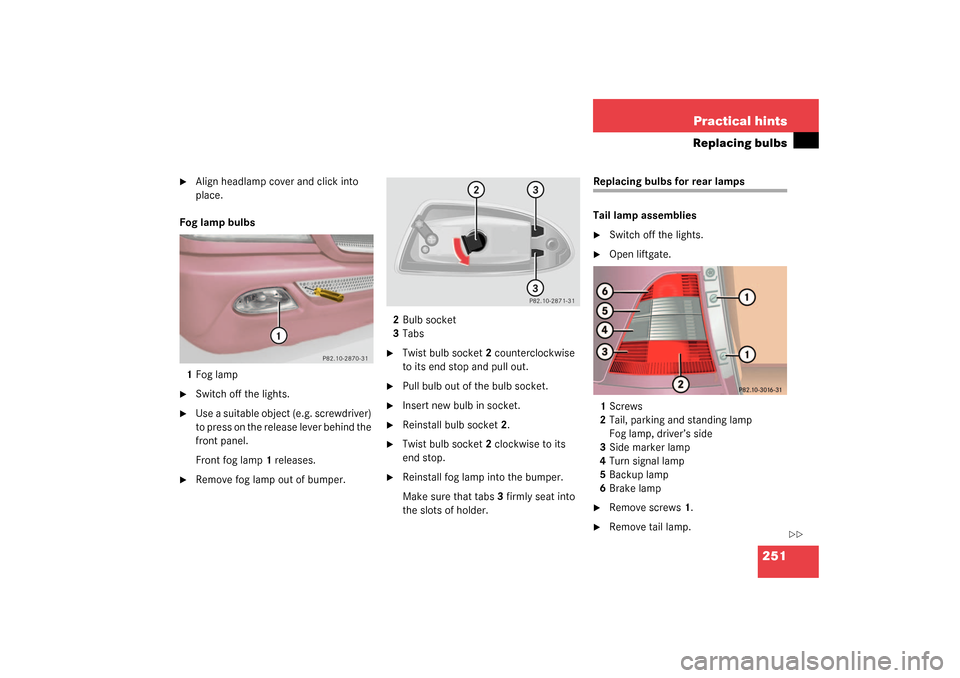

Page 251 of 321
251 Practical hints
Replacing bulbs
Align headlamp cover and click into
place.
Fog lamp bulbs
1Fog lamp
Switch off the lights.
Use a suitable object (e.g. screwdriver)
to press on the release lever behind the
front panel.
Front fog lamp1 releases.
Remove fog lamp out of bumper.2Bulb socket
3Tabs
Twist bulb socket2 counterclockwise
to its end stop and pull out.
Pull bulb out of the bulb socket.
Insert new bulb in socket.
Reinstall bulb socket2.
Twist bulb socket2 clockwise to its
end stop.
Reinstall fog lamp into the bumper.
Make sure that tabs3 firmly seat into
the slots of holder.
Replacing bulbs for rear lamps
Tail lamp assemblies
Switch off the lights.
Open liftgate.
1Screws
2Tail, parking and standing lamp
Fog lamp, driver’s side
3Side marker lamp
4Turn signal lamp
5Backup lamp
6Brake lamp
Remove screws1.
Remove tail lamp.

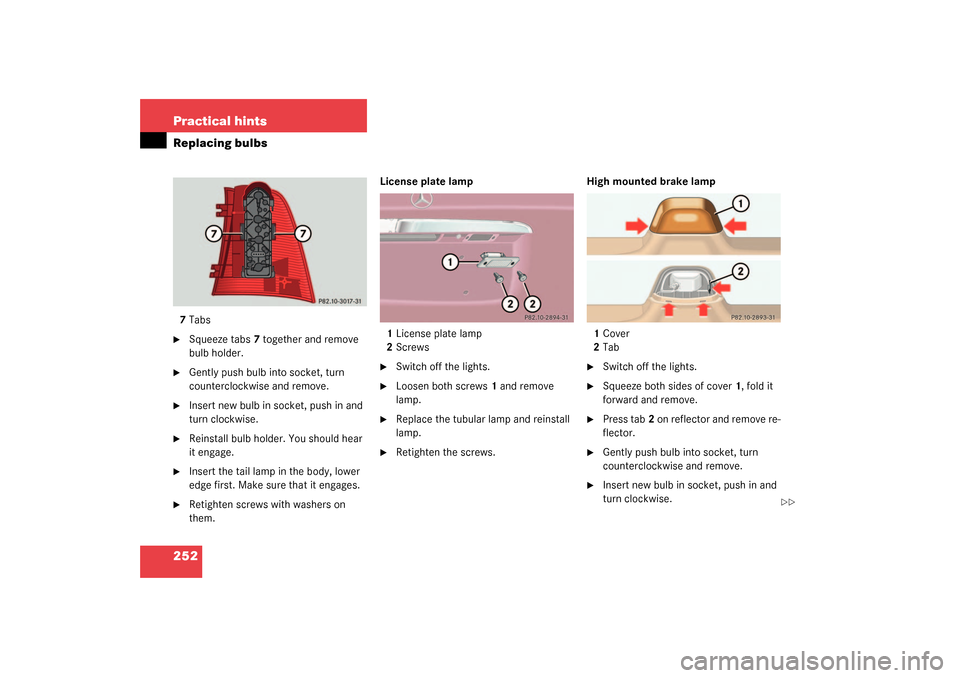

Page 252 of 321
252 Practical hintsReplacing bulbs7Tabs
Squeeze tabs7 together and remove
bulb holder.
Gently push bulb into socket, turn
counterclockwise and remove.
Insert new bulb in socket, push in and
turn clockwise.
Reinstall bulb holder. You should hear
it engage.
Insert the tail lamp in the body, lower
edge first. Make sure that it engages.
Retighten screws with washers on
them.License plate lamp
1License plate lamp
2Screws
Switch off the lights.
Loosen both screws1 and remove
lamp.
Replace the tubular lamp and reinstall
lamp.
Retighten the screws.High mounted brake lamp
1Cover
2Tab
Switch off the lights.
Squeeze both sides of cover1, fold it
forward and remove.
Press tab2 on reflector and remove re-
flector.
Gently push bulb into socket, turn
counterclockwise and remove.
Insert new bulb in socket, push in and
turn clockwise.

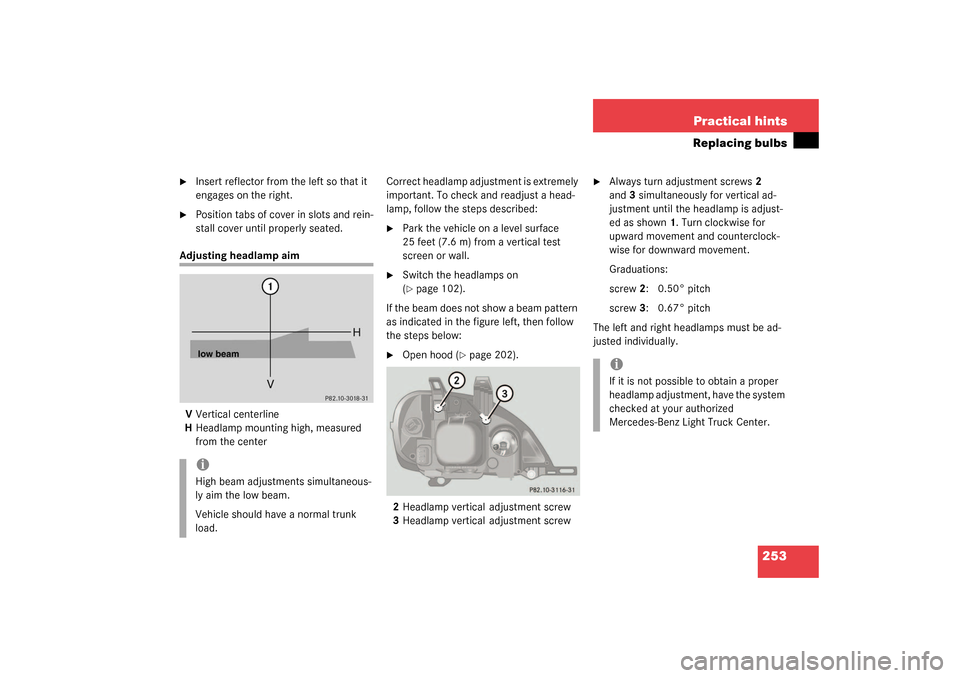

Page 253 of 321

253 Practical hints
Replacing bulbs
Insert reflector from the left so that it
engages on the right.
Position tabs of cover in slots and rein-
stall cover until properly seated.
Adjusting headlamp aim
VVertical centerline
HHeadlamp mounting high, measured
from the center Correct headlamp adjustment is extremely
important. To check and readjust a head-
lamp, follow the steps described:
Park the vehicle on a level surface
25 feet (7.6 m) from a vertical test
screen or wall.
Switch the headlamps on
(page 102).
If the beam does not show a beam pattern
as indicated in the figure left, then follow
the steps below:
Open hood (
page 202).
2Headlamp vertical adjustment screw
3Headlamp vertical adjustment screw
Always turn adjustment screws2
and3 simultaneously for vertical ad-
justment until the headlamp is adjust-
ed as shown1. Turn clockwise for
upward movement and counterclock-
wise for downward movement.
Graduations:
screw2:0.50° pitch
screw3:0.67° pitch
The left and right headlamps must be ad-
justed individually.
iHigh beam adjustments simultaneous-
ly aim the low beam.
Vehicle should have a normal trunk
load.
iIf it is not possible to obtain a proper
headlamp adjustment, have the system
checked at your authorized
Mercedes-Benz Light Truck Center.
Page 254 of 321
254 Practical hintsReplacing wiper blades
Replacing wiper blades
Removal
Fold the wiper arm forward.
Turn wiper blade at a right angle to wip-
er arm.
1Wiper blade
2Safety tab
Press safety tab down2.
Push wiper blade downward1 and re-
move.
Installation
Slide wiper blade into end of wiper arm
until it locks in place.
Warning!
G
For safety reasons, remove key from steer-
ing lock before replacing a wiper blade, oth-
erwise the motor could suddenly turn on and
cause injury.
!Never open the hood when the wiper
arm is folded forward.
Do not allow the wiper arms to contact
the windshield glass without a wiper
blade inserted.
Make certain that the wiper blades are
properly installed. Improperly installed
wiper blades may cause windshield
damage.
For your convenience, we recommend
that you have this work carried out by
an authorized Mercedes-Benz Light
Truck Center.

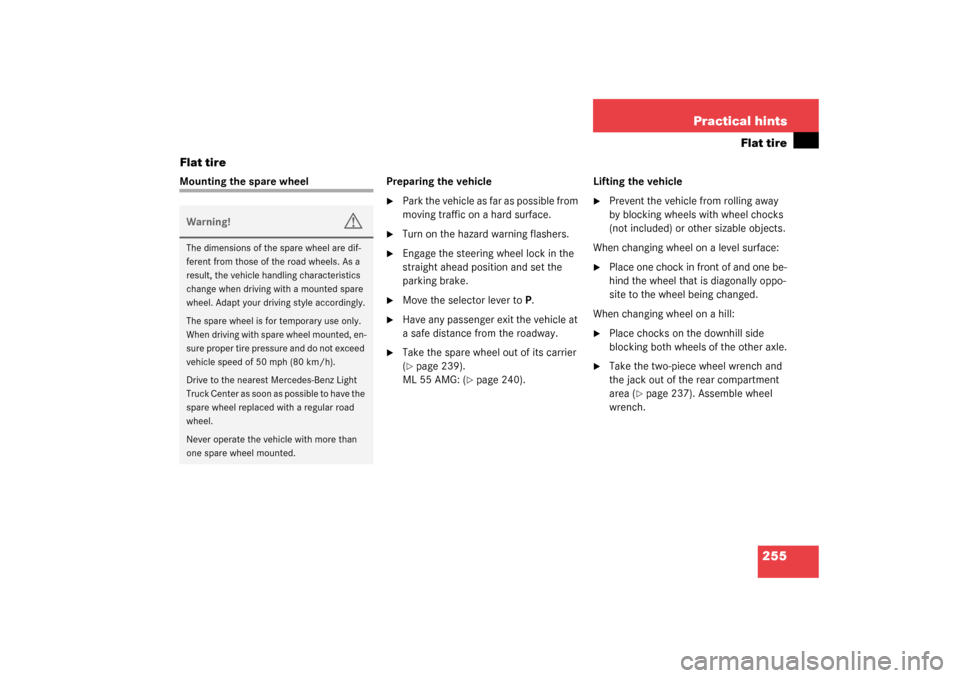

Page 255 of 321

255 Practical hints
Flat tire
Flat tire
Mounting the spare wheel Preparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.
Turn on the hazard warning flashers.
Engage the steering wheel lock in the
straight ahead position and set the
parking brake.
Move the selector lever toP.
Have any passenger exit the vehicle at
a safe distance from the roadway.
Take the spare wheel out of its carrier
(page 239).
ML 55 AMG: (
page 240).Lifting the vehicle
Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
(not included) or other sizable objects.
When changing wheel on a level surface:
Place one chock in front of and one be-
hind the wheel that is diagonally oppo-
site to the wheel being changed.
When changing wheel on a hill:
Place chocks on the downhill side
blocking both wheels of the other axle.
Take the two-piece wheel wrench and
the jack out of the rear compartment
area (
page 237). Assemble wheel
wrench.
Warning!
G
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a mounted spare
wheel. Adapt your driving style accordingly.
The spare wheel is for temporary use only.
When driving with spare wheel mounted, en-
sure proper tire pressure and do not exceed
vehicle speed of 50 mph (80 km/h).
Drive to the nearest Mercedes-Benz Light
Truck Center as soon as possible to have the
spare wheel replaced with a regular road
wheel.
Never operate the vehicle with more than
one spare wheel mounted.
Page 256 of 321

256 Practical hintsFlat tire
On wheel to be changed, loosen but do
not yet remove the wheel bolts (ap-
proximately one full turn with wrench).
The jack take-up brackets are located di-
rectly behind the front wheel housings and
in front of the rear wheel housings.1Take-up bracket
2Jack
Place jack on firm ground.
Position jack2 under the take-up
bracket1 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an in-
cline.
Jack up the vehicle until the wheel is a
maximum of 1.2 in (3 cm) from the
ground. Never start engine while vehi-
cle is raised.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface. Make sure that the jack
arm is fully seated in the jack take-up brack-
et. Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.
!Do not position the jack on the body of
the vehicle, as this may cause damage
to the vehicle.
