2003 MERCEDES-BENZ ML55AMG Owner's Manual

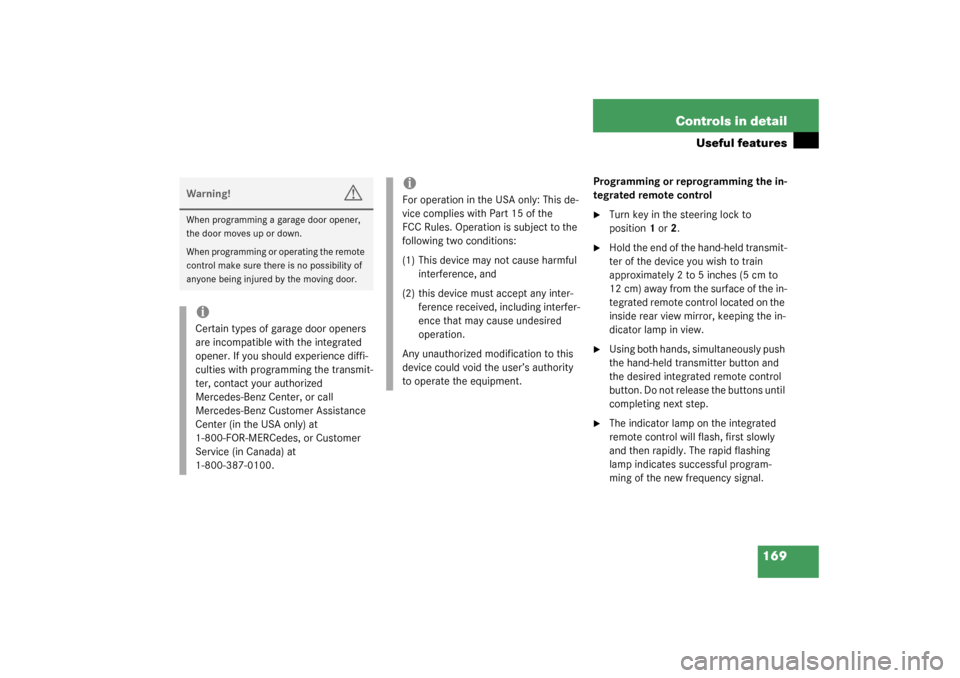

169 Controls in detail
Useful features
Programming or reprogramming the in-
tegrated remote control
Turn key in the steering lock to
position1 or2.

Hold the end of the hand-held transmit-
ter of the device you wish to train
approximately 2 to 5 inches (5 cm to
12 cm) away from the surface of the in-
tegrated remote control located on the
inside rear view mirror, keeping the in-
dicator lamp in view.

Using both hands, simultaneously push
the hand-held transmitter button and
the desired integrated remote control
button. Do not release the buttons until
completing next step.

The indicator lamp on the integrated
remote control will flash, first slowly
and then rapidly. The rapid flashing
lamp indicates successful program-
ming of the new frequency signal.
Warning!
G
When programming a garage door opener,
the door moves up or down.
When programming or operating the remote
control make sure there is no possibility of
anyone being injured by the moving door.iCertain types of garage door openers
are incompatible with the integrated
opener. If you should experience diffi-
culties with programming the transmit-
ter, contact your authorized
Mercedes-Benz Center, or call
Mercedes-Benz Customer Assistance
Center (in the USA only) at
1-800-FOR-MERCedes, or Customer
Service (in Canada) at
1-800-387-0100.
iFor operation in the USA only: This de-
vice complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

170 Controls in detailUseful features
When the indicator lamp flashes rapid-
ly, release both buttons.

To program the remaining two buttons,
repeat the steps above.Rolling code programming
To train a garage door opener (or other roll-
ing code devices) with the rolling code fea-
ture, follow these instructions after
completing the “Programming” portion of
this text. (A second person may make the
following training procedures quicker and
easier.)

Locate training button on the garage
door opener motor head unit.
Exact location and color of the button
may vary by garage door opener brand.
If there is difficulty locating the trans-
mitting button, reference to garage
door opener operator’s manual.

Press “training” button on the garage
door opener motor head unit.
The “training light” is activated.You have 30 seconds time to initiate the
following step.

Firmly press and release the pro-
grammed integrated remote control
transmit button.

Press and release same button a sec-
ond time to complete the training pro-
cess.
Some garage door openers may require
you to do this procedure a third time to
complete the training.

Confirm the garage door operation by
pressing the programmed button on
the integrated remote control transmit-
ter.
iIf, after several attempts, you do not
successfully program the integrated re-
mote control device to learn the signal
of the hand-held transmitter, the ga-
rage door opener could be equipped
with the “rolling code feature”.

171 Controls in detail
Useful features
Canadian programming
During programming, your hand-held
transmitter may automatically stop trans-
mitting.
Continue to press and hold the inte-
grated remote control transmitter but-
ton (refer to steps two through four in
the “Programming” portion) while you
press and re-press (“cycle”) your
hand-held transmitter every two sec-
onds until the frequency signal has
been learned.
Upon successful training, the indicator
lamp will flash slowly and then rapidly
after several seconds.Operation of remote control

Turn key in steering lock to position1
or2.

Select and press the appropriate but-
ton to activate the remote controlled
device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.Erasing the remote control memory

Turn key in steering lock to position1
or2.

Simultaneously hold down the left and
right side buttons for approximately
20 seconds, or until the indicator lamp
blinks rapidly.
The codes of all three channels are
erased.iIf you sell your vehicle, erase the codes
of all three channels.

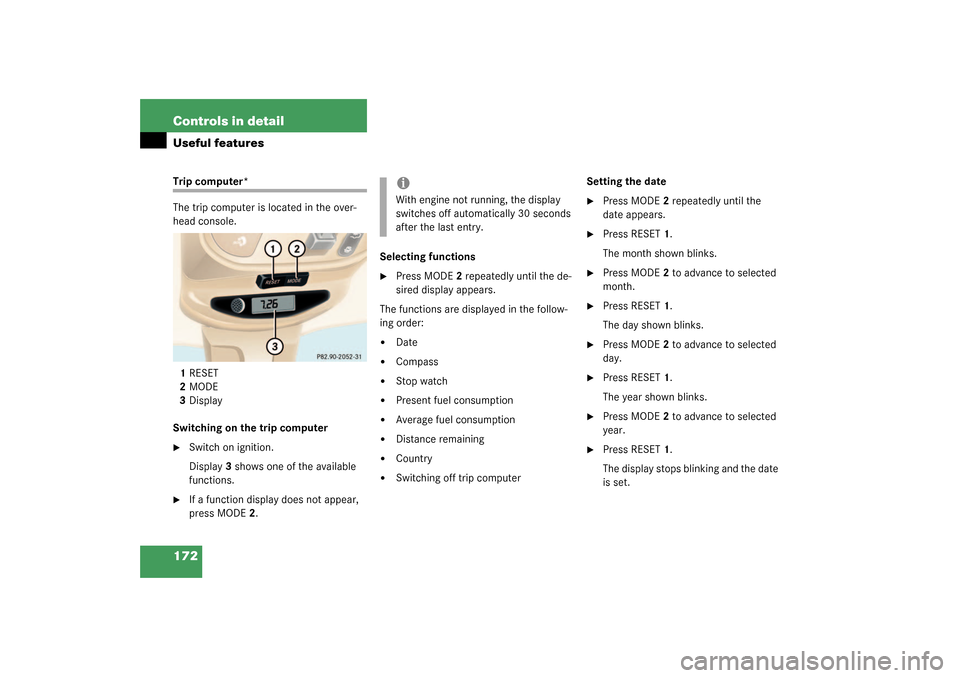

172 Controls in detailUseful featuresTrip computer*
The trip computer is located in the over-
head console.
1RESET
2MODE
3Display
Switching on the trip computer
Switch on ignition.
Display3 shows one of the available
functions.

If a function display does not appear,
press MODE2.Selecting functions

Press MODE2 repeatedly until the de-
sired display appears.
The functions are displayed in the follow-
ing order:


Date


Compass


Stop watch


Present fuel consumption


Average fuel consumption


Distance remaining


Country


Switching off trip computerSetting the date

Press MODE2 repeatedly until the
date appears.

Press RESET1.
The month shown blinks.

Press MODE2 to advance to selected
month.

Press RESET1.
The day shown blinks.

Press MODE2 to advance to selected
day.

Press RESET1.
The year shown blinks.

Press MODE2 to advance to selected
year.

Press RESET1.
The display stops blinking and the date
is set.
iWith engine not running, the display
switches off automatically 30 seconds
after the last entry.

173 Controls in detail
Useful features
Compass
The compass displays the direction the ve-
hicle is traveling. The display3 will show
you N, NE, E, SE, S, SW, W or NW.
To ensure the display is correct, the com-
pass must be set to the proper geographic
zone (
page 174). It may also be neces-
sary to calibrate the compass
(
page 174).
Zone map North America Zone map South America
iThe presence of buildings, bridges,
power lines and large antenna masts
can influence the displayed values. Me-
tallic or magnetic objects in or on the
vehicle can influence the accuracy of
the compass.

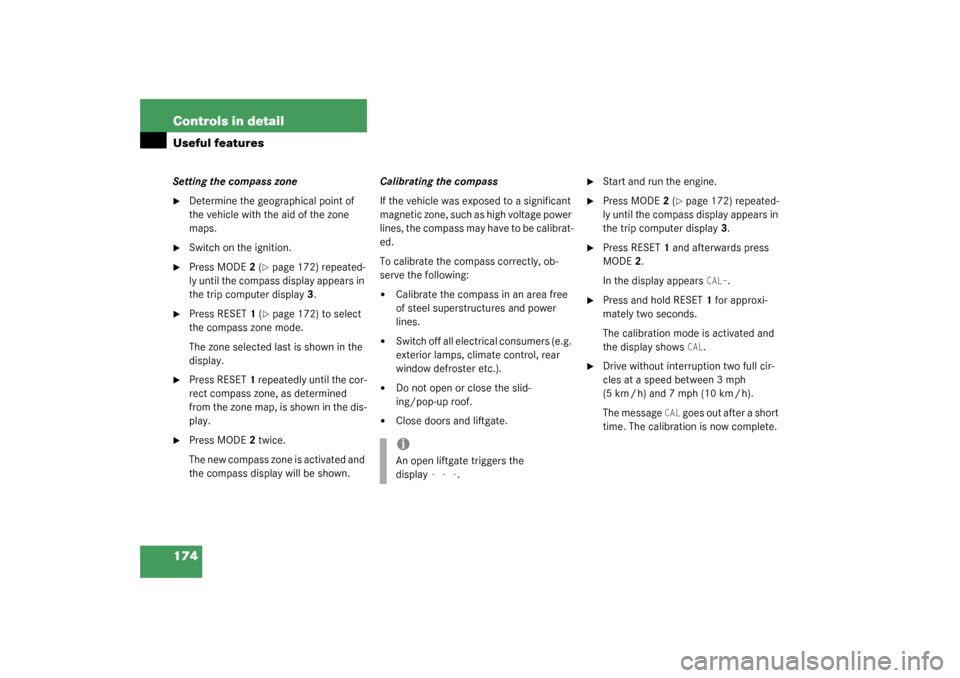

174 Controls in detailUseful featuresSetting the compass zone
Determine the geographical point of
the vehicle with the aid of the zone
maps.

Switch on the ignition.

Press MODE2 (
page 172) repeated-
ly until the compass display appears in
the trip computer display3.

Press RESET1 (
page 172) to select
the compass zone mode.
The zone selected last is shown in the
display.

Press RESET1 repeatedly until the cor-
rect compass zone, as determined
from the zone map, is shown in the dis-
play.

Press MODE2 twice.
The new compass zone is activated and
the compass display will be shown.Calibrating the compass
If the vehicle was exposed to a significant
magnetic zone, such as high voltage power
lines, the compass may have to be calibrat-
ed.
To calibrate the compass correctly, ob-
serve the following:


Calibrate the compass in an area free
of steel superstructures and power
lines.


Switch off all electrical consumers (e.g.
exterior lamps, climate control, rear
window defroster etc.).


Do not open or close the slid-
ing/pop-up roof.


Close doors and liftgate.

Start and run the engine.

Press MODE2 (
page 172) repeated-
ly until the compass display appears in
the trip computer display3.

Press RESET1 and afterwards press
MODE2.
In the display appears
CAL–
.

Press and hold RESET1 for approxi-
mately two seconds.
The calibration mode is activated and
the display shows
CAL
.

Drive without interruption two full cir-
cles at a speed between 3 mph
(5 km / h) and 7 mph (10 km / h).
The message
CAL
goes out after a short
time. The calibration is now complete.
iAn open liftgate triggers the
display
---
.

175 Controls in detail
Useful features
Stop watch
Press MODE2 (
page 172) repeated-
ly until the stop watch display appears
in the trip computer display3.
Counting

Press RESET1 (
page 172) to start
counting.Stopping

Press RESET1 again to stop counting.
Resetting

Press and hold RESET1 until the dis-
play shows “0:00”.
Average fuel consumption

Press MODE2 (
page 172) repeated-
ly until the average fuel consumption
display appears in the trip computer
display3.Distance remaining with fuel presently
in tank

Press MODE2 (
page 172) repeated-
ly until the distance remaining display
appears in the trip computer display3.
iIf CAL
remains in the display, calibration
was not successfully completed. You
have to recalibrate:


Remove the key from the steering
lock.


Start the vehicle and start the cali-
bration procedure described be-
fore.
We recommend that you have the com-
pass calibrated at a Mercedes-Benz
Light Truck Center.
iWhen the fuel supply drops to reserve
level the display flashes distance re-
maining.

USA only:
The display alternates between FUEL
and distance remaining until
supply is consistently below the re-
serve level. When the fuel supply is
very low [approximately 1.5 gal
(5.5 l)]
FUEL
is displayed
continuously.

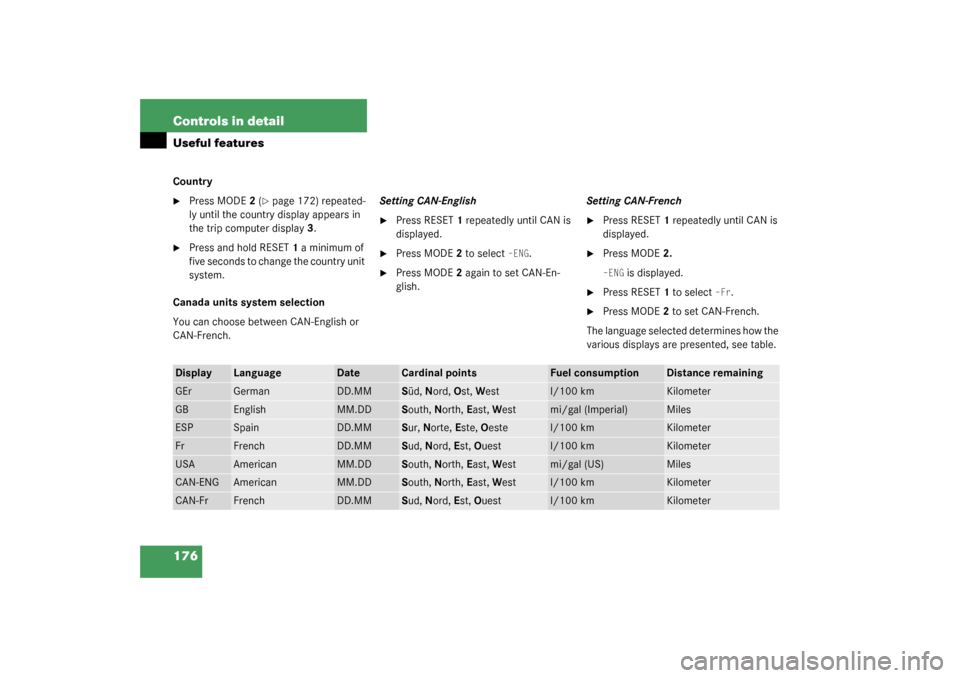

176 Controls in detailUseful featuresCountry
Press MODE2 (
page 172) repeated-
ly until the country display appears in
the trip computer display3.

Press and hold RESET1 a minimum of
five seconds to change the country unit
system.
Canada units system selection
You can choose between CAN-English or
CAN-French.Setting CAN-English

Press RESET1 repeatedly until CAN is
displayed.

Press MODE2 to select
–ENG
.

Press MODE2 again to set CAN-En-
glish.Setting CAN-French

Press RESET1 repeatedly until CAN is
displayed.

Press MODE2. –ENG
is displayed.

Press RESET1 to select
–Fr
.

Press MODE2 to set CAN-French.
The language selected determines how the
various displays are presented, see table.
Display
Language
Date
Cardinal points
Fuel consumption
Distance remaining
GEr
German
DD.MM
Süd, Nord, Ost, West
l/100 km
Kilometer
GB
English
MM.DD
South, North, East, West
mi/gal (Imperial)
Miles
ESP
Spain
DD.MM
Sur, Norte, Este, Oeste
l/100 km
Kilometer
Fr
French
DD.MM
Sud, Nord, Est, Ouest
l/100 km
Kilometer
USA
American
MM.DD
South, North, East, West
mi/gal (US)
Miles
CAN-ENG
American
MM.DD
South, North, East, West
l/100 km
Kilometer
CAN-Fr
French
DD.MM
Sud, Nord, Est, Ouest
l/100 km
Kilometer
