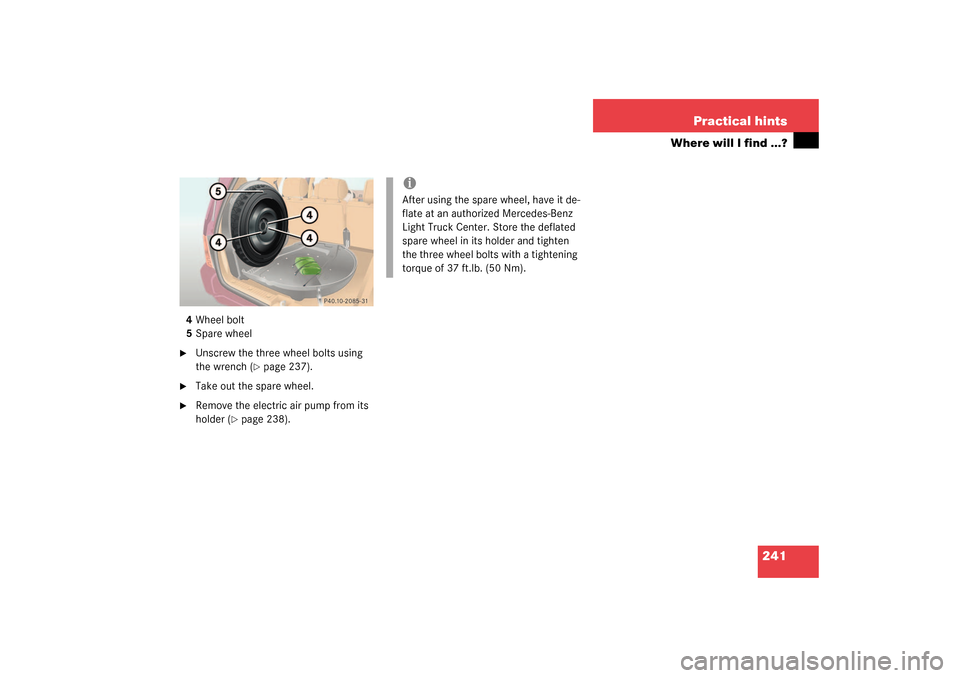

241 Practical hints
Where will I find ...?
4Wheel bolt
5Spare wheel
Unscrew the three wheel bolts using
the wrench (
page 237).

Take out the spare wheel.

Remove the electric air pump from its
holder (
page 238).
iAfter using the spare wheel, have it de-
flate at an authorized Mercedes-Benz
Light Truck Center. Store the deflated
spare wheel in its holder and tighten
the three wheel bolts with a tightening
torque of 37 ft.lb. (50 Nm).

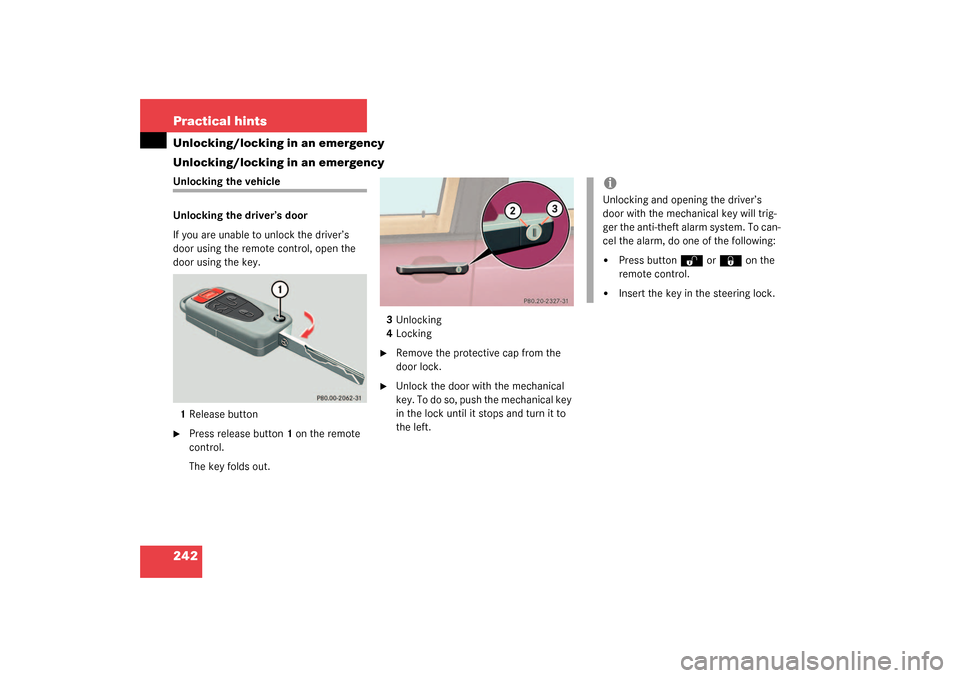

242 Practical hintsUnlocking/locking in an emergency
Unlocking/locking in an emergencyUnlocking the vehicle
Unlocking the driver’s door
If you are unable to unlock the driver’s
door using the remote control, open the
door using the key.
1Release button
Press release button1 on the remote
control.
The key folds out.3Unlocking
4Locking

Remove the protective cap from the
door lock.

Unlock the door with the mechanical
key. To do so, push the mechanical key
in the lock until it stops and turn it to
the left.
iUnlocking and opening the driver’s
door with the mechanical key will trig-
ger the anti-theft alarm system. To can-
cel the alarm, do one of the following:

Press button
Œ
or
‹
on the
remote control.


Insert the key in the steering lock.

243 Practical hints
Unlocking/locking in an emergency
Locking the vehicle
If you are unable to lock the vehicle with
the remote control, lock it with the me-
chanical key as follows:
Close the passenger doors and the lift-
gate.

Press the upper part of the central
locking button in the cockpit
(page 89).

Check to see whether the locking
knobs on the passenger doors are still
visible. If necessary push them down
manually.

Lock the liftgate if necessary from in-
side (
page 87).

Lock the driver’s door with the me-
chanical key.
Changing batteries
If the batteries in the remote control are
discharged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Light Truck Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.1Release button
2Battery cover
Replacement batteries: Lithium, type
CR 2025 or equivalent.

Unfold the key by pressing release
button1.
Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen changing batteries, always re-
place both batteries.
The required replacement batteries are
available at any Mercedes-Benz Light
Truck Center.


244 Practical hintsUnlocking/locking in an emergency
Pull off battery cover2 in direction of
arrow.

Remove the batteries.

Using a lint-free cloth, insert new bat-
teries under the contact spring with the
plus (+) side facing up.

Press battery cover onto housing until
locked in place.

Push each button to assure proper op-
eration of the remote control.
If remote control does not function cor-
rectly after replacing the batteries, the
system may have to be resynchronized.Synchronizing remote control

Turn key in steering lock to position2,
then to position0 and remove.

Within 10 seconds, push and hold
button
‹
while pushing
button
Œ
five times.

Release the button, and press
‹
,
Œ
or
Š
once.
The remote control is resynchronized.

Recheck all of the remote control func-
tions.
Fuel filler flap
1Cover
2Lock rod
Open cover1 in cargo area behind the
left trim panel.

Turn lock rod2 clockwise (arrow) to
the end stop.

Open the fuel filler flap.
iIf it is not possible to resynchronize the
remote control, have the system
checked at your authorized
Mercedes-Benz Light Truck Center.
iML 55 AMG:
First remove the spare wheel from its
holder (
page 240).

245 Practical hints
Unlocking/locking in an emergency

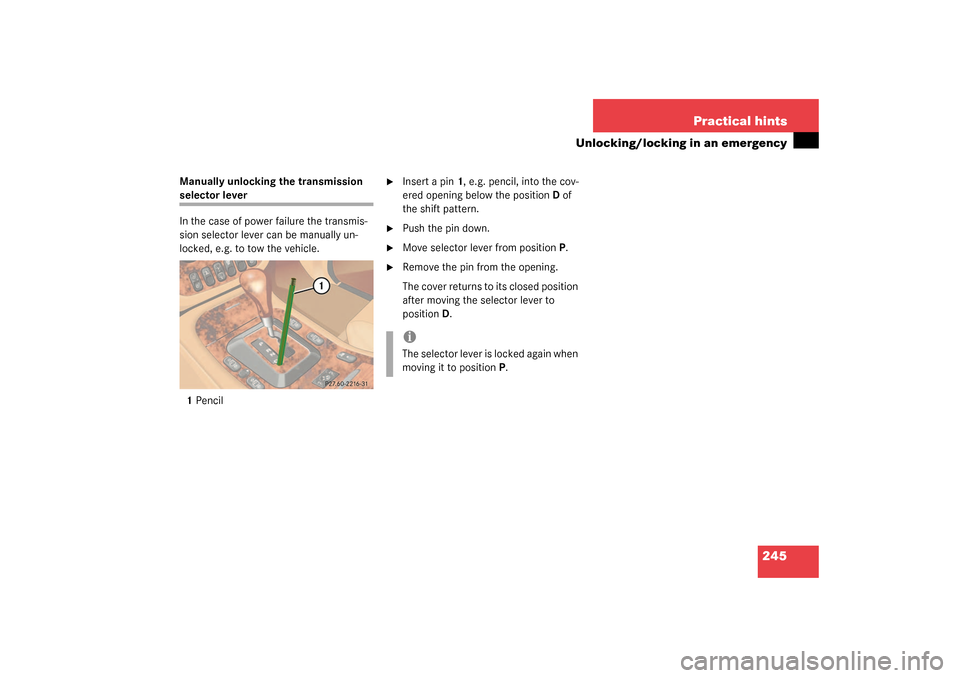

Manually unlocking the transmission selector lever
In the case of power failure the transmis-
sion selector lever can be manually un-
locked, e.g. to tow the vehicle.
1Pencil

Insert a pin1, e.g. pencil, into the cov-
ered opening below the position D of
the shift pattern.

Push the pin down.

Move selector lever from positionP.

Remove the pin from the opening.
The cover returns to its closed position
after moving the selector lever to
positionD.iThe selector lever is locked again when
moving it to positionP.

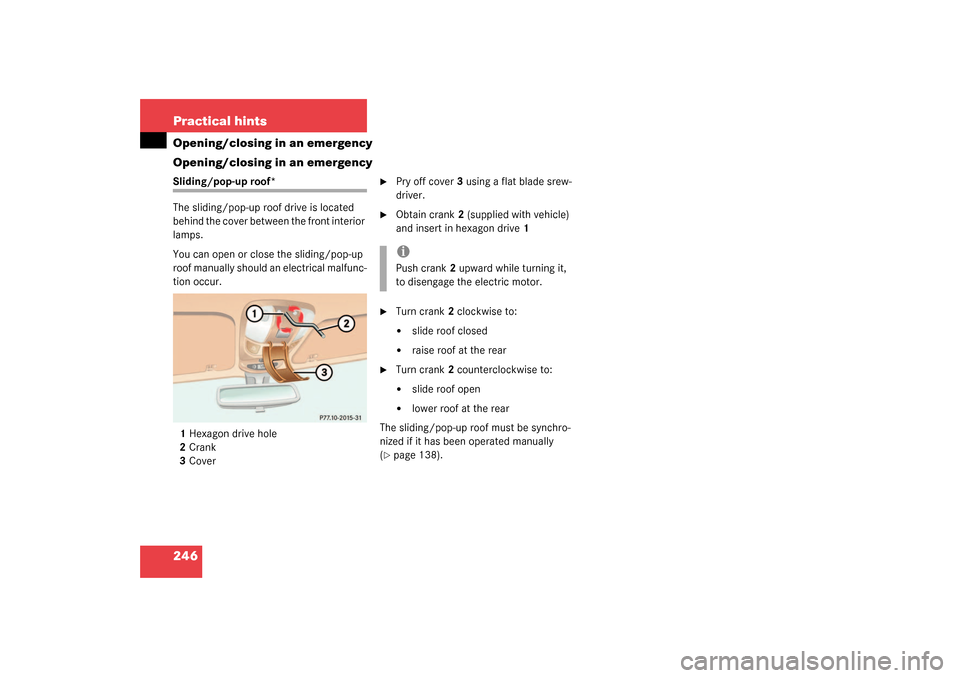

246 Practical hintsOpening/closing in an emergency
Opening/closing in an emergencySliding/pop-up roof*
The sliding/pop-up roof drive is located
behind the cover between the front interior
lamps.
You can open or close the sliding/pop-up
roof manually should an electrical malfunc-
tion occur.
1Hexagon drive hole
2Crank
3Cover

Pry off cover3 using a flat blade srew-
driver.

Obtain crank2 (supplied with vehicle)
and insert in hexagon drive1

Turn crank2 clockwise to:

slide roof closed


raise roof at the rear

Turn crank2 counterclockwise to:

slide roof open


lower roof at the rear
The sliding/pop-up roof must be synchro-
nized if it has been operated manually
(
page 138).iPush crank2 upward while turning it,
to disengage the electric motor.

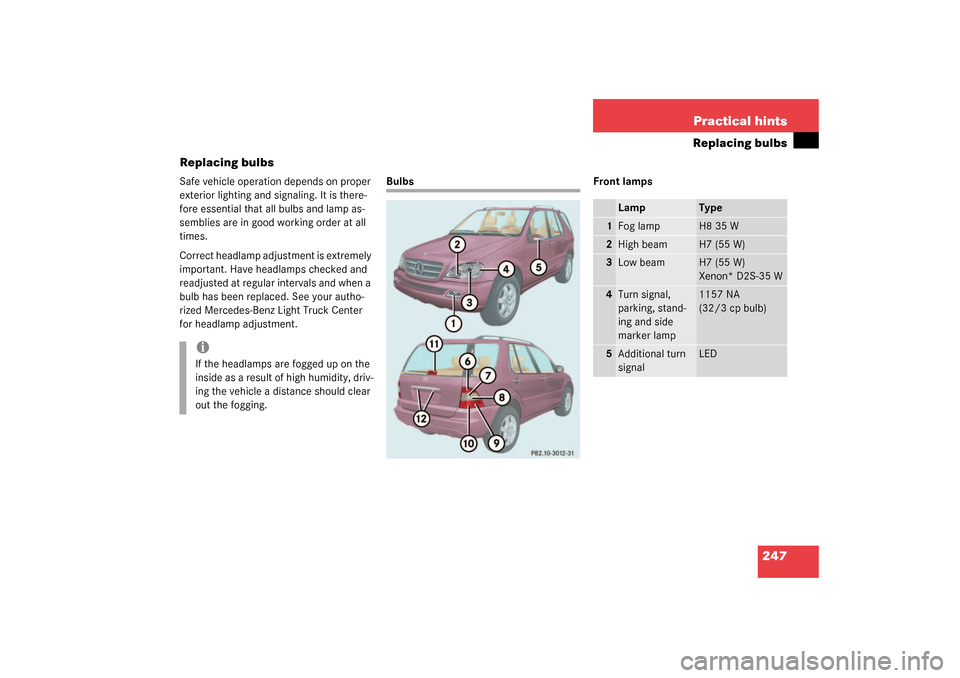

247 Practical hints
Replacing bulbs
Replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Light Truck Center
for headlamp adjustment.
Bulbs Front lamps
iIf the headlamps are fogged up on the
inside as a result of high humidity, driv-
ing the vehicle a distance should clear
out the fogging.
Lamp
Type
1
Fog lamp
H8 35 W
2
High beam
H7 (55 W)
3
Low beam
H7 (55 W)
Xenon* D2S-35 W
4
Turn signal,
parking, stand-
ing and side
marker lamp
1157 NA
(32/3 cp bulb)
5
Additional turn
signal
LED

248 Practical hintsReplacing bulbsRear lamps Notes on bulb replacement


Use only 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Light Truck Center.


Have the LEDs and bulbs for the follow-
ing lamps replaced by an authorized
Mercedes-Benz Light Truck Center:

Additional turn signals in the exteri-
or rear view mirrors


Bi-Xenon lamps*


Front fog lamps (vehicles with sport
package)*
Lamp
Type
6
Brake lamp
1073
(32 cp bulb)
7
Backup lamp
1073
(32 cp bulb)
8
Turn signal lamp
PY 21 W
9
Tail, parking and
standing lamp
Rear fog lamp, driv-
er’s side
P 21/4 W
10
Side marker lamp
W5W
11
High mounted brake
lamp
1073
(32 cp bulb)
12
License plate lamps
C 5 W
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
