185 Operation
Driving instructions
This can bring road salt impaired braking
efficiency back to normal. Be very careful
that you carry out these braking maneu-
vers without endangering any other road
users.
If the vehicle is parked after being driven
on salt-treated roads, the braking efficien-
cy should be tested as soon as possible af-
ter driving is resumed while observing the
safety rules in the previous paragraph.
For more information on winter driving
(
page 213).
Standing water
Warning!
G
If the vehicle becomes stuck in snow, make
sure that snow is kept clear of the exhaust
pipe and from around the vehicle with the
engine running. Otherwise, deadly carbon
monoxide (CO) gases may enter vehicle in-
terior resulting in unconsciousness and
death.
To assure sufficient fresh air ventilation,
open a window slightly on the side of the ve-
hicle not facing the wind.
Warning!
G
The outside temperature indicator is not de-
s i g n e d t o s e r v e a s a n i c e - w a r n i n g d e v i c e a n d
is therefore unsuitable for that purpose. In-
dicated temperatures just above the freez-
ing point do not guarantee that the road
surface is free of ice.
!Do not drive through flooded areas or
water of unknown depth. Before driving
through water, determine its depth. It
should not be deeper than approxi-
mately 20 inches (50 cm).
If you must drive through standing wa-
ter, drive slowly to prevent water from
entering the passenger compartment
or the engine compartment. Water in
these areas could cause damage to
electrical components or wiring of the
engine or transmission, or could result
in water being ingested by the engine
through the air intake causing severe
internal engine damage. Any such dam-
age is not covered by the Mer-
cedes-Benz Limited Warranty.

186 OperationDriving instructionsOff-road driving
Read this chapter carefully before you be-
gin off-road travel.
Familiarize yourself with the vehicle char-
acteristics and gear changing before you
attempt any difficult terrain off-road driv-
ing. We recommend that you start out with
easy off-road travel.Special driving features for off-road
driving
The following driving features are available
for specific kind of operation:


LOW RANGE mode (
page 118)


LOW RANGE – ABS (
page 72)


LOW RANGE – 4-ETS (
page 74)


LOW RANGE – ESP (
page 76)
Off-road driving rules
Engage the LOW RANGE mode before driv-
ing under off-road conditions
(
page 118).
Fasten items being carried as securely as
possible (
page 139).
Warning!
G
Drive slowly in unknown terrain. This will
make it easier to recognize unexpected ob-
stacles and avoid damage to the vehicle.
To help avoid the vehicle rolling over, never
turn it around on steep inclines. If the vehi-
cle cannot complete the attempted climb,
back it down in reverse gear.
Do not drive along the side of a slope (dan-
ger of vehicle rollover). The vehicle might
otherwise rollover. If in doing so the vehicle
begins to show a tendency to roll, immedi-
ately steer into a line of gravity (straight up
or downhill).
Never let the vehicle roll backwards in idle
or when the clutch is disengaged. You may
lose control of the vehicle if you use only the
service brake.
Warning!
G
Sand, dirt, mud and other material having
friction property can cause exceptional wear
and tear as well as brake failure.
Have the brakes checked for dirt build-up
and cleaned. There is otherwise a risk that
full braking power may not be available in an
emergency.
iWe recommend keeping doors, liftgate,
windows, and sliding/pop-up roof*
closed whenever driving in off-road
mode.

187 Operation
Driving instructions
Checklist before off-road driving
Tires

Check the tread depth and maintain
specified tire pressure (see tire pres-
sure label inside the fuel filler flap).


Check tires for possible damage and
remove foreign objects.


Replace missing valve caps.
Rims


Dented or bent rims can cause tire
pressure loss and damage the tire
beads. For this reason, check and, if
necessary, change rims before driving
off-road.Vehicle tool kit


Check if the vehicle jack is functional.


In all cases take the vehicle tool kit, a
strong tow rope, a shovel and a small
plank (to put under the vehicle jack on
sandy soil) with you.
Driving in steep terrain
Slope angle125° (ML 320, ML 350, ML 500)
21° (ML 55 AMG)
226°(ML 320, ML 350, ML 500)
23° (ML 55 AMG)
!Observe the following during off-road
driving:

Adjust vehicle speed to condition of
terrain. The more uneven, rutty and
steeper the terrain, the lower the
speed should be


Watch out for obstacles, such as
rocks, holes, tree stumps and ruts.


Be especially careful when driving
in unknown territory. It may be nec-
essary to get out of the vehicle and
scout the path you intend to take.


Continuous and speedy driving in
sandy soil overcomes the vehicle
rolling resistance, and helps to pre-
vent the vehicle from sinking into
the ground.


Do not initiate jumps with the vehi-
cle. It interrupts the forward mo-
mentum of the vehicle.


Always drive onto slopes with the
the engine running and the vehicle
in gear.

188 OperationDriving instructions

Switch to LOW RANGE mode before
starting to drive up or down steep in-
clines (
page 118).


Driving on embankments, slopes and
other steep inclines should only be
done straight up or downhill, i.e. in the
line of gravity. Maximum vehicle climb-
ing ability is a 60% grade.


Do not drive along the side of a slope
(danger of vehicle rollover). If in doing
so, the vehicle begins to show a ten-
dency to roll, immediately steer into a
line of gravity (straight up or downhill).


To help avoid the vehicle rolling over,
never turn it around on steep inclines.
If the vehicle cannot complete the at-
tempted climb, back it down in reverse
gear.


Utilize the engine’s braking power
when descending a slope, observe the
engine speed (do not overrev the en-
gine). Apply the service brake as need-
ed.


Check the brakes after a lengthy down-
grade drive.
Traction in steep terrain


Be easy on the accelerator and watch
for continuous wheel traction when
driving in steep terrain.
The 4-ETS helps greatly when starting
out on a steep incline when the front
wheels have then the tendency to slip
due to the weight shifting away the
front axle.
The 4-ETS recognizes the situation and
limits the torque for the front wheels by
braking them. Simultaneously the
torque for the rear wheels is increased.Driving across a hilltop


Decelerate just ahead of a hilltop (do
not select gear rangeN), to prevent the
vehicle from speeding up too much af-
ter climbing a hill.
Use the momentum of the vehicle to
drive across the hilltop.
Driving in this manner prevents the ve-
hicle from jumping across the hilltop
and thus loosing its forward momen-
tum.
iAvoid excessive engine speeds – drive
with moderate engine speeds
(max. 3000 RPM).
Select gear range2 or1 on the auto-
matic transmission (
page 114).

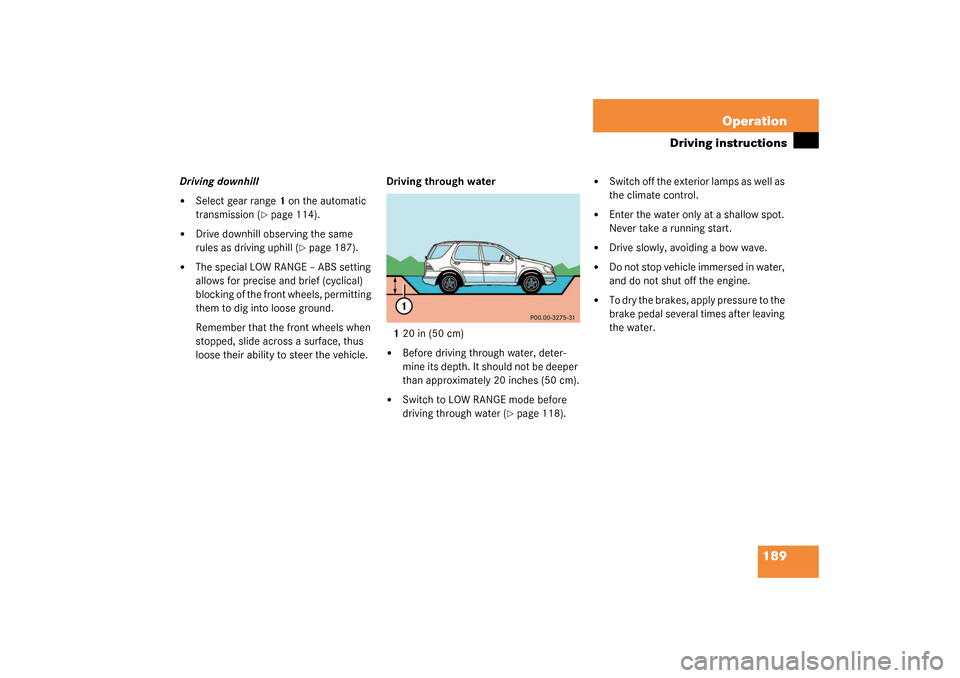

189 Operation
Driving instructions
Driving downhill

Select gear range1 on the automatic
transmission (
page 114).


Drive downhill observing the same
rules as driving uphill (
page 187).


The special LOW RANGE – ABS setting
allows for precise and brief (cyclical)
blocking of the front wheels, permitting
them to dig into loose ground.
Remember that the front wheels when
stopped, slide across a surface, thus
loose their ability to steer the vehicle.Driving through water
120 in (50 cm)


Before driving through water, deter-
mine its depth. It should not be deeper
than approximately 20 inches (50 cm).


Switch to LOW RANGE mode before
driving through water (
page 118).


Switch off the exterior lamps as well as
the climate control.


Enter the water only at a shallow spot.
Never take a running start.


Drive slowly, avoiding a bow wave.


Do not stop vehicle immersed in water,
and do not shut off the engine.


To dry the brakes, apply pressure to the
brake pedal several times after leaving
the water.

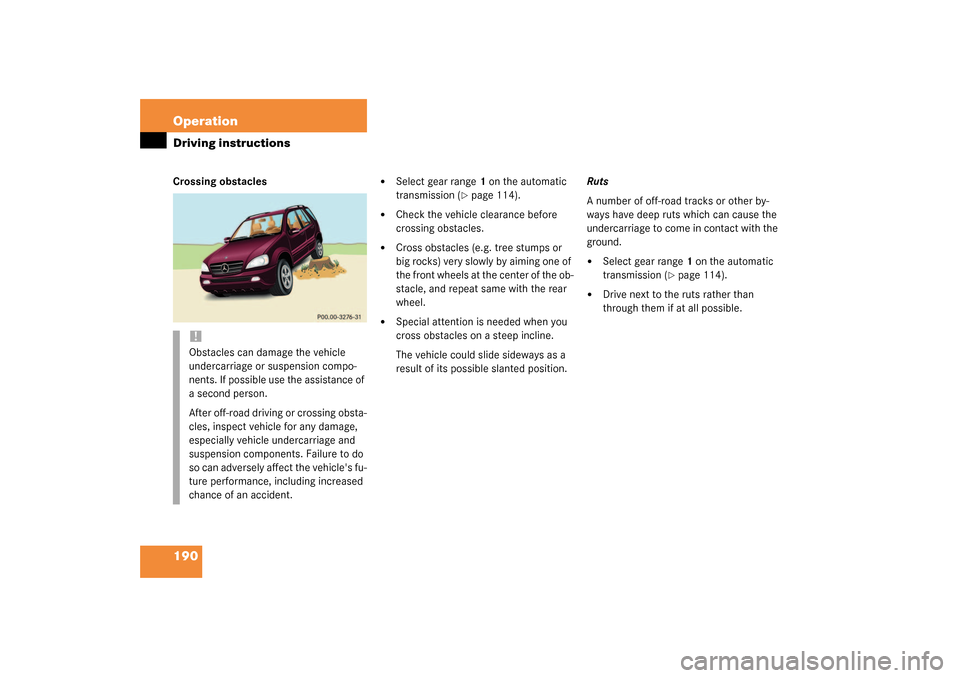

190 OperationDriving instructionsCrossing obstacles


Select gear range1 on the automatic
transmission (
page 114).


Check the vehicle clearance before
crossing obstacles.


Cross obstacles (e.g. tree stumps or
big rocks) very slowly by aiming one of
the front wheels at the center of the ob-
stacle, and repeat same with the rear
wheel.


Special attention is needed when you
cross obstacles on a steep incline.
The vehicle could slide sideways as a
result of its possible slanted position.Ruts
A number of off-road tracks or other by-
ways have deep ruts which can cause the
undercarriage to come in contact with the
ground.


Select gear range1 on the automatic
transmission (
page 114).


Drive next to the ruts rather than
through them if at all possible.
!Obstacles can damage the vehicle
undercarriage or suspension compo-
nents. If possible use the assistance of
a second person.
After off-road driving or crossing obsta-
cles, inspect vehicle for any damage,
especially vehicle undercarriage and
suspension components. Failure to do
so can adversely affect the vehicle's fu-
ture performance, including increased
chance of an accident.

191 Operation
Driving instructions
Returning from off-road drivingOff-road driving increases strain on the ve-
hicle.
We recommend that you inspect the vehi-
cle for possible damage after each off-road
trip. Recognizing any damage and a subse-
quent timely repair reduces the chance of
a possible breakdown or accident later on.
Proceed as follows:


Switch off the LOW RANGE mode
(page 118).


Remove excessive dirt from tires,
wheels, wheel housings, and under-
body.
For instance, after driving in mud, clean
the radiator, chassis, engine, brakes,
and wheels from extreme dirt using a
strong jet of water.


Inspect frame, oil pan, brake hoses,
etc., as well as vehicle underbody for
possible damage.


Check tires for possible damage, clean
all exterior lamps, and conduct a brake
test.


Check for brush or branches caught in
the undercarriage.
They could increase the possibility of a
fire, as well as cut fuel and/or brake
lines, puncture rubber bellows of the
axles or drive shafts.


After continued operation in mud,
sand, water or other dirty conditions
clean the brake discs, wheels, brake
pads and check and clean axle joints.
Warning!
G
If you feel a sudden significant vibration or
ride disturbance, or you suspect that possi-
ble damage to your vehicle has occurred,
you should turn on the hazard warning flash-
ers, carefully slow down, and drive with cau-
tion to an area which is a safe distance from
the roadway.
Inspect the tires and under the vehicle for
possible damage. If the vehicle or tires ap-
pear unsafe, have it towed to the nearest
Mercedes-Benz Light Truck Center or tire
dealer for repairs.

192 OperationDriving instructionsTrailer towing Trailer hitches


Only install a trailer hitch receiver ap-
proved for your vehicle.
For information on availability and in-
stallation, see your authorized
Mercedes-Benz Light Truck Center.


The bumpers on your vehicle are not
designed for use with clamp-type hitch-
es.
Do not attach rental hitches or other
bumper-type hitches to them.


To reduce the possibility of damage, re-
move the hitch ball adaptor from the
receiver when not in use.Electrical connections
The vehicle is prewired to accept the sev-
en-wire harness included in the
Mercedes-Benz approved trailer hitch re-
ceiver kit.
An additional four-pole conversion plug is
included in the Mercedes-Benz supplied
trailer hitch receiver kit.
For further information, see your autho-
rized Mercedes-Benz Light Truck Center.
Warning!
G
Failure to use proper equipment and driving
technique can result in a loss of vehicle con-
trol when towing a trailer.
Improper towing or failure to follow the in-
structions contained in this guide can result
in serious injury. Follow the guidelines be-
low carefully to assure safe trailer operation.
Ask your authorized Mercedes-Benz Light
Truck Center should you require an explana-
tion of information contained in this guide.
