2003 MERCEDES-BENZ ML55AMG Owner's Manual

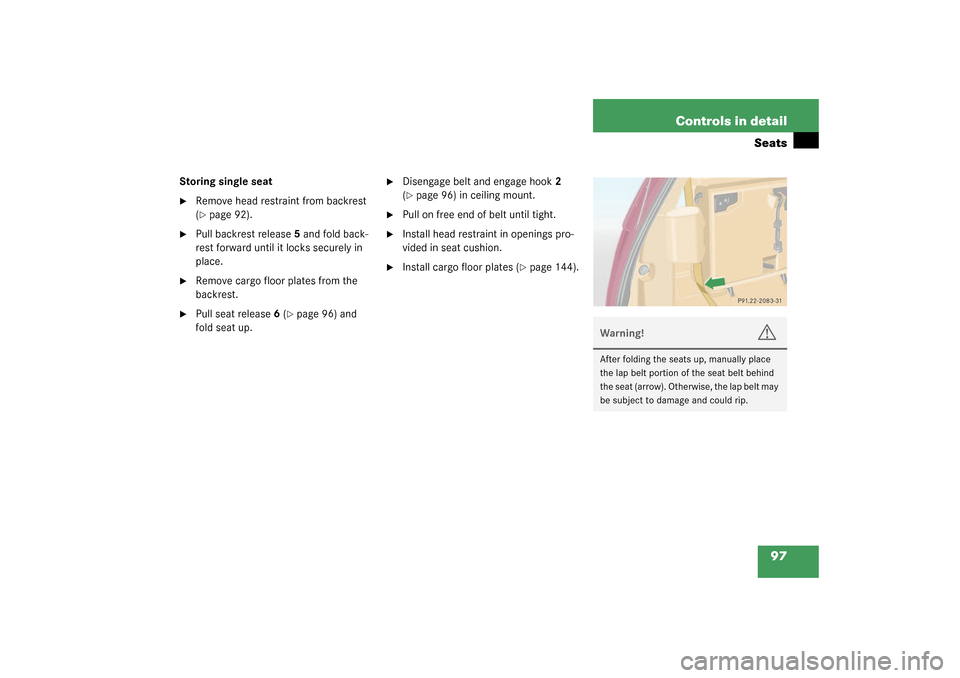

97 Controls in detail
Seats
Storing single seat
Remove head restraint from backrest
(page 92).

Pull backrest release5 and fold back-
rest forward until it locks securely in
place.

Remove cargo floor plates from the
backrest.

Pull seat release6 (
page 96) and
fold seat up.

Disengage belt and engage hook2
(page 96) in ceiling mount.

Pull on free end of belt until tight.

Install head restraint in openings pro-
vided in seat cushion.

Install cargo floor plates (
page 144).
Warning!
G
After folding the seats up, manually place
the lap belt portion of the seat belt behind
the seat (arrow). Otherwise, the lap belt may
be subject to damage and could rip.

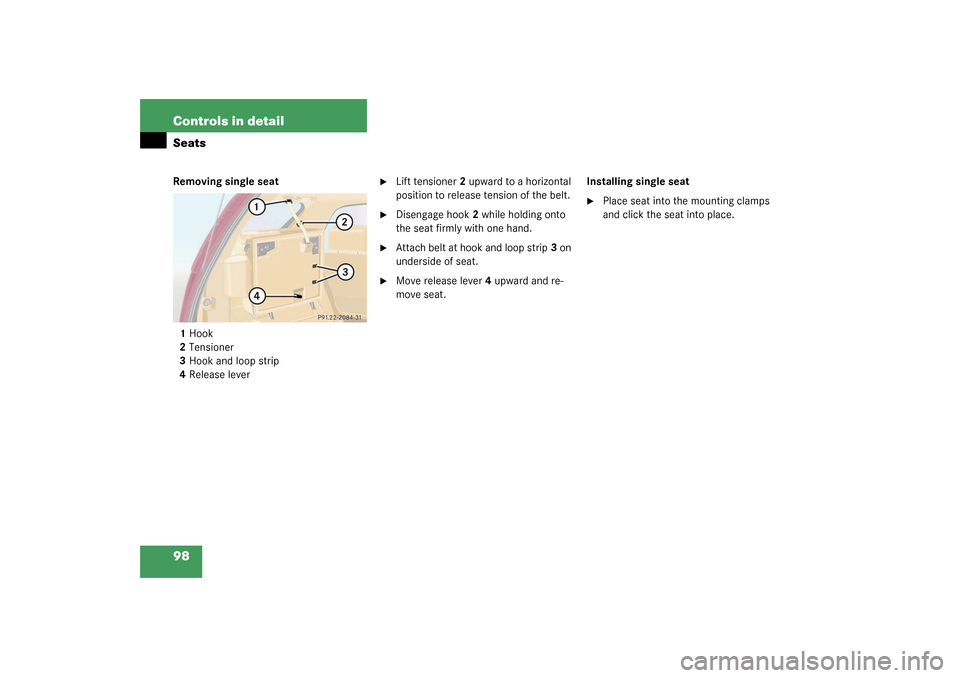

98 Controls in detailSeatsRemoving single seat
1Hook
2Tensioner
3Hook and loop strip
4Release lever

Lift tensioner2 upward to a horizontal
position to release tension of the belt.

Disengage hook2 while holding onto
the seat firmly with one hand.

Attach belt at hook and loop strip3 on
underside of seat.

Move release lever4 upward and re-
move seat.Installing single seat

Place seat into the mounting clamps
and click the seat into place.

99 Controls in detail
Memory function*
Memory function*
With the memory button you can store up
to three different settings for the driver-
and passenger seat.
Together with the driver’s seat you can
store the exterior rear view mirrors.
For the front passenger seat you can store
the seat position.
1Position buttons
2Memory button
!Prior to operating the vehicle the driver
should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. Also see air-
bag section (
page 55) for proper seat
positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the inside and
outside rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standard 213 and 225 and Canadian
Motor Vehicle Safety Standard 213 and
210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

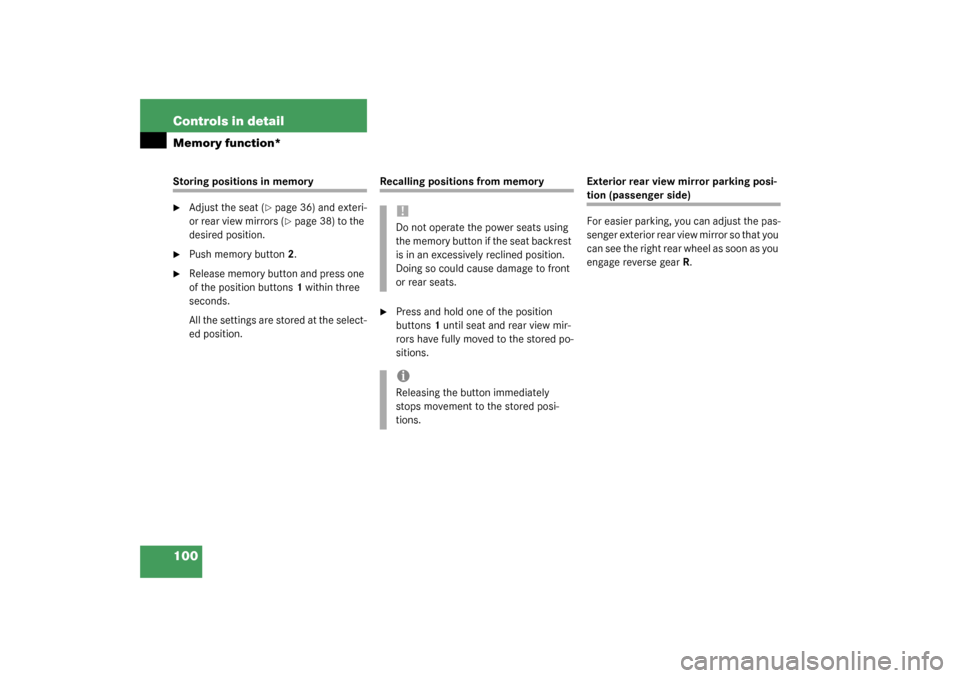

100 Controls in detailMemory function*Storing positions in memory
Adjust the seat (
page 36) and exteri-
or rear view mirrors (page 38) to the
desired position.

Push memory button2.

Release memory button and press one
of the position buttons1 within three
seconds.
All the settings are stored at the select-
ed position.
Recalling positions from memory
Press and hold one of the position
buttons1 until seat and rear view mir-
rors have fully moved to the stored po-
sitions.Exterior rear view mirror parking posi-
tion (passenger side)
For easier parking, you can adjust the pas-
senger exterior rear view mirror so that you
can see the right rear wheel as soon as you
engage reverse gearR.
!Do not operate the power seats using
the memory button if the seat backrest
is in an excessively reclined position.
Doing so could cause damage to front
or rear seats.iReleasing the button immediately
stops movement to the stored posi-
tions.

101 Controls in detail
Memory function*
Activating parking position
The buttons are on the lower part of the
center console.
1Deactivating parking position
2Activating parking position
3Adjustment button
Switch ignition on (if not already on).

Press button2.
The passenger side exterior rear view
mirror is selected.

Engage reverse gearR.
The passenger side exterior rear view
mirror moves automatically to the
stored parking position. The exterior rear view mirror returns to its
stored driving position:


10 seconds after you put the gear se-
lector lever in positionD


immediately once you exceed a speed
of approx. 6 mph (10 km/h)


immediately when you press the
button1 for driver’s side mirrorStoring parking position

Stop the vehicle.

Switch ignition on (if not already on).

Press button2.
The passenger side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button3 so that you see the rear
wheel and the curb.

Press memory button2 (
page 99).

Within three seconds, press bottom of
adjustment button3.
The parking position is stored if the
mirror does not move.
iIf the button1 is pressed, the automat-
ic passenger side exterior rear view
parking position is deactivated.
iIf the mirror does move, repeat the
above steps. After the setting is stored
you can move the mirror again.
The selected position will be stored rel-
ative to the position button1
(page 99) pressed.

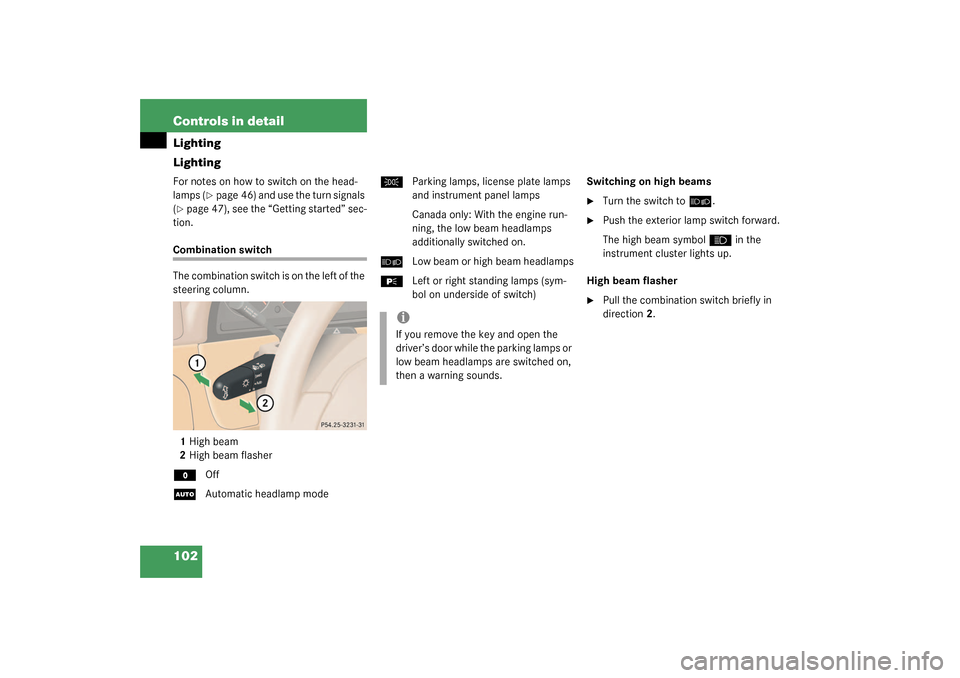

102 Controls in detailLighting
LightingFor notes on how to switch on the head-
lamps (
page 46) and use the turn signals
(
page 47), see the “Getting started” sec-
tion.
Combination switch
The combination switch is on the left of the
steering column.
1High beam
2High beam flasherM
Off
U
Automatic headlamp mode
C
Parking lamps, license plate lamps
and instrument panel lamps
Canada only: With the engine run-
ning, the low beam headlamps
additionally switched on.
õ
Low beam or high beam headlamps
ƒ
Left or right standing lamps (sym-
bol on underside of switch)Switching on high beams

Turn the switch to
õ
.

Push the exterior lamp switch forward.
The high beam symbol
A
in the
instrument cluster lights up.
High beam flasher

Pull the combination switch briefly in
direction2.
iIf you remove the key and open the
driver’s door while the parking lamps or
low beam headlamps are switched on,
then a warning sounds.

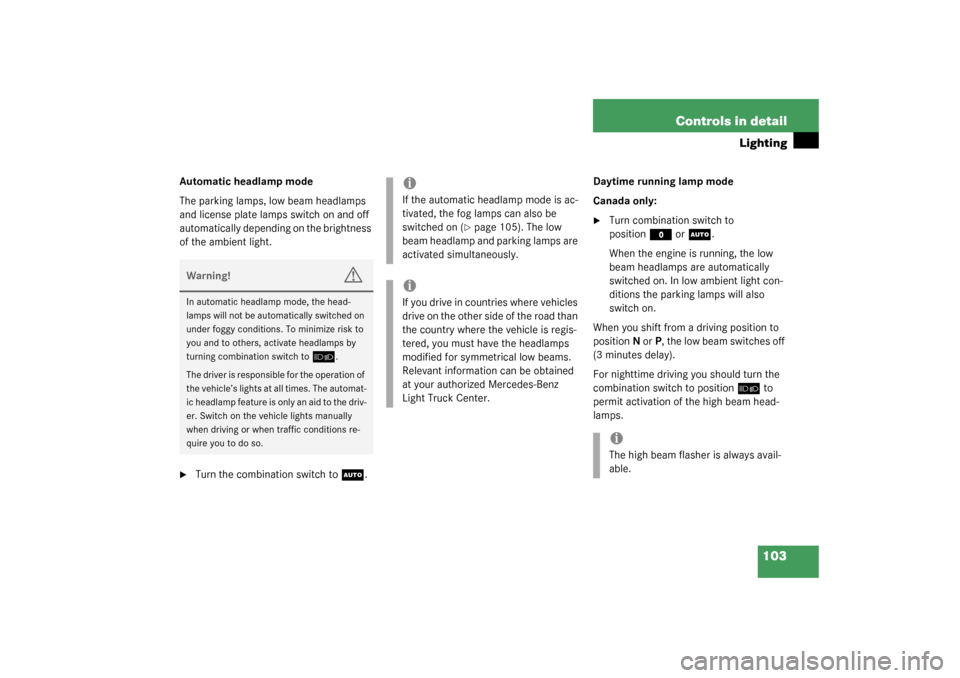

103 Controls in detail
Lighting
Automatic headlamp mode
The parking lamps, low beam headlamps
and license plate lamps switch on and off
automatically depending on the brightness
of the ambient light.
Turn the combination switch to
U
.Daytime running lamp mode
Canada only:

Turn combination switch to
position
M
or
U
.
When the engine is running, the low
beam headlamps are automatically
switched on. In low ambient light con-
ditions the parking lamps will also
switch on.
When you shift from a driving position to
positionN orP, the low beam switches off
(3 minutes delay).
For nighttime driving you should turn the
combination switch to position
õ
to
permit activation of the high beam head-
lamps.
Warning!
G
In automatic headlamp mode, the head-
lamps will not be automatically switched on
under foggy conditions. To minimize risk to
you and to others, activate headlamps by
turning combination switch to
õ
.
The driver is responsible for the operation of
the vehicle’s lights at all times. The automat-
ic headlamp feature is only an aid to the driv-
er. Switch on the vehicle lights manually
when driving or when traffic conditions re-
quire you to do so.
iIf the automatic headlamp mode is ac-
tivated, the fog lamps can also be
switched on (
page 105). The low
beam headlamp and parking lamps are
activated simultaneously.
iIf you drive in countries where vehicles
drive on the other side of the road than
the country where the vehicle is regis-
tered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at your authorized Mercedes-Benz
Light Truck Center.
iThe high beam flasher is always avail-
able.

104 Controls in detailLightingNight security illumination
When you turn off the engine and the last
door has been closed, the following lamps
will remain lit:

Parking lamps


Tail lamps


License plate lamps


Front fog lamps
The combination switch must be set to
position
U
(page 102).Deactivating night security illumination
temporarily

Before leaving the vehicle turn the key
in the steering lock to position0 then
turn it to position2 and back to0.
The night security illumination is deac-
tivated. It will reactivate as soon as you
reinsert the key in the steering lock.
Setting illumination time
1Switch for fog lamps

Stop the vehicle.

Make sure that the ignition is switched
on.
All the lamps in the instrument cluster
light up.

Turn combination switch to
position
M
.

Press upper part1 of switch until the
clock, located in the instrument clus-
ter, displays the actual illumination
time.

Press upper part1 of switch again.
Each time the switch is pressed, the il-
lumination time increases by
15 seconds. You can set the illumina-
tion time between 0 (off) and
60 seconds.
Approximately five seconds after pressing
the switch, the illumination time is set and
the clock is displayed again.
iYou can reactivate this function within
ten minutes by opening a door or the
liftgate.
If you do not open a door or the liftgate
after turning off the engine, the lamps
will automatically switch off after
60 seconds.
