2003 MERCEDES-BENZ ML55AMG Owner's Manual

225 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
-
The yellow ABS malfunction indi-
cator lamp comes on while driv-
ing.
ABS has detected a malfunction and has
switched off. The BAS, ESP, 4-ETS and EBP
are also switched off.
The brake system is still functioning normally
but without ABS available.

Continue driving with added caution.
Wheels will lock during hard braking
reducing steering capability.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Cen-
ter as soon as possible.
Failure to follow these instructions in-
creases the risk of an accident.
The charging voltage has fallen below
10 volts. The ABS has switched off.
When the voltage is above this value
again, the ABS is operational again.
If necessary, have the generator and
the battery checked.
¿
The yellow malfunction indicator
lamp comes on while driving.
The ESP is no longer synchronized following
a voltage supply interuption (e.g. battery dis-
connected or discharged).
Synchronize the ESP:
Turn the steering wheel from stop lim-
it to stop limit.
The indicator lamp goes out.
The charging voltage has fallen below
10 volts. The BAS and ESP have switched off.
When the voltage is above this value
again, the BAS and ESP are operational
again.
If necessary, have the generator and
the battery checked.

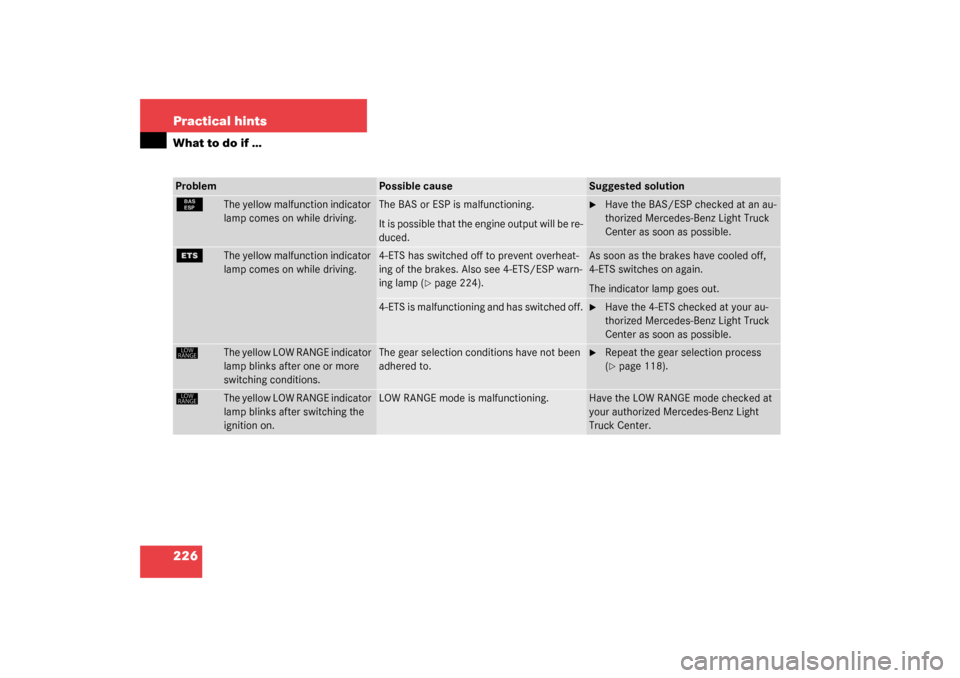

226 Practical hintsWhat to do if …¿
The yellow malfunction indicator
lamp comes on while driving.
The BAS or ESP is malfunctioning.
It is possible that the engine output will be re-
duced.

Have the BAS/ESP checked at an au-
thorized Mercedes-Benz Light Truck
Center as soon as possible.
{
The yellow malfunction indicator
lamp comes on while driving.
4-ETS has switched off to prevent overheat-
ing of the brakes. Also see 4-ETS/ESP warn-
ing lamp (
page 224).
As soon as the brakes have cooled off,
4-ETS switches on again.
The indicator lamp goes out.
4-ETS is malfunctioning and has switched off.

Have the 4-ETS checked at your au-
thorized Mercedes-Benz Light Truck
Center as soon as possible.
ê
The yellow LOW RANGE indicator
lamp blinks after one or more
switching conditions.
The gear selection conditions have not been
adhered to.

Repeat the gear selection process
(page 118).
ê
The yellow LOW RANGE indicator
lamp blinks after switching the
ignition on.
LOW RANGE mode is malfunctioning.
Have the LOW RANGE mode checked at
your authorized Mercedes-Benz Light
Truck Center.
Problem
Possible cause
Suggested solution

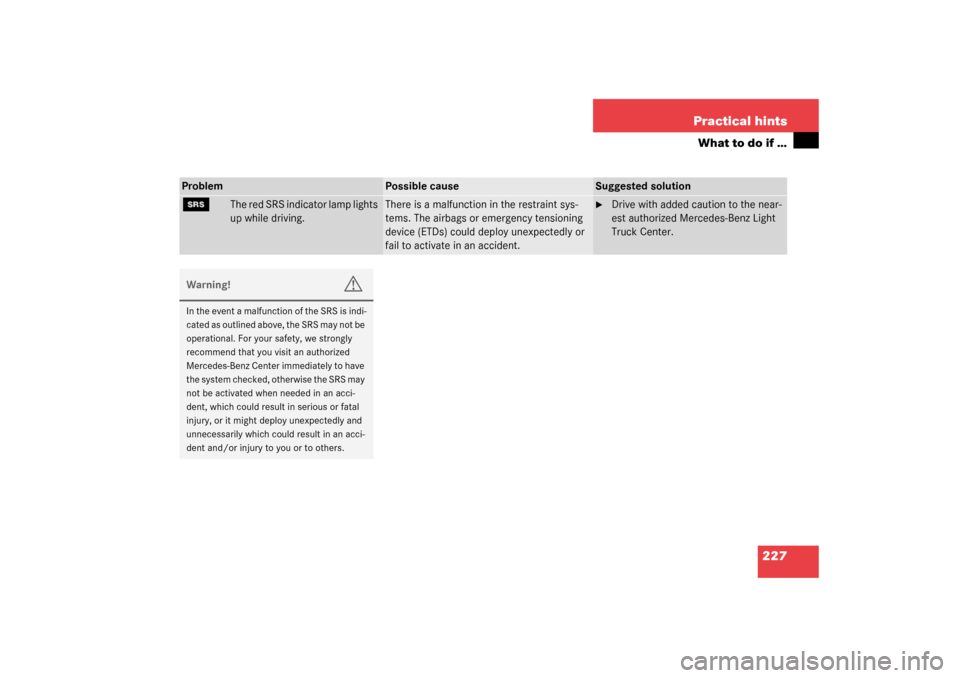

227 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
1
The red SRS indicator lamp lights
up while driving.
There is a malfunction in the restraint sys-
tems. The airbags or emergency tensioning
device (ETDs) could deploy unexpectedly or
fail to activate in an accident.

Drive with added caution to the near-
est authorized Mercedes-Benz Light
Truck Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked, otherwise the SRS may
not be activated when needed in an acci-
dent, which could result in serious or fatal
injury, or it might deploy unexpectedly and
unnecessarily which could result in an acci-
dent and/or injury to you or to others.

228 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
É
The red brake warning lamp
lights up while driving and you
hear a warning sound.
You are driving with the parking brake set.

Release the parking brake
(page 45).
É
The red brake warning lamp
lights up while driving.
There is insufficient brake fluid in the reser-
voir.

Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Light Truck Center.
Do not add brake fluid! This will not
solve the problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Don’t add
brake fluid before checking the brake sys-
tem. Overfilling the brake fluid reservoir can
result in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You
can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

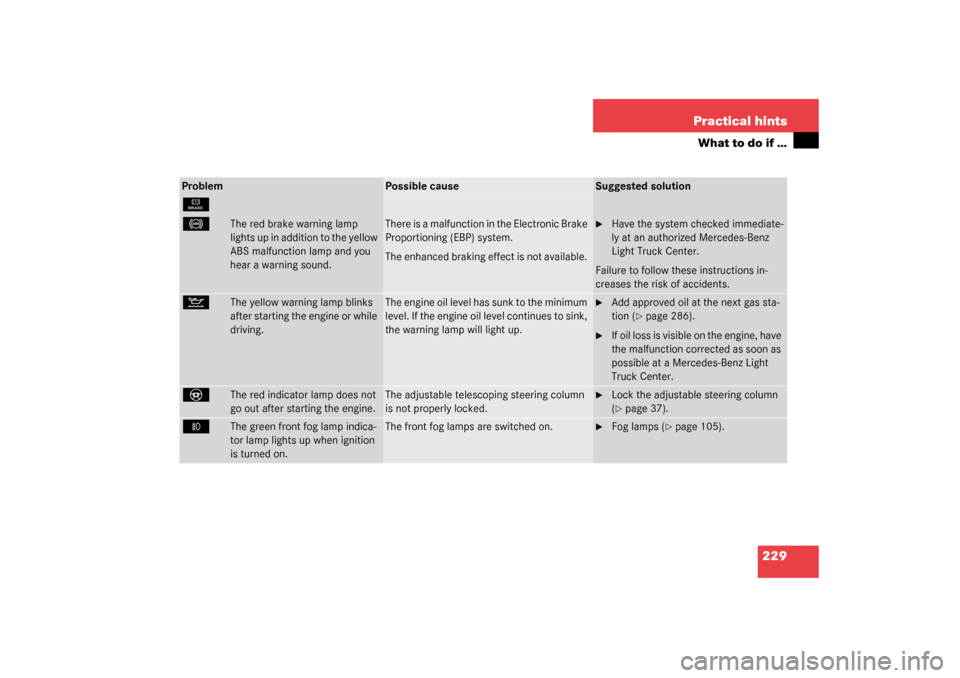

229 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
É
-
The red brake warning lamp
lights up in addition to the yellow
ABS malfunction lamp and you
hear a warning sound.
There is a malfunction in the Electronic Brake
Proportioning (EBP) system.
The enhanced braking effect is not available.

Have the system checked immediate-
ly at an authorized Mercedes-Benz
Light Truck Center.
Failure to follow these instructions in-
creases the risk of accidents.
:
The yellow warning lamp blinks
after starting the engine or while
driving.
The engine oil level has sunk to the minimum
level. If the engine oil level continues to sink,
the warning lamp will light up.

Add approved oil at the next gas sta-
tion (
page 286).

If oil loss is visible on the engine, have
the malfunction corrected as soon as
possible at a Mercedes-Benz Light
Truck Center.
_
The red indicator lamp does not
go out after starting the engine.
The adjustable telescoping steering column
is not properly locked.

Lock the adjustable steering column
(page 37).
‡
The green front fog lamp indica-
tor lamp lights up when ignition
is turned on.
The front fog lamps are switched on.

Fog lamps (
page 105).

230 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
/
The yellow coolant warning lamp
lights up when the engine is run-
ning.
The coolant is to hot.
The coolant level is too low.

Stop as soon as possible and allow
the engine and coolant to cool down.

Check the coolant level and add
coolant if necessary (
page 206).
If the warning lamp lights up frequently, there
is a leak in the cooling system.

Have the cooling system checked by
an authorized Mercedes-Benz Light
Truck Center.
The coolant temperature gauge is above
248 °F (120 °C).
The coolant level is too low.

Stop as soon as possible and allow
the engine and coolant to cool down.

Add coolant to prevent engine from
overheating (
page 206).
If the coolant level is correct, the electrical
radiator fan may be broken.

If the coolant temperature is below
the red zone, drive on to the nearest
authorized Mercedes-Benz Light
Truck Center.
Avoid high engine loads (e.g. driving
uphill) and stop-and-go driving.

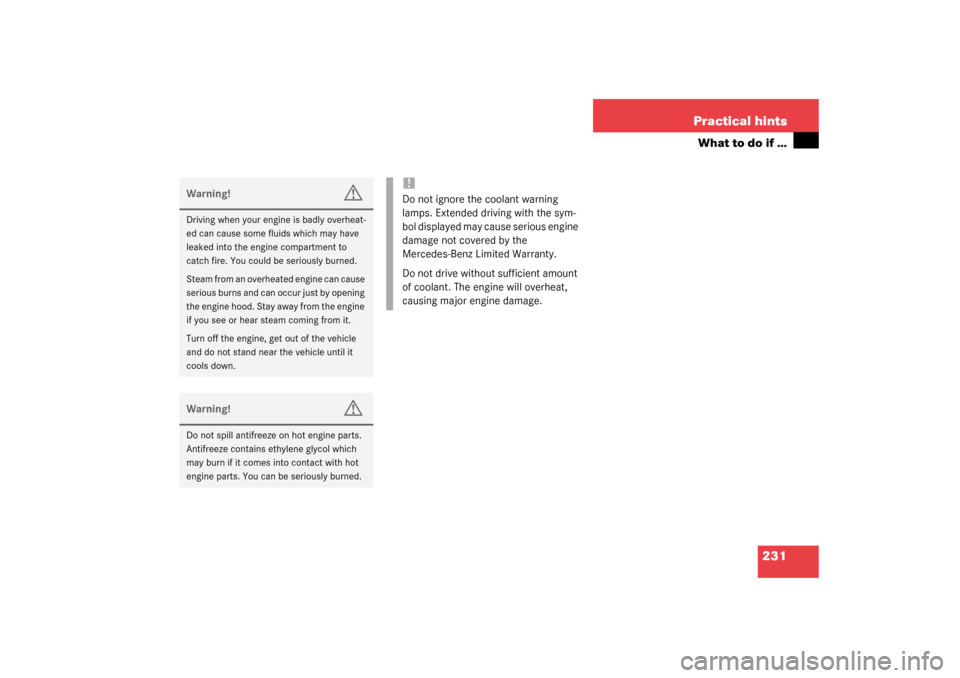

231 Practical hints
What to do if …
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the engine hood. Stay away from the engine
if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until it
cools down.Warning!
G
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which
may burn if it comes into contact with hot
engine parts. You can be seriously burned.
!Do not ignore the coolant warning
lamps. Extended driving with the sym-
bol displayed may cause serious engine
damage not covered by the
Mercedes-Benz Limited Warranty.
Do not drive without sufficient amount
of coolant. The engine will overheat,
causing major engine damage.

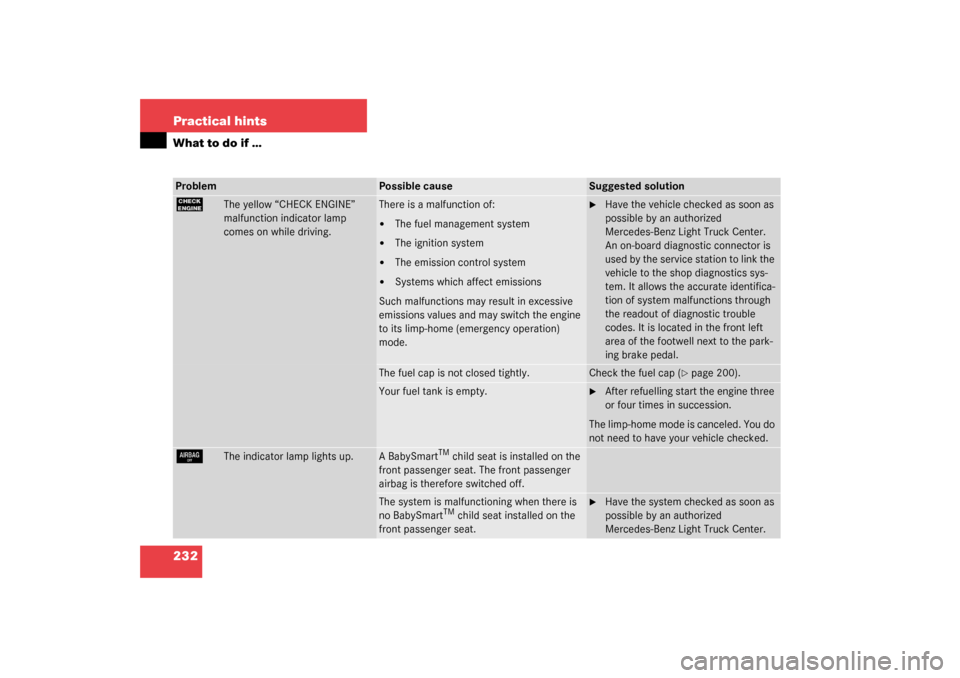

232 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
?
The yellow “CHECK ENGINE”
malfunction indicator lamp
comes on while driving.
There is a malfunction of:

The fuel management system


The ignition system


The emission control system


Systems which affect emissions
Such malfunctions may result in excessive
emissions values and may switch the engine
to its limp-home (emergency operation)
mode.

Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Light Truck Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics sys-
tem. It allows the accurate identifica-
tion of system malfunctions through
the readout of diagnostic trouble
codes. It is located in the front left
area of the footwell next to the park-
ing brake pedal.
The fuel cap is not closed tightly.
Check the fuel cap (
page 200).
Your fuel tank is empty.

After refuelling start the engine three
or four times in succession.
The limp-home mode is canceled. You do
not need to have your vehicle checked.
7
The indicator lamp lights up.
A BabySmart
TM child seat is installed on the
front passenger seat. The front passenger
airbag is therefore switched off.
The system is malfunctioning when there is
no BabySmart
TM child seat installed on the
front passenger seat.

Have the system checked as soon as
possible by an authorized
Mercedes-Benz Light Truck Center.
