2003 MERCEDES-BENZ ML55AMG Owner's Manual

33 Getting started
Unlocking

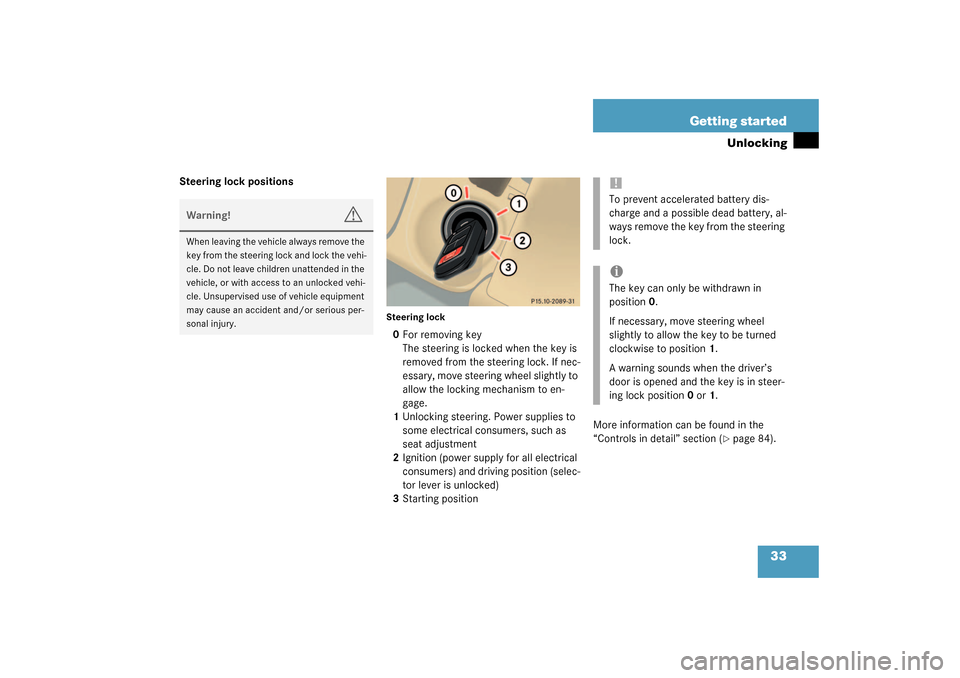

Steering lock positions
Steering lock0For removing key
The steering is locked when the key is
removed from the steering lock. If nec-
essary, move steering wheel slightly to
allow the locking mechanism to en-
gage.
1Unlocking steering. Power supplies to
some electrical consumers, such as
seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position (selec-
tor lever is unlocked)
3Starting positionMore information can be found in the
“Controls in detail” section (
page 84).
Warning!
G
When leaving the vehicle always remove the
key from the steering lock and lock the vehi-
cle. Do not leave children unattended in the
vehicle, or with access to an unlocked vehi-
cle. Unsupervised use of vehicle equipment
may cause an accident and/or serious per-
sonal injury.
!To prevent accelerated battery dis-
charge and a possible dead battery, al-
ways remove the key from the steering
lock.iThe key can only be withdrawn in
position0.
If necessary, move steering wheel
slightly to allow the key to be turned
clockwise to position1.
A warning sounds when the driver’s
door is opened and the key is in steer-
ing lock position0 or1.

34 Getting startedAdjusting
AdjustingSeats
Depending on the vehicle’s equipment,
you can adjust the seats manually or elec-
trically.Warning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back reclined. Sitting in an excessively re-
clined position can be dangerous. You could
slide under the seat belt in a collision. If you
slide under it, the belt would apply force at
the abdomen or neck.
That could cause serious or fatal injuries.
The seat back and seat belts provide the
best restraint when the wearer is in an up-
right position and belts are properly posi-
tioned on the body. Your seat must be
adjusted so that you can correctly fasten
your seat belt (
page 40).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle always remove the
key from the steering lock and lock your ve-
hicle.
Do not leave children unattended in the ve-
hicle or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger side front
airbag when it is properly installed. Other-
wise they will be struck by the airbag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle's
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.

35 Getting started
Adjusting

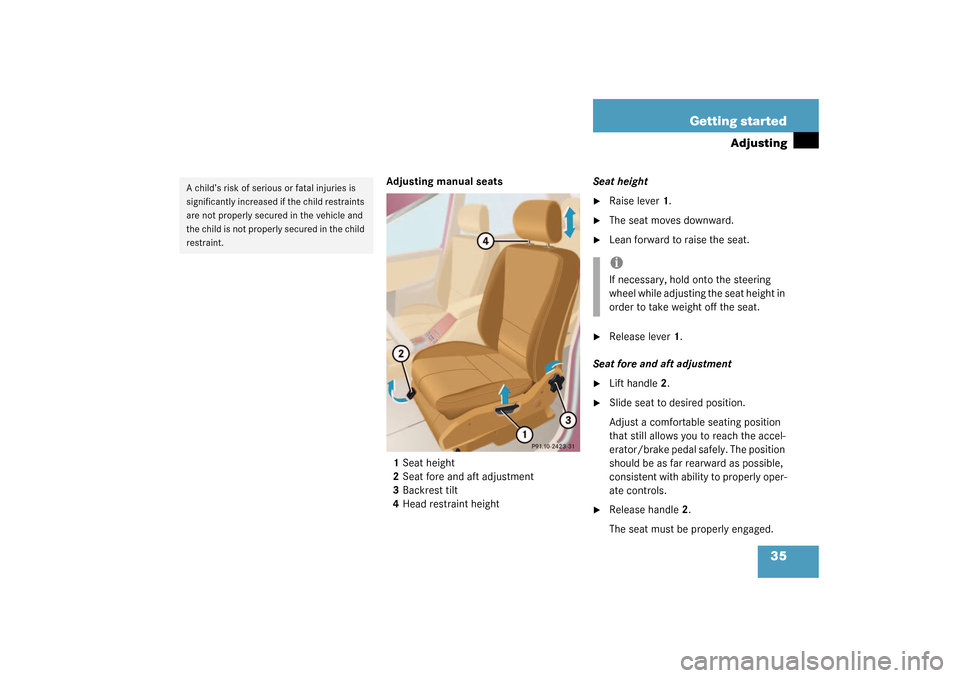

Adjusting manual seats
1Seat height
2Seat fore and aft adjustment
3Backrest tilt
4Head restraint heightSeat height

Raise lever 1.

The seat moves downward.

Lean forward to raise the seat.

Release lever1.
Seat fore and aft adjustment

Lift handle2.

Slide seat to desired position.
Adjust a comfortable seating position
that still allows you to reach the accel-
erator/brake pedal safely. The position
should be as far rearward as possible,
consistent with ability to properly oper-
ate controls.

Release handle2.
The seat must be properly engaged.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
iIf necessary, hold onto the steering
wheel while adjusting the seat height in
order to take weight off the seat.

36 Getting startedAdjustingBackrest tilt
Turn handwheel3 until your hands are
slightly angled when holding the steer-
ing wheel.
Head restraint height

Pull up or push down on head restraint
until it is in desired position.Head restraint tilt

Manually adjust the angle of the head
restraint. Push or pull on the lower
edge of the head restraint cushion.
Adjusting power seats*
The seat adjustment switch is located on
the entry side of each front seat base.

Switch on the ignition by turning the
key in the steering lock to position2
(page 33).
All the lights in the instrument cluster
light up.1Seat height
2Seat fore and aft adjustment
3Seat cushion tilt
4Backrest tilt
Seat height

Press the switch up or down in the di-
rection of arrow1.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint to support the back of
the head approximately at ear level.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
Warning!
G
The power seats can also be operated with
the appropriate door open. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.

37 Getting started
Adjusting
Seat fore and aft adjustment
Press the switch forward or backward
in the direction of arrow2 until you can
comfortably press the pedals all the
way to the floor.
Seat cushion tilt

Press the switch up or down in the di-
rection of arrow3 until your upper legs
are lightly supported.
Backrest tilt

Press the switch forward or backward
in the direction of arrow4 until your
hands are slightly angled when holding
the steering wheel. Head restraint height

Pull up or push down on head restraint
until it is in desired position.
Head restraint tilt

Manually adjust the angle of the head
restraint. Push or pull on the lower
edge of the head restraint cushion.
More information can be found in the
“Controls in detail” section (
page 91).
Steering wheel
1Lever
iWith the front door open, the seats can
still be adjusted approx. 30 minutes af-
ter the ignition has been turned off.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint to support the back of
the head approximately at ear level.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
Warning!
G
Do not adjust the steering wheel while driv-
ing. The steering wheel must be locked
while driving. Adjusting the steering wheel
while driving, or driving without the steering
column locked could cause the driver to lose
control of the vehicle.

38 Getting startedAdjusting
Move lever1 to its stop down.

Move steering wheel up or down to de-
sired position.

Move lever1 to its stop up.
The steering column is locked.
Mirrors
Adjust the inside and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Inside rear view mirror

Manually adjust the inside rear view
mirror.
Exterior rear view mirrors
!If the indicator lamp
_
(page 26)
comes on while the engine is running,
the steering column is not locked prop-
erly.
Warning!
G
In the case of an accident, liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or the respiratory sys-
tem. In case it does, immediately flush af-
fected area with water, and seek medical
help if necessary.
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their liq-
uid state and by applying plenty of wa-
ter.

39 Getting started
Adjusting

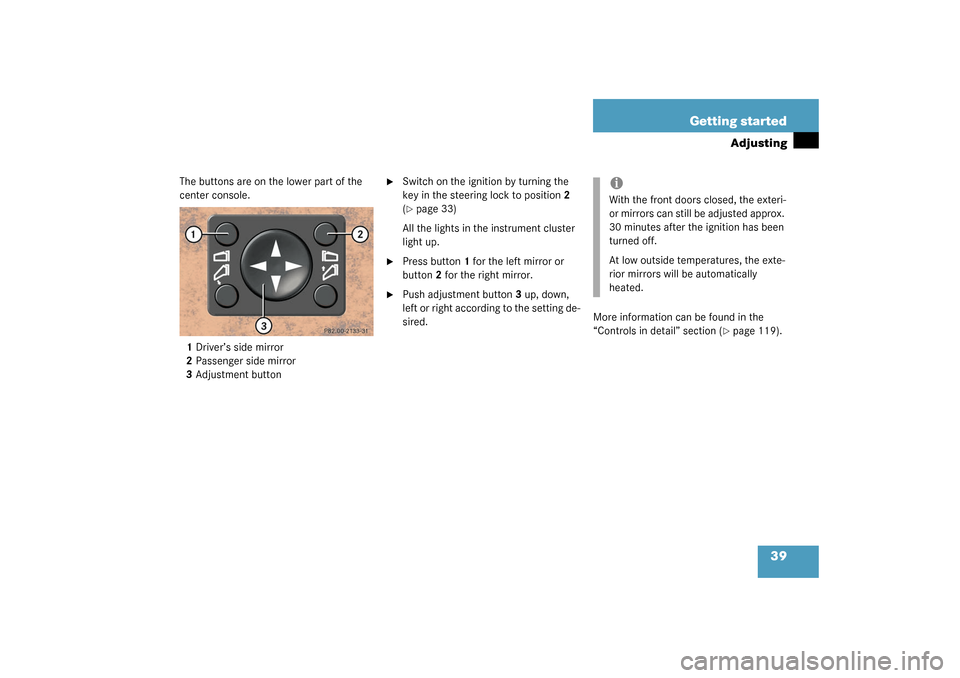

The buttons are on the lower part of the
center console.
1Driver’s side mirror
2Passenger side mirror
3Adjustment button

Switch on the ignition by turning the
key in the steering lock to position2
(page 33)
All the lights in the instrument cluster
light up.

Press button1 for the left mirror or
button2 for the right mirror.

Push adjustment button3 up, down,
left or right according to the setting de-
sired.More information can be found in the
“Controls in detail” section (
page 119).
iWith the front doors closed, the exteri-
or mirrors can still be adjusted approx.
30 minutes after the ignition has been
turned off.
At low outside temperatures, the exte-
rior mirrors will be automatically
heated.

40 Getting startedDriving
DrivingFastening the seat beltsWarning!
G
Do not lay any objects in the driver’s foot-
well. Be careful that floor mats or carpets in
the driver’s footwell have sufficient clear-
ance for the pedals.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate.Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The airbags can only protect as ex-
pected if the occupants are using their seat
belts (
page 54).
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front air-
bag when it is properly installed. Otherwise
they will be struck by the airbag when it in-
flates in a crash. If this happens, serious or
fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle's
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er's instructions.
