2003 MERCEDES-BENZ E500 Owner's Manual

273 Operation
Winter driving
Winter driving
Before the onset of winter, have your vehi-
cle winterized at an authorized
Mercedes-Benz Center. This service in-
cludes:

Check of anticorrosion and antifreeze
concentration.


Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
"S" to a premixed windshield washer
solvent / antifreeze which is formulated
for below freezing temperatures
(page 371).


Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to ensure
that the engine can be started, even at
low ambient temperatures.


Tire change. We recommend M+S rat-
ed radial-ply tires on all four wheels for
the winter season.
Winter tires
Always use winter tires at temperatures
below 39°F (4°C) and whenever wintry
road conditions prevail. Use of winter tires
is the only way to achieve the maximum ef-
fectiveness of the ABS and the ESP in win-
ter operation.
For safe handling, ensure that all mounted
winter tires are of the same make and have
the same tread design.Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your ve-
hicle, you must place a notice to this effect
where it will be seen by the driver. Such no-
tices are available from your tire dealer or
from any authorized Mercedes-Benz Cen-
ter.Warning!
G
Winter tires having a tread depth under
0.16 in (4 mm) must be replaced. They are
no longer suitable for winter operation.
Warning!
G
If you use your spare tire when winter tires
are fitted on the other wheels, be aware that
the difference in tire characteristics may
very well impair turning stability and that
overall driving stability may be reduced.
Adapt your driving style to this.
Have the spare tire replaced with a winter
tire at the nearest authorized
Mercedes-Benz Center.

274 OperationWinter drivingBlock heater (Canada only)
The engine is equipped with a block heat-
er.
The electrical cable may be installed at
your authorized Mercedes-Benz Center.
Snow chains
When driving with snow chains, always se-
lect the raised level of the level control sys-
tem AIRMATIC DC* (
page 209). Other
settings may result in damage to your vehi-
cle.
Snow chains should only be driven on
snow-covered roads at speeds not to ex-
ceed 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.Please observe the following guidelines
when using snow chains:


Use of snow chains is not permissible
with all wheel/tire combinations.


Chains should only be used on the rear
wheels. Follow the manufacturer's
mounting instructions.


Only use snow chains that are ap-
proved by Mercedes-Benz. Your autho-
rized Mercedes-Benz Center will be
glad to advise you on this subject.
iWhen driving with snow chains, you
may wish to deactivate the ESP
(page 76) before setting the vehicle
in motion. This will improve the vehi-
cle’s traction.
!Use of snow chains is not permissible
with tire size 245 / 45 R17
(page 361).

275 Operation
Maintenance
Maintenance
Flexible Service System PLUS (FSS PLUS)
We strongly recommend that you have
your vehicle serviced by your authorized
Mercedes-Benz Center, in accordance with
the Service Booklet at the times called for
by the FSS PLUS
(Flexible Service System PLUS).
Failure to have the vehicle maintained in
accordance with the Service Booklet at the
designated times /mileage called for by
the FSS PLUS may result in vehicle dam-
age not covered by the Mercedes-Benz
Limited Warranty.
FSS PLUS will notify you when your next
service is due.
Approximately one month before your next
service is due, one of the following mes-
sages will appear in the multifunction dis-
play while you are driving or when you
switch on the ignition (example service A):Service A in XXXX miles (km)
Service A in XX days
Service A in X day Service A due now!
The type of service due is indicated in the
speedometer display field:
from
Service A(Minor service)
toService H(Major service)
Clearing the service indicator
You can clear the service indicator
Press the jbutton on the multi-
function steering wheel.iThe additional + after the type of ser-
vice indicates the degree of wear of the
brake pads.
The brake pads may reach their wear
limit in the time period up to the next
service interval.
Have the brake pads checked and, if
necessary, replaced by an authorized
Mercedes-Benz Center during your
next service appointment.iThe interval between services depends
on your driving habits. A gentle driving
style, moderate engine speeds and the
avoidance of short distance trips will
lengthen the interval between services.

276 OperationMaintenance
The service indicator is cleared and the
standard display appears in the multi-
function display.
Service term exceeded
If you have exceeded the suggested ser-
vice term, you will see the following mes-
sage in the multifunction display:Service A exceeded by XXXXX miles (km)
Service A exceeded by XXX days
Service A exceeded by X day An authorized Mercedes-Benz Center will
reset the service indicator following a com-
pleted service.
Calling up the service indicator
Switch the ignition on.
The standard display of the control sys-
tem appears (
page 121).

Press buttonk orj on the mul-
tifunction steering wheel until the
FSS PLUS indicator appears in the mul-
tifunction display.
Resetting the service indicator
In the event that a service on your vehicle
is not carried out by an authorized
Mercedes-Benz Center, you can reset the
service indicator yourself.
Switch the ignition on.
The standard display of the control sys-
tem appears (
page 121).

Press buttonk orj on the mul-
tifunction steering wheel until the
FSS PLUS indicator appears in the mul-
tifunction display.

Press the reset knob (
page 22) for
about five seconds.
iIf the battery is disconnected, the days
of disconnection will not be included in
the count shown by the service indica-
tor. To arrive at the true service dead-
line, you will need to subtract these
days from the days shown in the ser-
vice indicator.
Do not confuse the service indicator
with the engine oil level indicator :.

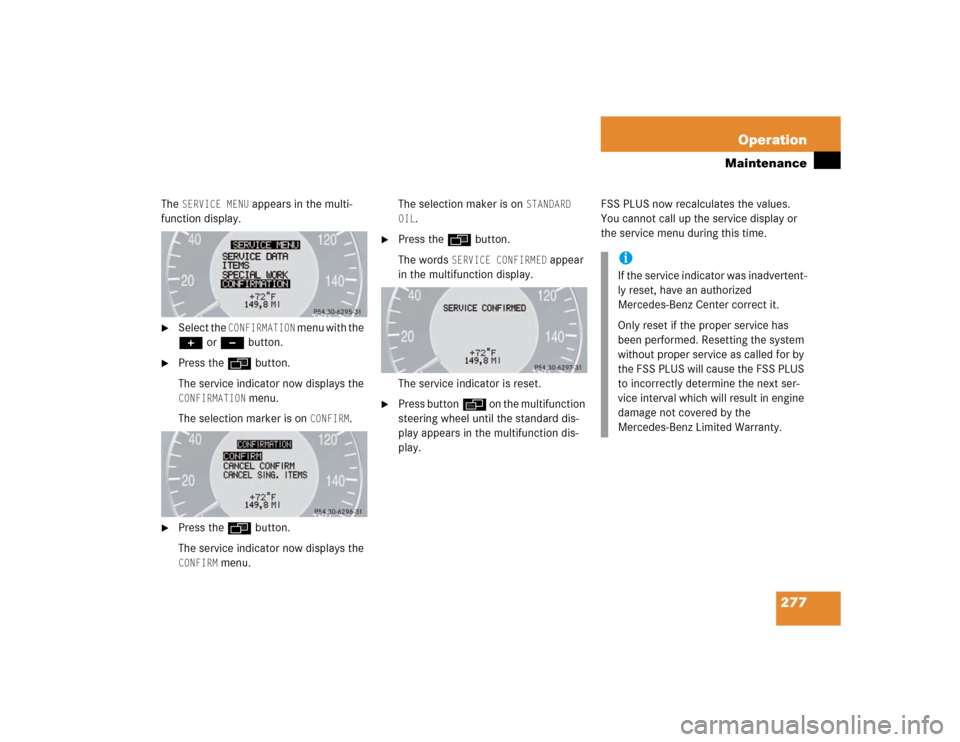

277 Operation
Maintenance
The
SERVICE MENU
appears in the multi-
function display.

Select the
CONFIRMATION
menu with the
+ or - button.

Press the ÿ button.
The service indicator now displays the CONFIRMATION
menu.
The selection marker is on
CONFIRM
.

Press the ÿbutton.
The service indicator now displays the CONFIRM
menu.The selection maker is on
STANDARD
OIL
.

Press the ÿ button.
The words
SERVICE CONFIRMED
appear
in the multifunction display.
The service indicator is reset.

Press buttonè on the multifunction
steering wheel until the standard dis-
play appears in the multifunction dis-
play.FSS PLUS now recalculates the values.
You cannot call up the service display or
the service menu during this time.
iIf the service indicator was inadvertent-
ly reset, have an authorized
Mercedes-Benz Center correct it.
Only reset if the proper service has
been performed. Resetting the system
without proper service as called for by
the FSS PLUS will cause the FSS PLUS
to incorrectly determine the next ser-
vice interval which will result in engine
damage not covered by the
Mercedes-Benz Limited Warranty.

278 OperationMaintenanceSetting the date for special works
You can enter appointments for exhaust
gas analysis and general inspection over
FSS PLUS.
Switch ignition on.
The standard display of the control sys-
tem appears (
page 121).

Press buttonk orj on the mul-
tifunction steering wheel until the
FSS PLUS indicator appears in the mul-
tifunction display.

Press the reset knob (
page 22) for
about five seconds.
The
SERVICE MENU
appears in the multi-
function display.

Select the
SPECIAL WORK
menu with the
+ or - button.

Press the ÿ button.The service indicator now displays the
SPECIAL WORK
menu.

Select the
EXH.-GAS ANALYSIS
or
GEN-
ERAL INSPECTION
menu with the +
or - button.

Press the ÿbutton.
The service indicator now displays the NEXT DUE DATE
menu.

Select the
MONTH a
nd
YEAR
with the
+ or - button.

Press buttonk orj on the mul-
tifunction steering wheel to set the
month and year.

Select
DATE CONFIRMED
with the +
or - button.

Press the ÿbutton.
The new date is set.

Press buttonè on the multifunction
steering wheel until the standard dis-
play appears in the multifunction dis-
play.
FSS PLUS now recalculates the values.
You cannot call up the service display or
the service menu during this time.

279 Operation
Maintenance
Calling up the service data information
FSS PLUS shows the service type (letters
A-H) in the multifunction display approxi-
mately one month before the service ap-
pointment is due in miles (distance
criterion) or in days (time criterion).
This service type is based on the service
items to be carried out. The service items
are described in the Service Booklet.
The service items to be carried out under
the corresponding service type can be dis-
played in the multifunction display.Calling up the service item menu

Switch ignition on.
The standard display of the control sys-
tem appears (
page 121).

Press buttonk orj on the mul-
tifunction steering wheel until the
FSS PLUS indicator appears in the mul-
tifunction display.

Press the reset knob (
page 22) for
about five seconds.
The
SERVICE MENU
appears in the multi-
function display (page 121).

Select the
ITEMS
menu with the +
or - button.

Press the ÿ button.The service indicator now displays the
ITEMS
menu.

Press buttonè on the multifunction
steering wheel until the standard
display appears in the multifunction
display.iThe service items to be carried out are
shown in this menu.
Please refer to the Service Booklet for
a description of each service item.

280 OperationVehicle care
Vehicle careCleaning and care of vehicle
In operation, your vehicle is subjected to
varying external influences which, if gone
unchecked, can attack the paintwork as
well as the undercarriage and cause last-
ing damage.
Such damage is caused not only by ex-
treme and varying climatic conditions, but
also by:

Air pollution


Road salt


Tar, gravel and stone chippingTo avoid paint damage, you should imme-
diately remove:


Grease and oil


Fuel


Coolant


Brake fluid


Insects


Tree resins etc.
Frequent washing reduces and / or elimi-
nates the aggressiveness and potency of
the above adverse influences.
More frequent washings are necessary to
deal with unfavorable conditions, for ex-
ample:


Near the ocean


In industrial areas (smoke, exhaust
emissions)


During winter operationYou should check your vehicle from time to
time for stone chipping or other damage.
A n y d a m a g e s h o u l d b e r e p a i r e d a s s o o n a s
possible to prevent the start of corrosion.
In doing so, do not neglect the underside of
the vehicle. A prerequisite for a thorough
check is a washing of the undercarriage
followed by a thorough inspection. Dam-
aged areas need to be reundercoated.
Your vehicle has been treated at the facto-
ry with a wax-base rustproofing in the body
cavities which will last for the lifetime of
the vehicle. Post-production treatment is
neither necessary nor recommended by
Mercedes-Benz because of the possibility
of incompatibility between materials used
in the production process and others ap-
plied later.
We have selected car-care products and
compiled recommendations which are
specially matched to our vehicles and
which always reflect the latest technology.
You can obtain Mercedes-Benz approved
car-care products at your authorized
Mercedes-Benz Center.
Warning!
G
Many cleaning products can be hazardous.
Some are poisonous, others are flammable.
Always follow the instructions on the partic-
ular container. Always open your vehicle’s
doors or windows when cleaning the inside.
Never use fluids or solvents that are not de-
signed for cleaning your vehicle.
