2003 MERCEDES-BENZ E500 Owner's Manual

137 Controls in detail
Control system

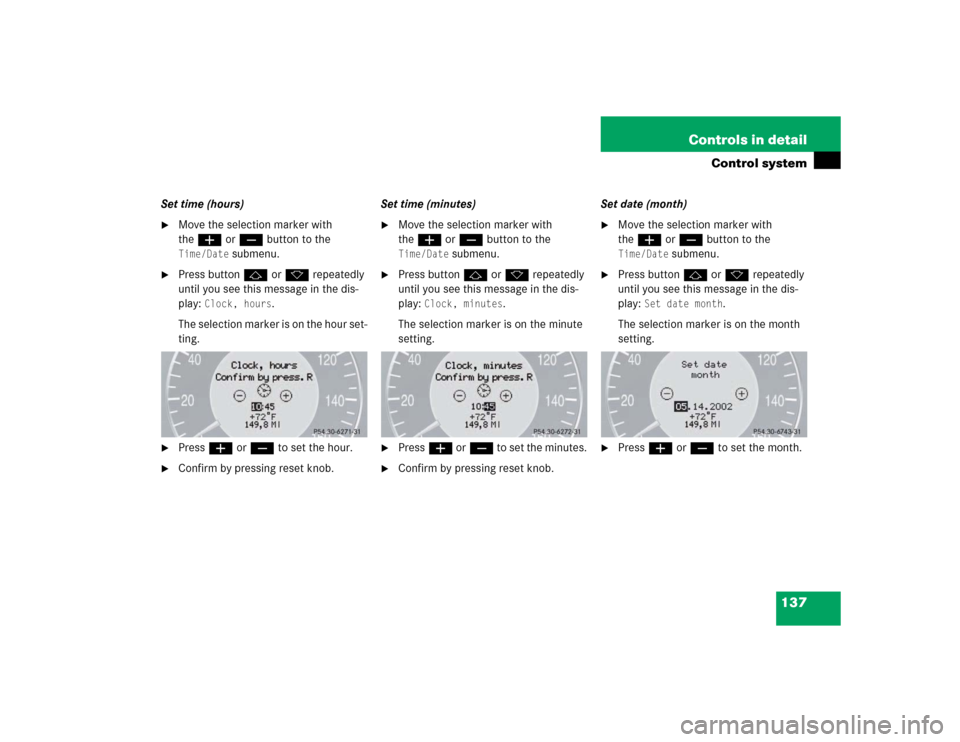

Set time (hours)
Move the selection marker with
theæ orç button to the Time/Date
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Clock, hours
.
The selection marker is on the hour set-
ting.

Pressæ orç to set the hour.

Confirm by pressing reset knob.Set time (minutes)

Move the selection marker with
theæ orç button to the Time/Date
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Clock, minutes
.
The selection marker is on the minute
setting.

Pressæ orç to set the minutes.

Confirm by pressing reset knob.Set date (month)

Move the selection marker with
theæ orç button to the Time/Date
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Set date month
.
The selection marker is on the month
setting.

Pressæ orç to set the month.

138 Controls in detailControl systemSet date (day)
Move the selection marker with
theæ orç button to the Time/Date
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Set date day
.
The selection marker is on the day set-
ting.

Pressæ orç to set the day.Set date (year)

Move the selection marker with
theæ orç button to the Time/Date
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Set date year
.
The selection marker is on the year set-
ting.

Pressæ orç to set the year.Lighting submenu
Access the
Lighting
submenu via the
Set-
tings
menu. Use the
Lighting
submenu
to change the lamp and lighting settings on
your vehicle. The following functions are
available:
Function
Page
Set daytime running lamp mode
(USA only)
see
below
Set locator lighting
139
Ambient light level
140
Exterior lamps delayed
switch-off
140
Interior lighting delayed
switch-off
141

139 Controls in detail
Control system
Setting daytime running lamp mode
(USA only)
Move the selection marker with
theæ orç button to the
Light-
ing
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Lamp circuit headlamp
.
The selection marker is on the current
setting.

Pressæ orç to select manual
or daytime running lamp (constant)
mode. This function is not available in
countries where daytime running
lamps are mandatory.With daytime running lamp mode se-
lected and the exterior lamp switch at
position0, the following lamps will
come on automatically when the en-
gine is turned on:


Parking lamps and low beam head-
lamps


License plate lamps (in low ambient
light conditions) Setting locator lighting
During darkness, the following lamps will
come on when the locator lighting feature
is activated and the vehicle is unlocked by
remote control:


Parking lamps


Tail lamps


License plate lamps


Front fog lamps
The exterior lamp switch must be set to po-
sition U (
page 112).
The locator lighting switches off when the
driver’s door is opened. It switches off au-
tomatically after a period of approximately
40 seconds.

Move the selection marker with
theæ orç button to the
Light-
ing
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

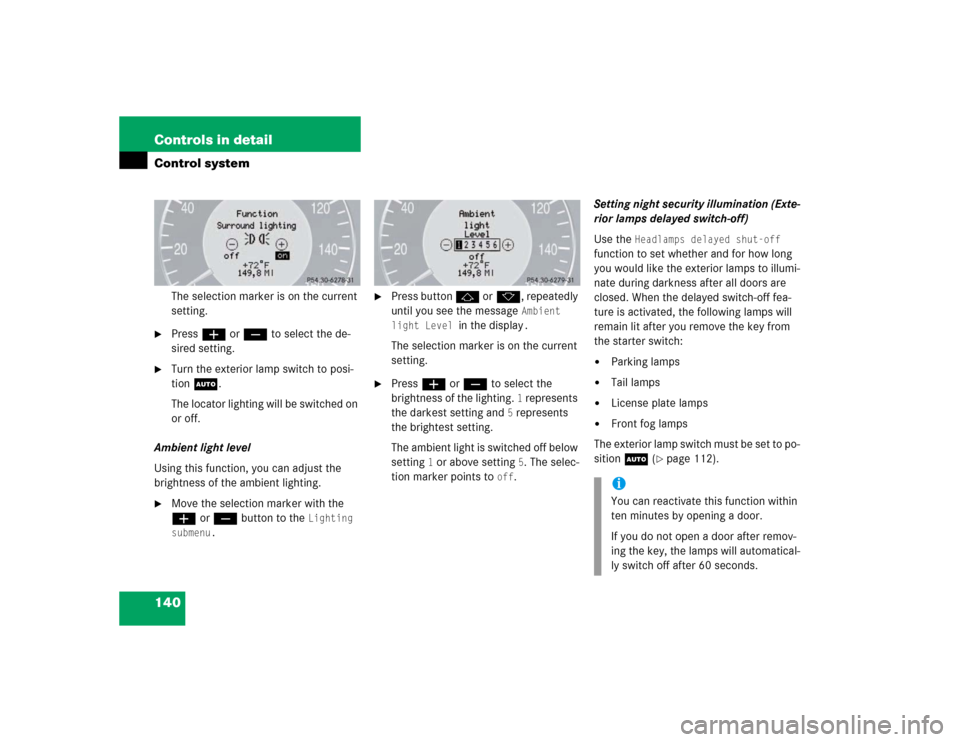

Function Surround lighting
.
iIf you turn the exterior lamp switch to
another position, the corresponding
lamp(s) will switch on.
For safety reasons, resetting the Lighting
submenu to factory settings
(
page 131) will not reset the daytime
running lamp mode.
In the display you will then see the mes-
sage:
Lighting

140 Controls in detailControl system
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired setting.

Turn the exterior lamp switch to posi-
tion U.
The locator lighting will be switched on
or off.
Ambient light level
Using this function, you can adjust the
brightness of the ambient lighting.

Move the selection marker with the
æ orç button to the
Lighting
submenu.

Press button j ork, repeatedly
until you see the message
Ambient
light Level
in the display
.
The selection marker is on the current
setting.

Press æ orç to select the
brightness of the lighting.
1 represents
the darkest setting and
5 represents
the brightest setting.
The ambient light is switched off below
setting
1 or above setting
5. The selec-
tion marker points to
off
.Setting night security illumination (Exte-
rior lamps delayed switch-off)
Use the
Headlamps delayed shut-off

function to set whether and for how long
you would like the exterior lamps to illumi-
nate during darkness after all doors are
closed. When the delayed switch-off fea-
ture is activated, the following lamps will
remain lit after you remove the key from
the starter switch:


Parking lamps


Tail lamps


License plate lamps


Front fog lamps
The exterior lamp switch must be set to po-
sition U (
page 112).
iYou can reactivate this function within
ten minutes by opening a door.
If you do not open a door after remov-
ing the key, the lamps will automatical-
ly switch off after 60 seconds.

141 Controls in detail
Control system

Move the selection marker with
theæ orç button to the
Light-
ing
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

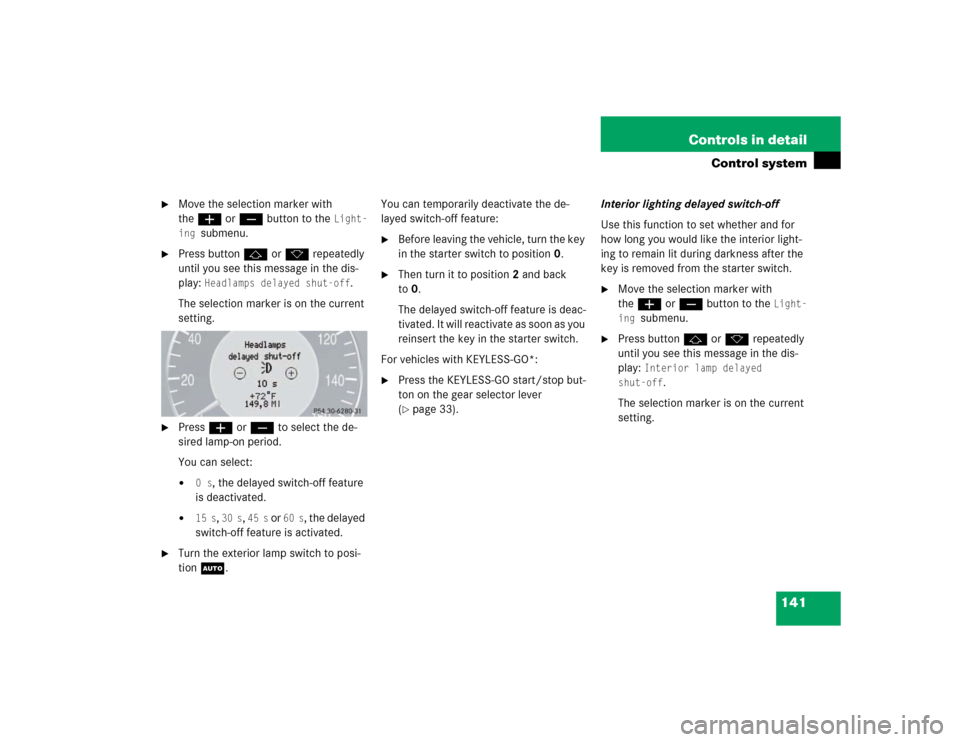

Headlamps delayed shut-off
.
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired lamp-on period.
You can select:

0 s
, the delayed switch-off feature
is deactivated.


15 s
, 30 s
, 45 s
or
60 s
, the delayed
switch-off feature is activated.

Turn the exterior lamp switch to posi-
tion U.You can temporarily deactivate the de-
layed switch-off feature:

Before leaving the vehicle, turn the key
in the starter switch to position0.

Then turn it to position2 and back
to0.
The delayed switch-off feature is deac-
tivated. It will reactivate as soon as you
reinsert the key in the starter switch.
For vehicles with KEYLESS-GO*:

Press the KEYLESS-GO start/stop but-
ton on the gear selector lever
(page 33).Interior lighting delayed switch-off
Use this function to set whether and for
how long you would like the interior light-
ing to remain lit during darkness after the
key is removed from the starter switch.

Move the selection marker with
theæ orç button to the
Light-
ing
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

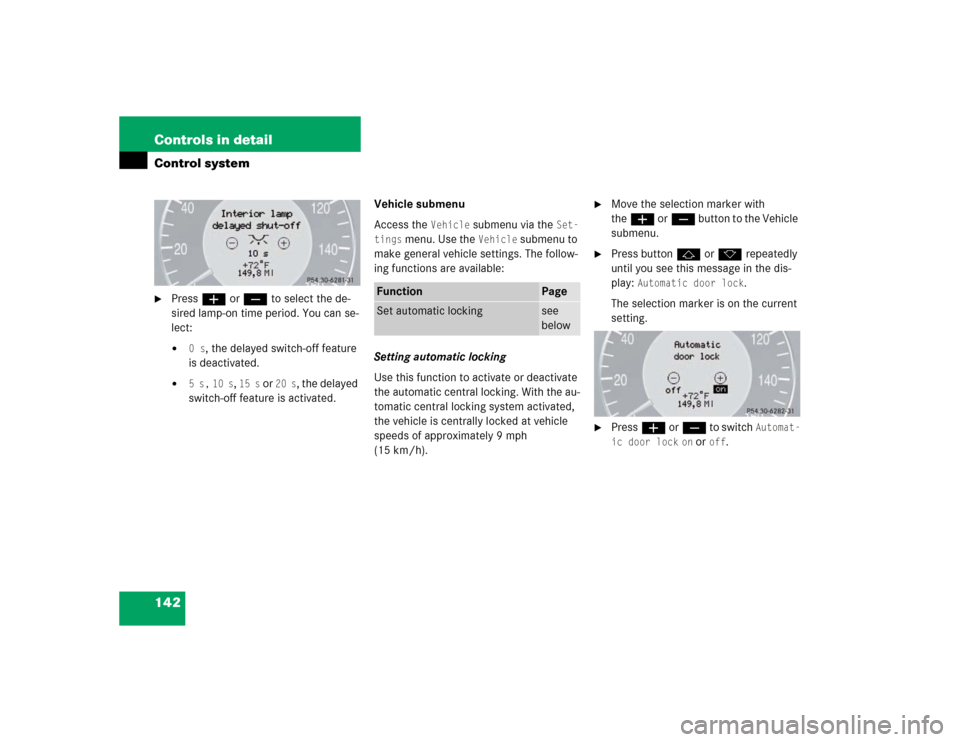

Interior lamp delayed
shut-off
.
The selection marker is on the current
setting.

142 Controls in detailControl system
Pressæ orç to select the de-
sired lamp-on time period. You can se-
lect:

0 s
, the delayed switch-off feature
is deactivated.


5 s,
10 s
, 15 s
or
20 s
, the delayed
switch-off feature is activated.Vehicle submenu
Access the
Vehicle
submenu via the
Set-
tings
menu. Use the
Vehicle
submenu to
make general vehicle settings. The follow-
ing functions are available:
Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km/h).

Move the selection marker with
theæ orç button to the Vehicle
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Automatic door lock
.
The selection marker is on the current
setting.

Pressæ orç to switch
Automat-
ic door lock
on or
off
.
Function
Page
Set automatic locking
see
below

143 Controls in detail
Control system
Convenience submenu
Access the
Convenience
submenu via the
Settings
menu. Use the
Convenience
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Activating easy-entry/exit feature*
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel and
driver’s seat will move back to facilitate ex-
iting when you


remove the key from the starter switch


open the driver’s door
However, the engine must be turned off.After entering the vehicle, the steering
wheel and seat will move into the position
stored in memory when


the driver’s door is closed


you put the key in the starter switch


you press the appropriate stored posi-
tion button on the memory switch
(page 110).

Move the selection marker with
theæ orç button to
the
Convenience
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:

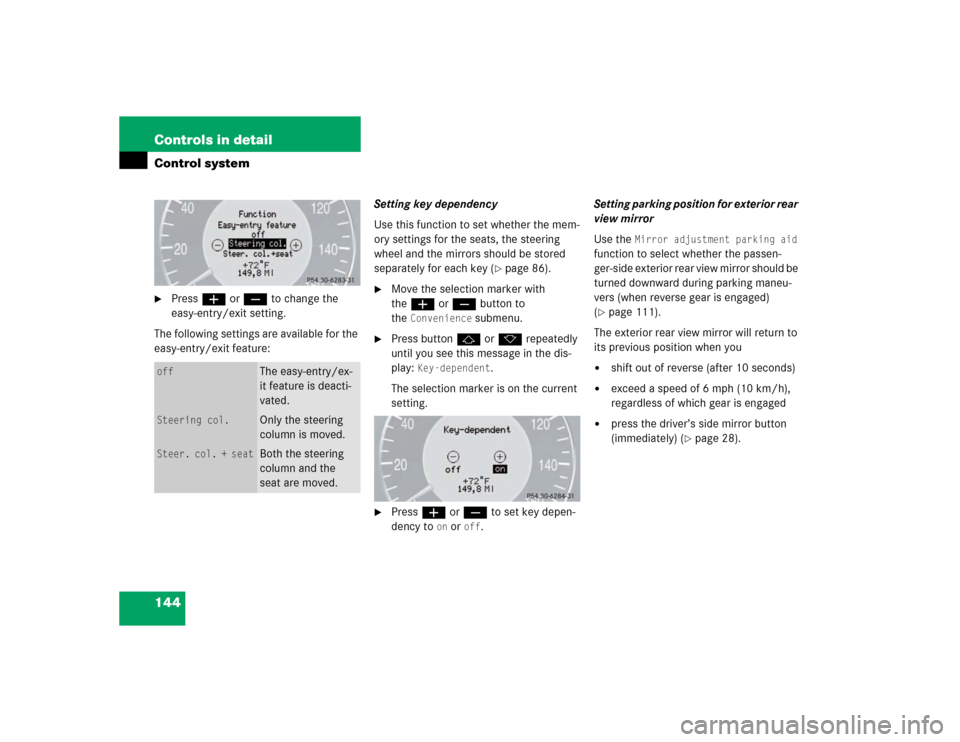

Function Easy-entry feature
.
The selection marker is on the current
setting.
Function
Page
Activate easy-entry/exit feature
see
below
Set key dependency
144
Set parking position for exterior
rear view mirror
144
Warning!
G
You must ensure that no one can become
trapped or injured by the moving steering
wheel and the driver’s seat when the
easy-entry/exit feature is in operation and
the driver’s door is being opened or the key
is removed from the starter switch. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause serious personal injury.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident or
serious injury.
iTo cancel seat/steering wheel move-
ment, do one of the following:

Press seat adjustment switch
(page 35).


Move the steering column stalk
(page 38).


Press the memory switch
(page 110).

144 Controls in detailControl system
Pressæ orç to change the
easy-entry/exit setting.
The following settings are available for the
easy-entry/exit feature:Setting key dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel and the mirrors should be stored
separately for each key (
page 86).

Move the selection marker with
theæ orç button to
the
Convenience
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
Key-dependent
.
The selection marker is on the current
setting.

Pressæ orç to set key depen-
dency to
on or
off
. Setting parking position for exterior rear
view mirror
Use the
Mirror adjustment parking aid

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers (when reverse gear is engaged)
(
page 111).
The exterior rear view mirror will return to
its previous position when you


shift out of reverse (after 10 seconds)


exceed a speed of 6 mph (10 km/h),
regardless of which gear is engaged


press the driver’s side mirror button
(immediately) (
page 28).
off
The easy-entry/ex-
it feature is deacti-
vated.
Steering col.
Only the steering
column is moved.
Steer. col. + seat
Both the steering
column and the
seat are moved.
