2003 LEXUS LS430 sensor

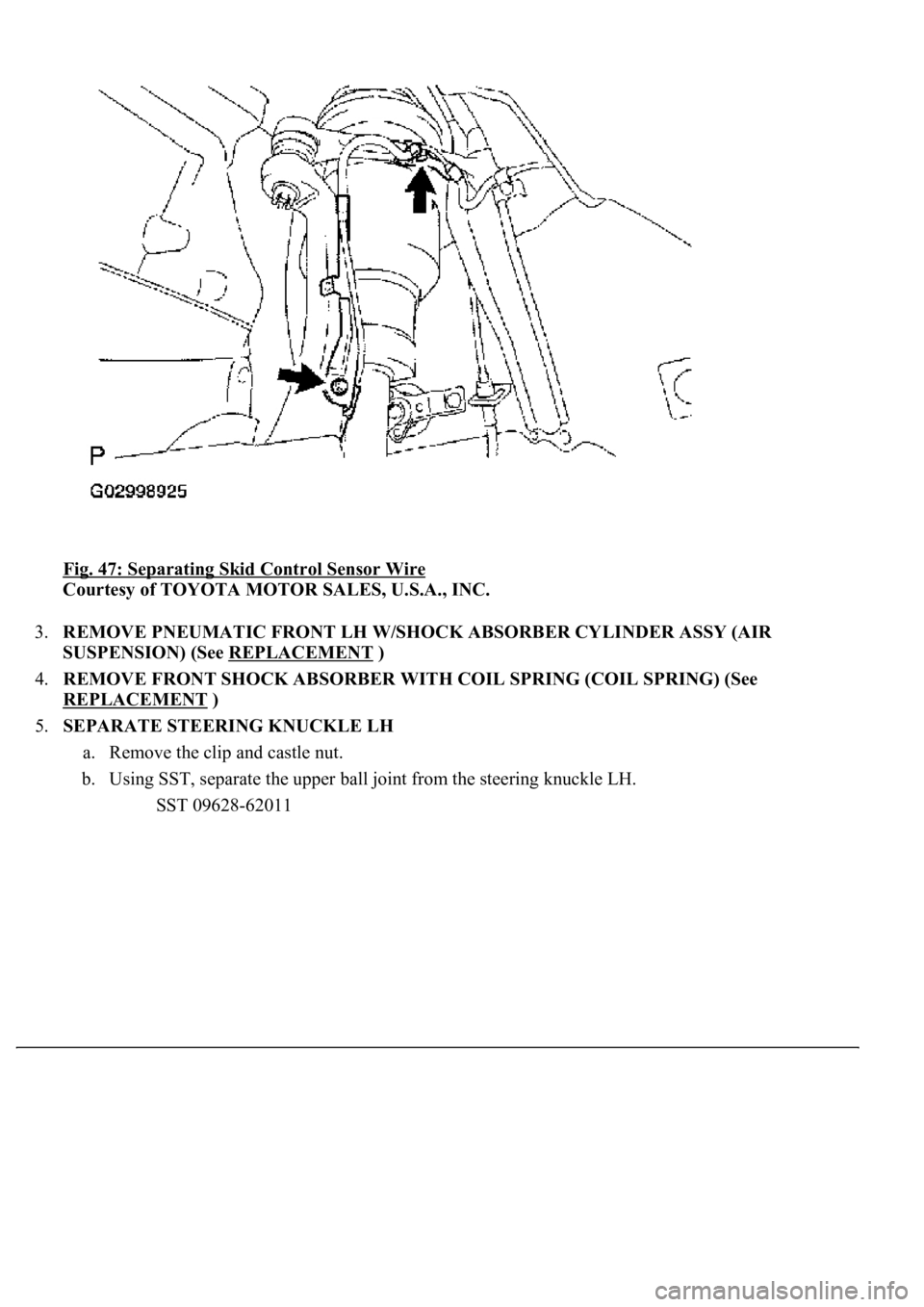

Fig. 47: Separating Skid Control Sensor Wire
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.REMOVE PNEUMATIC FRONT LH W/SHOCK ABSORBER CYLINDER ASSY (AIR
SUSPENSION) (See REPLACEMENT
)
4.REMOVE FRONT SHOCK ABSORBER WITH COIL SPRING (COIL SPRING) (See
REPLACEMENT
)
5.SEPARATE STEERING KNUCKLE LH
a. Remove the clip and castle nut.
b. Using SST, separate the upper ball joint from the steering knuckle LH.
SST 09628-62011

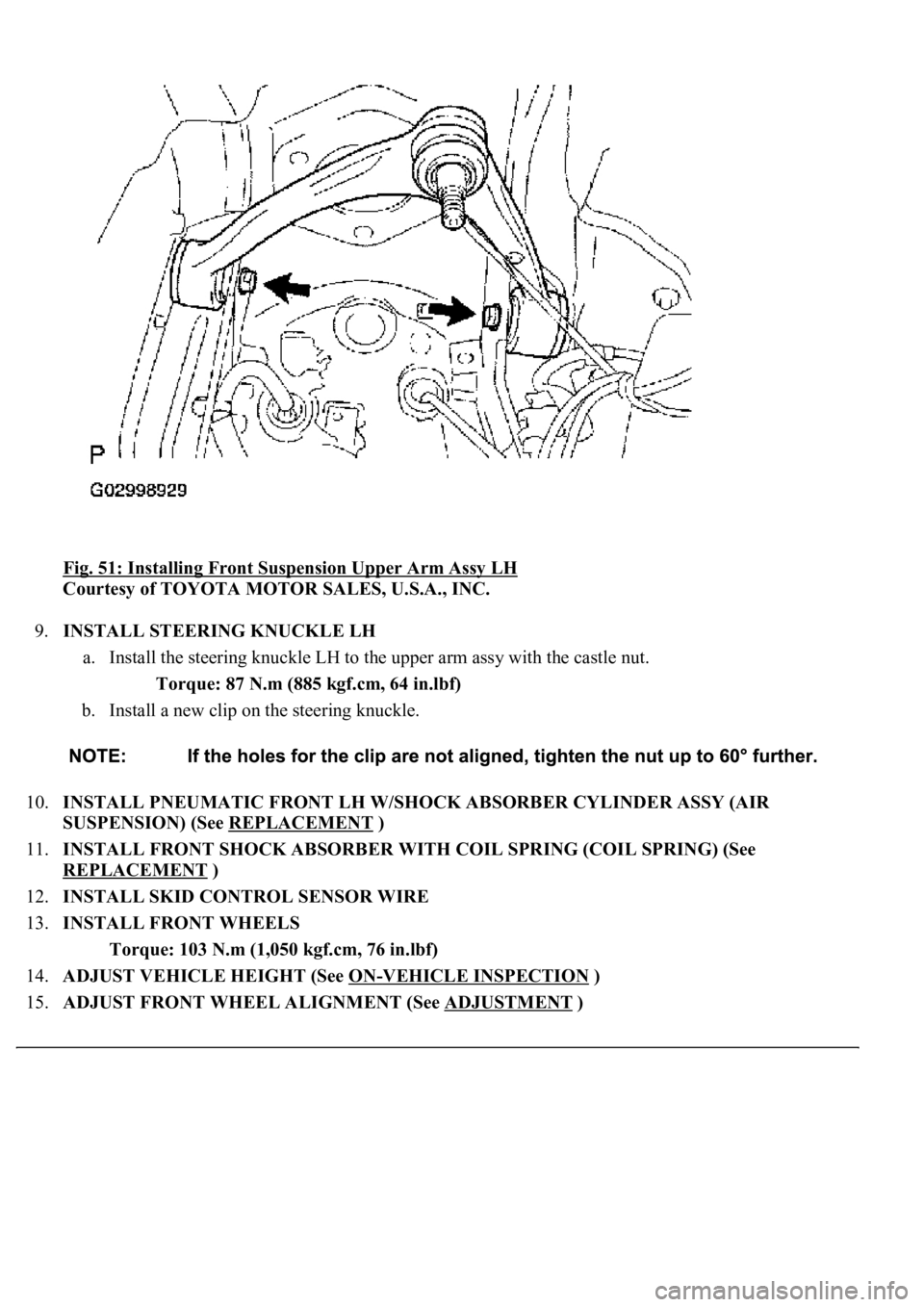

Fig. 51: Installing Front Suspension Upper Arm Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9.INSTALL STEERING KNUCKLE LH
a. Install the steering knuckle LH to the upper arm assy with the castle nut.
Torque: 87 N.m (885 kgf.cm, 64 in.lbf)
b. Install a new clip on the steering knuckle.
10.INSTALL PNEUMATIC FRONT LH W/SHOCK ABSORBER CYLINDER ASSY (AIR
SUSPENSION) (See REPLACEMENT
)
11.INSTALL FRONT SHOCK ABSORBER WITH COIL SPRING (COIL SPRING) (See
REPLACEMENT
)
12.INSTALL SKID CONTROL SENSOR WIRE
13.INSTALL FRONT WHEELS
Torque: 103 N.m (1,050 kgf.cm, 76 in.lbf)
14.ADJUST VEHICLE HEIGHT (See ON
-VEHICLE INSPECTION )
15.ADJUST FRONT WHEEL ALIGNMENT (See ADJUSTMENT
)

REPLACEMENT
HINT:
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
1.REMOVE FRONT WHEELS
2.REMOVE LOWER BALL JOINT ASSY FRONT LH (See LOWER BALL JOINT ASSY FRONT
LH REPLACEMENT )
3.SEPARATE HEIGHT CONTROL SENSOR LINK SUB-ASSY FRONT
a. Remove the nut and separate the height control sensor link sub-assy front.

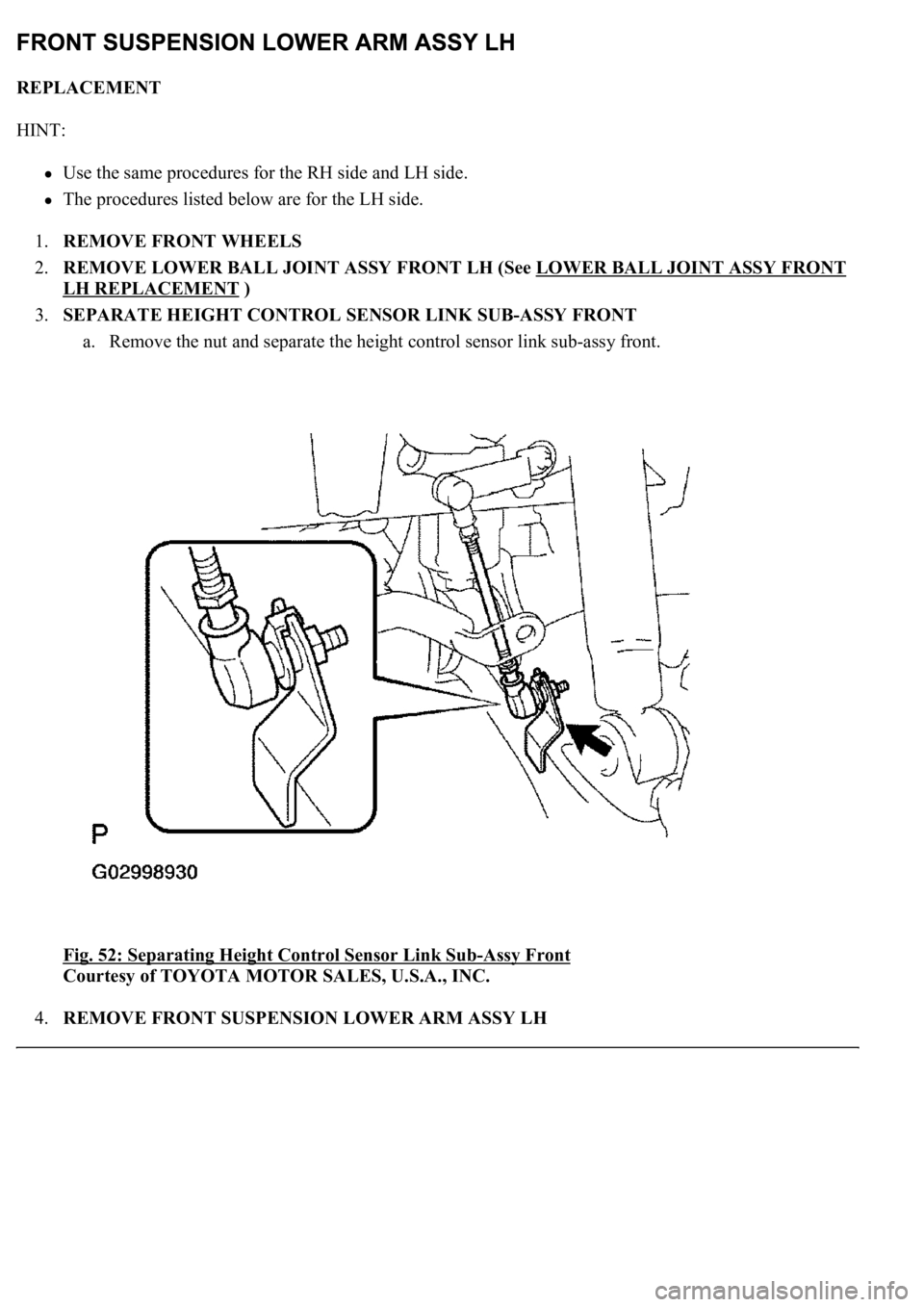

Fig. 52: Separating Height Control Sensor Link Sub
-Assy Front
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.REMOVE FRONT SUSPENSION LOWER ARM ASSY LH

<0029004c004a0011000300190016001d0003002c0047004800510057004c0049005c004c0051004a00030036004b00520046004e0003002400450056005200550045004800550003002400560056005c000300250052004f00570003002400510047000300
3100580057[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.INSTALL HEIGHT CONTROL SENSOR LINK SUB-ASSY FRONT (AIR SUSPENSION)
a. Install the height control sensor link sub-assy front with the nut.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

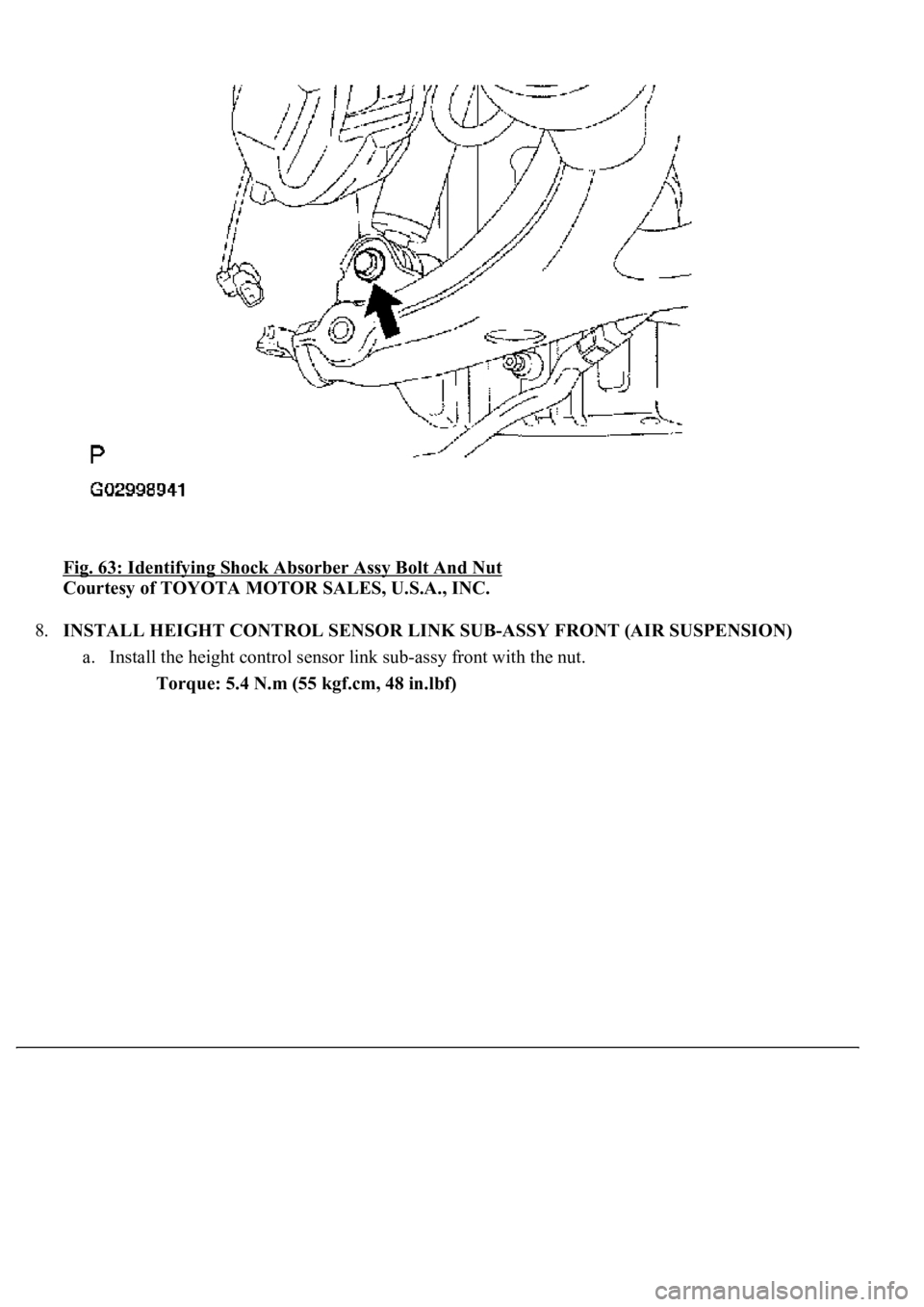

Fig. 64: Installing Height Control Sensor Link Sub-Assy Front (Air Suspension)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9.INSTALL LOWER BALL JOINT ASSY FRONT LH (See LOWER BALL JOINT ASSY FRONT
LH REPLACEMENT )
10.STABILIZE SUSPENSION (See REPLACEMENT
or REPLACEMENT )
11.FULLY TIGHTEN FRONT SUSPENSION LOWER ARM ASSY LH
a. Fully tighten the nut.
Torque: 137 N.m (1,395 kgf.cm, 101 ft.lbf)

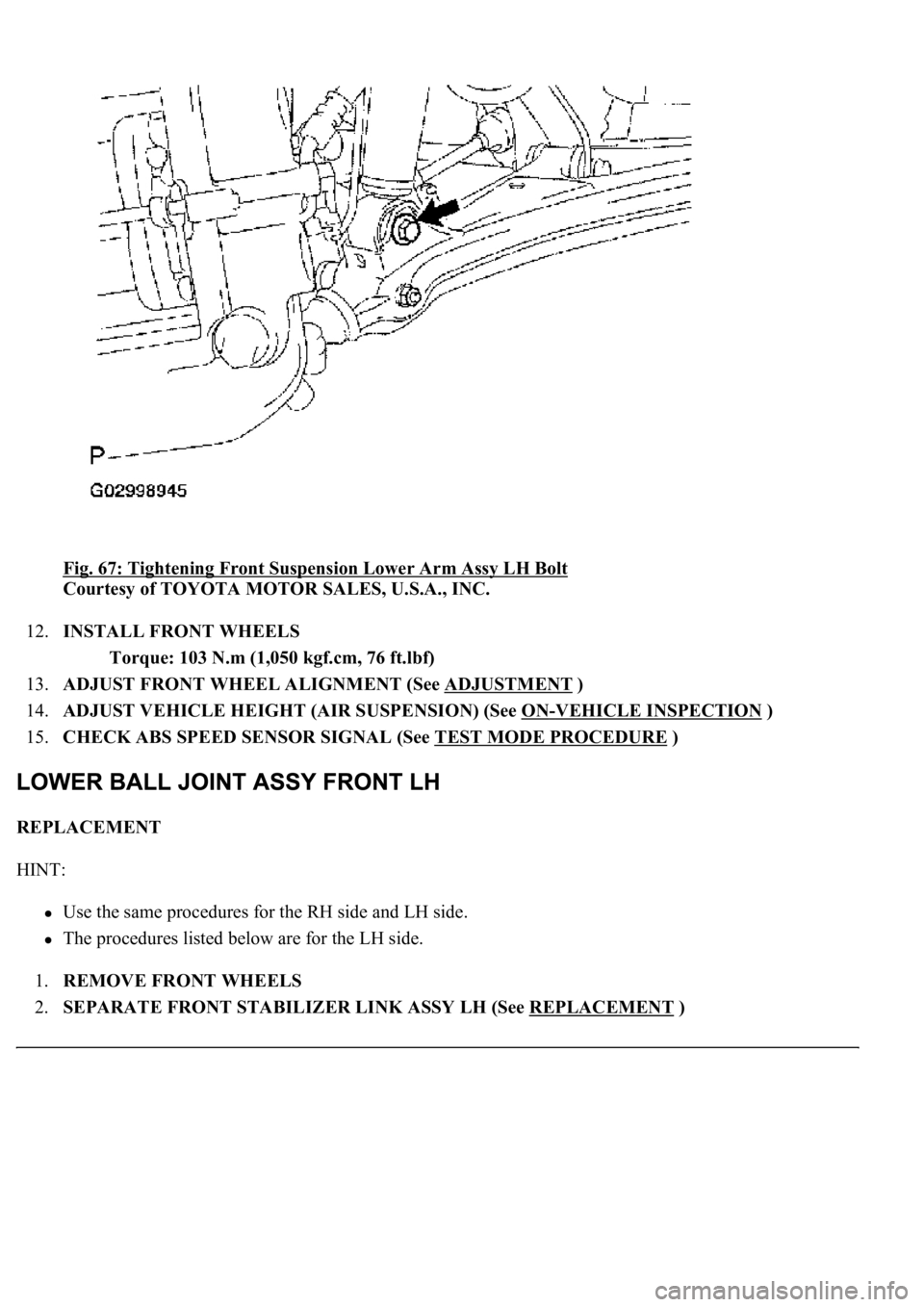

Fig. 67: Tightening Front Suspension Lower Arm Assy LH Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
12.INSTALL FRONT WHEELS
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
13.ADJUST FRONT WHEEL ALIGNMENT (See ADJUSTMENT
)
14.ADJUST VEHICLE HEIGHT (AIR SUSPENSION) (See ON
-VEHICLE INSPECTION )
15.CHECK ABS SPEED SENSOR SIGNAL (See TEST MODE PROCEDURE
)
REPLACEMENT
HINT:
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
1.REMOVE FRONT WHEELS
2.SEPARATE FRONT STABILIZER LINK ASSY LH (See REPLACEMENT
)

3.SEPARATE SKID CONTROL SENSOR WIRE (See REPLACEMENT )
4.REMOVE DISC BRAKE CYLINDER ASSY LH (See step 8 in OVERHAUL
)
5.REMOVE FRONT DISC (See step 14 in OVERHAUL
)
6.REMOVE FRONT AXLE HUB SUB-ASSY LH (See step 5 in REPLACEMENT
)
7.REMOVE STEERING KNUCKLE LH
a. Remove the clip and castle nut.
b. Using SST, separate the upper ball joint from the steering knuckle LH.
SST 09628-62011

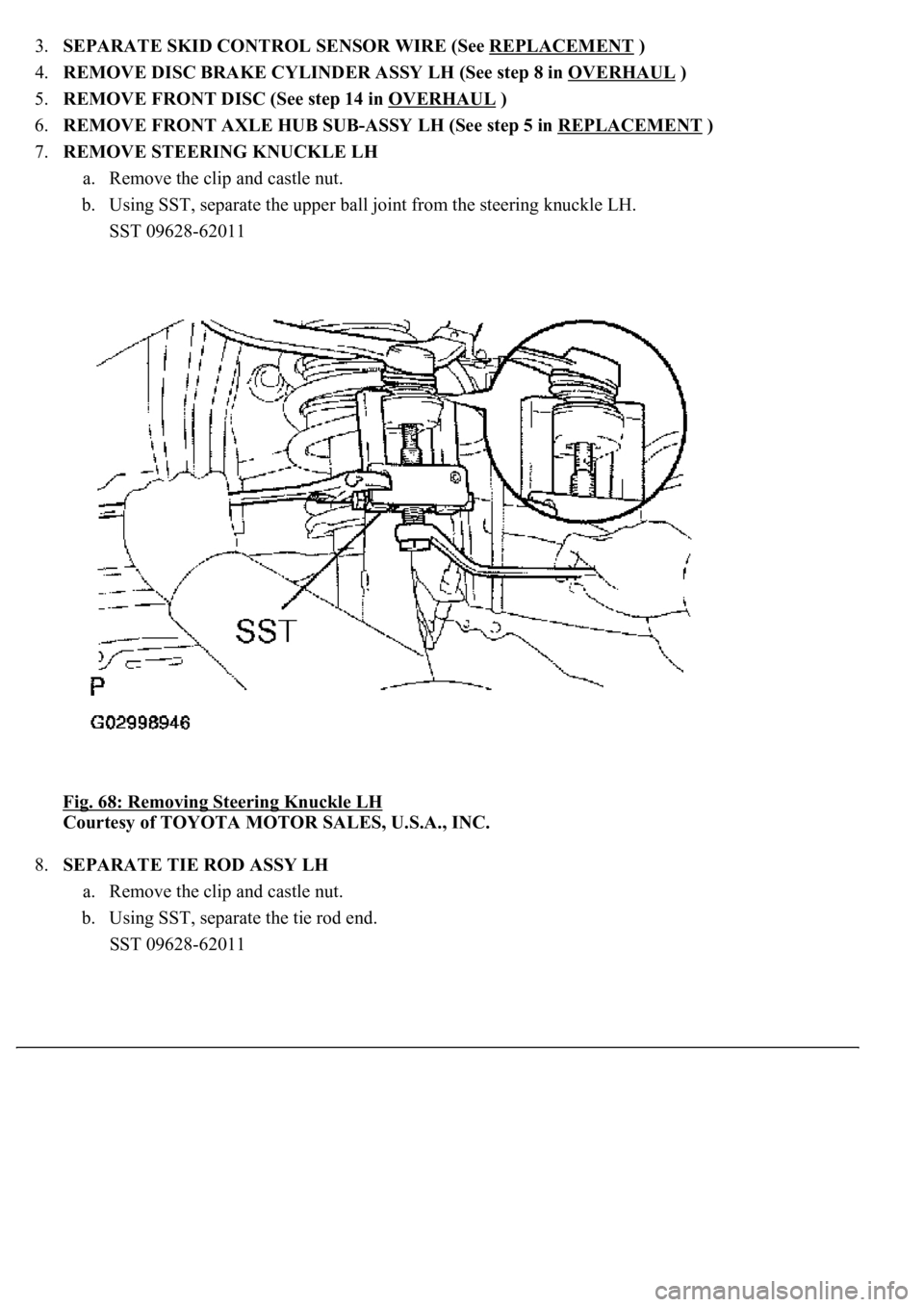

Fig. 68: Removing Steering Knuckle LH

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.SEPARATE TIE ROD ASSY LH
a. Remove the clip and castle nut.
b. Using SST, separate the tie rod end.
SST 09628-62011

b. Install a new cotter pin on the steering knuckle.
14.INSTALL FRONT AXLE HUB SUB-ASSY LH (See step 8 in REPLACEMENT
)
15.INSTALL FRONT DISC (See step 15 in OVERHAUL
)
16.INSTALL DISC BRAKE CYLINDER ASSY LH (See step 21 in OVERHAUL
)
17.INSTALL SKID CONTROL SENSOR WIRE (See step 11 in REPLACEMENT
)
18.INSTALL FRONT STABILIZER LINK ASSY LH (See REPLACEMENT
)
19.INSTALL FRONT WHEELS
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
20.CHECK ABS SPEED SENSOR SIGNAL (See TEST MODE PROCEDURE
)
REPLACEMENT

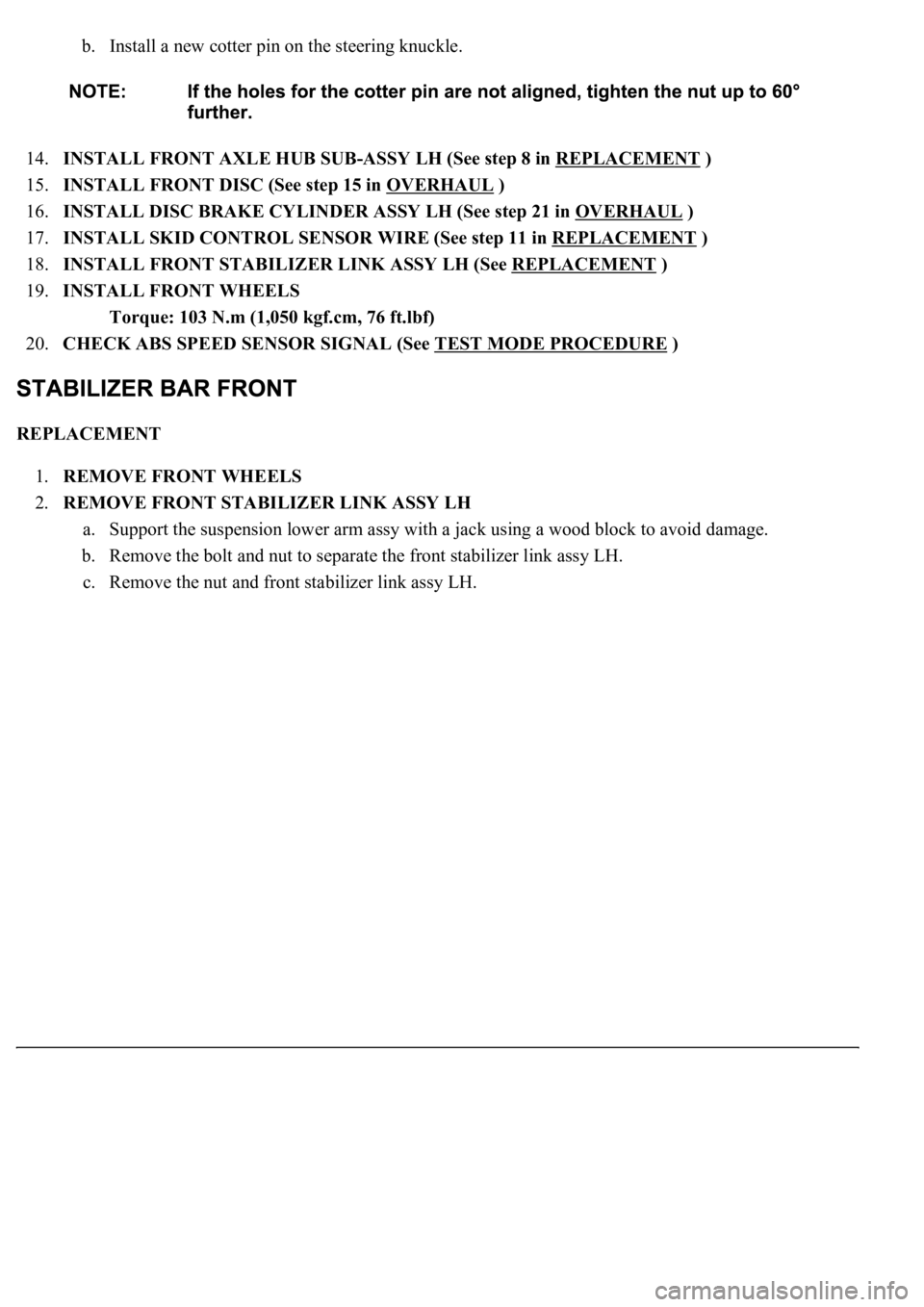

1.REMOVE FRONT WHEELS
2.REMOVE FRONT STABILIZER LINK ASSY LH
a. Support the suspension lower arm assy with a jack using a wood block to avoid damage.
b. Remove the bolt and nut to separate the front stabilizer link assy LH.
c. Remove the nut and front stabilizer link assy LH.
