2003 LEXUS LS430 sensor

Fig. 52: Rear Right Center Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT ULTRASONIC SENSOR NO.2
a. Remove ultrasonic sensor No.2.
b. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION SPECIFIED CONDITION

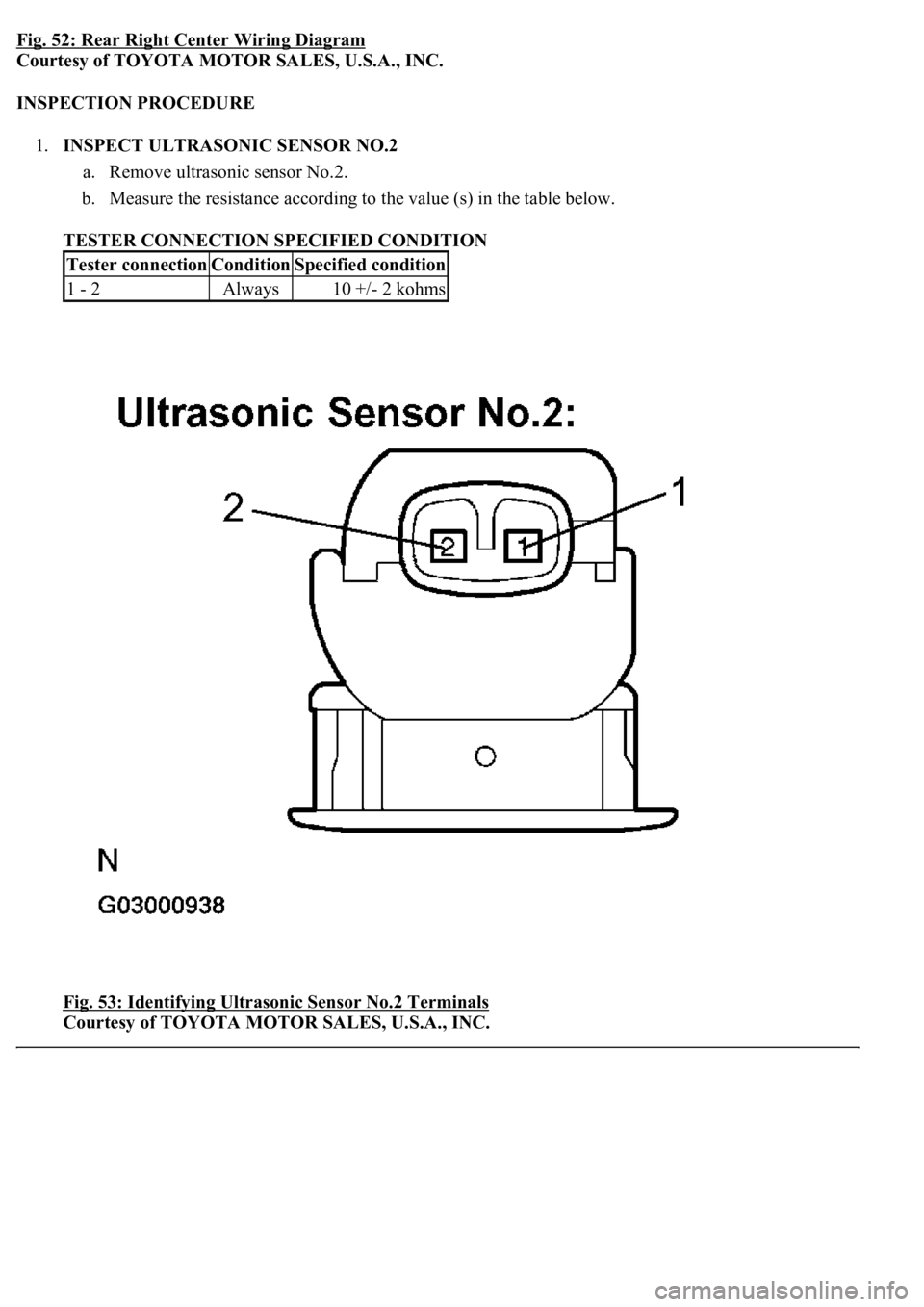

Fig. 53: Identifying Ultrasonic Sensor No.2 Terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Tester connectionConditionSpecified condition
1 - 2Always10 +/- 2 kohms

NG: REPLACE ULTRASONIC SENSOR NO.2 (SEE REPLACEMENT )
OK: Go To Next Step.
2.CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU ASSY -
ULTRASONIC SENSOR NO. 2)
a. Disconnect the C17 connector from the clearance warning ECU assy.
b. Disconnect the U10 connector from ultrasonic sensor No.2.
c. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION SPECIFIED CONDITION
Tester connection (Symbols)ConditionSpecified value
C17-23 (RBR) - U10-2AlwaysBelow 1 ohms
C17-20 (RGND) - U10-1AlwaysBelow 1 ohms
C17-23 (RBR) - Body groundAlways10 kohms or higher
C17-20 (RGND) - Body groundAlways10 kohms or higher

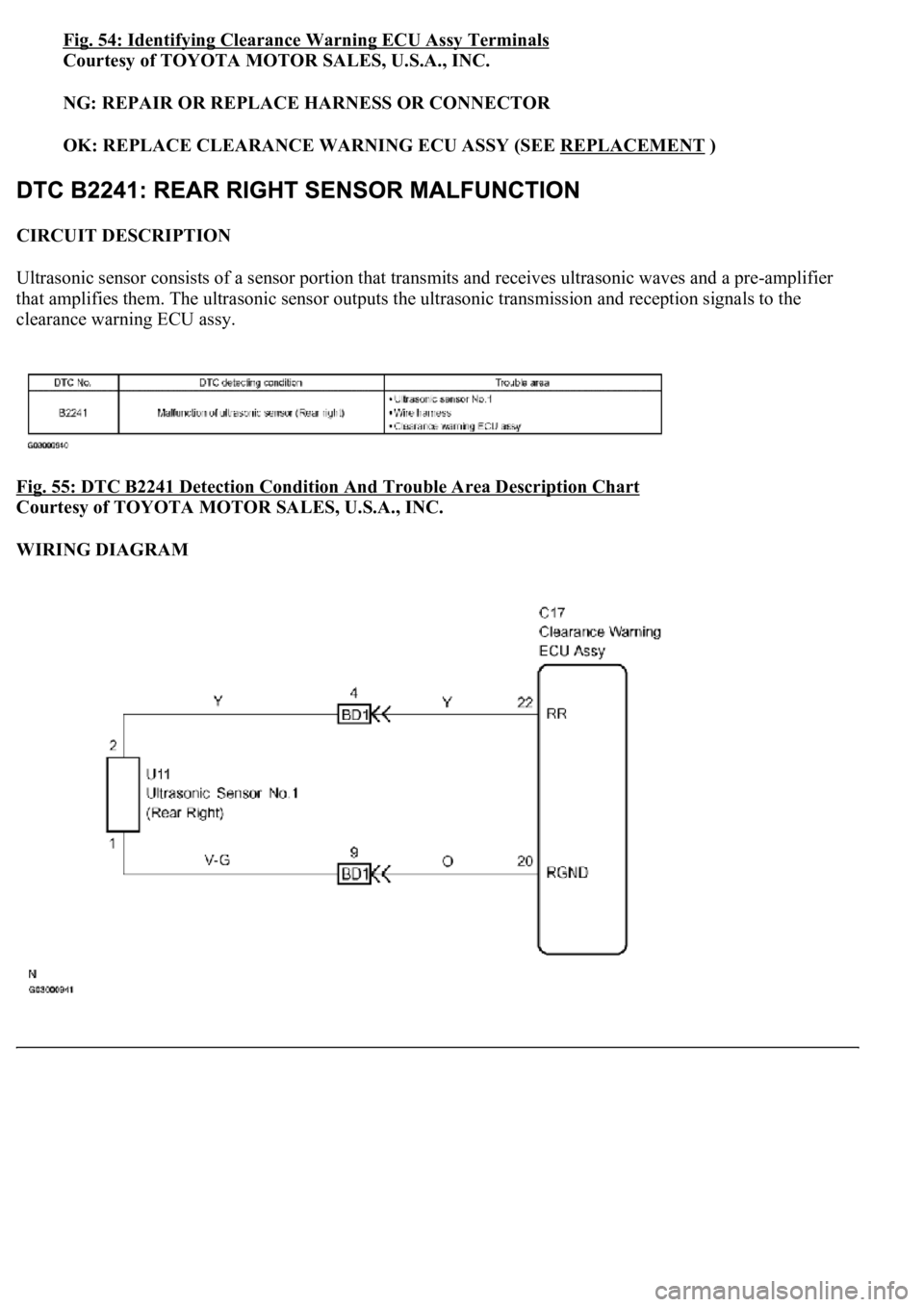

Fig. 54: Identifying Clearance Warning ECU Assy Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE CLEARANCE WARNING ECU ASSY (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
Ultrasonic sensor consists of a sensor portion that transmits and receives ultrasonic waves and a pre-amplifier
that amplifies them. The ultrasonic sensor outputs the ultrasonic transmission and reception signals to the
clearance warning ECU assy.
Fig. 55: DTC B2241 Detection Condition And Trouble Area Description Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM

Fig. 56: Rear Right Sensor Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT ULTRASONIC SENSOR NO.1
a. Remove ultrasonic sensor No.1.
b. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION SPECIFIED CONDITION

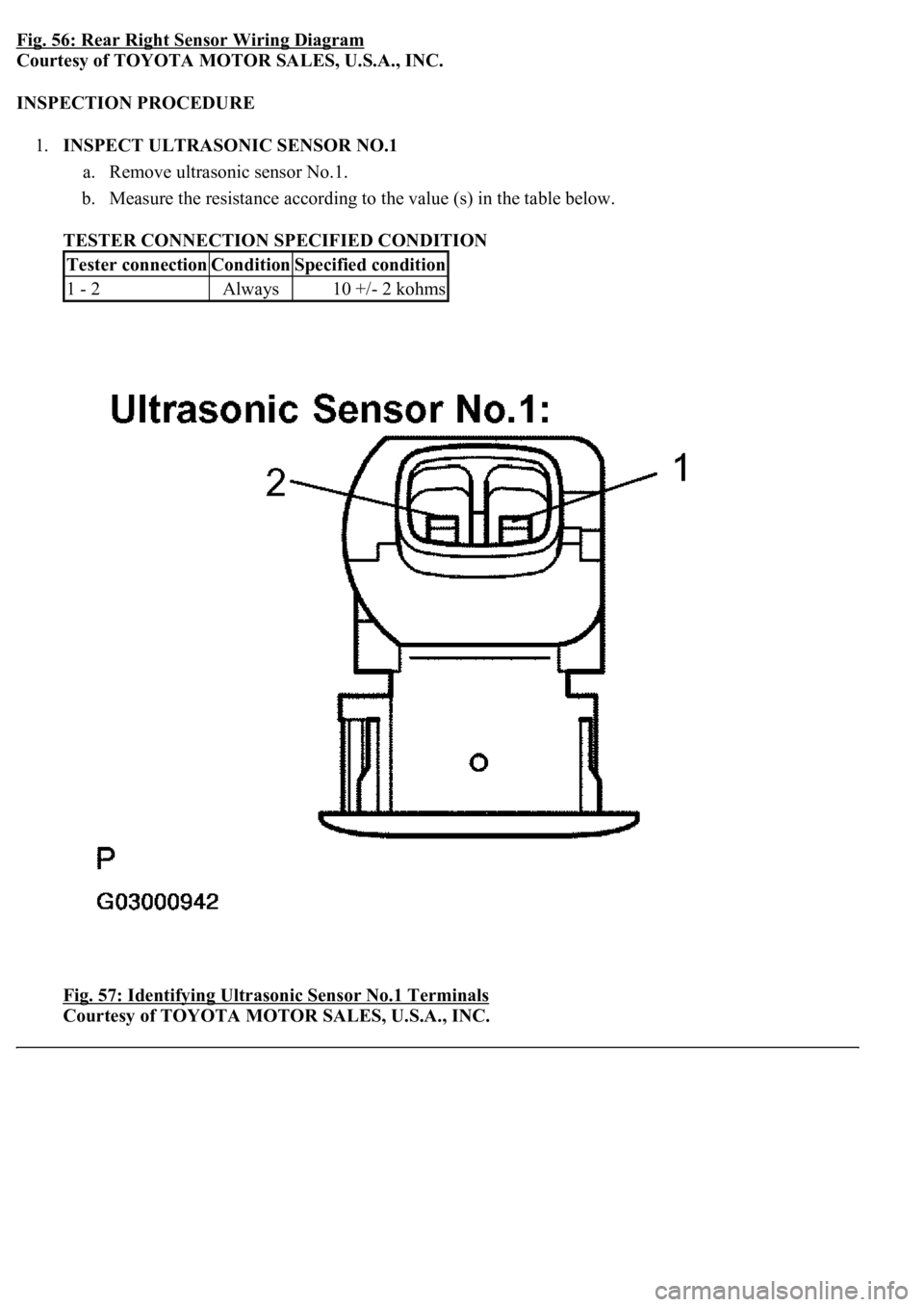

Fig. 57: Identifying Ultrasonic Sensor No.1 Terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Tester connectionConditionSpecified condition
1 - 2Always10 +/- 2 kohms

NG: REPLACE ULTRASONIC SENSOR NO.1 (SEE REPLACEMENT
OK: Go To Next Step.

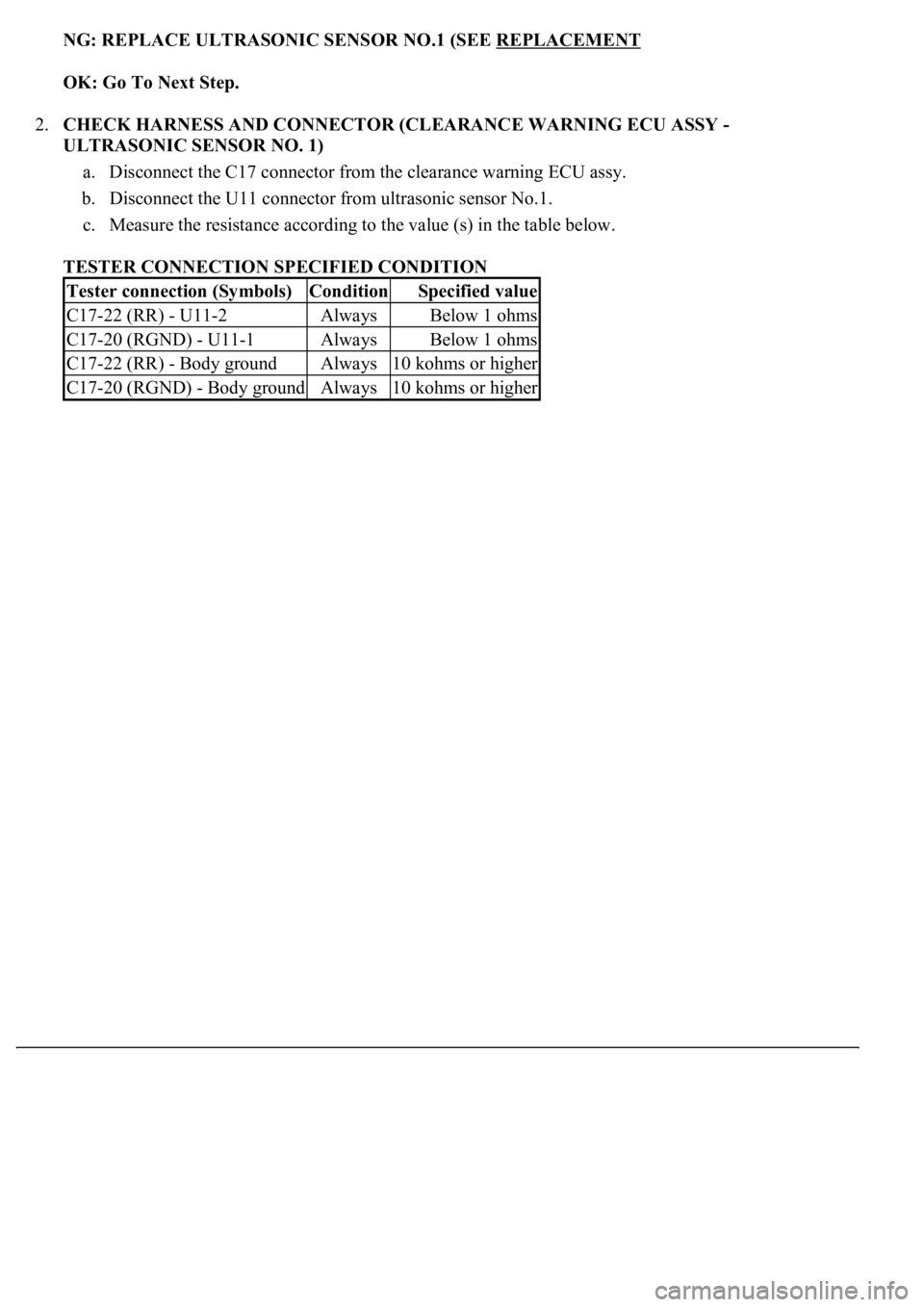

2.CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU ASSY -
ULTRASONIC SENSOR NO. 1)
a. Disconnect the C17 connector from the clearance warning ECU assy.
b. Disconnect the U11 connector from ultrasonic sensor No.1.
c. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION SPECIFIED CONDITION
Tester connection (Symbols)ConditionSpecified value
C17-22 (RR) - U11-2AlwaysBelow 1 ohms
C17-20 (RGND) - U11-1AlwaysBelow 1 ohms
C17-22 (RR) - Body groundAlways10 kohms or higher
C17-20 (RGND) - Body groundAlways10 kohms or higher

Fig. 67: Identifying Outer Mirror Switch Assy Connector Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPLACE OUTER MIRROR SWITCH ASSY
OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (CLEARANCE WARNING ECU
ASSY - BATTERY)
CIRCUIT DESCRIPTION
The clearance warning ECU assy receives the ultrasonic sensor signal to sound the clearance warning buzzer.
WIRING DIAGRAM

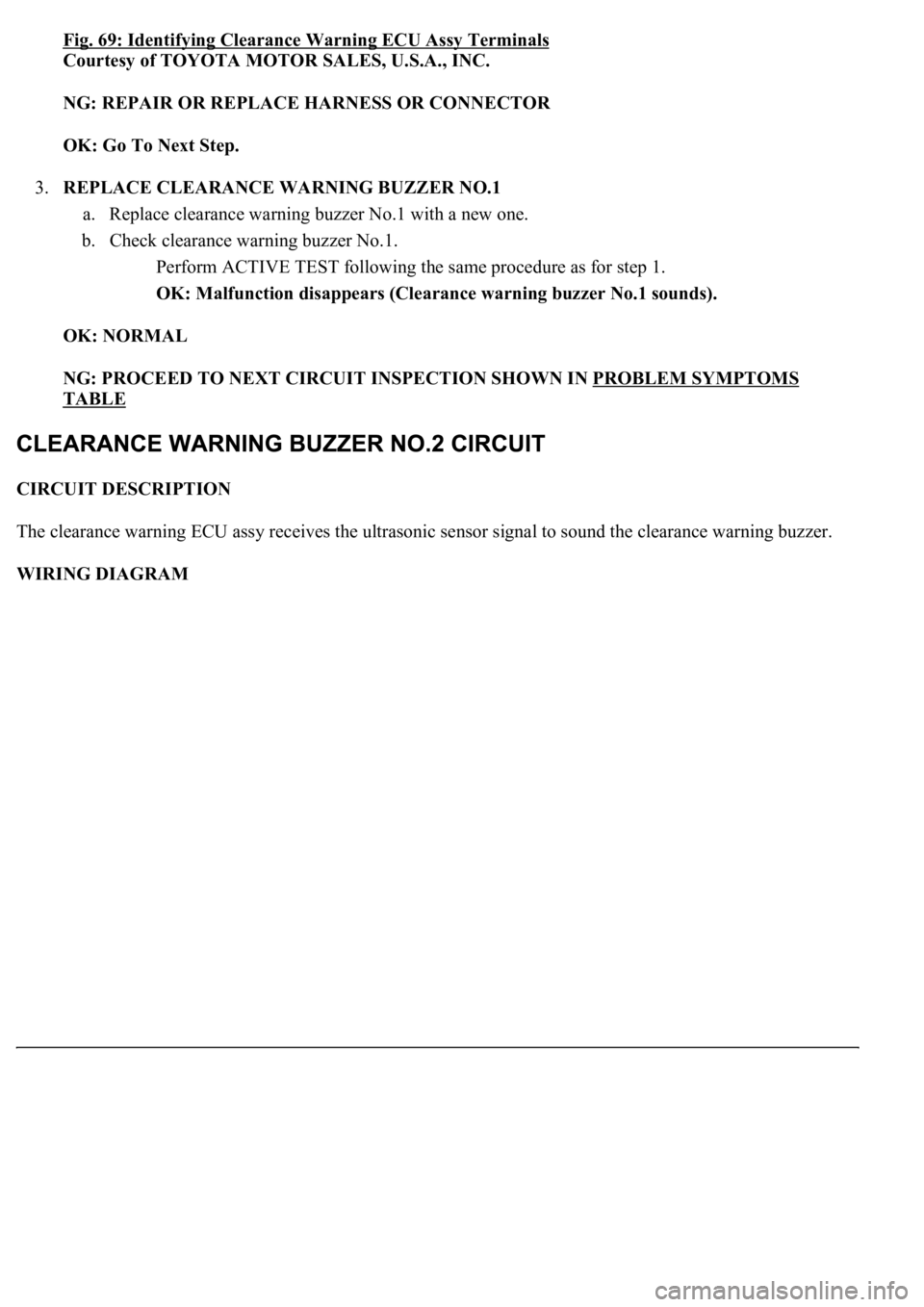

Fig. 69: Identifying Clearance Warning ECU Assy Terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go To Next Step.
3.REPLACE CLEARANCE WARNING BUZZER NO.1
a. Replace clearance warning buzzer No.1 with a new one.
b. Check clearance warning buzzer No.1.
Perform ACTIVE TEST following the same procedure as for step 1.
OK: Malfunction disappears (Clearance warning buzzer No.1 sounds).
OK: NORMAL
NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS
TABLE
CIRCUIT DESCRIPTION
The clearance warning ECU assy receives the ultrasonic sensor signal to sound the clearance warning buzzer.
WIRING DIAGRAM

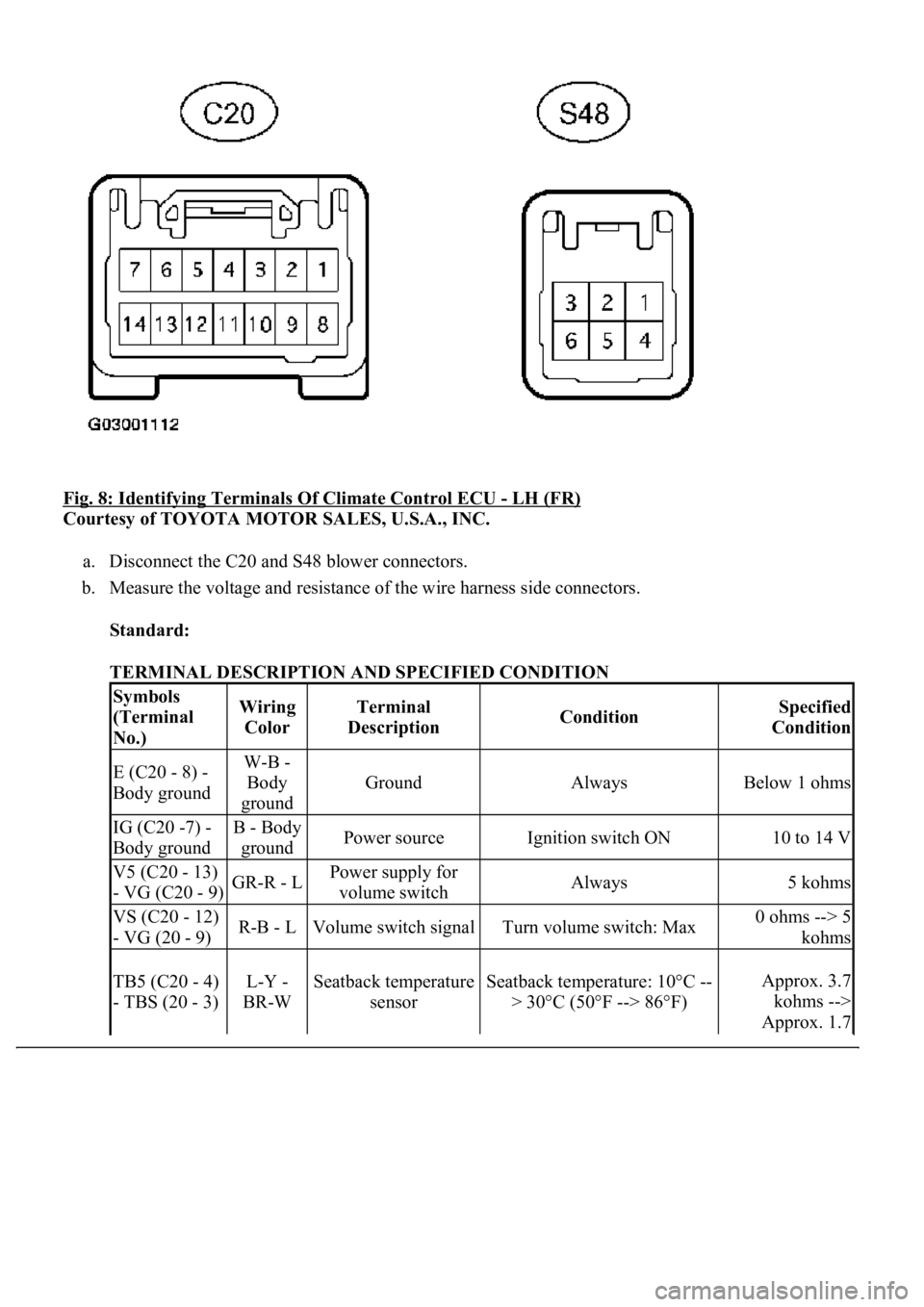

Fig. 8: Identifying Terminals Of Climate Control ECU - LH (FR)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the C20 and S48 blower connectors.
b. Measure the voltage and resistance of the wire harness side connectors.
Standard:
TERMINAL DESCRIPTION AND SPECIFIED CONDITION
Symbols
(Terminal
No.)Wiring
ColorTerminal
DescriptionConditionSpecified
Condition
E (C20 - 8) -
Body groundW-B -
Body
ground
GroundAlwaysBelow 1 ohms
IG (C20 -7) -
Body groundB - Body
groundPower sourceIgnition switch ON10 to 14 V
V5 (C20 - 13)
- VG (C20 - 9)GR-R - LPower supply for
volume switchAlways5 kohms
VS (C20 - 12)
- VG (20 - 9)R-B - LVolume switch signalTurn volume switch: Max0 ohms --> 5
kohms
TB5 (C20 - 4)
- TBS (20 - 3)L-Y -
BR-WSeatback temperature
sensorSeatback temperature: 10°C --
> 30°C (50°F --> 86°F)Approx. 3.7
kohms -->
Approx. 1.7
