2003 LEXUS LS430 Rear control Arm

Fig. 76: Installing Toe Control Link Sub-Assy LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
23.FULLY TIGHTEN UPPER CONTROL ARM ASSY REAR LH
a. Support the rear axle carrier.
b. Fully tighten the upper control arm assy LH with the nut.
Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)
24.INSTALL REAR DISC (See step 16 on OVERHAUL
)

Fig. 84: Installing Rear Stabilizer Link Assy LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
32.INSTALL HEIGHT CONTROL SENSOR LINK SUB-ASSY REAR
a. Align the matchmarks and connect the height control sensor link to the rear suspension arm assy
No.2 LH.
b. Install and torque the 6 bolts, washers and nuts.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

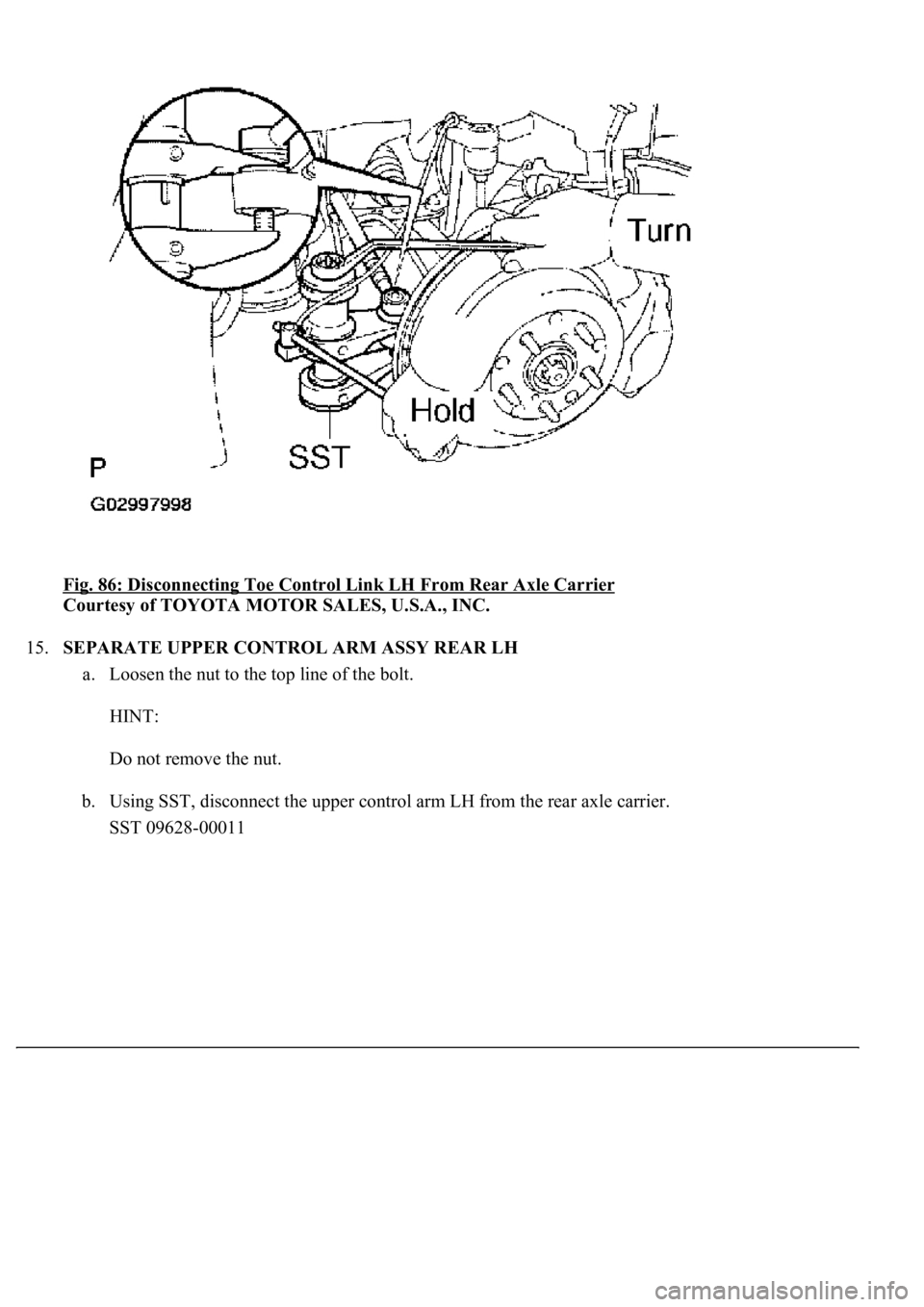

Fig. 86: Disconnecting Toe Control Link LH From Rear Axle Carrier
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
15.SEPARATE UPPER CONTROL ARM ASSY REAR LH
a. Loosen the nut to the top line of the bolt.
HINT:
Do not remove the nut.
b. Using SST, disconnect the upper control arm LH from the rear axle carrier.
SST 09628-00011

Fig. 87: Disconnecting Upper Control Arm LH From Rear Axle Carrier
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
16.SEPARATE SHOCK ABSORBER ASSY REAR LH
a. Remove the nut and disconnect the shock absorber ass
y rear LH from the axle carrier.

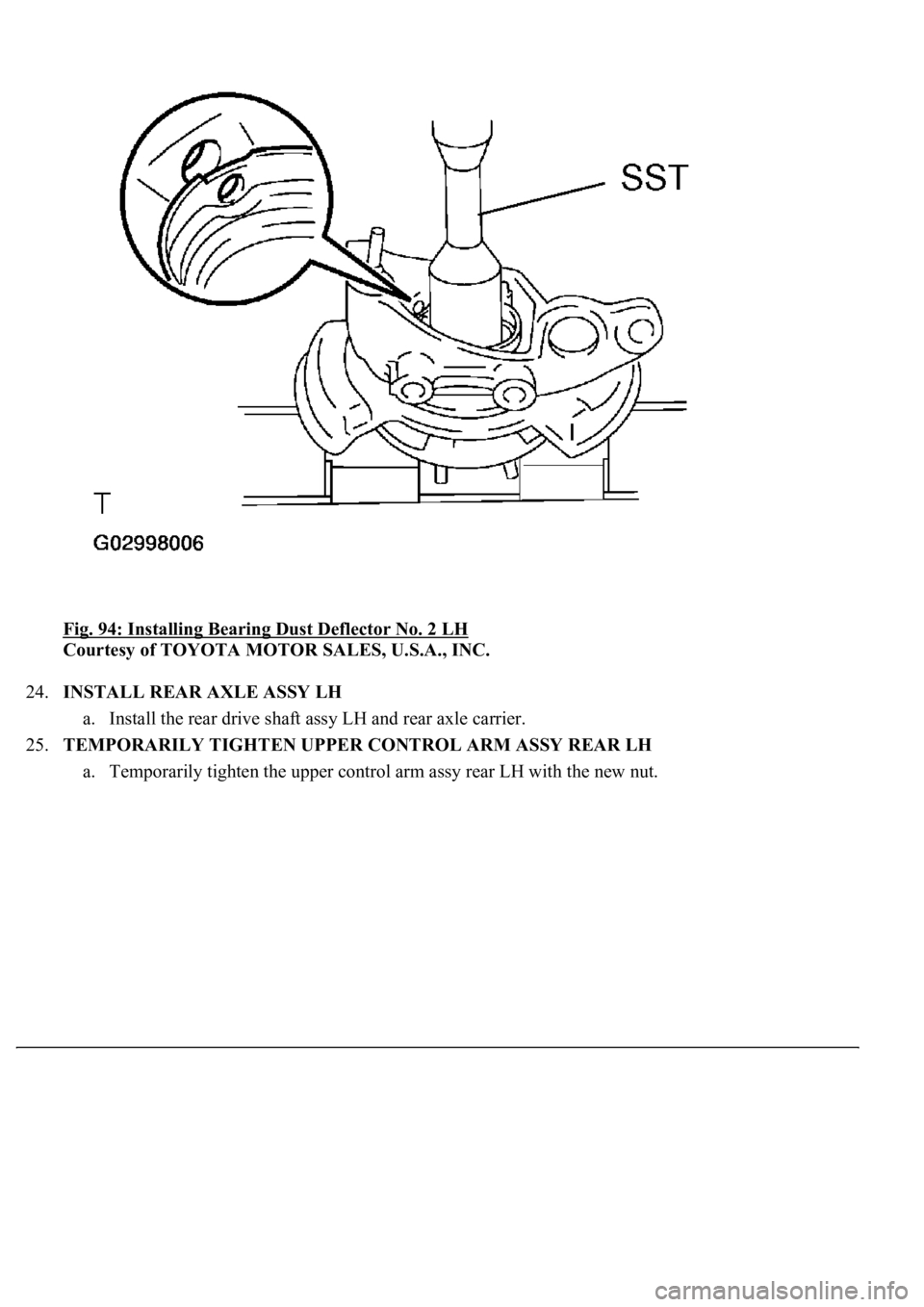

Fig. 94: Installing Bearing Dust Deflector No. 2 LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
24.INSTALL REAR AXLE ASSY LH
a. Install the rear drive shaft assy LH and rear axle carrier.
25.TEMPORARILY TIGHTEN UPPER CONTROL ARM ASSY REAR LH
a. Temporarily tighten the upper control arm assy rear LH with the new nut.

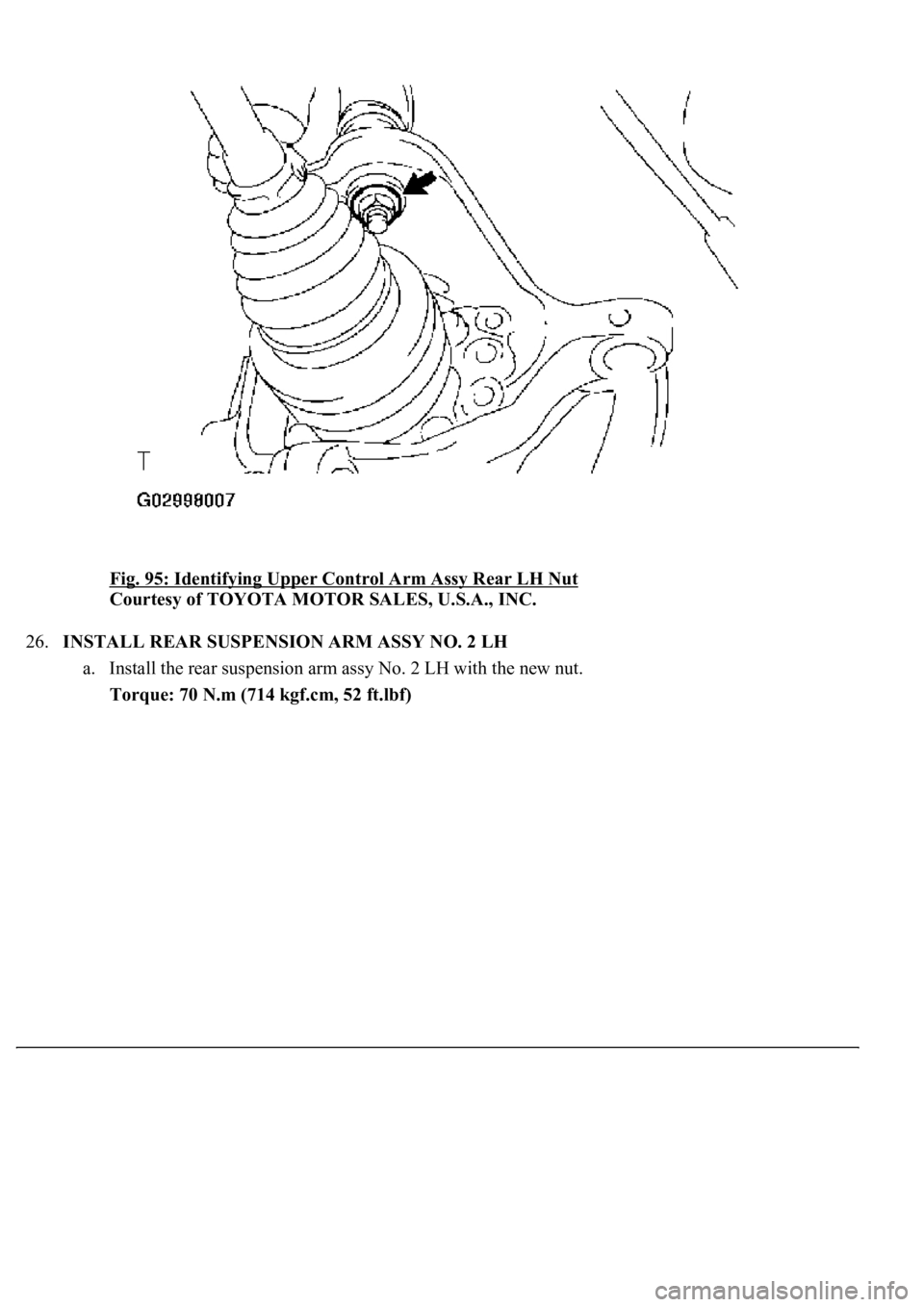

Fig. 95: Identifying Upper Control Arm Assy Rear LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.INSTALL REAR SUSPENSION ARM ASSY NO. 2 LH
a. Install the rear suspension arm assy No. 2 LH with the new nut.
Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)

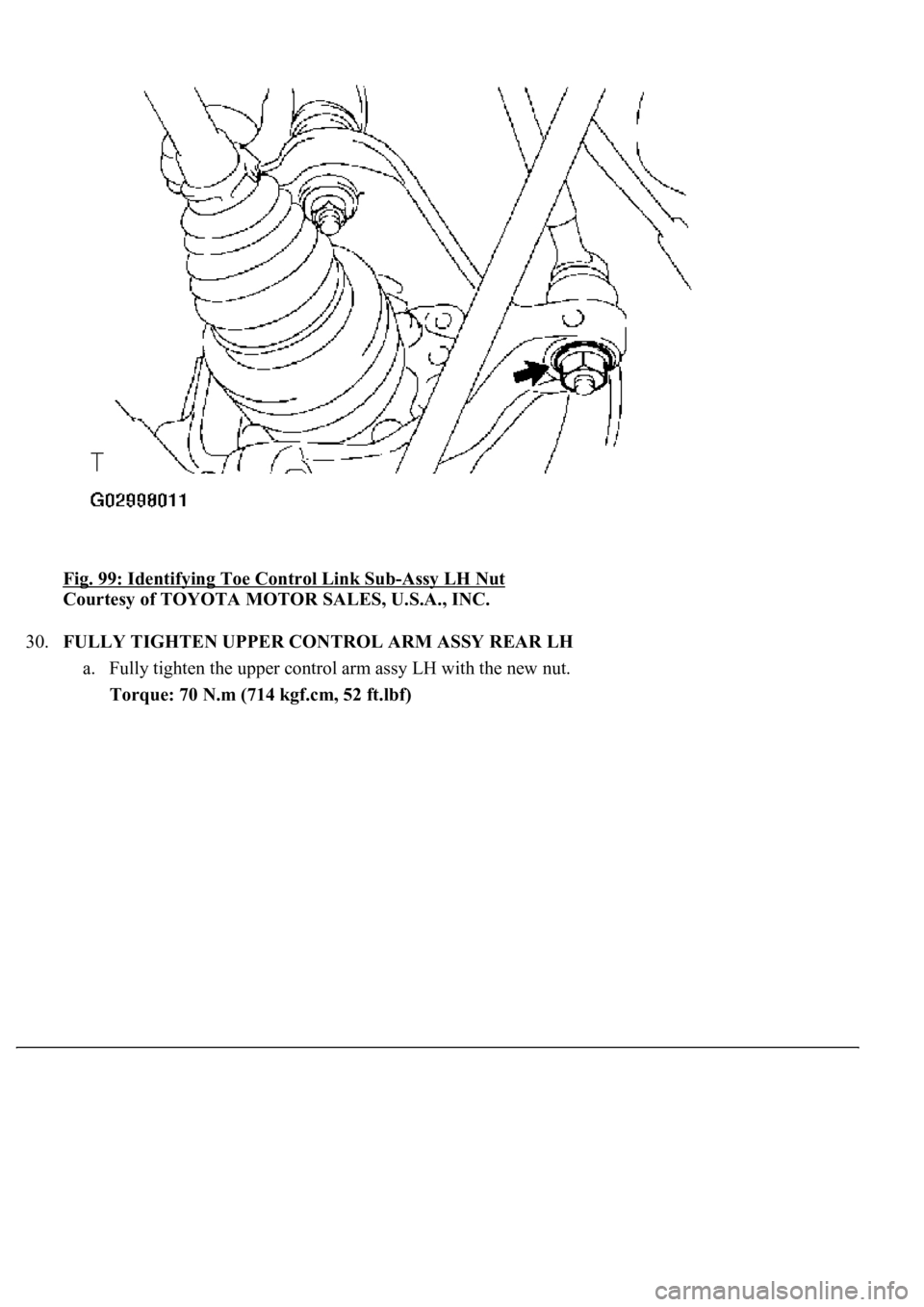

Fig. 99: Identifying Toe Control Link Sub-Assy LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
30.FULLY TIGHTEN UPPER CONTROL ARM ASSY REAR LH
a. Fully tighten the upper control arm assy LH with the new nut.
Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)

Fig. 100: Tightening Upper Control Arm Assy Rear LH Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
31.INSTALL HEIGHT CONTROL SENSOR LINK SUB-ASSY REAR (See REPLACEMENT
)
32.APPLY HIGH TEMPERATURE GREASE (See step 15 on OVERHAUL
)
33.INSTALL PARKING BRAKE ANCHOR BLOCK SUB-ASSY (See OVERHAUL
)
34.INSTALL PARKING BRAKE CABLE ASSY NO. 3 (See step 12 on REPLACEMENT
)
35.INSTALL PARKING BRAKE SHOE LEVER SUB-ASSY LH (See step 15 on OVERHAUL
)
36.INSTALL PARKING BRAKE SHOE ASSY LH NO. 2 (See step 17 on OVERHAUL
)
SST 09718-00010
37.INSTALL PARKING BRAKE SHOE ASSY LH NO. 1 (See step 16 on OVERHAUL
)
SST 09718-00010
38.INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET (See OVERHAUL
)
39.INSTALL PARKING BRAKE SHOE RETURN TENSION SPRING (See step 18 on
OVERHAUL
)
SST 09703-30010
40.CHECK PARKING BRAKE INSTALLATION (See step 19 on OVERHAUL
)
41.CHECK PARKING BRAKE PEDAL TRAVEL (See step 4 on ADJUSTMENT
)
