2003 LEXUS LS430 key

Dynamic Radar/Laser Cruise Control System
Electronically Controlled Transmission and A/T Indicator
Headlight Cleaner
Key Reminder (w/ Smart Key System)
LEXUS Navigation System
LEXUS Parking Assist (Clearance Sonar)
LEXUS Parking Assist (Rear View Monitor)
Power Seat (Rear Passenger's Seat)
Pre-Collision Safety System
Radiator Fan
Rear Window Defogger
Remote Control Mirror
Smart Key System
Theft Deterrent (w/ Smart Key System)
VSC and Tire Pressure Warning System
Wiper and Washer
Wireless Door Lock Control (w/ Smart Key System)
7.5AIGNCruise Control
Dynamic Radar/Laser Cruise Control System
Electronically Controlled Transmission and A/T Indicator
Engine Control
7.5ASTAElectronically Controlled Transmission and A/T Indicator
Engine Control
Starting and Ignition
7.5ATAILAutomatic Light Control
Door Closer (w/ Smart Key System)
Door Lock Control (w/ Smart Key System)
Key Reminder (w/ Smart Key System)
Light Auto Turn Off System
Multiplex Communication System (BEAN - Steering Column Bus)
Smart Key System
Taillight
Theft Deterrent (w/ Smart Key System)
Theft Deterrent (w/o Smart Key System)
Wireless Door Lock Control (w/ Smart Key System)
10AETCSCruise Control
Dynamic Radar/Laser Cruise Control System
Electronically Controlled Transmission and A/T Indicator
Engine Control
10AHORNDoor Closer (w/ Smart Key System)
Door Lock Control (w/ Smart Key System)
Horn
Key Reminder (w/ Smart Key System)
Multiplex Communication System (BEAN - Steering Column Bus)
Smart Key System
Theft Deterrent (w/ Smart Key System)
Theft Deterrent (w/o Smart Key System)

FUSIBLE LINK BLOCK
Wireless Door Lock Control (w/ Smart Key System)

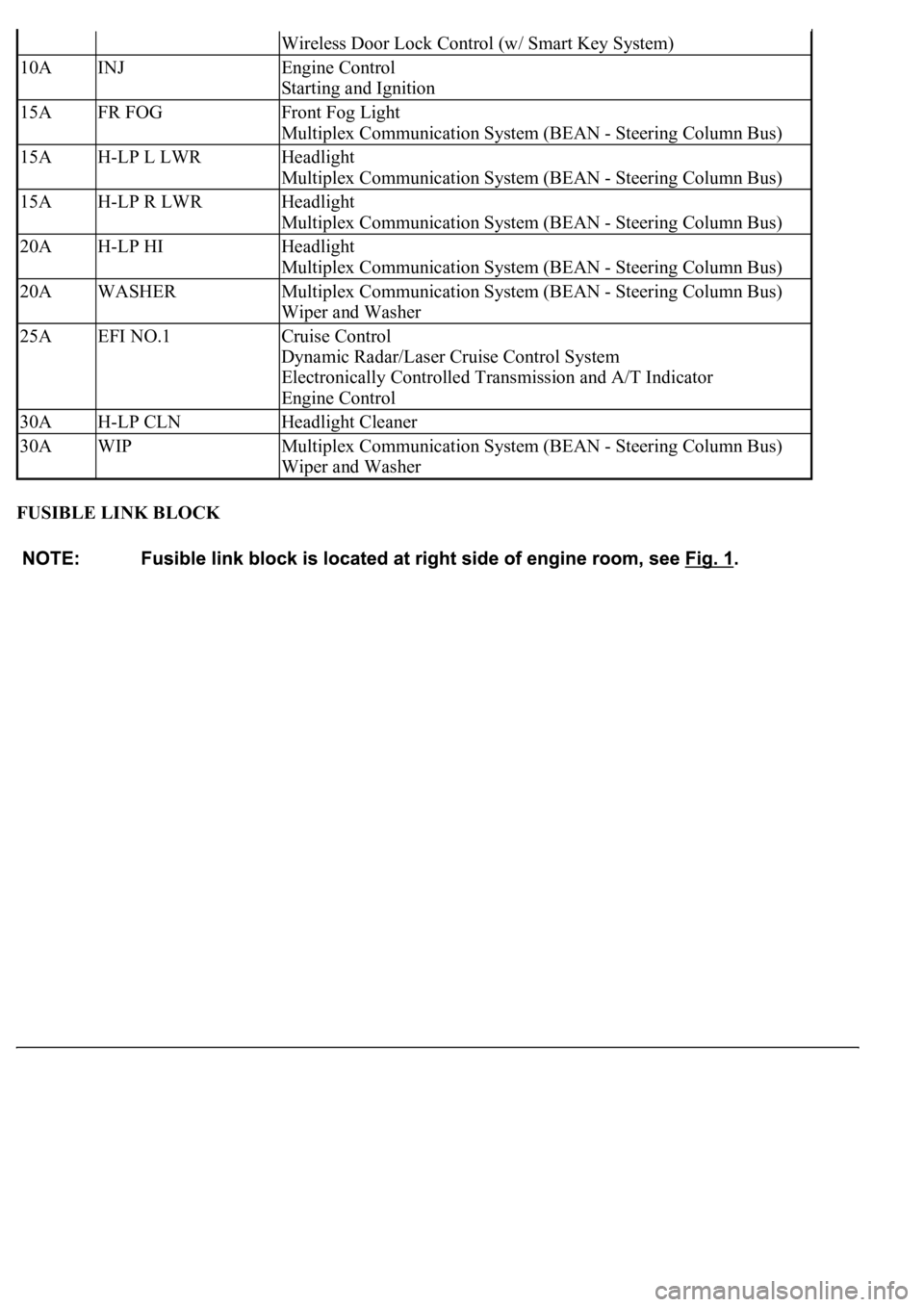

10AINJEngine Control
Starting and Ignition
15AFR FOGFront Fog Light
Multiplex Communication System (BEAN - Steering Column Bus)
15AH-LP L LWRHeadlight
Multiplex Communication System (BEAN - Steering Column Bus)
15AH-LP R LWRHeadlight
Multiplex Communication System (BEAN - Steering Column Bus)
20AH-LP HIHeadlight
Multiplex Communication System (BEAN - Steering Column Bus)
20AWASHERMultiplex Communication System (BEAN - Steering Column Bus)
Wiper and Washer
25AEFI NO.1Cruise Control
Dynamic Radar/Laser Cruise Control System
Electronically Controlled Transmission and A/T Indicator
Engine Control
30AH-LP CLNHeadlight Cleaner
30AWIPMultiplex Communication System (BEAN - Steering Column Bus)
Wiper and Washer

Fig. 3: Identifying Fusible Link Block Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fusible Link Block Fuses
FuseSystem
5AALT-SCharging
30AABS 1Dynamic Radar/Laser Cruise Control System
Tire Pressure Warning System
TRAC
VSC
30ABATTEngine Control
Engine Immobilizer System (w/o Smart Key System)
SRS
Starting and Ignition
30ASTElectronically Controlled Transmission and A/T Indicator
Engine Control
Starting and Ignition
40AAIRBUSElectronic Modulated Air Suspension
40ADEFOGRear Window Defogger
50AABS 2ABS
Dynamic Radar/Laser Cruise Control System
Tire Pressure Warning System
TRAC
VSC
50AFANRadiator Fan
50AHEATERAutomatic Air Conditioning (Front)
60ALUG J/BAudio System
Automatic Light Control
Back-Up Light
Climate Control Seat (Rear)
Clock (w/ LEXUS Navigation System)
Door Closer (w/ Smart Key System)
Door Lock Control (w/ Smart Key System)
Dynamic Radar/Laser Cruise Control System
Interior Light
Key Reminder (w/ Smart Key System)
LEXUS Navigation System
LEXUS Parking Assist (Clearance Sonar)
LEXUS Parking Assist (Clearance Sonar)
Light Auto Turn Off System
Multiplex Communication System (BEAN - Steering Column Bus)
Pre-Collision Safety System
Rear Air Conditioning
Smart Key System
Stop Light
Taillight

DRIVER SIDE JUNCTION BLOCK
Fig. 4: Locating Instrument Panel Junction & Relay Blocks

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Theft Deterrent (w/ Smart Key System)
Wireless Door Lock Control (w/ Smart Key System)
140AALTABS
Charging
Multiplex Communication System (BEAN - Steering Column Bus)
Tire Pressure Warning System
TRAC
VSC

5AD B/ANCMultiplex Communication System (BEAN - Steering Column Bus)
Power Shoulder Belt Anchorage
5ASTOPABS
Cruise Control
Dynamic Radar/Laser Cruise Control System
Electronic Modulated Air Suspension
Electronically Controlled Transmission and A/T Indicator
Engine Control
Multiplex Communication System (BEAN - Steering Column Bus)
Power Seat (Rear Passenger's Seat)
Shift Lock
Stop Light
Tire Pressure Warning System
TRAC
VSC
Wiper and Washer
7.5AABS-IGABS
Adaptive Front-Lighting System
Dynamic Radar/Laser Cruise Control System
Electronic Modulated Air Suspension
PPS
Pre-Collision Safety System
Tire Pressure Warning System
TRAC
VSC
7.5AA/CAutomatic Air Conditioning (Front)
Rear Air Conditioning
7.5AAM1Multiplex Communication System (BEAN - Instrument Panel Bus)
Multiplex Communication System (BEAN - Steering Column Bus)
7.5AD-ACCDoor Lock Control and Door Closer (w/ Smart Key System)
Door Lock Control and Door Closer (w/o Smart Key System)
Key Reminder (w/ Smart Key System)
Multiplex Communication System (BEAN - Door Bus)
Multiplex Communication System (BEAN Bus)
Power Window
Remote Control Mirror
Shift Lock
Smart Key System
Theft Deterrent (w/ Smart Key System)
Theft Deterrent (w/o Smart Key System)
Wireless Door Lock Control (w/ Smart Key System)
Wireless Door Lock Control (w/o Smart Key System)
7.5AGAUGEABS
Adaptive Front-Lighting System
Audio System
Automatic Air Conditioning (Front)
Charging

Clock (w/ LEXUS Navigation System)
Combination Meter
Cruise Control
Door Closer (w/ Smart Key System)
Door Lock Control (w/ Smart Key System)
Dynamic Radar/Laser Cruise Control System
Electric Tension Reducer
Electronic Modulated Air Suspension
Electrically Controlled Transmission and A/T Indicator
Engine Control
Front Fog Light
Headlight
Illumination
Interior Light
Key Reminder (w/ Smart Key System)
Key Reminder (w/o Smart Key System)
LEXUS Navigation System
LEXUS Parking Assist (Clearance Sonar)
LEXUS Parking Assist (Rear View Monitor)
Luggage Compartment Door Opener and Closer
Moon Roof
Multiplex Communication System (BEAN - Instrument Panel Bus)
Multiplex Communication System (BEAN - Steering Column Bus)
PPS
Pre-Collision Safety System
Rear Air Conditioning
Seat Belt Warning
Shift Lock
Smart Key System
SRS
Taillight
Theft Deterrent (w/ Smart Key System)
Tire Pressure Warning System
TRAC
VSC
Wiper and Washer
Wireless Door Lock Control (w/ Smart Key System)
7.5AMPX-IGAdaptive Front-Lighting System
Automatic Air Conditioning (Front)
Automatic Light Control
Door Lock Control and Door Closer (w/ Smart Key System)
Door Lock Control and Door Closer (w/o Smart Key System)
Front Fog Light
Headlight
Illumination
Key Reminder (w/ Smart Key System)
Light Auto Turn Off System
Mirror Heater

Multiplex Communication System (BEAN - Door Bus)
Multiplex Communication System (BEAN - Instrument Panel Bus)
Multiplex Communication System (BEAN - Steering Column Bus)
Multiplex Communication System (BEAN Bus)
Power Seat (Driver's Seat)
Power Shoulder Belt Anchorage
Power Tilt and Power Telescopic
Power Window
Rear Air Conditioning
Remote Control Mirror
Smart Key System
Taillight
Theft Deterrent (w/ Smart Key System)
Theft Deterrent (w/o Smart Key System)
Turn Signal and Hazard Warning Light
Wiper and Washer
Wireless Door Lock Control (w/ Smart Key System)
Wireless Door Lock Control (w/o Smart Key System)
7.5AOBDABS
Cruise Control
Dynamic Radar/Laser Cruise Control System
Electronic Modulated Air Suspension
Electronically Controlled Transmission and A/T Indicator
Engine Control
Pre-Collision Safety System
Tire Pressure Warning System
TRAC
VSC
7.5APANELClock (w/o LEXUS Navigation System)
Illumination
Multiplex Communication System (BEAN - Steering Column Bus)
7.5ASECURITYDoor Lock Control and Door Closer (w/ Smart Key System)
Door Lock Control and Door Closer (w/o Smart Key System)
Garage Door Opener
Horn
Interior Light
Key Reminder (w/ Smart Key System)
Multiplex Communication System (BEAN - Door Bus)
Multiplex Communication System (BEAN - Instrument Panel Bus)
Multiplex Communication System (BEAN - Steering Column Bus)
Power Window
Smart Key System
Theft Deterrent (w/ Smart Key System)
Theft Deterrent (w/o Smart Key System)
Wireless Door Lock Control (w/ Smart Key System)
Wireless Door Lock Control (w/o Smart Key System)
10AD RR-IGVibration Seat

FuseSystem
5AP B/ANCMultiplex Communication System (BEAN - Instrument Panel Bus)
Power Shoulder Belt Anchorage
7.5AAM2Electronically Controlled Transmission and A/T Indicator
Engine Control
Engine Immobilizer System (w/ Smart Key System) and Steering Lock
System
Engine Immobilizer System (w/o Smart Key System)
SRS
Starting and Ignition
Steering Lock System
7.5AH-LP LVLAdaptive Front-Lighting System
7.5AMPX-B1Door Lock Control and Door Closer (w/ Smart Key System)
Door Lock Control and Door Closer (w/o Smart Key System)
Engine Immobilizer System (w/ Smart Key System) and Steering Lock
System
Engine Immobilizer System (w/o Smart Key System)
Key Reminder (w/ Smart Key System)
Mirror Heater
Multiplex Communication System (BEAN - Door Bus)
Power Seat (Driver's Seat)
Power Seat (Rear Passenger's Seat)
Power Shoulder Belt Anchorage
Power Window
Remote Control Mirror
Smart Key System, Theft Deterrent, , Door Lock Control, Door Closer
and Wireless Door Lock Control (w/ Smart Key System)
Theft Deterrent (w/ Smart Key System)
Theft Deterrent (w/o Smart Key System)
Vibration Seat
Wireless Door Lock Control (w/ Smart Key System)
Wireless Door Lock Control (w/o Smart Key System)
7.5AMPX-B2ABS
Adaptive Front-Lighting System
Audio System
Automatic Air Conditioning (Front)
Charging
Clock (w/ LEXUS Navigation System)
Combination Meter
Cruise Control
Door Closer (w/ Smart Key System)
Door Lock Control (w/ Smart Key System)
Dynamic Radar/Laser Cruise Control System
Electronic Modulated Air Suspension
Electronically Controlled Transmission and A/T Indicator
Engine Control
Front Fog Light
