2003 LEXUS LS430 differential

Fig. 35: Installing Center Support Bearing Bolts And Adjusting Washers
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
Use the adjusting washers which were removed.
d. Align the matchmarks and connect the propeller shaft to the transmission/differential.
e. Install and torque the 6 bolts, washers and nuts.
Torque: 79 N.m (805 kgf.cm, 58 ft.lbf)

Fig. 36: Aligning Matchmarks
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
f. If using a new propeller shaft (w/phasemarks):
Install the propeller shaft phasemarks and differential/transmission phasemarks so that their
respective alignment phasemarks match.
If the propeller shaft phasemarks and differential/transmission phasemarks do not align, install the
propeller shaft and differential alignment phasemarks as close together as possible.
g.If using a new propeller shaft (w/o phase marks): Install the propeller shaft.

Fig. 37: Aligning Propeller Shaft And Differential/Transmission Phasemarks
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
29.FULLY TIGHTEN CENTER SUPPORT BEARING ASSY NO. 1
a. Torque the 2 center support bearing set bolts.
Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)
HINT:
Adjust the center support bearing to keep the intervals as shown in the illustration with the vehicle
in the unladen condition.

Fig. 39: Tightening Adjusting Nut Using SST
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
SST 09922-10010
Torque: 69 N.m (700 kgf.cm, 51 ft.lbf)
HINT:
Use a torque wrench with a fulcrum length of 34.5 cm (13.6 in.).
30.INSPECT AND ADJUST NO. 2 AND NO. 3 JOINT ANGLE
a. Stabilize the propeller shaft and differential.

1. Turn the propeller shaft several times by hand to stabilize the center support bearing and
flexible couplings.

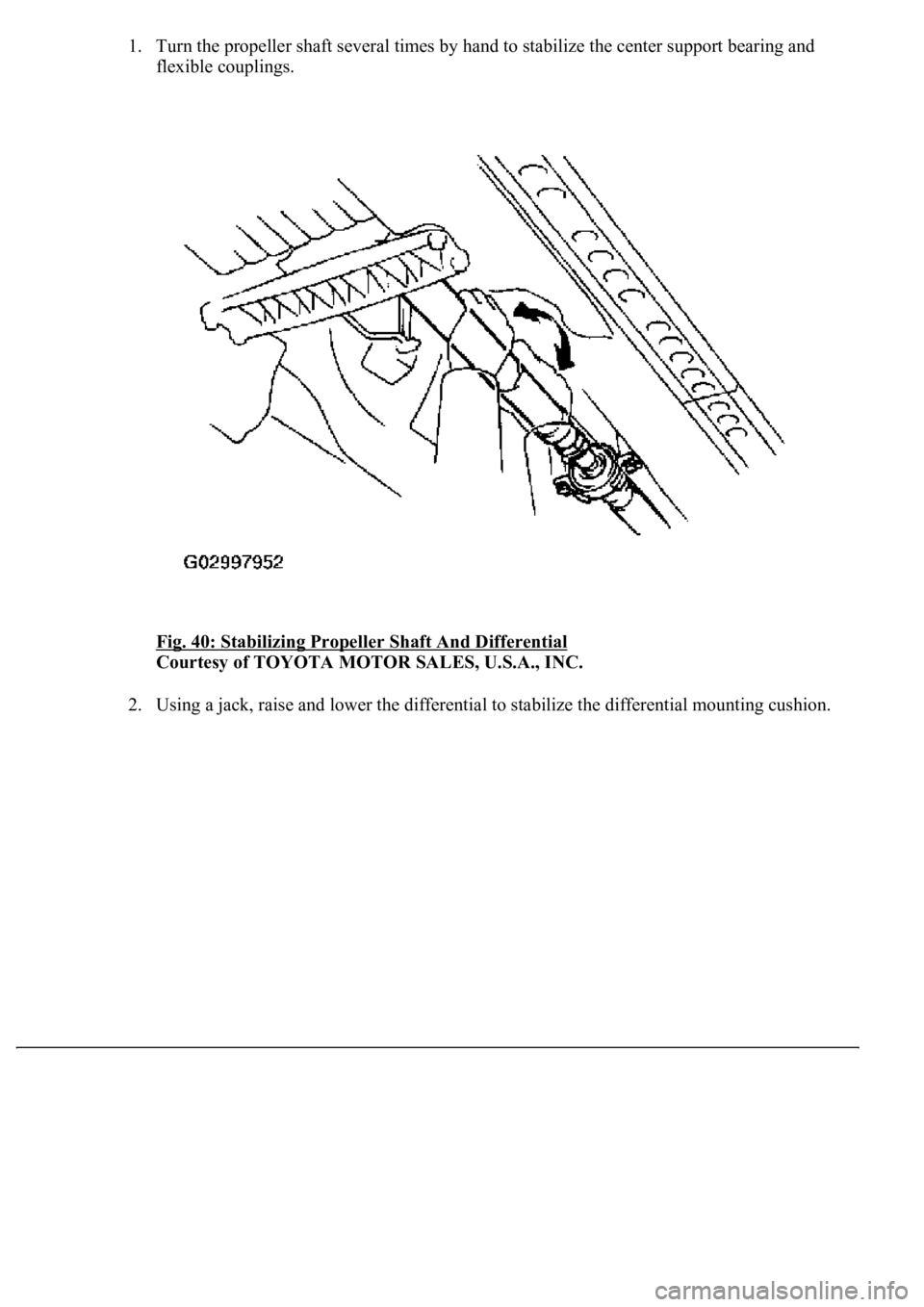

Fig. 40: Stabilizing Propeller Shaft And Differential

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Usin
g a jack, raise and lower the differential to stabilize the differential mounting cushion.

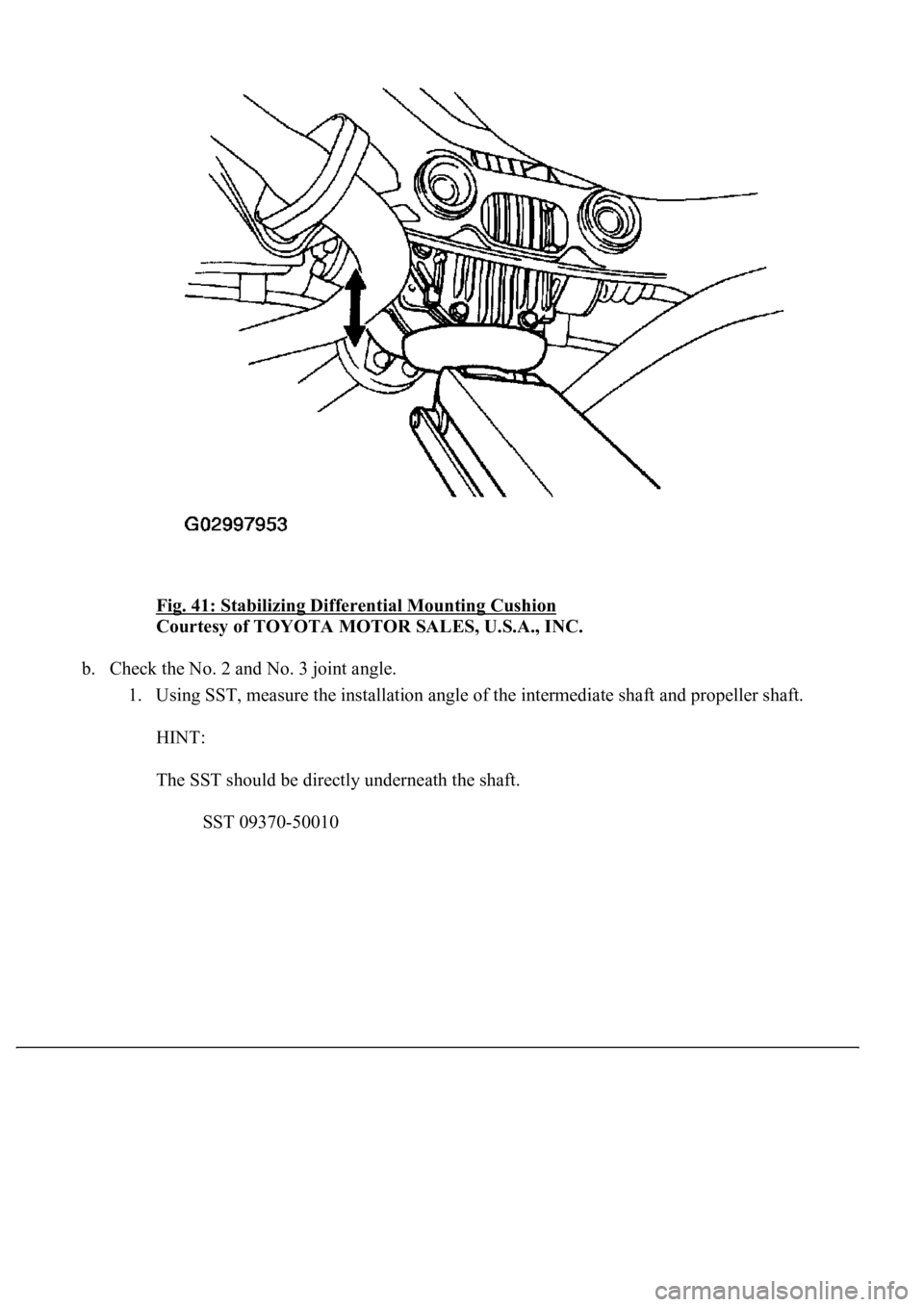

Fig. 41: Stabilizing Differential Mounting Cushion
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Check the No. 2 and No. 3 joint angle.
1. Using SST, measure the installation angle of the intermediate shaft and propeller shaft.
HINT:
The SST should be directly underneath the shaft.
SST 09370-50010

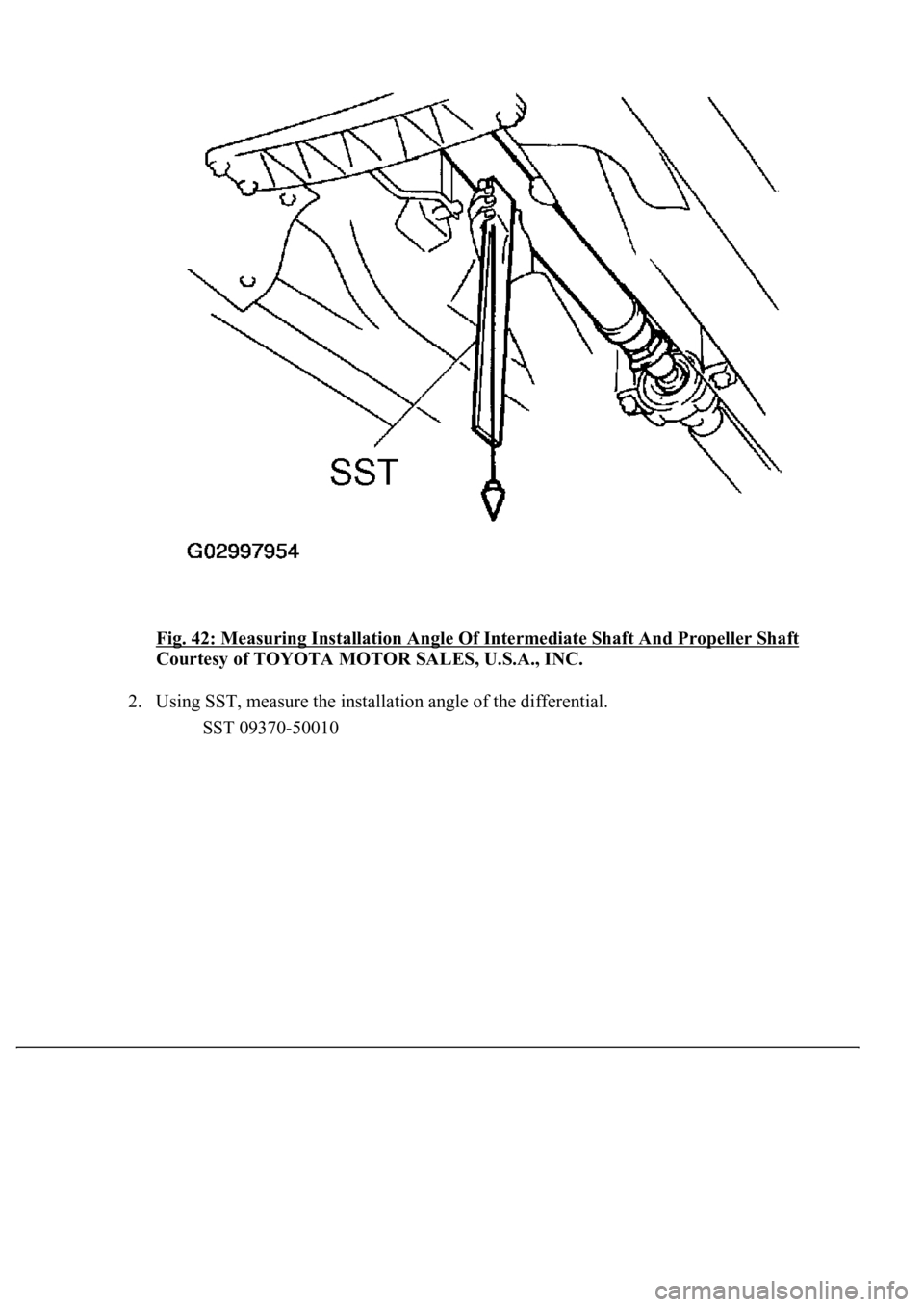

Fig. 42: Measuring Installation Angle Of Intermediate Shaft And Propeller Shaft
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2. Using SST, measure the installation angle of the differential.
SST 09370-50010

Fig. 43: Measuring Installation Angle Of Differential
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
Measure the installation angle by placing the SST in the position, as shown in the illustration.
3. Calculate the No.2 joint angle.
No.2 joint angle:
A-B = -0°39'± 30'
A: Intermediate shaft installation angle
B: Propeller shaft installation angle
4. Calculate the No.3 joint angle.
No.3 joint angle:
