2003 LEXUS LS430 differential

Fig. 109: Installing Differential Drive Pinion
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
o.INSTALL REAR DIFFERENTIAL DRIVE PINION OIL SLINGER
a. Install the rear differential drive pinion oil slinger to the differential drive pinion.
p.INSTALL REAR DIFFERENTIAL DUST DEFLECTOR
a. Perform this procedure only when replacing the dust cover.
b. Using SST and a press, insert a new dust deflector into the companion flange.
SST 09316-6001 1 (09316-00011)

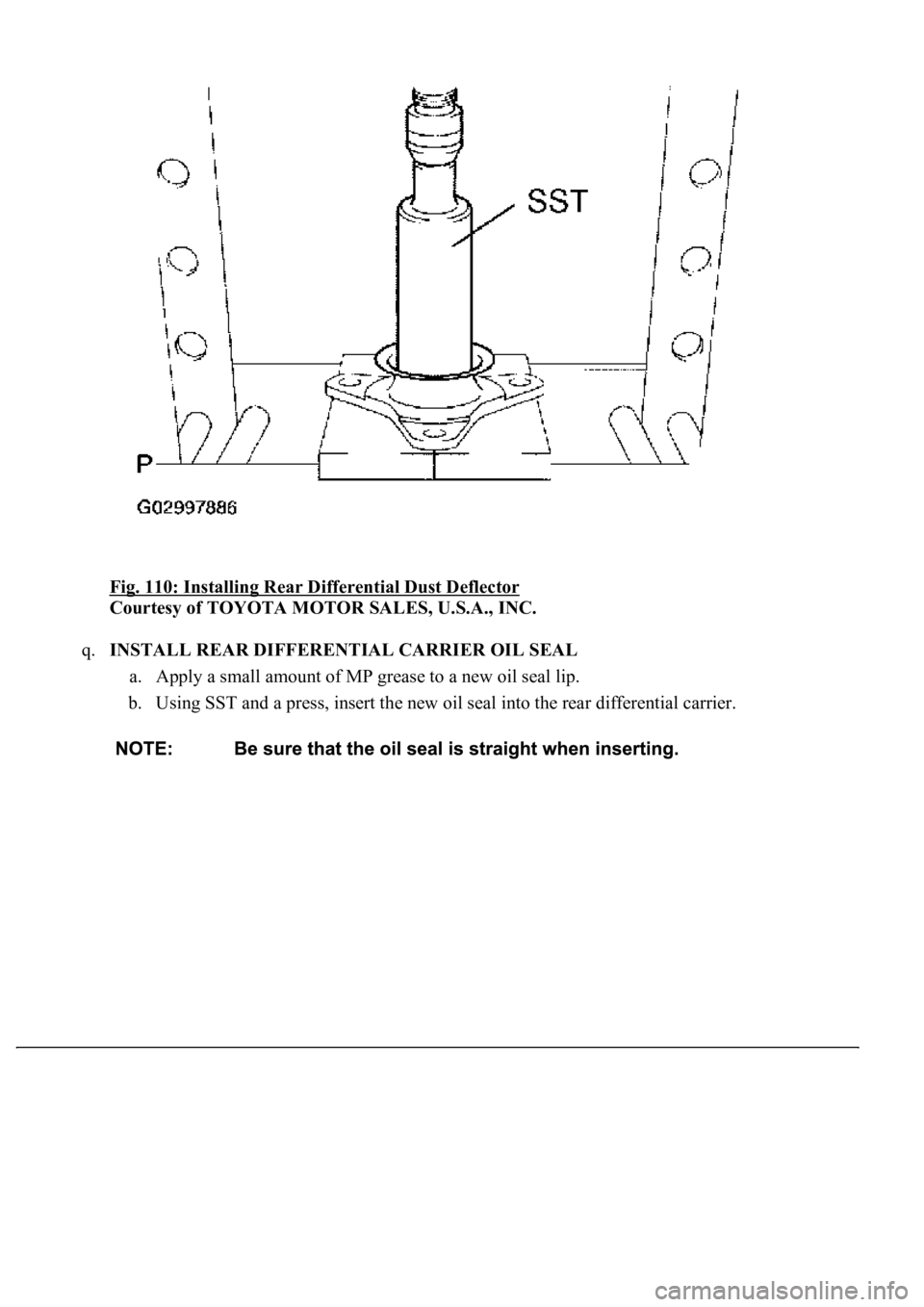

Fig. 110: Installing Rear Differential Dust Deflector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
q.INSTALL REAR DIFFERENTIAL CARRIER OIL SEAL
a. Apply a small amount of MP grease to a new oil seal lip.
b. Using SST and a press, insert the new oil seal into the rear differential carrier.

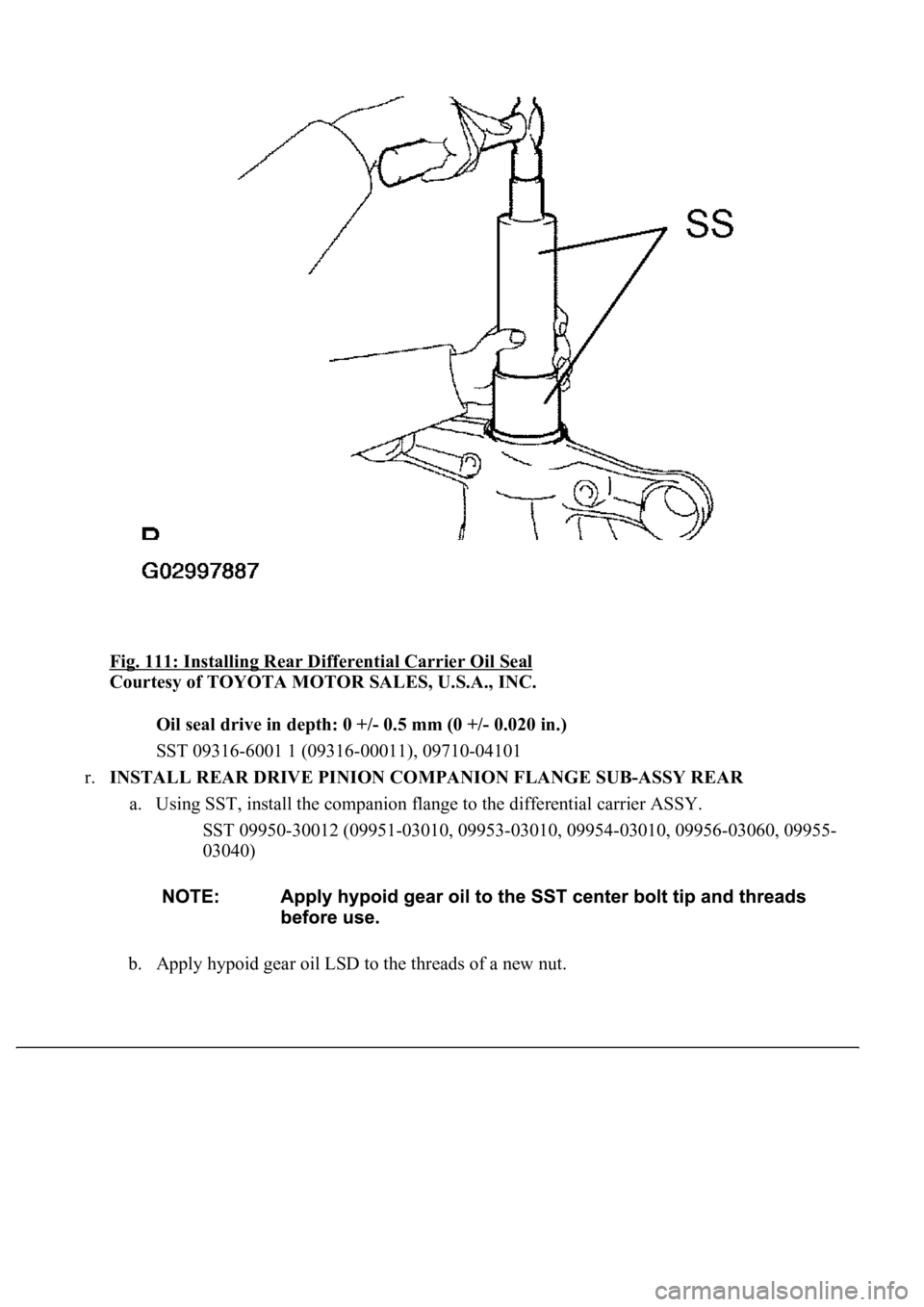

Fig. 111: Installing Rear Differential Carrier Oil Seal
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Oil seal drive in depth: 0 +/- 0.5 mm (0 +/- 0.020 in.)
SST 09316-6001 1 (09316-00011), 09710-04101
r.INSTALL REAR DRIVE PINION COMPANION FLANGE SUB-ASSY REAR
a. Using SST, install the companion flange to the differential carrier ASSY.
<00360036003700030013001c001c001800130010001600130013001400150003000b0013001c001c00180014001000130016001300140013000f00030013001c001c00180016001000130016001300140013000f00030013001c001c001800170010001300
16001300140013000f00030013001c001c0018001900100013[3060, 09955-
03040)
b. Apply hypoid gear oil LSD to the threads of a new nut.

Fig. 112: Installing Companion Flange To Differential Carrier Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Using SST, hold the flange and tighten the nut while observing the preload with SST and
torque wrench.
SST 09229-55010, 09330-00021
Torque: 98 N.m to 490 N.m
(1000 kgf.cm to 5,000 kgf.cm, 72 ft.lbf to 361 ft.lbf)
HINT:
Tighten the nut using approximately 98 N.m (1,000 kgf.cm) of force and then tighten it further
while observin
g the preload.

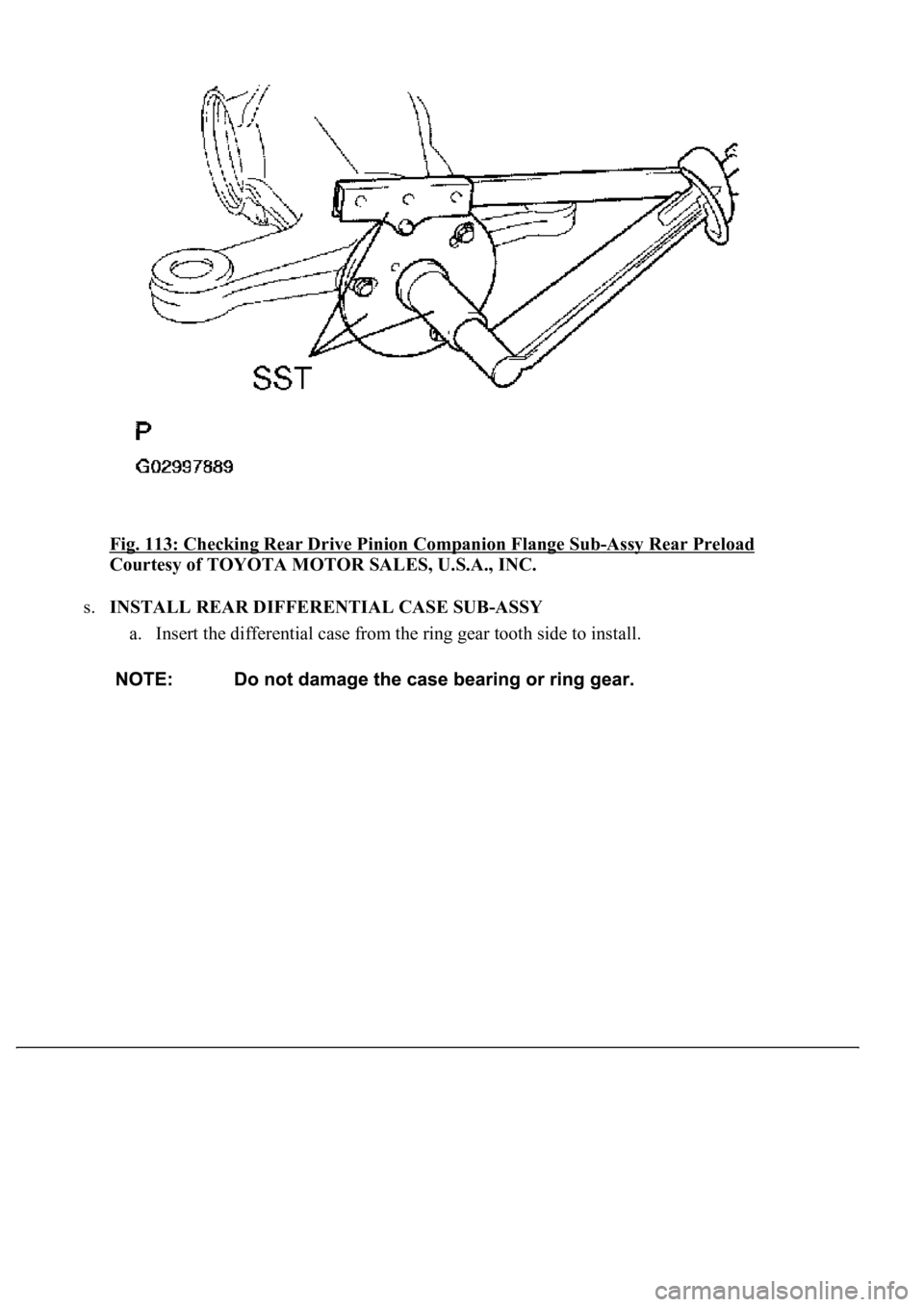

Fig. 113: Checking Rear Drive Pinion Companion Flange Sub-Assy Rear Preload
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
s.INSTALL REAR DIFFERENTIAL CASE SUB-ASSY
a. Insert the differential case from the ring gear tooth side to install.

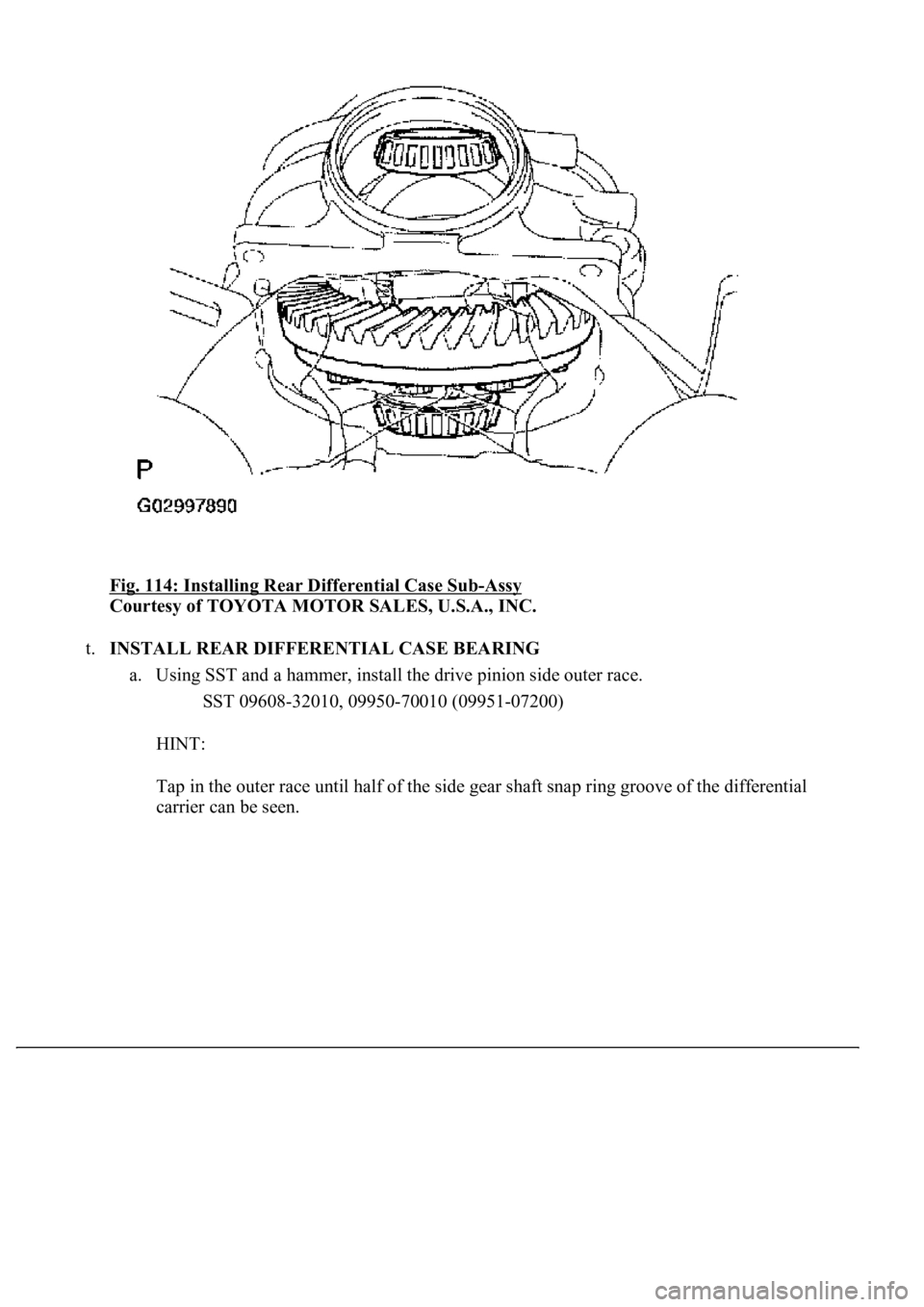

Fig. 114: Installing Rear Differential Case Sub-Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
t.INSTALL REAR DIFFERENTIAL CASE BEARING
a. Using SST and a hammer, install the drive pinion side outer race.
SST 09608-32010, 09950-70010 (09951-07200)
HINT:
Tap in the outer race until half of the side gear shaft snap ring groove of the differential
carrier can be seen.

Fig. 115: Installing Drive Pinion Side Outer Race
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Place the SST to the differential carrier.
SST 09571-50010
c. Ti
ghten the SST bolt until the SST disc lightly touches to the case bearing (outer race).

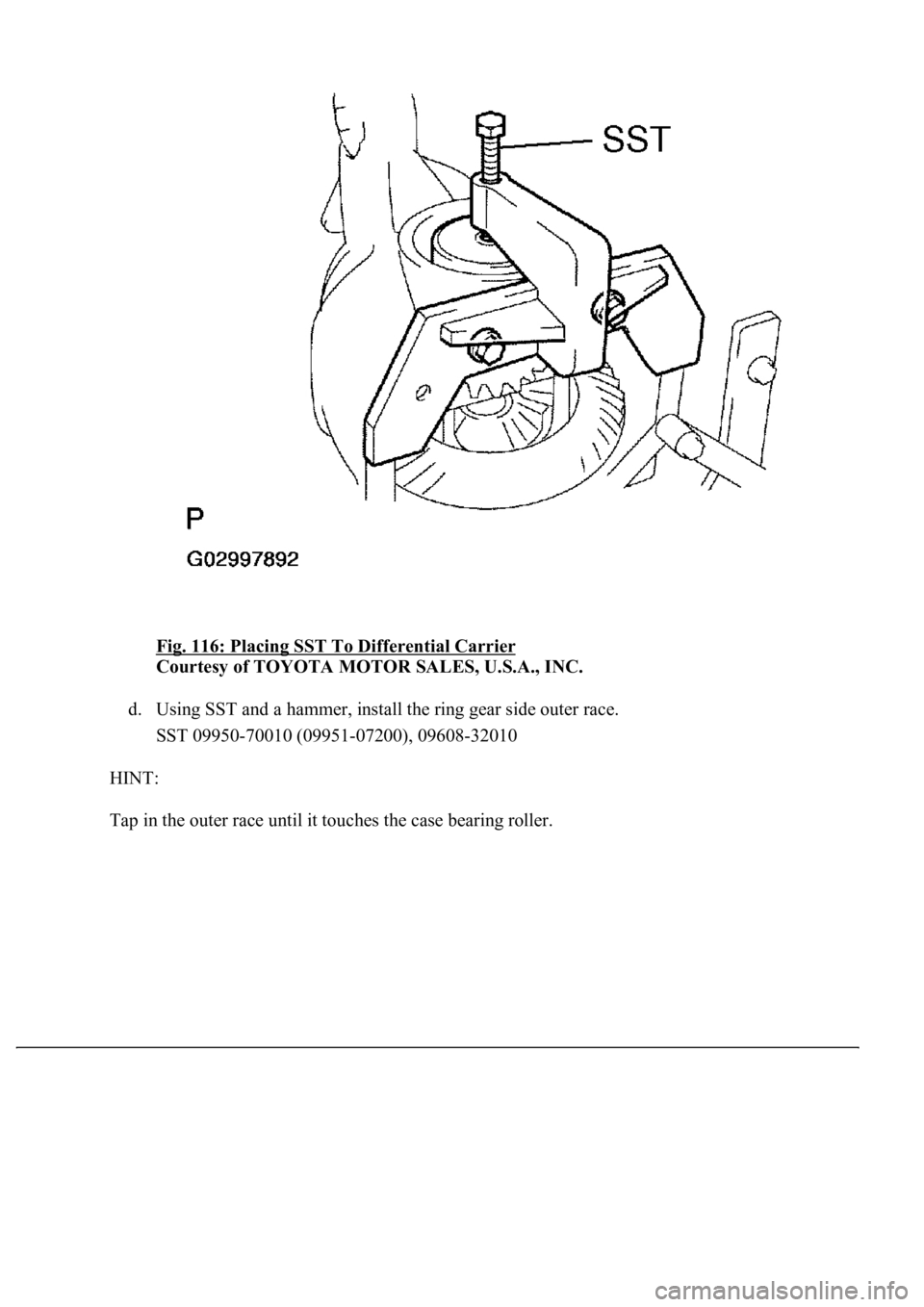

Fig. 116: Placing SST To Differential Carrier
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Using SST and a hammer, install the ring gear side outer race.
SST 09950-70010 (09951-07200), 09608-32010
HINT:
Tap in the outer race until it touches the case bearin
g roller.
