2003 LEXUS LS430 differential

Fig. 126: Calking Rear Drive Pinion Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
58.REMOVE DIFFERENTIAL CARRIER ASSY REAR
a. Remove the differential carrier assy from the overhaul attachment.

Fig. 127: Removing Differential Carrier Assy Rear
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
59.INSTALL REAR DIFFERENTIAL CARRIER COVER
a. Clean the seal packing attached on the differential carrier and carrier cover using a scraper and wire
brush. Then remove the oil with white gasoline or equivalent.
b. Install the rear differential breather plug oil deflector to the rear differential carrier cover.
D: Torque: 7.0 N.m (70 kgf.cm, 62 ft.lbf)

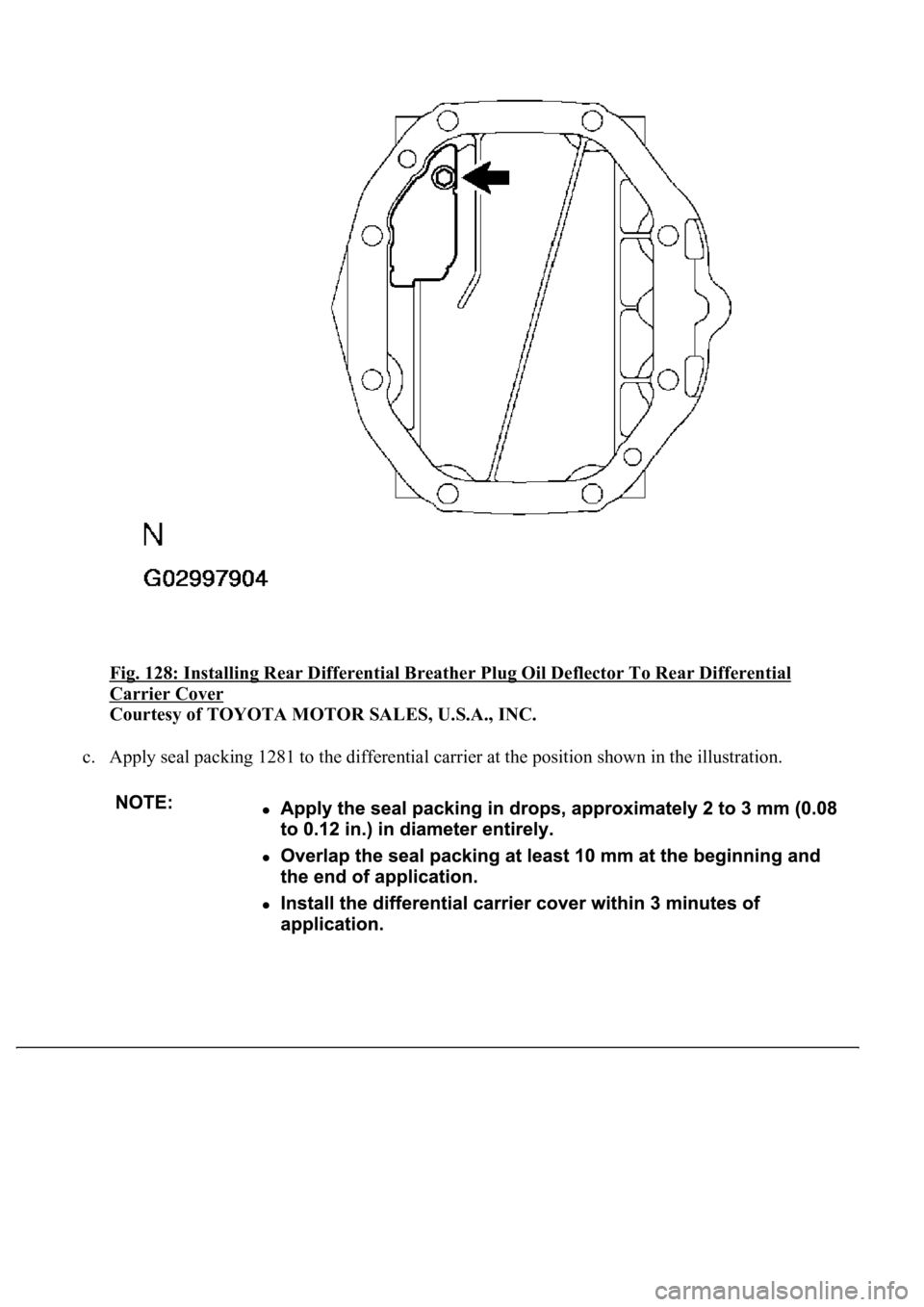

Fig. 128: Installing Rear Differential Breather Plug Oil Deflector To Rear Differential
Carrier Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Apply seal packing 1281 to the differential carrier at the position shown in the illustration.

Fig. 129: Applying Seal Packing To Differential Carrier
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Install the differential carrier cover with the 8 bolts.
Torque: 47 N.m (475 kgf.cm, 35 ft.lbf)
e. Install the rear differential breather plug.
Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

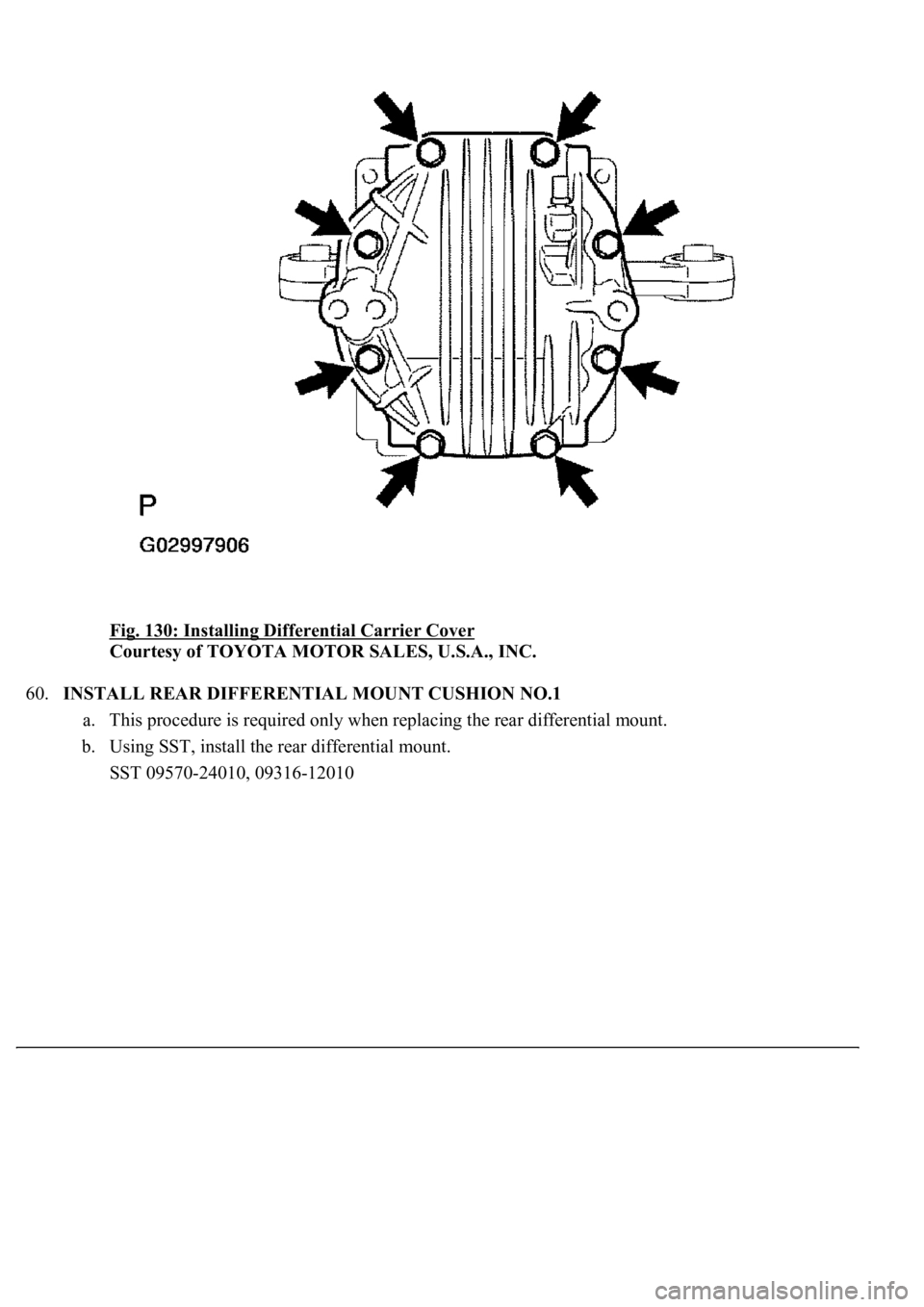

Fig. 130: Installing Differential Carrier Cover
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
60.INSTALL REAR DIFFERENTIAL MOUNT CUSHION NO.1
a. This procedure is required only when replacing the rear differential mount.
b. Using SST, install the rear differential mount.
SST 09570-24010, 09316-12010

Fig. 131: Installing Rear Differential Mount
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 132: Identifying Rear Differential Mount Direction Mark
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
61.INSTALL REAR DIFFERENTIAL MOUNT CUSHION NO.2
a. This procedure is required only when replacing the rear differential mount.
b. Using SST, install the rear differential mount.
SST 09570-24010, 09316-12010

Fig. 133: Installing Rear Differential Mount
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
62.INSTALL DIFFERENTIAL CARRIER ASSY REAR
a. Install the 2 upper mount stoppers on the rear differential carrier assembly.
HINT:
Use the upper mount stopper which was removed.
