Page 252 of 4500

AIR CONDITIONER TEST RESULT
B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
C: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT )
A
2.INSPECT COOLER (ROOM TEMPERATURE SENSOR) THERMISTOR
a. Remove the cooler (room temperature sensor) thermistor.
b. Measure the resistance according to the value (s) in the table below.
Standard:
COOLER (ROOM TEMPERATURE SENSOR) THERMISTOR RESISTANCE
NGA
OK (Checking from the PROBLEM SYMPTOM TABLE)B
OK (Checking from the DTC)C
Tester connectionConditionSpecified condition
A14-1 - A14-210°C (50°F)3.00 to 3.73 kohms
A14-1 - A14-215°C (59°F)2.45 to 2.88 kohms
A14-1 - A14-220°C (68°F)1.95 to 2.30 kohms
A14-1 - A14-225°C (77°F)1.60 to 1.80 kohms
A14-1 - A14-230°C (86°F)1.28 to 1.47 kohms
A14-1 - A14-235°C (95°F)1.00 to 1.22 kohms
A14-1 - A14-240°C (104°F)0.80 to 1.00 kohms
A14-1 - A14-245°C (113°F)0.65 to 0.85 kohms
A14-1 - A14-250°C (122°F)0.50 to 0.70 kohms
A14-1 - A14-255°C (131°F)0.44 to 0.60 kohms
A14-1 - A14-260°C (140°F)0.36 to 0.50 kohms
Page 253 of 4500

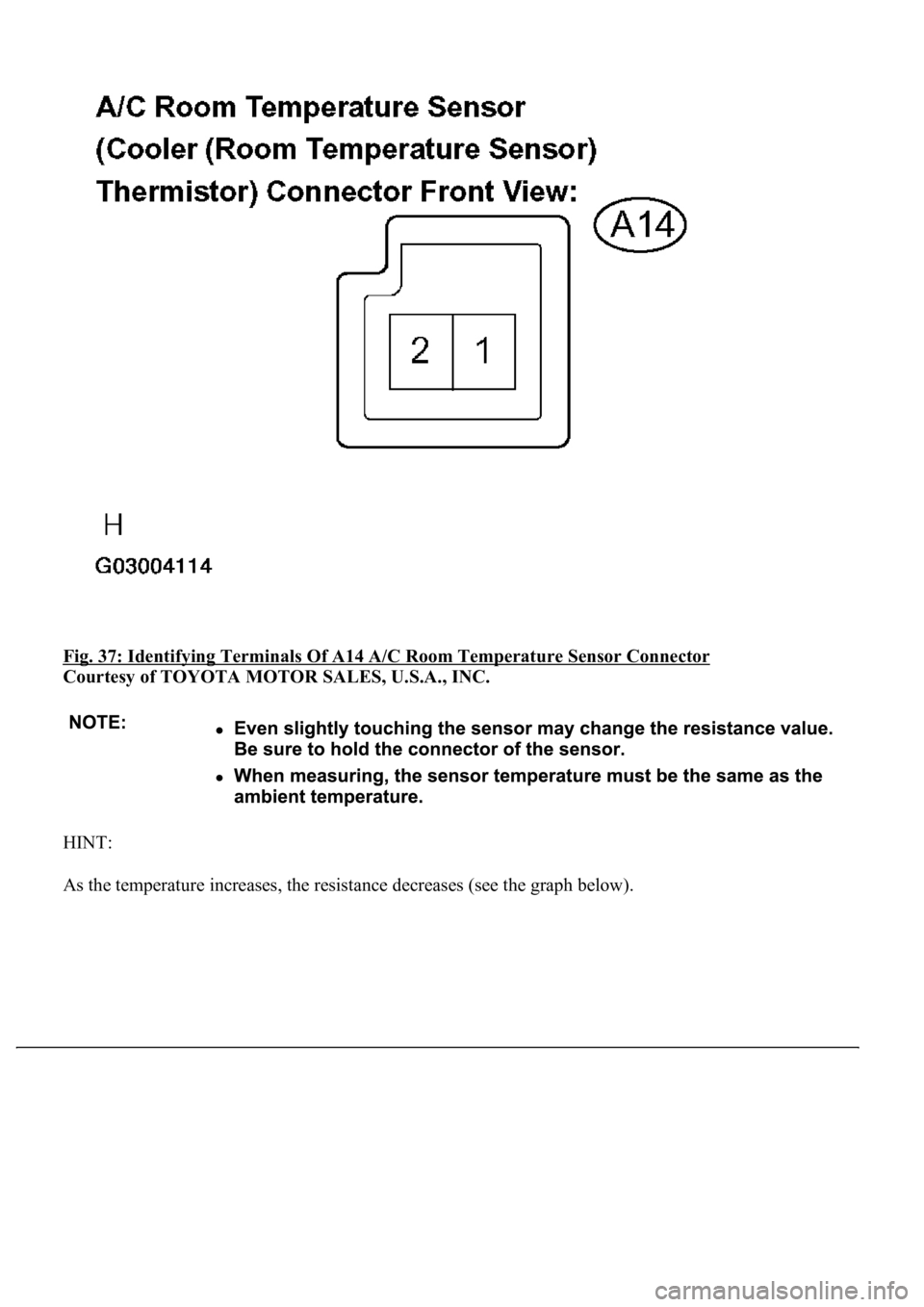

Fig. 37: Identifying Terminals Of A14 A/C Room Temperature Sensor Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
As the temperature increases, the resistance decreases (see the
graph below).
Page 254 of 4500
Fig. 38: Resistance/Temperature Graph
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPLACE COOLER (ROOM TEMPERATURE SENSOR) THERMISTOR
OK: Go to next step
3.INSPECT AIR CONDITIONING AMPLIFIER (TR - SG-2)
a. Remove the A/C amplifier with connectors still connected.
b. Turn the ignition switch to the ON position.
c. Measure the voltage according to the value (s) in the table below.
Standard:
AIR CONDITIONING AMPLIFIER (TR - SG-2) VOLTAGE
HINT:
As the temperature increases, the voltage decreases.
Result:
AIR CONDITIONING AMPLIFIER TEST RESULT
Tester connectionConditionSpecified condition
A13-16 (TR) - A13-9 (SG-2)Ignition switch ON at 25°C (77°F)1.8 to 2.2 V
A13-16 (TR) - A13-9 (SG-2)Ignition switch ON at 40°C (104°F)1.2 to 1.6 V
NGA
Page 255 of 4500
B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
C: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT )
Fig. 39: Inspecting Air Conditioning Amplifier (TR
- SG-2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
A
4.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - COOLER
(ROOM TEMPERATURE SENSOR)THERMISTOR) (SEE ELECTRONIC CIRCUIT
INSPECTION PROCEDURE )
a. Measure the resistance according to the value (s) in the table below.
Standard:
AIR CONDITIONING AMPLIFIER - COOLER (ROOM TEMPERATURE SENSOR)
THERMISTOR) RESISTANCE
OK (Checking from the PROBLEM SYMPTOMS TABLE)B
OK (Checking from the DTC)C
Page 258 of 4500
Temperature Sensor)Thermistor)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
The sensor connected to the ECM detects fluctuations in the ambient temperature that is used for controlling the
interior temperature. The sensor sends a signal to the A/C amplifier via the ECM.
Fig. 41: DTC Detection Item Trouble Area Chart
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WIRING DIAGRAM
Page 259 of 4500
Fig. 42: Ambient Temperature Sensor Circuit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.READ VALUE ON HAND-HELD TESTER
a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position and push the hand-held tester main switch on.
c. Select the item below in the DATA LIST, and read the display on the hand-held tester.
DATA LIST / AIR CONDITIONER:
DATA LIST / AIR CONDITIONER:
OK:
The display is as specified in the normal condition.
ItemMeasurement Item/Display (Range)Normal ConditionDiagnostic
Note
AMBI TEMP
SENSAmbient temperature sensor / min.: -23.3°C (-
9.94°F) max.: 65.95°C (150.71 °F)Actual ambient
temperature is displayed-
Page 261 of 4500
ECM (TAM - E2) TEST RESULT
B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
C: REPLACE ECM (SEE REPLACEMENT )
A: Go to next step
3.INSPECT A/C AMBIENT TEMPERATURE SENSOR
a. Remove the A/C ambient temperature sensor.
b. Measure the resistance according to the value (s) in the table below.
Fig. 44: Identifying Terminals Of A/C Ambient Temperature Sensor Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NGA
OK (Checking from the PROBLEM SYMPTOM TABLE)B
OK (Checking from the DTC)C
Page 262 of 4500
Standard:
A/C AMBIENT TEMPERATURE SENSOR RESISTANCE
HINT:
As the temperature increases, the resistance decreases (see the graph below).
Fig. 45: Resistance/Temperature Graph
Tester connectionConditionSpecified condition
A1-1 - A1-210°C (50°F)3.00 to 3.73 kohms
A1-1 - A1-215°C (59°F)2.45 to 2.88 kohms
A1-1 - A1-220°C (68°F)1.95 to 2.30 kohms
A1-1 - A1-225°C (77°F)1.60 to 1.80 kohms
A1-1 - A1-230°C (86°F)1.28 to 1.47 kohms
A1-1 - A1-235°C (95°F)1.00 to 1.22 kohms
A1-1 - A1-240°C (104°F)0.80 to 1.00 kohms
A1-1 - A1-245°C (113°F)0.65 to 0.85 kohms
A1-1 - A1-250°C (122°F)0.50 to 0.70 kohms
A1-1 - A1-255°C (131°F)0.44 to 0.60 kohms
A1-1 - A1-260°C (140°F)0.36 to 0.50 kohms
