2003 LEXUS LS430 Identifying ac

Fig. 70: Identifying Painted Mark
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
107.INSTALL AUTOMATIC TRANSMISSION ASSY
a. Check the torque converter clutch installation (see INSPECTION
).
b. Attach the transmission to the engine.
c. Install the ground strap and 10 bolts.
Torque:
72 N.m (734 kgf.cm, 53 ft.lbf) for 17 mm head bolt A
37 N.m (377 kgf.cm, 27 ft.lbf) for 14 mm head bolt B

Fig. 72: Identifying Torque Converter Clutch Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
108.INSTALL OIL COOLER INLET TUBE NO.1
109.INSTALL OIL COOLER OUTLET TUBE NO.1
110.INSTALL TRANSMISSION OIL FILTER TUBE SUB-ASSY
111.CONNECT ENGINE WIRE
a. Connect the engine wire to the transmission.
1. Connect the VSV connector.
2. Connect the PNP switch connector.
3. Connect the solenoid connector.
4. Connect the direct clutch speed sensor connector.
5. Connect the engine wire from the 3 wire clamps.
6. Connect the oil level sensor connector.
112.INSTALL ENGINE W/ TRANSMISSION ASSEMBLY
a. Attach the engine chain hoist to the engine hangers.
b. Slowly lower the engine and transmission assembly into the engine compartment.
c. Insert the stud bolts of the front en
gine mounting brackets into the stud bolt holes of the front

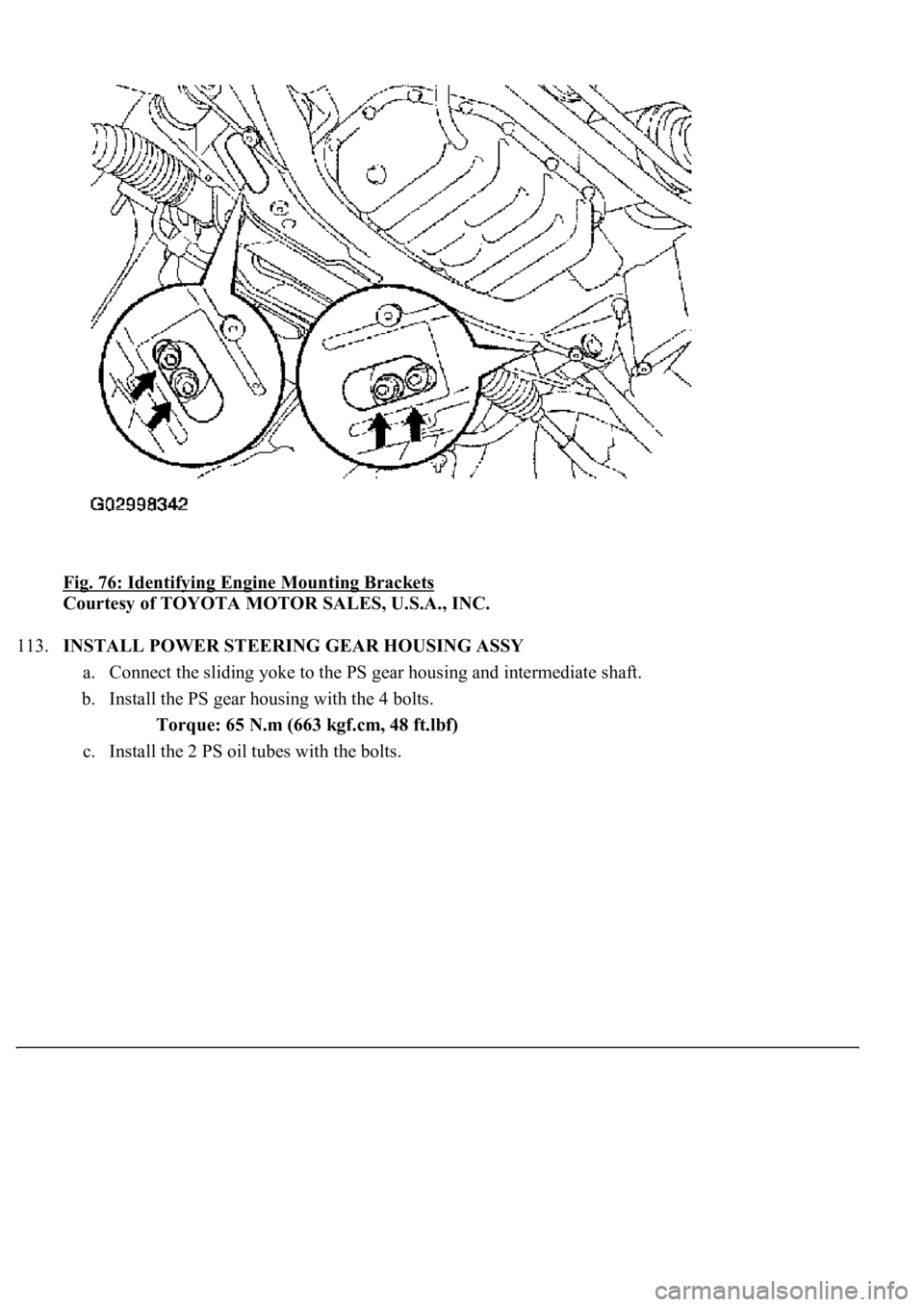

Fig. 76: Identifying Engine Mounting Brackets
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
113.INSTALL POWER STEERING GEAR HOUSING ASSY
a. Connect the sliding yoke to the PS gear housing and intermediate shaft.
b. Install the PS gear housing with the 4 bolts.
Torque: 65 N.m (663 kgf.cm, 48 ft.lbf)
c. Install the 2 PS oil tubes with the bolts.

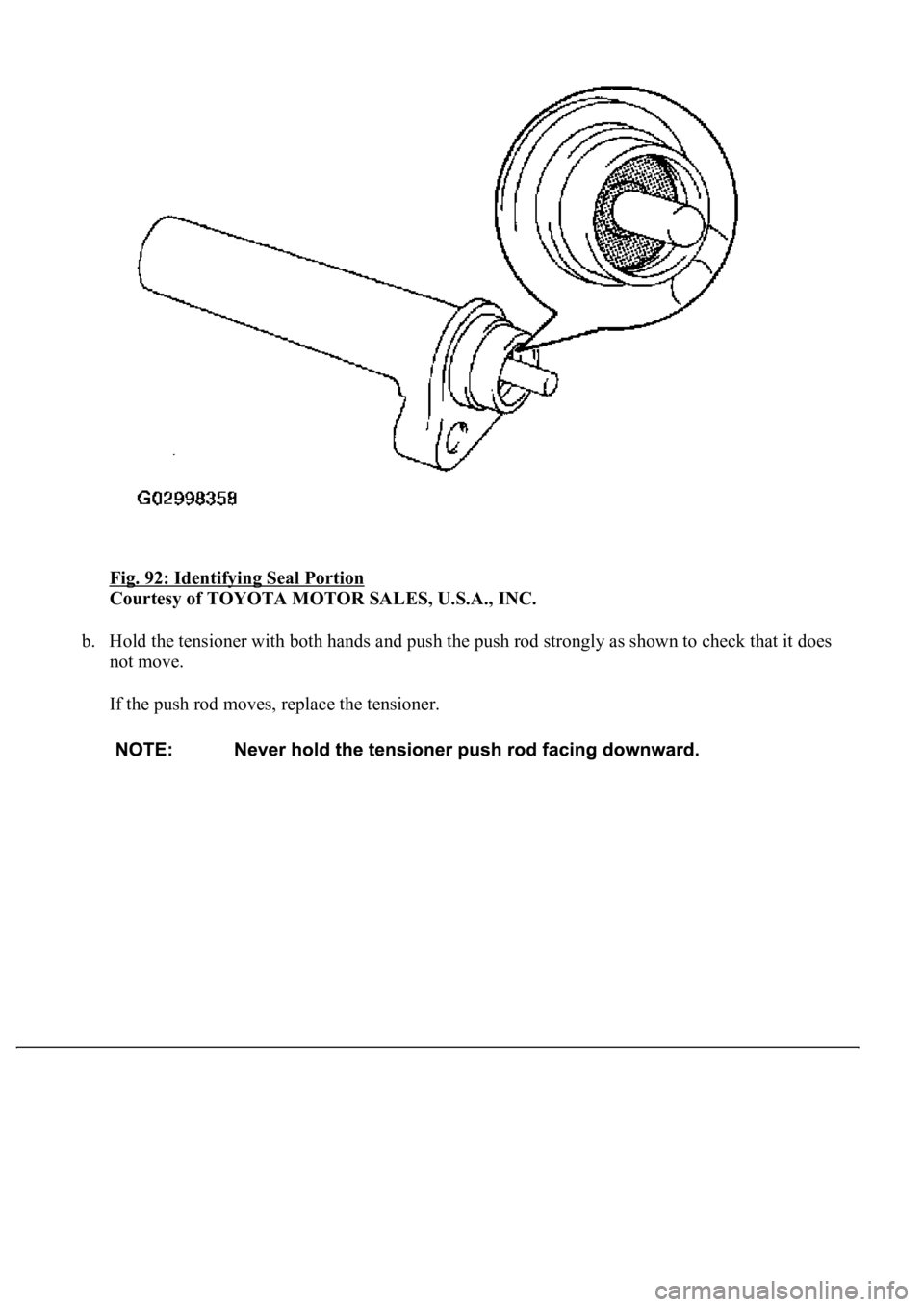

Fig. 92: Identifying Seal Portion
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Hold the tensioner with both hands and push the push rod strongly as shown to check that it does
not move.
If the push rod moves, replace the tensioner.

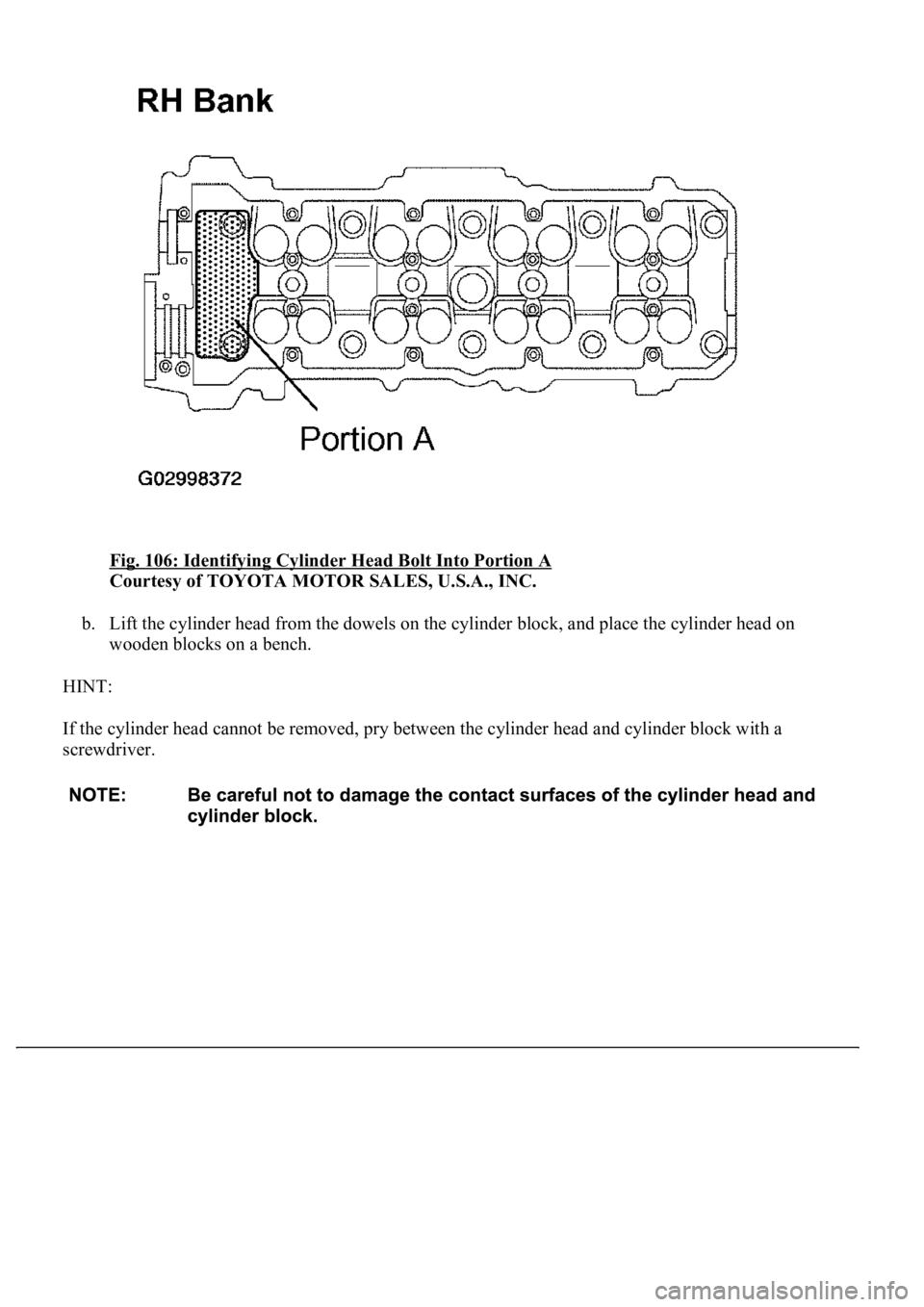

Fig. 106: Identifying Cylinder Head Bolt Into Portion A
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Lift the cylinder head from the dowels on the cylinder block, and place the cylinder head on
wooden blocks on a bench.
HINT:
If the cylinder head cannot be removed, pry between the cylinder head and cylinder block with a
screwdriver.

Fig. 108: Identifying Cylinder Head LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

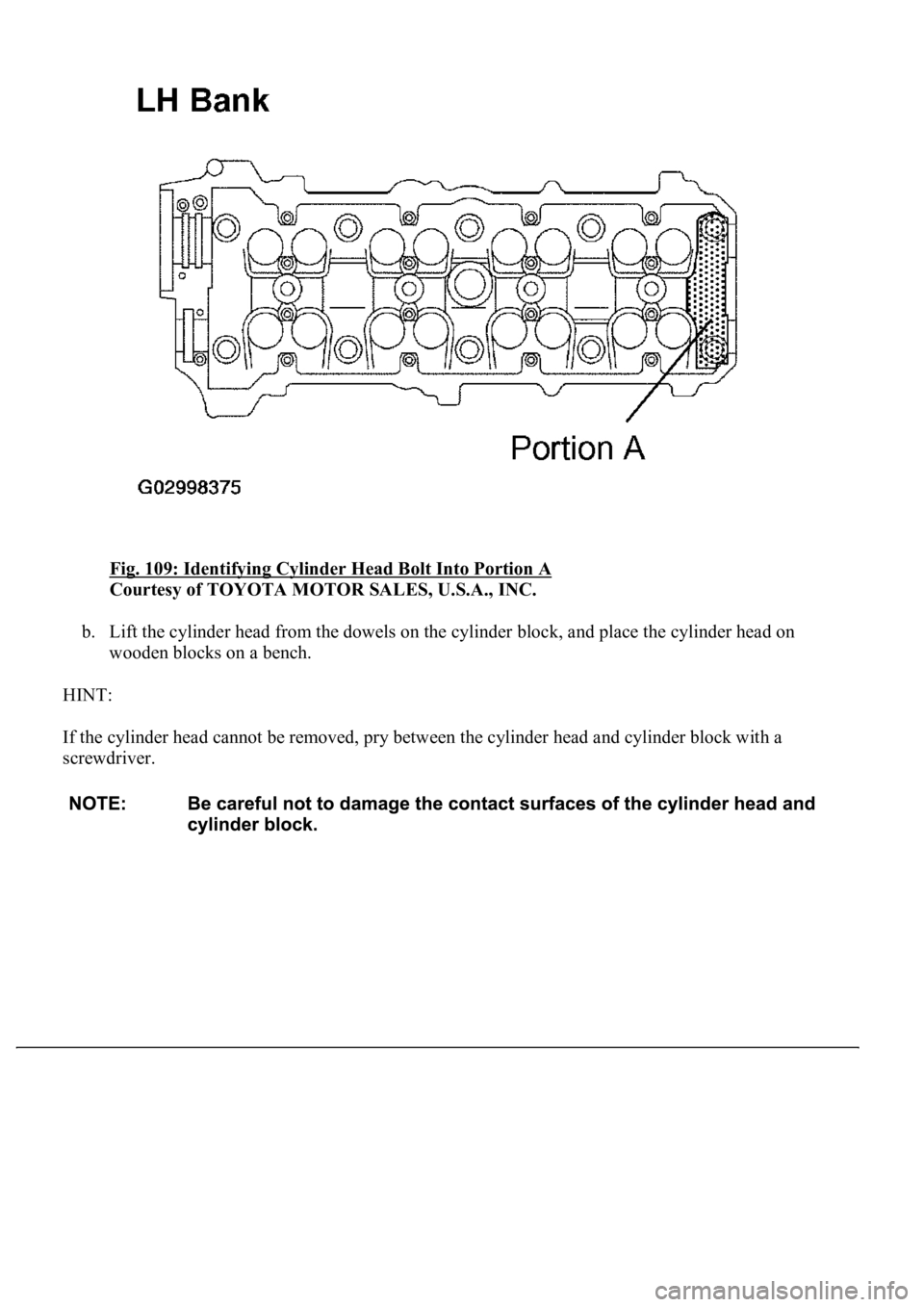

Fig. 109: Identifying Cylinder Head Bolt Into Portion A
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Lift the cylinder head from the dowels on the cylinder block, and place the cylinder head on
wooden blocks on a bench.
HINT:
If the cylinder head cannot be removed, pry between the cylinder head and cylinder block with a
screwdriver.

Fig. 135: Identifying Oil Pan Stud Bolt Diameter
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
56.INSTALL OIL PAN SUB-ASSY (See REPLACEMENT
)
57.INSTALL OIL PAN BAFFLE PLATE (See REPLACEMENT
)
58.INSTALL OIL PAN SUB-ASSY NO.2 (See REPLACEMENT
)
59.INSTALL WATER PUMP ASSY
a. Install a new gasket and water pump with the 5 bolts, 2 stud bolts and nut. Uniformly tighten the
bolts, stud bolts and nut in several passes.
Torque:
21 N.m (214 kgf.cm, 16 ft.lbf) for bolt
18 N.m (184 kgf.cm, 13 ft.lbf) for stud bolt and nut
HINT:
Use bolts that are 30 mm (1.18 in.) in len
gth.
