Power Mirrors
Component Location Index
POWER MIRRORSFunction Test, page 22-116Replacement, page 20-15Actuator Test, page 22-117Actuator Replacemenl, page 22-1 18
POWER MIRROR andMIRROR DEFOGGER SWITCHlesl, page 22-111Replacement, page 22-1 17
---\,--,-'/ -:,)
j-' ',i. it .i/q3:.[
' \, -,''
-lo' '
-o
t:
,.'7
22-114
$r-

Circuit Diagram
UiIDTS rcOD R]SE/R€LAY 8OXrcilmoN s1/vtTcH
'1 ih.a i|0At :UsaUiD$ DASHN'SUnIIAY 8OX
Jt
22-115

Power Mirrors
Function Test
1. Remove the driver's pocket (see page 20-60).
2. Reach through the pocket opening, and push out
the power mirror switch (A).
,\
RED B
Wire side oftemale terminals
WHT/RED
RED/YEL
3. Disconnectthe'13P connector (B) from the switch.
4. Choose the appropriate test based on the
symptom:. Both mirrors don't work, go to step 5.. Left mirror doesn't work, go to step 7.. Right mirror doesn't work, go to step 8.. Defogger doesn't work (Canada), go to step 9.
Both mirrors
5. Check for voltage between the No. 2 terminal and
body ground with the ignitlon switch ON (ll).
There should be battery voltage.. lf there is no battery voltage, check for:- blown No. 14 (10A) fuse in the under'dash
fuse/relay box.- an open in the BLKryEL wire.. lf there is battery voltage, goto step 6.
6. Check for continuity between the No. 6 terminal
and body ground.
There should be continuity.. lf there is no continuity, check for:- an open in the BLK wire.- poor ground (G501).
. lf there is continuity, check both mirrors
individually as described in the next column.
RED/BLK
22-116
Left mirror
7. Connect the No. 2 terminal totheNo. l0terminal,
and the No. 5 (or No. 12) terminal to the No. 6
terminal with jumper wires. The left mirror should
tilt down (or swing left)with the ignition switch ON
fl r).. lf the mirrordoes nottiltdown (ordoes notswing
left), check for an open in the GRN/WHT (or BLU/
Wl-lT)wire between the left mirror and the 13P
conneclor, lf the wire is OK, check the left m irror
actualor.. lf the mirror neithertilts down nor swings left.
repair the BLU/BLK wire.. lf the mirrorworks properly, checkthe mirror
SWIICN,
Right mirror
8. Connect the No. 2 terminalto the No. 11 terminal,
and the No. 5 {or No. 13) terminal to the No. 6
terminal with jumper wires. The right mirror should
tilt down (or swing left)with the ignition switch ON
(

).. lf the mirror does not tilt down (or does not swing
left), check for an open in the GRN/WHT (or WHT/
RED)wire between the right mirror and the 13P
connector.
lf the wire is OK, check the right mirror actuator.. lf the mirrorneithertiltsdown norswings left,
repalr the RED|YEL wire.' lf the mirrorworks properly. checkthe mirror
swrrcn.
Defogger (Canada)
9. Connect the No. 1 and No. I terminals with a
jumper wire, and check for voltage between the
No. 2 terminal of the mirror connector and body
ground. There should be battery voltage and both
mirrors should warm up with the ignition switch
oN

t).. lf there is novoltage orneitherwarms up, check
for:- an open in the BLKI/EL or oRN wire.- blown No. 14 ('l0A)fuse in the under-dash
fuse/relay box.. lf only one fails to warm up, check:- its defogger.- poor ground (G501, G502). lf both warm up, checkthedefoggerswitch.

1.
2.
3.
Power Mirror Switch Test
Remove the driver's pocket (see page 20-60).
Reach through the pocket opening, and push out
the power mirror switch (A).
Disconnect the 13P connector (B) f rom the switch.
Check for continuity between the terminals in each
switch position according to the table.
Mirror Switch:
\.f9.-'"1L
Position256 1011 1213
UPCF--o
o-o
o-
G-c)o
o-o-
-o
!
RIGHT-o
o-o
UP
"[T
RIGHT
Defogger Switch (Canadal:
Te.minal
il;;; tlfI8
ONoo
OFF
lf the continuity is not as specified, replace thepower mirror switch.
5.
22-117
1,
2.
Power Mirror Actuator Test
Remove the door panel (see page 20-4).
Disconnect the 6P connector (A) from the power
mirror actuator (B).
Check actuator operation by connecting power and
ground according to the table.
Terminal
Position64
TILT UPoo
TILT DOWNo
SWING LEFTo@
SWING RIGHT@
4. lf the mirror fails to work properly, replace the
mtrror actuator.
Defogger Test {Canada);
5. Check for continuity between the No. 1and No.2
terminals of the 6P connector. There should be
continuity. lf there is no continuity, check for an
open circuit.

Power Mirrors
Power Mirror Actuator Replacement
Remove the power mirror (see page 20-15).
Carefully remove the mirror holder from the mirror
housing. Gently pull it out by hand (see page 20-15).
Disconnect the connector.
Remove the cover, then remove the two Torx
screws from the mirror connector.
Record the terminal locations and wire colors.
Cut the wire harness with the wire cutter.
7. Remove the three screws, and separate the mirror
housinq from the mirror base.
'1.
2.
3.
4.
5.
6.
22-118
J
\4
8. Remove the three Torx screws, and separate lhe
actuator (A) from the mirror housing {B).
Route the wire harness {A) ofthe new actuator
through the hole in the bracket (B).9.
\J

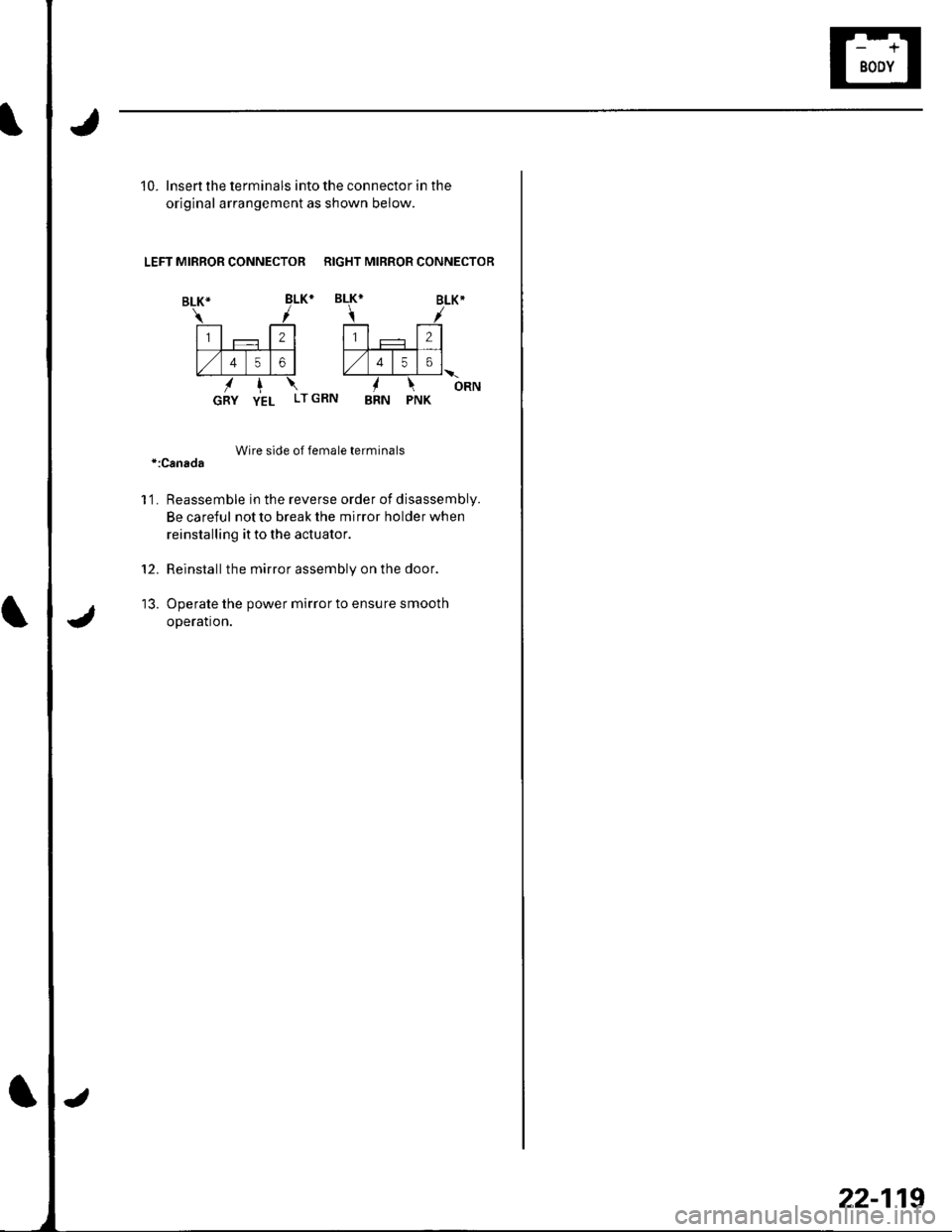

10. lnsert the terminals into the connector in the
original arrangement as shown below.
LEFT MIRROR CONNECTOR RIGHT MIRROR CONNECTOR
Wire side of female terminals*:Canada
'l'1. Reassemble in the reverse order of disassembly.
Be careful not to break the mirror holder when
reinstalling it to the actuator.
Reinstallthe mirror assembly on the door.
Operate the power mirror to ensure smooth
operation.
12.
tJ.
22-119

Horns
\Component Location Index
HORN RELAYTest, page 22-51
HORNSTest, page 22 122Beplacement, page 22 122
UNDER-HOOD FUSE/RELAY BOX
.- :.."'
HORN SWITCHfesl, page22-122
CABLE REELReplacement, page 23,1 19
22-120
