2003 HONDA CIVIC Workshop Manual

sRs
DTC Troubleshooting (cont'dl
DTC 2-1: Open in Front Passenger's Airbag
Inflator
DfC 2-2: Increased Resistance in Front
Passenger's Airbag Inflator
Special Tools Bequired. SRS inflator simulator 07SAZ-T84011A. SRS simulator lead F 07XAZ-S230100
'1. Erase the DTC memory {see page 23-26).
2. Turn the ignition switch ON (ll), and check that the
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES Go to step 3.
NO Intermittent failure, system is OK at this time,
Go to Troubleshooting Intermittent Failures (see
page 23-261.
3. Turn lhe ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
4. Disconnect the front passenger's airbag 4P
connector (A) from dashboard wire harness B.
07sAz-T84011A
07xAz-s230100
Connect the SRS inflator simulator (2 0
connectors) and the simulator lead F to dashboard
wire harness B.
Reconnect the battery negative cable.
Erase the DTC memory.
5.
6.
7.
23-42
!J
{
9.
10.
Read the DTC.
ls DTC 2-1 or DTC 2-2 indicated?
YES Go to step 9.
NO-Open or increased resistance in the front
passenger's airbag inflator; replace the front
passenger's airbag {see page 23-114).I
Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
Disconnect the driver's airbag 4P connector from
the cable reel (see step 2 on page 23-21],.
Disconnect both seat belt tensioner 2P connectors
from the floor wire harness (see step 5 on page 23-
22).
Disconnect SRS unit connector A (18P) from the
SRS unit (see step 7 on page 23-22). Do not
disconnect the special tool from dashboard wire
harness B.
11.
!.

\
J
13. Check resistance between the No. 4 and No. 13
terminals and between the No.5 and No. 14
terminals of SRS unit connector A (18P). There
should be 2.0 3.0 Q.
SRS UNIT CONNECTOR A {18P)
Wire side of female terminals
ls the resistance as specified?
YES Faulty SRS unit or poor contact at SRS unit
connector A (18P). Check the connection; if the
connection is OK, replace the SRS unit (see page
23-1221.a
NO Open or increased resistance in dashboard
wire harness B; replace dashboard wire
harness B.I
TJ
23-43

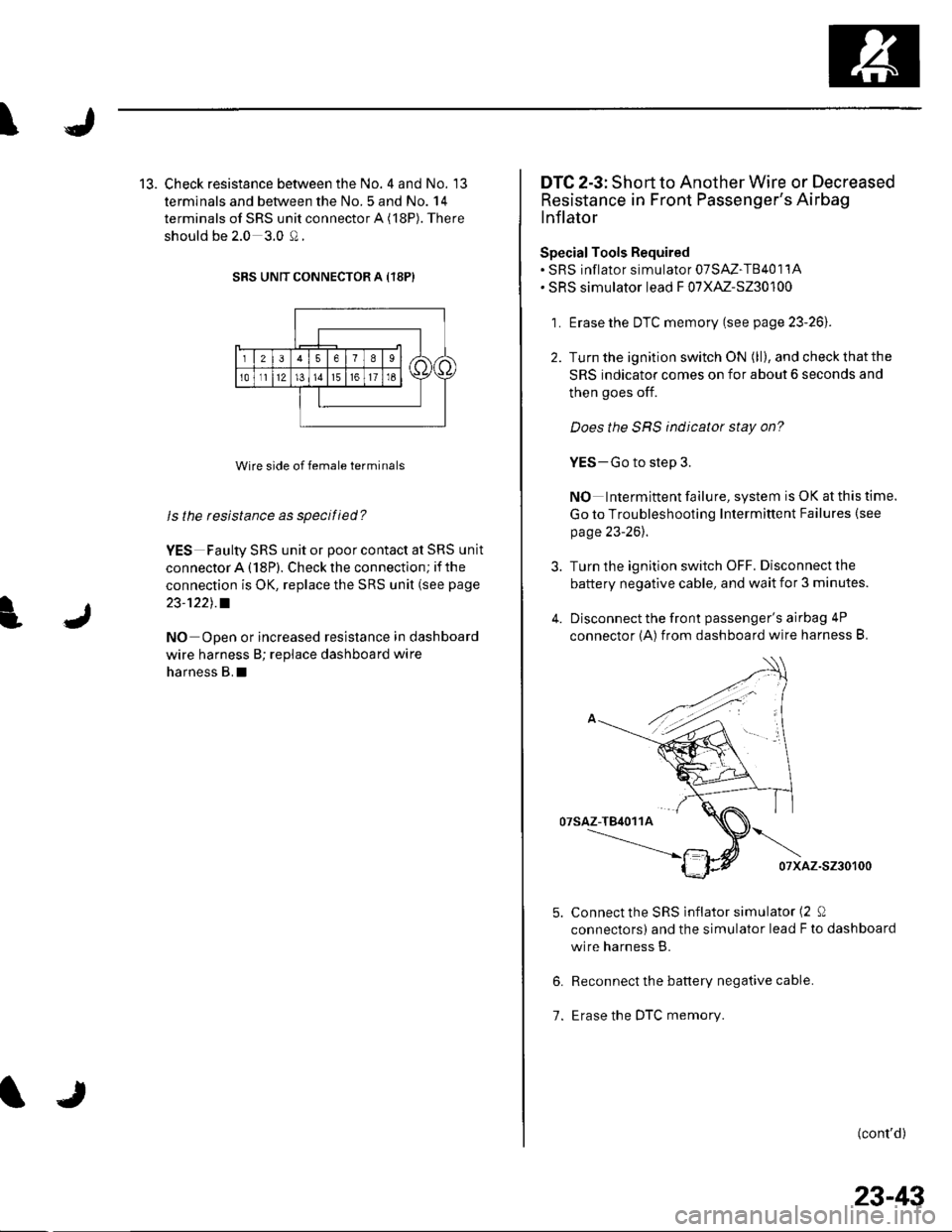

DTC 2-3: Short to Another Wire or Decreased
Resistance in Front Passenger's Airbag
lnJlator
SpecialTools Required. SRS inflator simulator 07SAZ-T8401'1A. SRS simulator lead F 07XAZ-S230100
1 . Erase the DTC memory (see page 23-261.
2. Turn the ignition switch ON (ll),andcheckthatthe
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES-Go to step 3.
NO Intermittent failu re, system is OK at this time.
Go to Troubleshooting Intermittent Failures {see
page 23-26).
3. Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
4. Disconnect the front passenger's airbag 4P
connector (A) from dashboard wire harness B.
07sAz-T84011A
07xAz-s230100
Connect the SRS lnflator simulator (2 0
connectors) and the simulator lead F to dashboard
wire harness B.
Reconnect the battery negative cable.
Erase the DTC memory.
(cont'd)
6.
7.

sRs

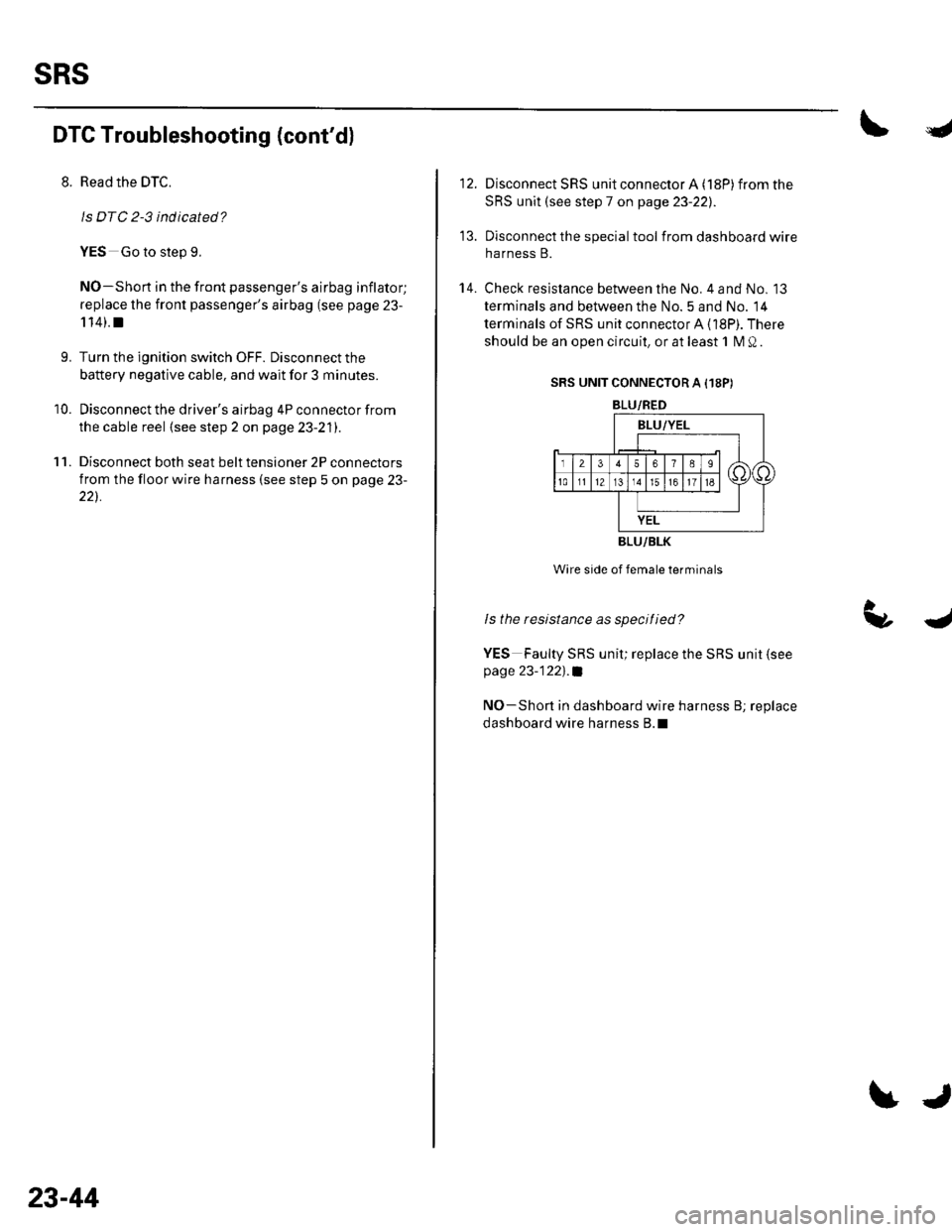

DTG Troubleshooting (cont'd)
11.
Read the DTC.
ls DTC 2-3 ind icated?
YES Go to step 9.
NO-Short in the front passenger's airbag inflator;
replace the front passenger's airbag (see page 23-
114). t
Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
Disconnect the driver's airbag 4P connector from
the cable reel {see step 2 on page 23-21).
Disconnect both seat belt tensioner 2P connectors
from the floor wire harness (see step 5 on page 23-
221.
9.
10.
23-44
TJ
qJ
'12. Disconnect SRS unit connector A (18P) from the
S R S u n it (see ste p 7 on page 23-22l. .
13. Disconnectthe special tool from dashboard wire
harness B.
14. Check resistance between the No. 4 and No. 13
terminals and between the No. 5 and No. 14
terminals of SRS unit connector A (18P). There
should be an open circuit, or at least 1 M Q.
SRS UNIT CONNECTOR A I18P)
BLU/RED
BLU/BLK
Wire side of female terminals
ls the resistance as specitied?
YES Faulty SRS unit; replace the SRS unit (see
page 23-122)'.a
NO-Shon in dashboard wire harness B; replace
dashboard wire harness B.l

I
I

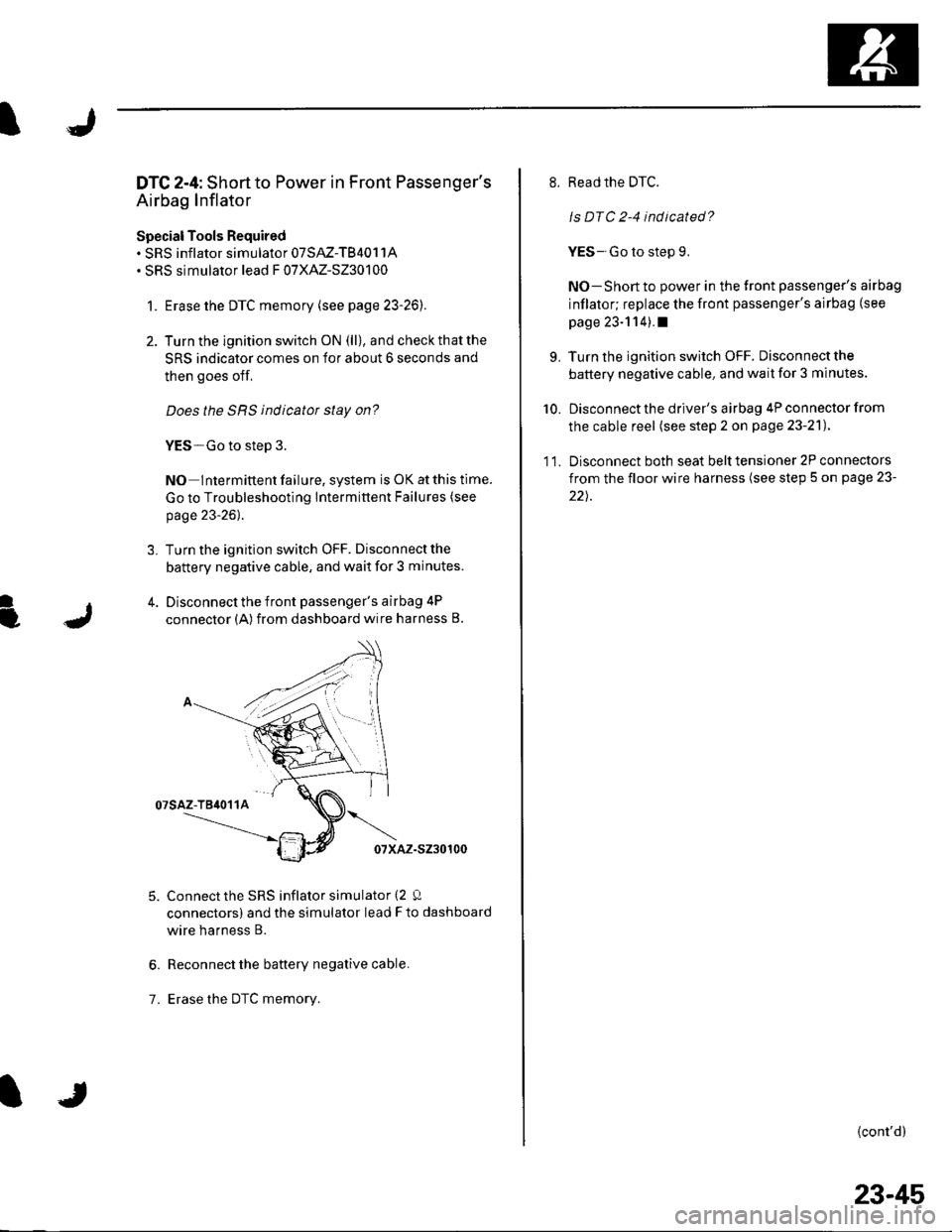

DTC 2-4: Shortto Power in Front Passenger's
Airbag Inflator
Special Tools Required. SRS inflator simulator 07SAZ-TB4011A. SRS simulator lead F 07XAZ-S230100
1. Erase the DTC memory (see page 23-26).
2. Turn the ignition switch ON (ll), and check that the
SRS indicator comes on for about 6 seconds and
then goes off,
Does the SRS indicatot stay on?
YES-Go to step 3.
NO Intermittent failure, system is OK at this time.
Go to Troubleshooting lntermittent Failures (see
page 23-26).
3. Turn the ignition switch OFF. Disconnectthe
battery negative cable, and wait for 3 minutes.
4. Disconnect the front passenger's airbag 4P
connector (A) from dashboard wire harness B.
07sAz-T84011A
07xAz-s230100
Connect the SRS inflator simulator (2 Q
connectors) and the simulator lead F to dashboard
wire harness B.
Reconnect the battery negative cable.
Erase the DTc memory.
6.
7.
8. Read the DTC.
ls DTC 2-4 indicated?
YES-Go to step 9.
NO-Short to power in the front passenger's airbag
inflator; replace the front passenger's airbag (see
page 23-114).I
9. Turn the ignition switch OFF. Disconnectthe
battery negative cable, and wait for 3 minutes.
10. Disconnect the driver's airbag 4P connector from
the cable reel (see step 2 on page 23-21).
11. Disconnect both seat belttensioner 2P connectors
from the floor wire harness (see step 5 on page 23-
22).
{cont'd)
23-45

sRs
13.
14.
DTC Troubleshooting (cont'd)
Disconnect SRS unit connector A (18P) from the
SRS unit (see step 7 on page 23-221.
Disconnect the special tool from dashboard wire
harness B.
Reconnect the battery negative cable.
Turn the ignition switch ON (ll).
Check for voltage between the No. 4 terminal of
SRS unit connector A (18P) and body ground, the
No. 13 terminal and body ground, the No. 5
terminal and body ground, and the No. 14 terminal
and body ground. There should be 0.5 V or less.
SRS UNIT CONNECTOB A {18PI
Wire side o{ {emale terminals
ls the voltage as specified?
YES Faulty SRS uniu replace the SRS unit (see
page 23-1221 .a
NO-Short to power in dashboard wire harness B;
replace dashboard wire harness B. !
15.
to.
23-46
\J
{
DTC 2-5: Short to Ground in Front Passenger's
Airbag Inflator
SpecialTools Required. SRS inf lator simulator 07SAZ-T84011A. SRS simulator lead F 07XAZ-S230100
1. Erase the DTC memory (see page 23-26).
2. Turn the ignition switch ON (ll), and check that the
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES Go to step 3.
NO Intermittent failure, system is OK at this time.
Go to Troubleshooting Intermittent Failures {seepage 23-261.
3. Turn the ignition switch OFF. Disconnectthe
battery negative cable, and wait for 3 minutes.
4, Disconnect the front passenger's airbag 4P
connector (A) from dashboard wire harness B.
07saz-T84011A
07xAz-s230100
Connect the SRS inflator simulator (2 Q
connectors) and the simulator lead F to dashboard
wire harness B.
4
5.

I
7.
11.
9.
10.

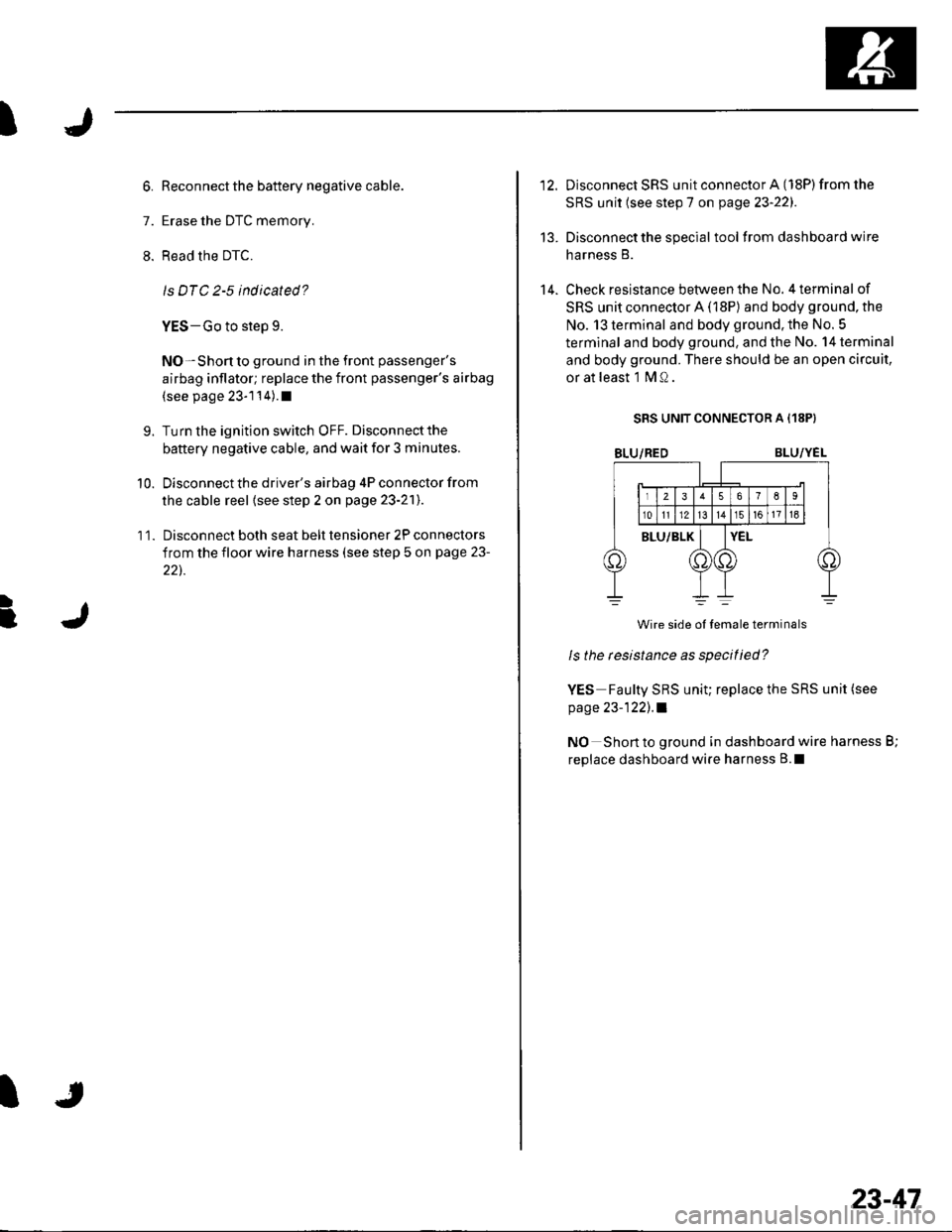

Reconnect the battery negative cable.
Erase the DTC memory.
Read the DTC.
ls DTC 2-5 indicated?
YES-Go to step 9.
NO-Shon to ground in the front passenger's
airbag inflator; replace the front passenger's airbag
(see page 23-1 14).1
Turn the ignition switch OFF. Disconnectthe
battery negative cable, and wait for 3 minutes.
Disconnect the driver's airbag 4P connector from
the cable reel {see step 2 on page 23-21).
Disconnect both seat belt tensioner 2P connectors
from the floor wire harness (see step 5 on page 23-
22).
I
I
I
12.
13.
't 4.
Disconnect SRS unit connector A (18P) from the
SRS unit (see step 7 on page 23-221.
Disconnectthe special tool from dashboard wire
harness B.
Check resistance between the No. 4 terminal of
SRS unit connector A (18P) and body ground, the
No. 13 terminal and body ground. the No. 5
terminal and body ground, and the No. 14 terminal
and body ground. There should be an open circuit,
or at least l MQ.
SRS UNIT CONNECTOR A {18P}
BLU/REDBLU/YEL
Wire side ol temale terminals
ls the tesistance as specitied?
YES Faulty SRS uniu replace the SRS unit (see
page 23-122), .l
NO Short to ground in dashboard wire harness B;
replace dashboard wire harness B.l
23-47

sRs
DTC Troubleshooting (cont'dl

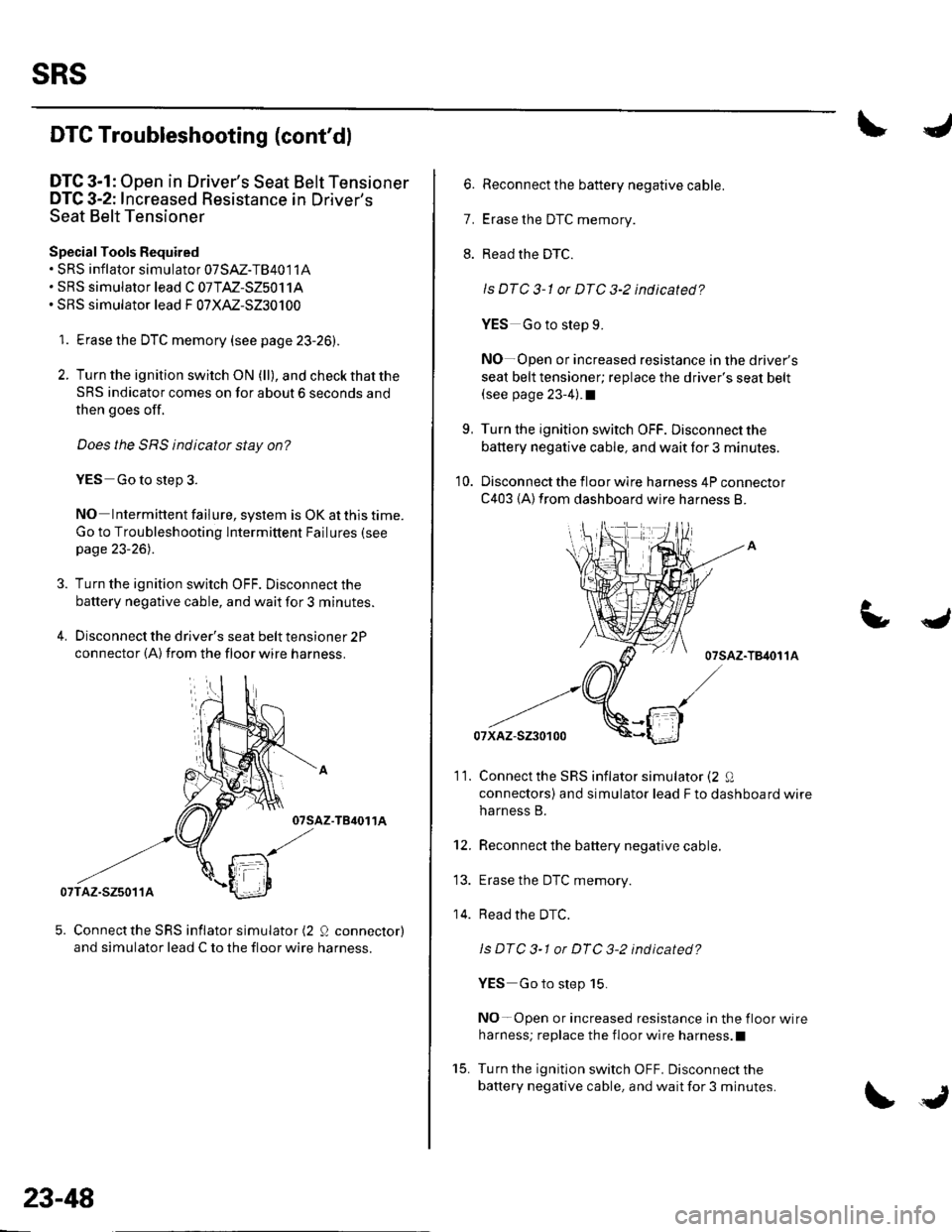

DTC 3-1: Open in Driver's Seat Belt Tensioner
DTC 3-2: Increased Resistance in Driver's
Seat Belt Tensioner
Special Tools Required. sRS inflator simulator 07sAz-TB4011A. SRS simulator lead C 07TM-S25011A. SRS simulator lead F 07XAZ-S230100
1. Erase the DTC memory (see page 23-26).
2. Turn the ignition switch ON (ll), and check that the
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES Go to step 3.
NO Intermittent failure, system is OK at this time.
Go to Troubleshooting lntermittent Failures (see
page 23-26).
3. Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
4. Disconnect the driver's seat belt tensioner 2P
connector {A) trom the floor wire harness.
07sAz-T84011A
5. Connectthe SRS inflator simulator (2 0 connector)
and simulator lead C to the floor wire harness.
07TAZ-52501'lA
23-48
t5.
\J
6. Reconnect the battery negative cable.
7. Erase the DTC memory.
8. Read the DTC.
ls DTC 3-1 ot DTC 3-2 indicated?
YES Go to step 9.
NO-Open or increased resistance in the driver's
seat belt tensioner; replace the driver's seat belt(see page 23-4).I
L Turn the ignition switch OFF. Disconnectthe
battery negative cable, and wait Ior 3 minutes.
10. Disconnect the floor wire harness 4P connector
C403 {A)from dashboard wire harness B.
07sAz-T8401'lA
Connect the SRS inflator simulator (2 Q
connectors) and simulator lead F to dashboard wire
harness B.
Reconnect the battery negative cable.
Erase the DTC memory.
Read the DTC.
ls DTC 3-1 or DTC 3-2 indicated?
YES Go to step 15.
NO-Open or increased resistance in the floor wire
harness; replace the floor wire harness.l
Turn the ignition switch OFF. Disconnect the
battery negative cable. and wait for 3 minutes.
11.
12.
14.

I
17.

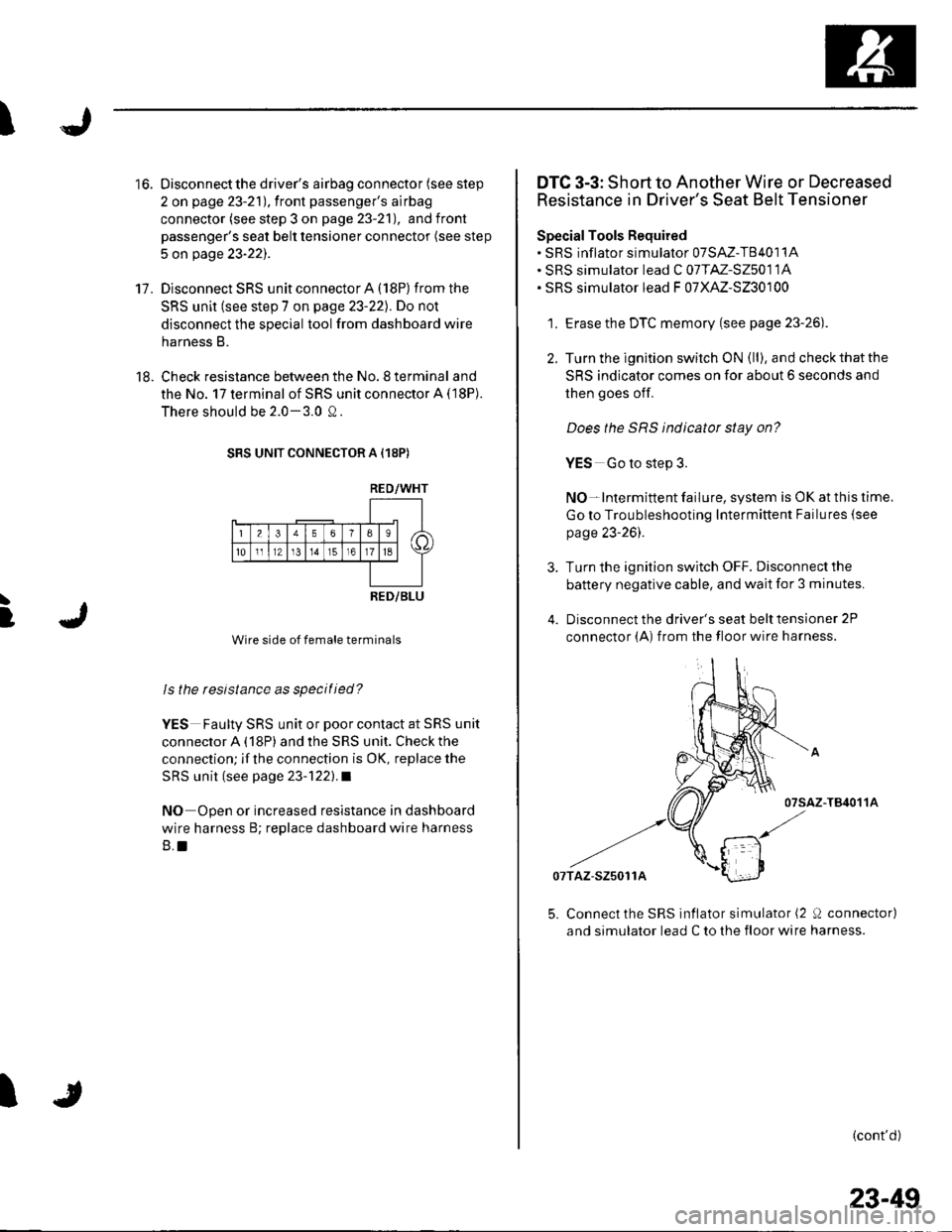

Oisconnect the driver's airbag connector (see step
2 on page 23-21), f ront passenger's airbag
connector (see step 3 on page 23-21), andfront
passenger's seat belt tensioner connector (see step
5 on page 23-22).
Disconnect SRS unit connector A (18P) from the
SRS unit (see step 7 on page 23-22). Do not
disconnect the special tool from dashboard wire
harness B.
Check resistance between the No.8 terminal and
the No. 17 terminal of SRS unit connector A (18P).
There should be 2.0-3.0 Q.
SRS UNIT CONNECTOR A (18P)
RED/WHT
i-4\lel a;
Ea
23561
101l1Zt3t516
RED/BLU
Wire side of female terminals
ls the resistance as specitied?
YES Faulty SRS unit or poor contact at SRS unit
connector A (18P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 23-'1221.a
NO Open or increased resistance in dashboard
wire harness B; replace dashboard wire harness
B,t
18.
I
]
I
to.DTC 3-3: Short to Another Wire or Decreased
Resistance in Driver's Seat Belt Tensioner
SpecialTools Required. SRS inflator simulator 07SAZ-T8401'1A. SRS simulator lead C 07TM-S25011A. SRS simulator lead F 07XAZ-S230100
1. Erase the DTC memory (see page 23-26).
2. Turn the ignition switch ON (ll), and checkthatthe
SRS indicator comes on for about 6 seconds and
then goes off.
Does the SRS indicator stay on?
YES Go to step 3.
NO-lntermittent failure, system is OK at this time,
Go to Troubleshooting Intermittent Failures {see
page 23-26).
Turn the ignition switch OFF. Disconnect the
battery negative cable, and wait for 3 minutes.
Disconnect the driver's seat belt tensioner 2P
connector (A) from the floor wire harness.
-T84011A
07TAZ-S25011A
5. Connect the SRS inflator simulator (2 0 connector)
and simulator lead C to the floor wire harness.
(cont'd)
23-49
