Page 4325 of 4378

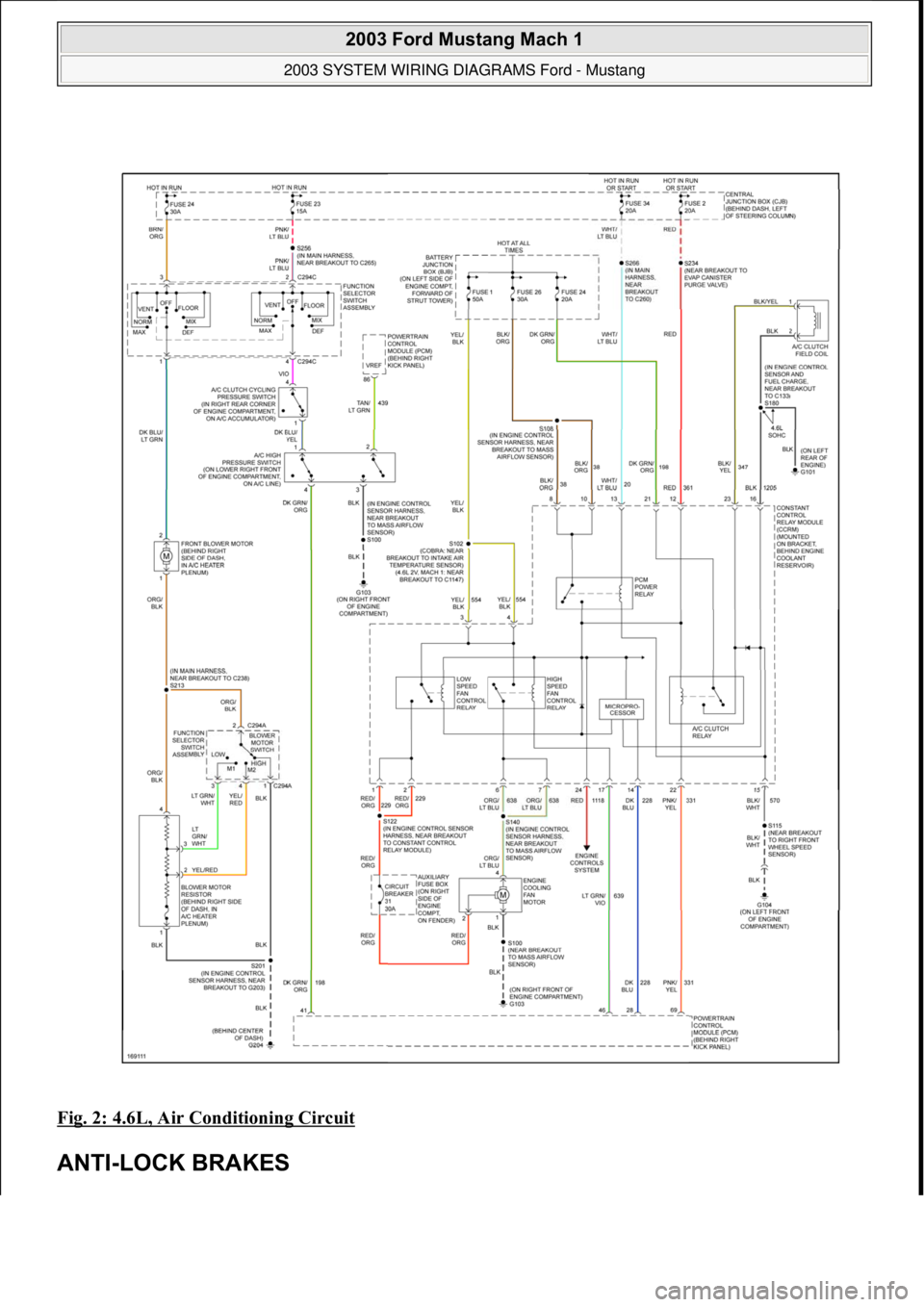

Fig. 2: 4.6L, Air Conditioning Circuit
ANTI-LOCK BRAKES
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 3 © 2006 Mitchell Repair Information Company, LLC.
Page 4326 of 4378

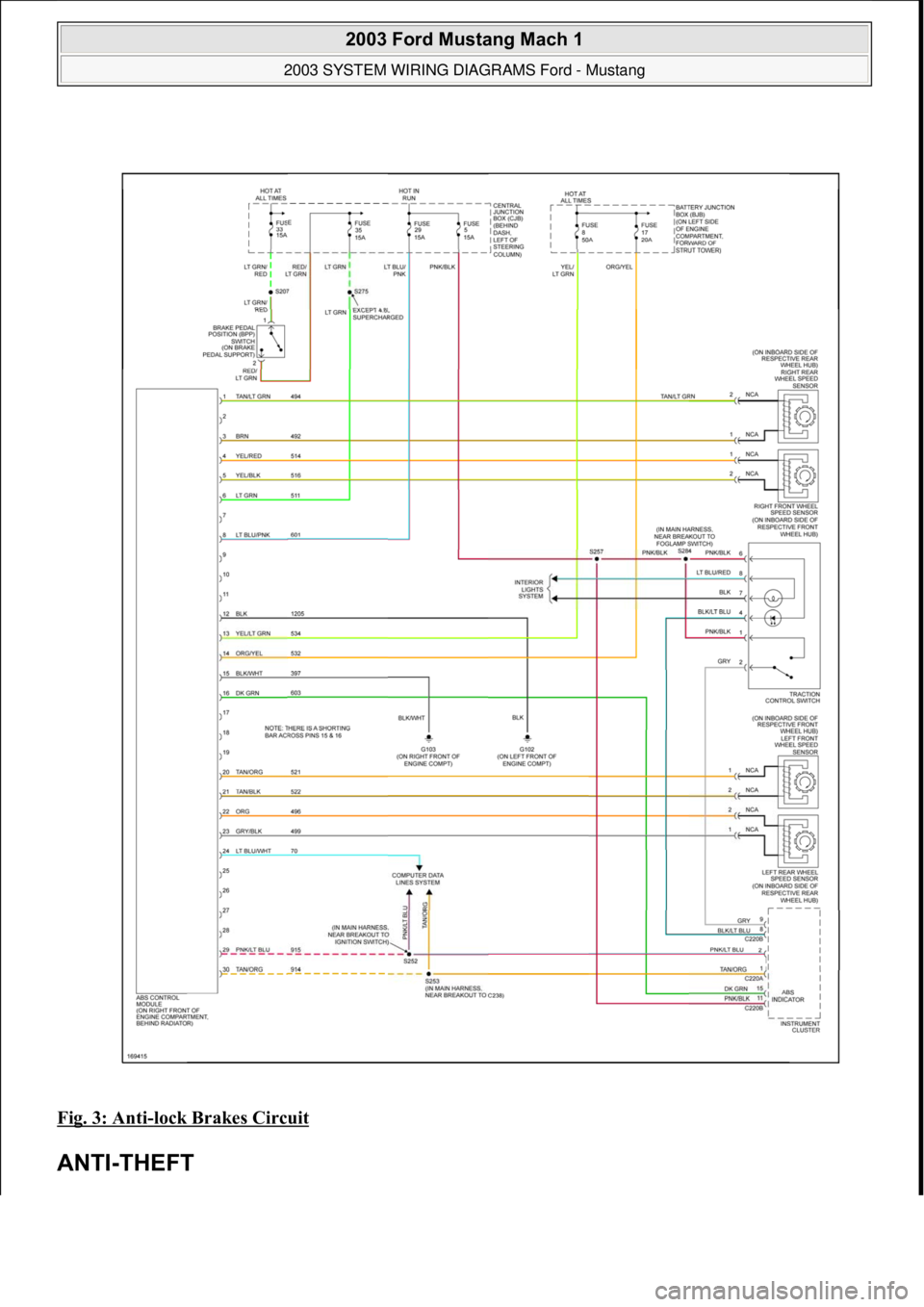

Fig. 3: Anti-lock Brakes Circuit
ANTI-THEFT
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 4 © 2006 Mitchell Repair Information Company, LLC.
Page 4327 of 4378

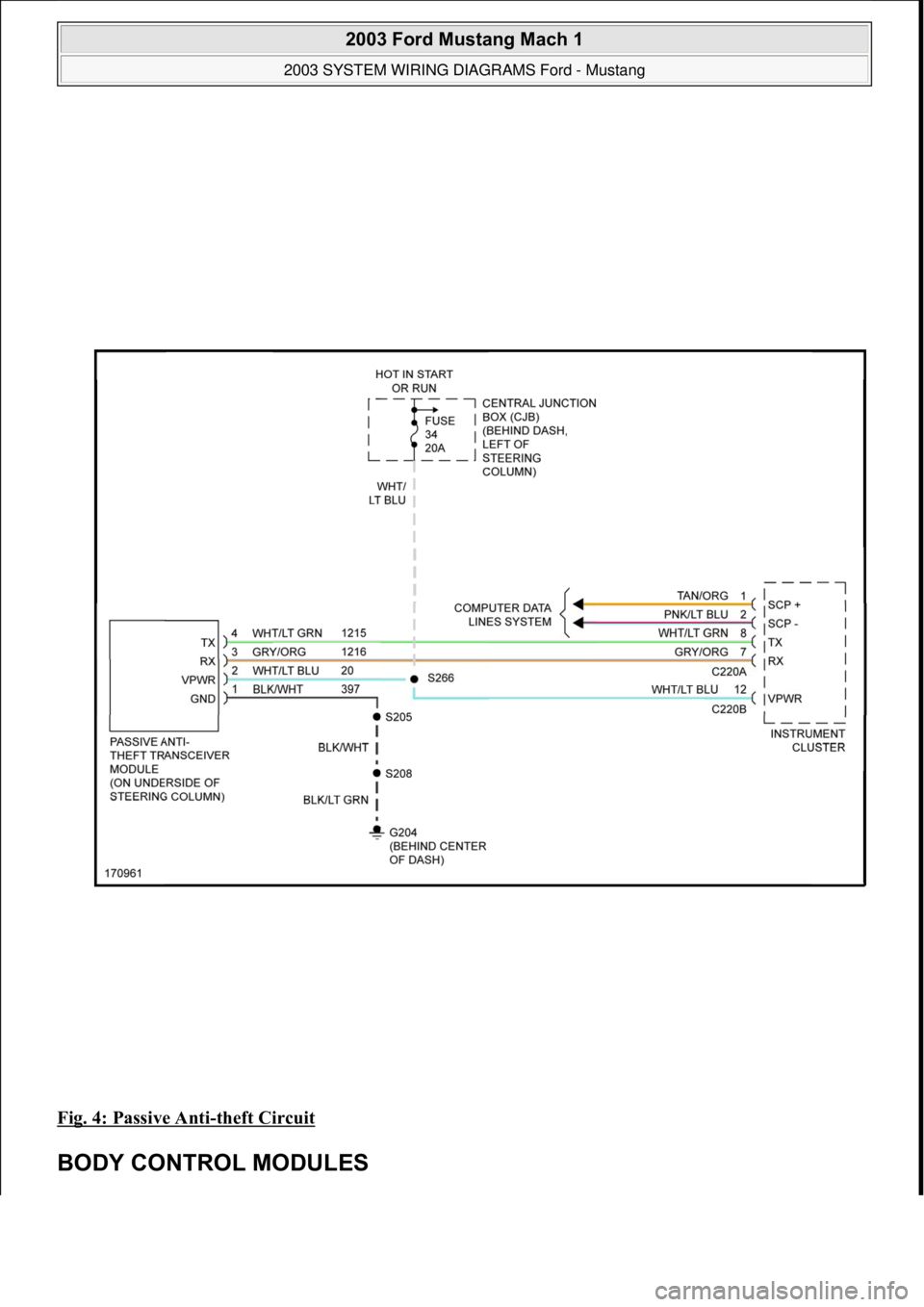

Fig. 4: Passive Anti-theft Circuit
BODY CONTROL MODULES
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 5 © 2006 Mitchell Repair Information Company, LLC.
Page 4328 of 4378

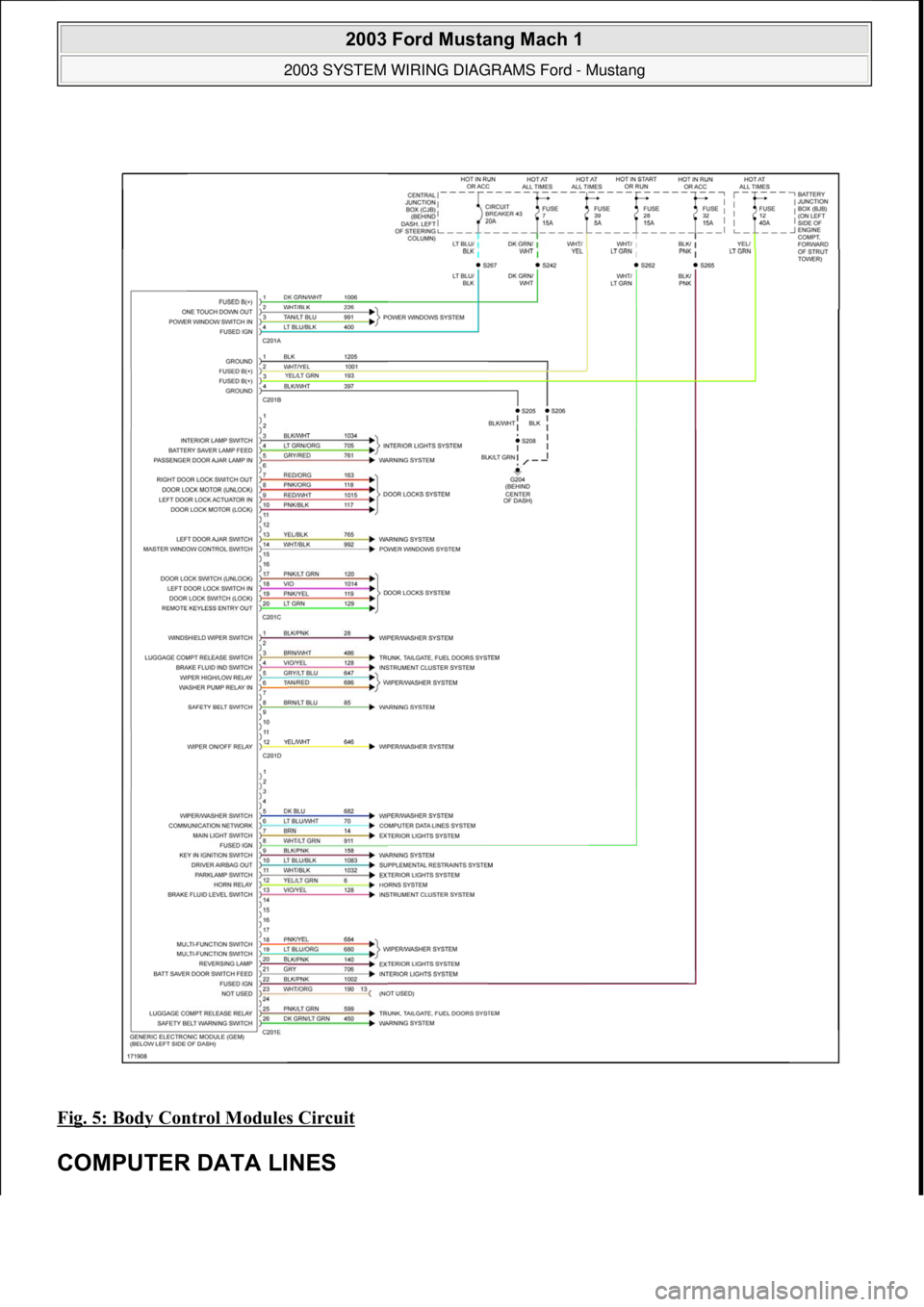

Fig. 5: Body Control Modules Circuit
COMPUTER DATA LINES
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 6 © 2006 Mitchell Repair Information Company, LLC.
Page 4329 of 4378

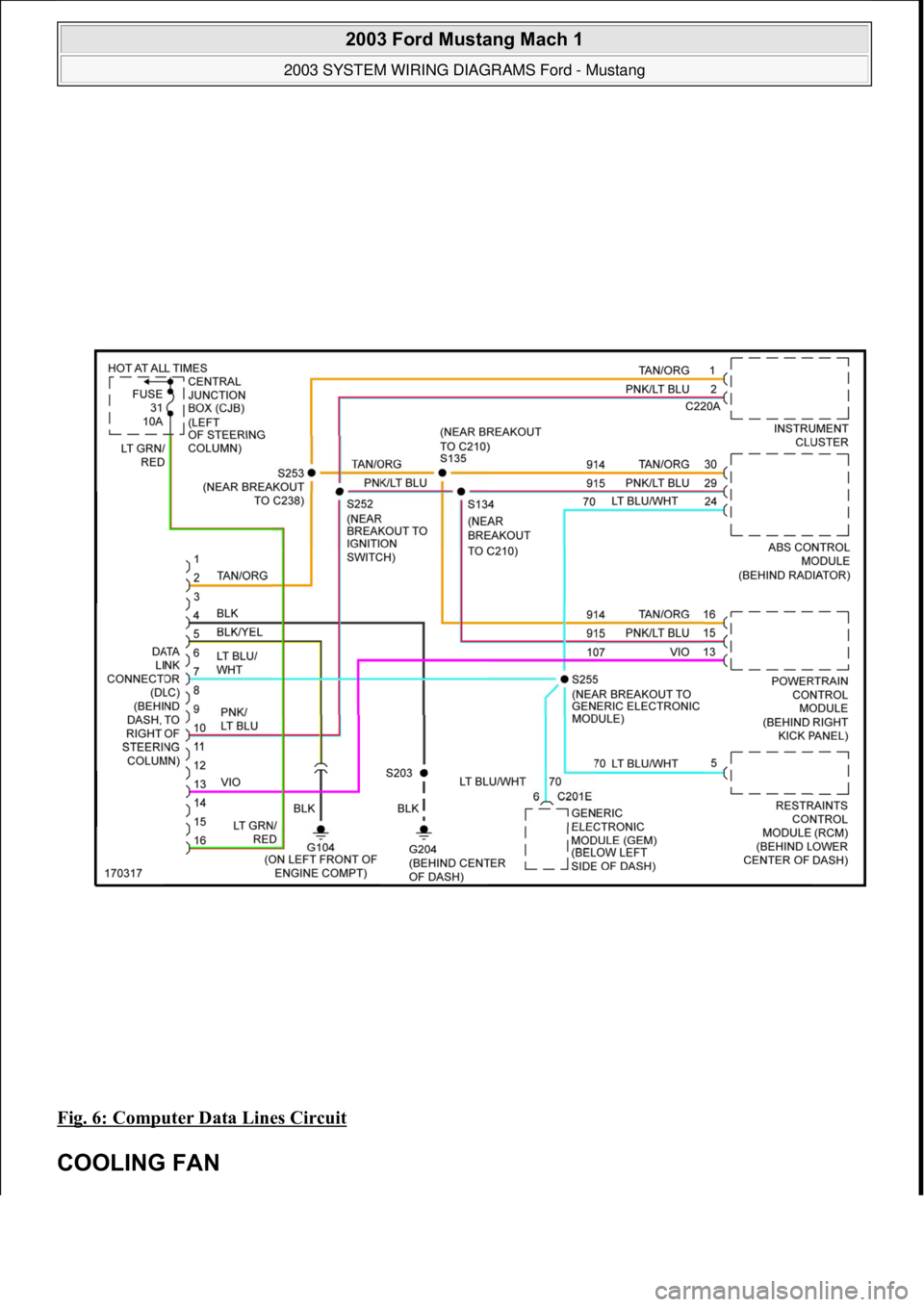

Fig. 6: Computer Data Lines Circuit
COOLING FAN
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 7 © 2006 Mitchell Repair Information Company, LLC.
Page 4330 of 4378
3.8L

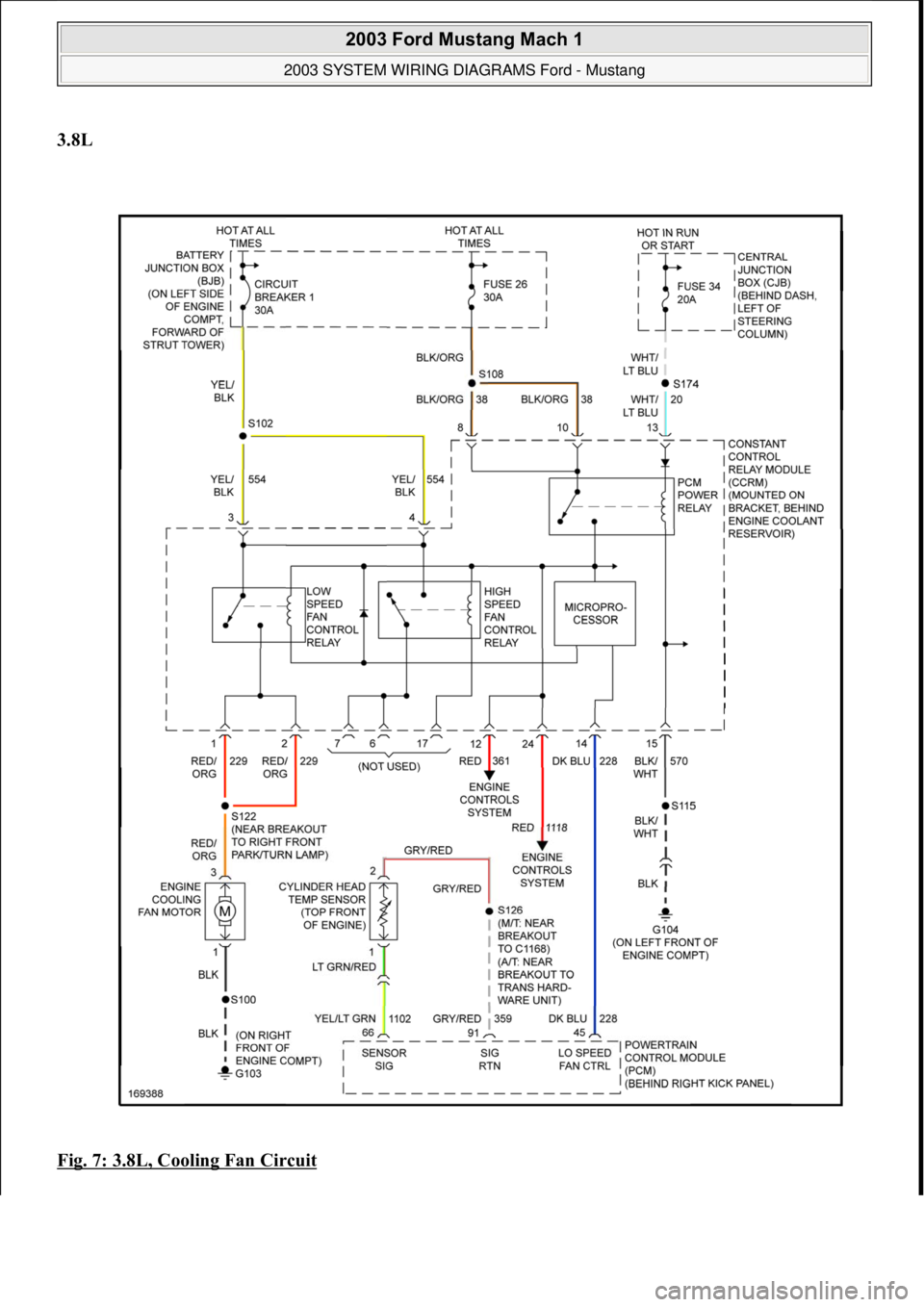

Fig. 7: 3.8L, Cooling Fan Circuit
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 8 © 2006 Mitchell Repair Information Company, LLC.
Page 4331 of 4378
4.6L

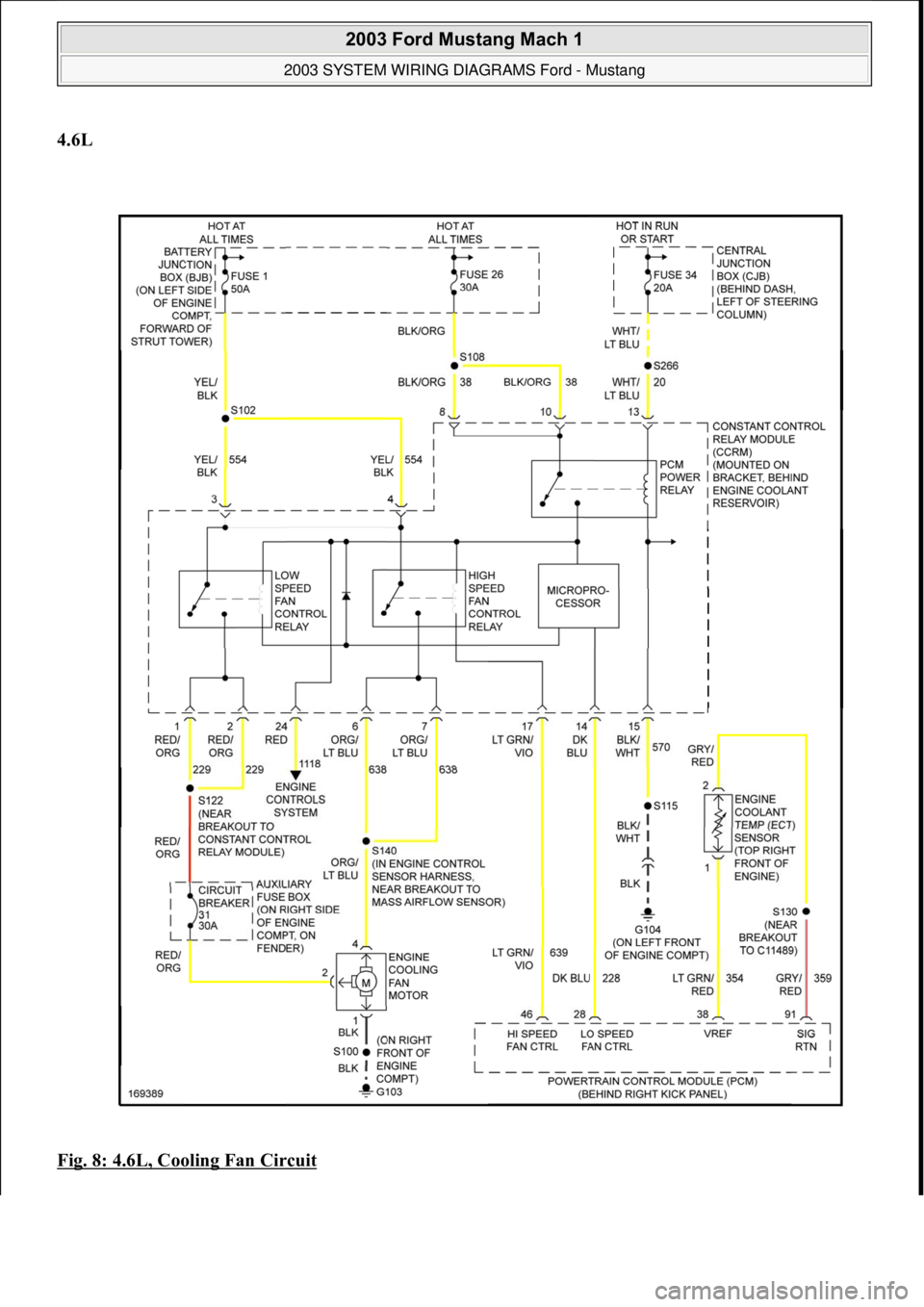

Fig. 8: 4.6L, Cooling Fan Circuit
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 9 © 2006 Mitchell Repair Information Company, LLC.
Page 4332 of 4378
CRUISE CONTROL

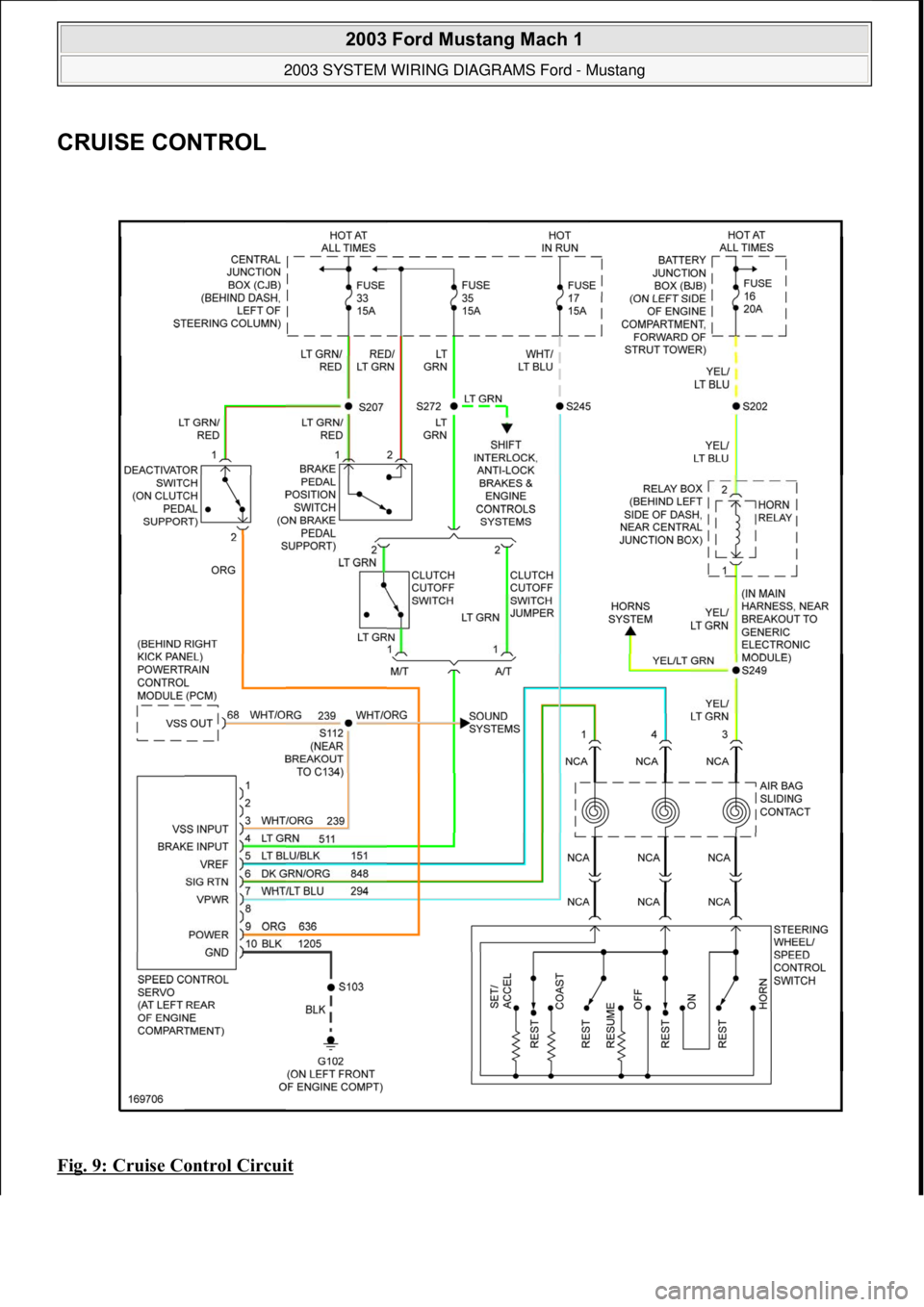

Fig. 9: Cruise Control Circuit
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 10 © 2006 Mitchell Repair Information Company, LLC.
