Page 4373 of 4378

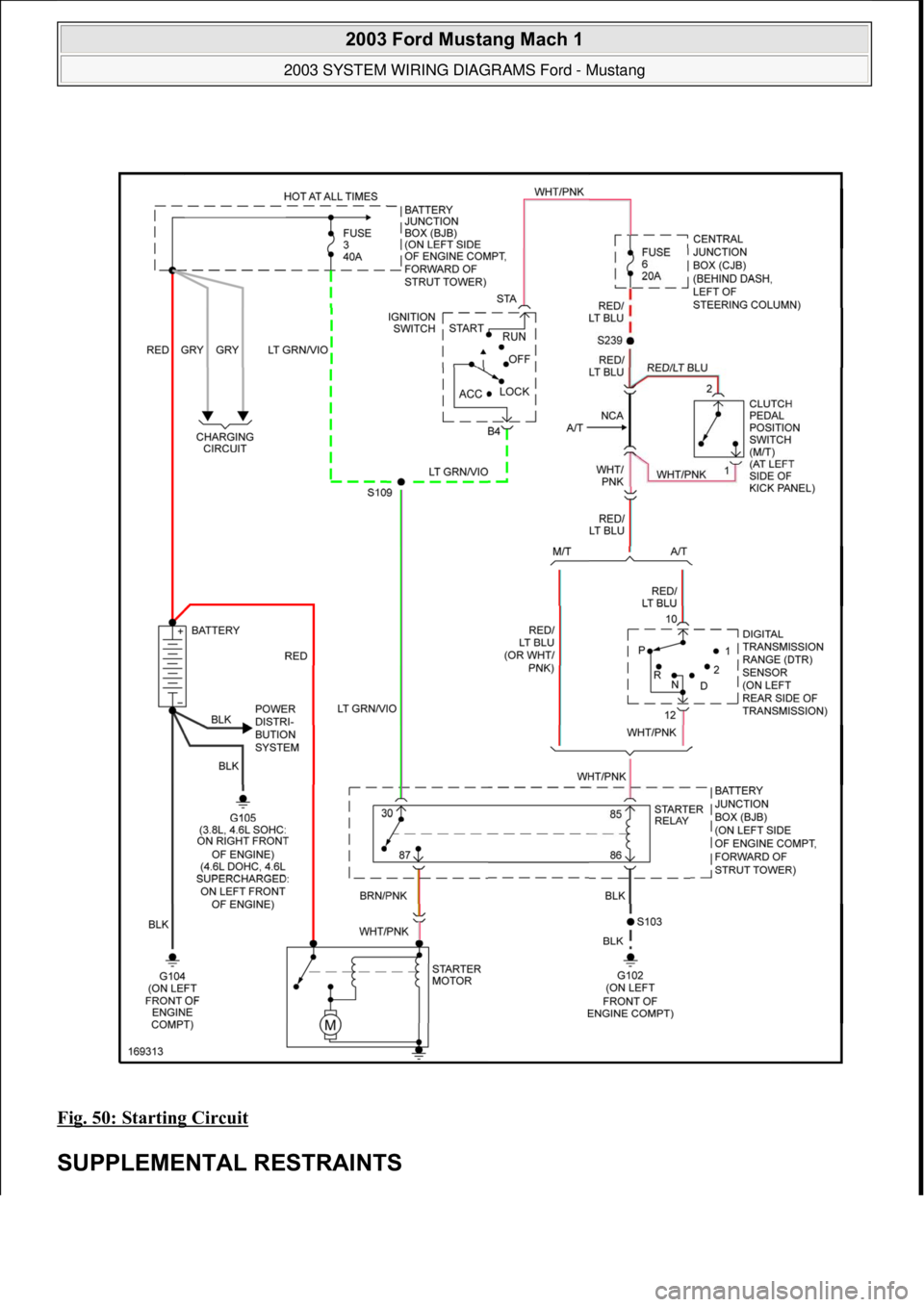

Fig. 50: Starting Circuit
SUPPLEMENTAL RESTRAINTS
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 51 © 2006 Mitchell Repair Information Company, LLC.
Page 4374 of 4378

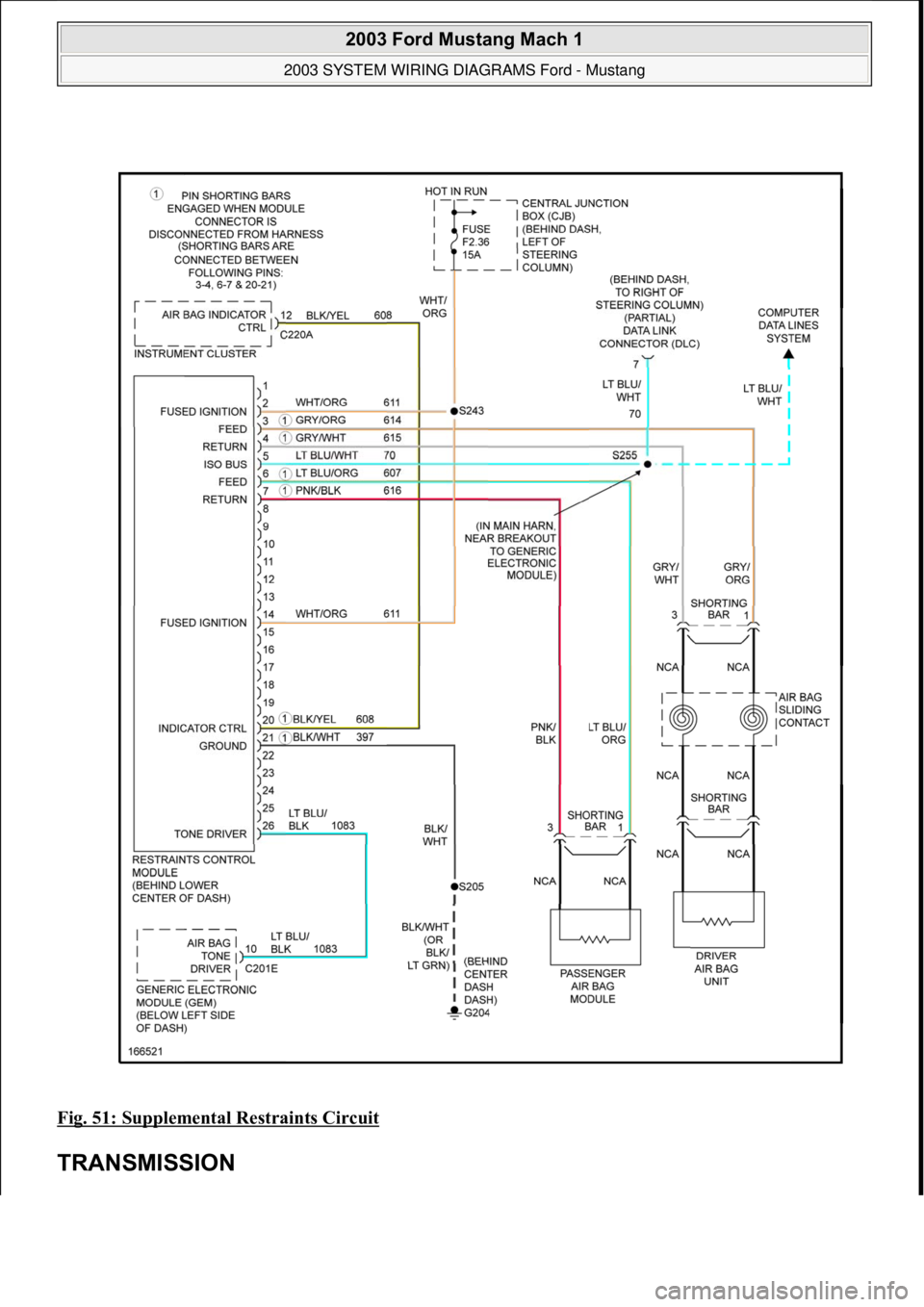

Fig. 51: Supplemental Restraints Circuit
TRANSMISSION
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 52 © 2006 Mitchell Repair Information Company, LLC.
Page 4375 of 4378

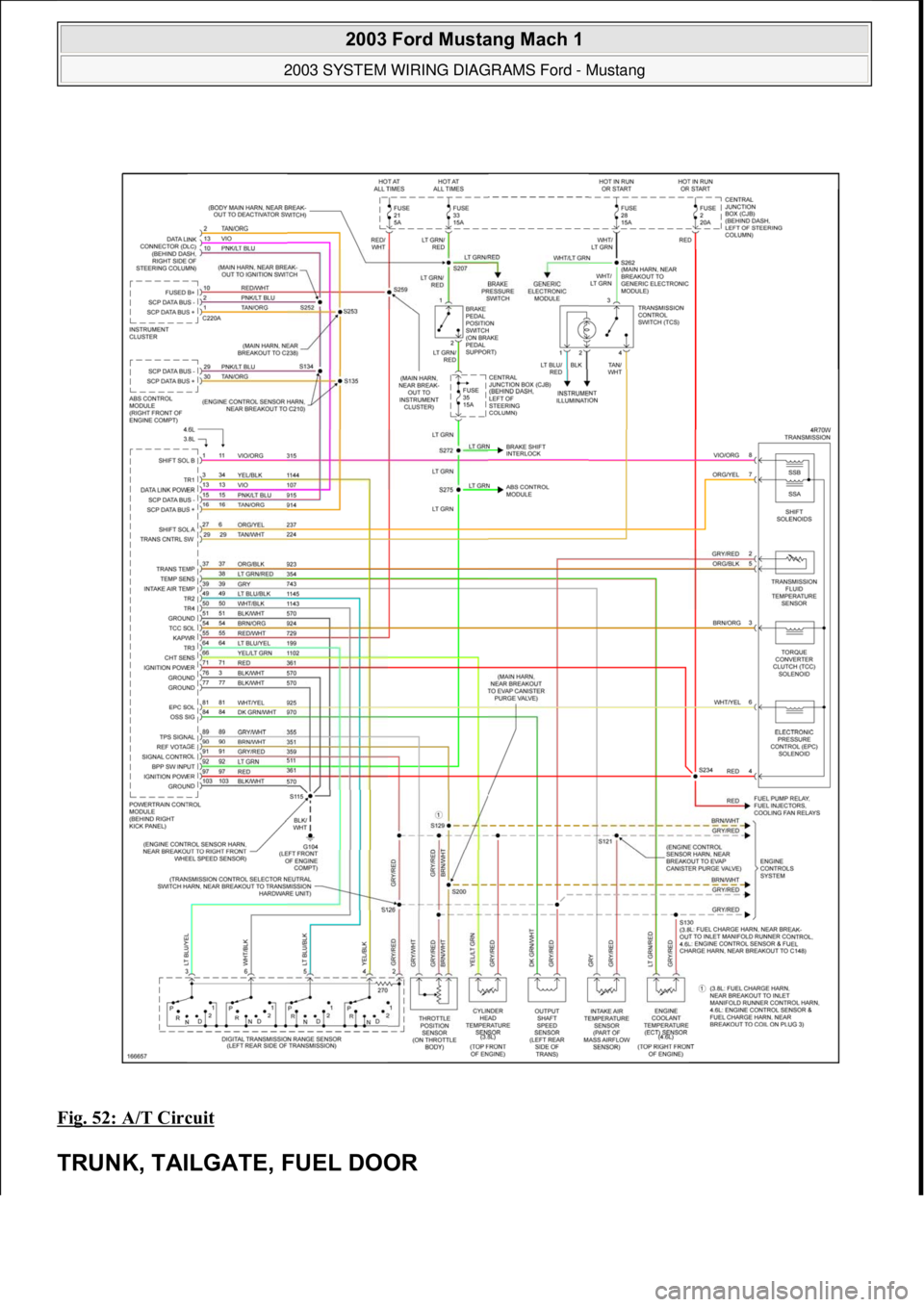

Fig. 52: A/T Circuit
TRUNK, TAILGATE, FUEL DOOR
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 53 © 2006 Mitchell Repair Information Company, LLC.
Page 4376 of 4378

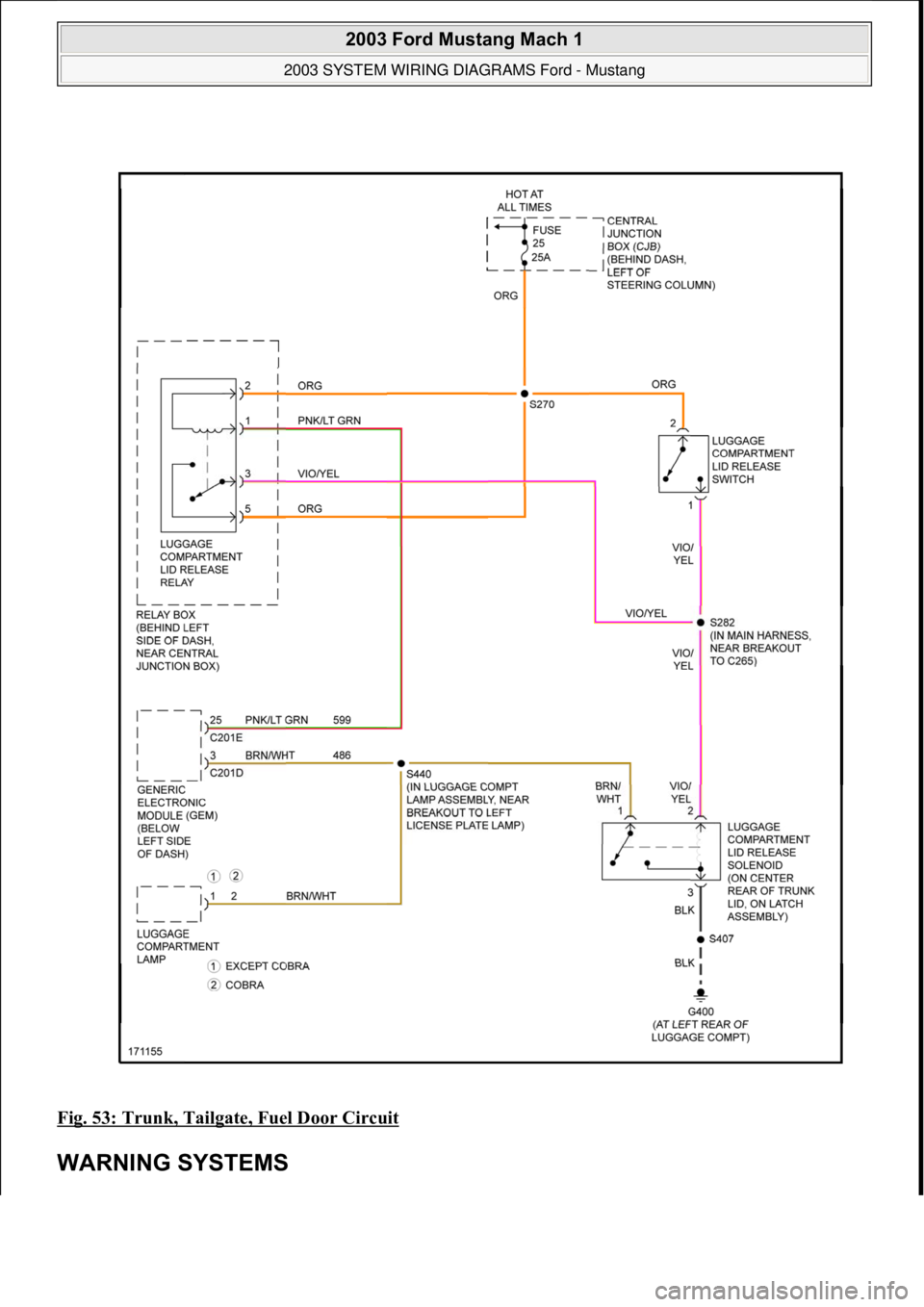

Fig. 53: Trunk, Tailgate, Fuel Door Circuit
WARNING SYSTEMS
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 54 © 2006 Mitchell Repair Information Company, LLC.
Page 4377 of 4378
Fig. 54: Warning Systems Circuit
WIPER/WASHER
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 55 © 2006 Mitchell Repair Information Company, LLC.
Page 4378 of 4378

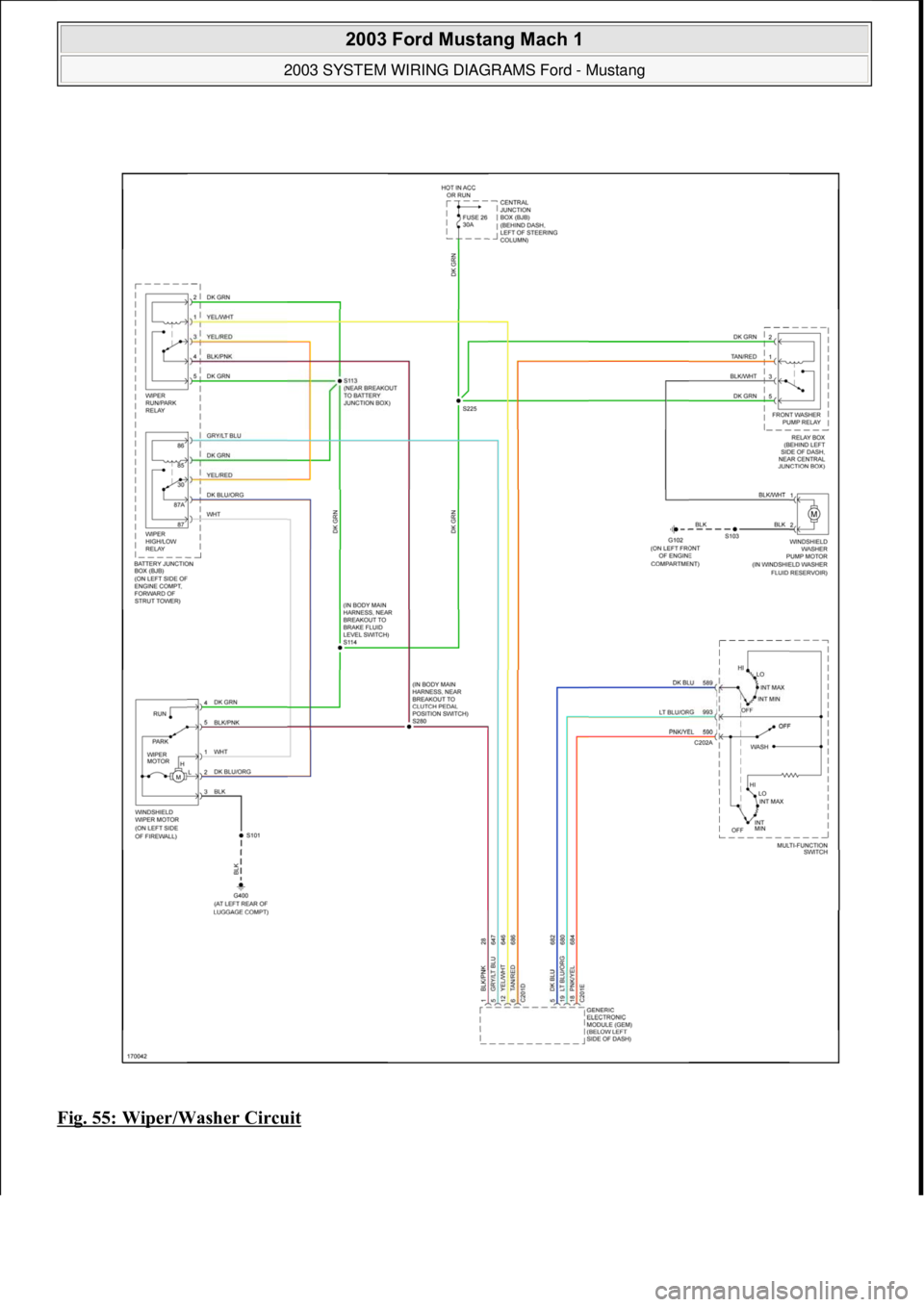

Fig. 55: Wiper/Washer Circuit
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 56 © 2006 Mitchell Repair Information Company, LLC.
