2003 CHEVROLET ASTRO Owners Manual

Part B: Owner Checks and Services
Listed in this part are owner checks and services
which should be performed at the intervals specified to
help ensure the safety, dependability and emission
control performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each fuel fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil
if necessary. See Engine Oil on page 5-15 for
further details.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL@
coolant mixture
if necessary. See Engine Coolant
on page
5-28 for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the windshield
washer tank and add the proper fluid
if necessary.
See
Windshield Washer Fluid on page 5-41 for
further details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the correct pressures.
Don’t forget to check your spare tire. See
Tires on
page
5-63 for further details.
At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and all your belts,
buckles, latch plates, retractors and anchorages are
working properly. Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag
system does not need regular maintenance.)
6-26

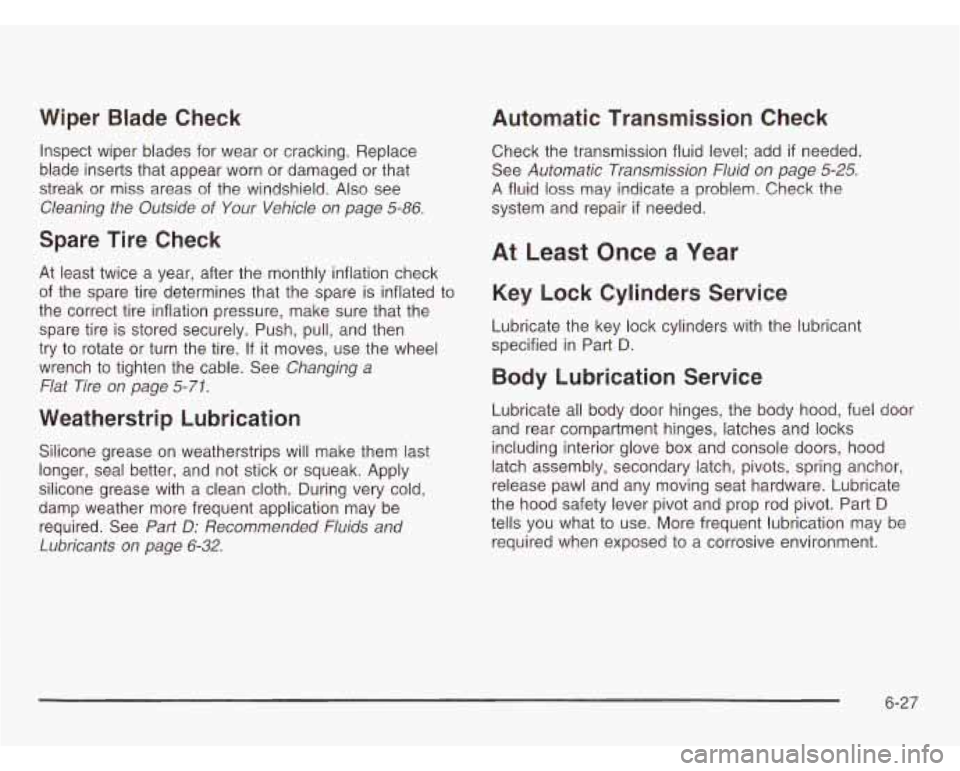

Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace
blade inserts that appear worn or damaged or that
streak or miss areas of the windshield. Also see
Cleaning the Outside of Your Vehicle on page 5-86.
Spare Tire Check
At least twice a year, after the monthly inflation check
of the spare tire determines that the spare is inflated to
the correct tire inflation pressure, make sure that the
spare tire is stored securely. Push, pull, and then
try
to rotate or turn the tire. If it moves, use the wheel
wrench
to tighten the cable. See Changing a
Flat Tire on page 5-71.
Weatherstrip Lubrication
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth. During very cold,
damp weather more frequent application may be
required. See
Part D: Recommended Fluids and
Lubricants on page
6-32.
Automatic Transmission Check
Check the transmission fluid level; add if needed.
See
Automatic Transmission Fluid on page 5-25.
A fluid loss may indicate a problem. Check the
system and repair
if needed.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part D.
Body Lubrication Service
Lubricate all body door hinges, the body hood, fuel door
and rear compartment hinges, latches and locks
including interior glove box and console doors, hood
latch assembly, secondary latch, pivots, spring anchor,
release pawl and any moving seat hardware. Lubricate
the hood safety lever pivot and prop rod pivot. Part D
tells you what to use. More frequent lubrication may be
required when exposed
to a corrosive environment.
6-27

Starte’ emvitnCI Check
When you are doing this check, the vehicle
could move suddenly.
If it does, you or others
could be injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. See
Parking Brake on page 2-26 if necessary.
Do not use the accelerator pedal, and be ready to
turn
off the engine immediately if it starts.
3. Try to start the engine in each gear. The starter
should work only in PARK (P) or NEUTRAL
(N).
If the starter works in any other position, your
vehicle needs service.
Automatic Transmission Shift Lock
Co
-. - - I System Check
When you are do J this checl , he vehicle
could move suddenly.
If it does, you or others
could be injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. See
Parking Brake
on page 2-26
if necessary.
Be ready to apply the regular brake immediately
if the vehicle begins to move.
position, but don’t start the engine. Without applying
the regular brake, try to move the shift lever out
of PARK (P) with normal effort. If the shift lever
moves out of PARK (P), your vehicle needs service.
3. With the engine off, turn the key to the RUN
6-28

Ignition Transmission Lock Check Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake,
While parked, and with the parking brake set,
tw to turn set the parking brake.
the ignition key to LOCK in each shift lever position.
0 The key should turn to LOCK only when the
0 The key should come out only in LOCK.
shift
lever is in PARK (P).
Parking Brake and Automatic
Transmission Park
(P) Mechanism
C’ leck
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front
of your vehicle in
case it begins to roll. Be ready to apply the
regular brake at once should the vehicle begin
to move.
To check the parking brake’s holding ability:
With the engine running and transmission in
NEUTRAL (N), slowly remove foot pressure from
the regular brake pedal.
Do this until the vehicle is
held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to PARK (P).
Then release the parking brake followed by the
regular brake.
Underbody Flushing Service
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
6-29

Part C: Periodic Maintenance
Inspections
Listed in this part are inspections and services which
should be performed at least twice a year (for instance,
each spring and fall).
You should let your dealer’s
service department or other qualified service center
do these jobs. Make sure any necessary repairs
are completed at once.
Proper procedures to perform these services may be
found in a service manual. See
Service Publications
Ordering Information on page
7- 1 1.
Steering, Suspension and Front
Drive Axle Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals
if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system.
Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes, loose connections or other conditions which
could cause a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See
Engine Exhaust
on page
2-30.
Fuel System Inspection
Inspect the complete fuel system for damage or leaks.
Engine Cooling System Inspection
Inspect the hoses and have them replaced if they
are cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed. Clean the
outside of the radiator and air conditioning condenser.
To help ensure proper operation, a pressure test of
the cooling system and pressure cap is recommended
at least once a year.
6-30

Throttle System Inspection
Inspect the throttle system for interference or binding,
and for damaged or missing parts. Replace parts
as needed. Replace any components that have high
effort or excessive wear.
Do not lubricate accelerator
and cruise control cables.
Transfer Case and Front Axle
(All-Wheel Drive) Inspection
Every 12 months, or at engine oil change intervals,
check front axle and transfer case and add lubricant
when necessary.
A fluid loss could indicate a problem.
Check and have it repaired, if needed. Check vent
hose at transfer case for kinks and proper installation.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and
rotors for surface condition. inspect other brake parts,
including calipers, parking brake, etc. Check parking
brake adjustment. You may need to have your brakes
inspected more often
if your driving habits or conditions
result in frequent braking.
6-31

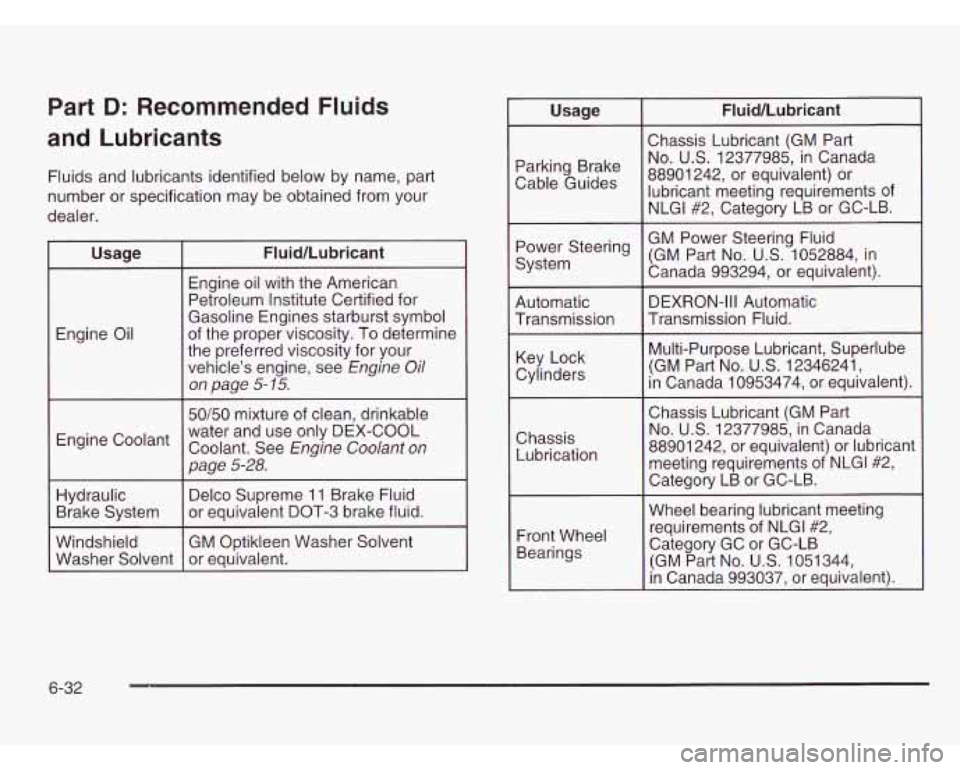

Part D: Recommended Fluids
and Lubricants
Fluids and lubricants identified below by name, part
number or specification may be obtained from your
dealer.
Engine Coolant
t
I
Hydraulic
Brake System
Windshield Washer Solvent
Fluid/Lubricant
Engine oil with the American
Petroleum Institute Certified for
Gasoline Engines starburst symbol
of the proper viscosity.
To determine
the preferred viscosity for your
vehicle’s engine, see
Engine Oil
on page 5- 15.
50/50 mixture of clean, drinkable
water and use only DEX-COOL
Coolant. See
Engine Coolant on
page
5-28.
Delco Supreme 11 Brake Fluid
or equivalent DOT-3 brake fluid.
GM Optikleen Washer Solvent
or equivalent.
Usage I Fluid/Lubricant
~~~~~
Chassis Lubricant (GM Part
No. U.S. 12377985, in Canada
88901242, or equivalent) or lubricant meeting requirements of
NLGl #2, Category LB or GC-LB. Parking Brake
Cable Guides
GM Power Steering Fluid
(GM Part
No. US. 1052884, in
Canada 993294, or equivalent).
System Power
Automatic
I DEXRON-Ill Automatic
Transmission
Transmission
Fluid.
Key Lock
Cylinders Multi-Purpose
Lubricant, Superlube
(GM Part No.
U.S. 12346241,
in Canada 10953474, or equivalent).
Chassis Lubrication Chassis Lubricant (GM Part
No. U.S. 12377985,
in Canada
88901 242, or equivalent) or lubricant
meeting requirements of NLGl#2,
Category LB or GC-LB.
Front Wheel
Bearings Wheel
bearing lubricant meeting
requirements of NLGl#2,
Category GC or GC-LB (GM Part
No. U.S. 1051344,
in Canada 993037, or equivalent).
6-32

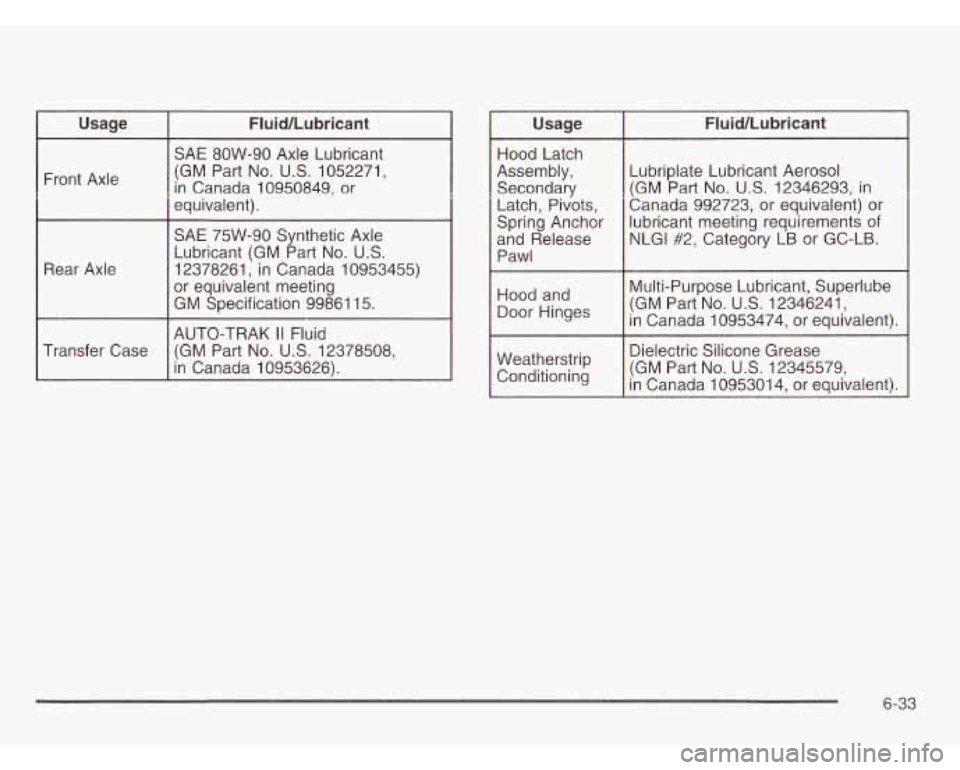

Front Axle
Rear Axle (GM
Part
No. US. 1052271,
in Canada 10950849,
or
SAE 75W-90 Synthetic Axle
Lubricant (GM Part
No. U.S.
378261, in Canada 10953455) equivalent meeting
0-TRAK
II Fluid
Transfer Case Part
No. U.S. 12378508
Usage
Hood Latch
Assembly, Secondary
Latch, Pivots,
Spring Anchor
and Release
Pawl
Hood and
Door Hinges
Weatherstrip Conditioning
Fluid/Lubricant I
Lubriplate Lubricant Aerosol
(GM Part
No. US. 12346293, in
Canada 992723, or equivalent) or
lubricant meeting requirements
of
NLGl#2, Category LB or GC-LB.
Multi-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474,
or equivalent).
Dielectric Silicone Grease
(GM Part
No. US. 12345579,
in Canada 1095301 4, or equivalent).
6-33
