2. Pull the connector out
and unplug the lamp.
3. Plug the new lamp into the connector.
4. Reverse Steps 1 and 2 to reinstall the headlamp.
Composite Headlamps
1. Open the hood.
2. Remove the two
screws from the
sidemarkedturn
signal lamp.
5-56

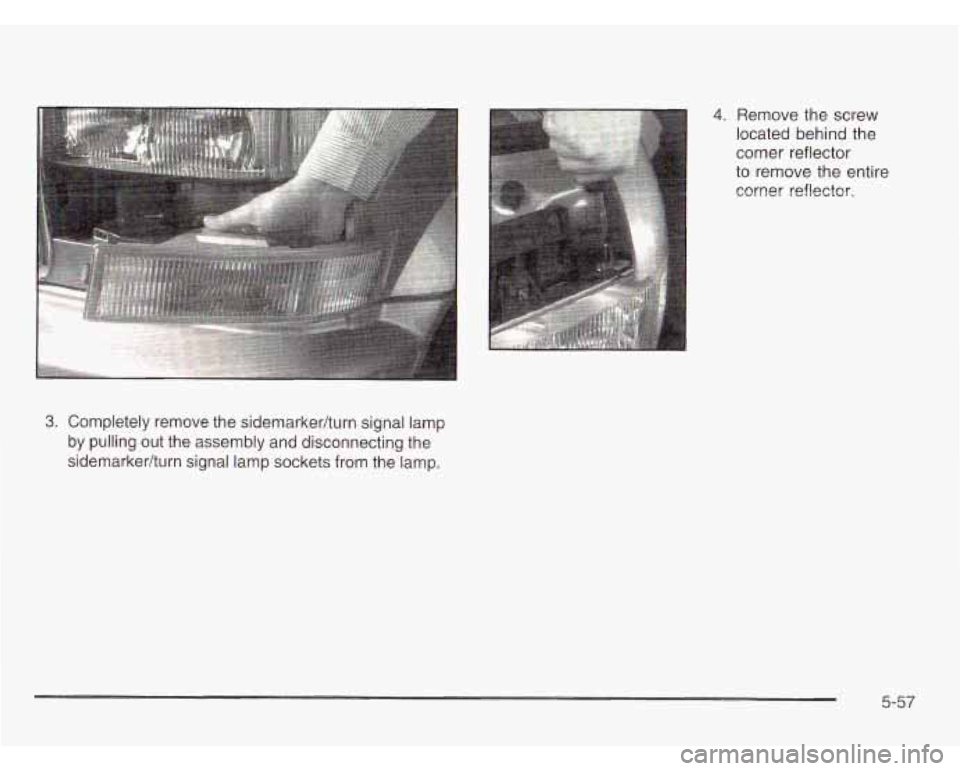

3. Completely remove the sidemarkedturn signal lamp
by pulling out the assembly and disconnecting the
sidemarkedturn signal lamp sockets from the lamp.
4. Remove the screw
located behind the
corner reflector
to remove the entire
corner reflector.
5-57

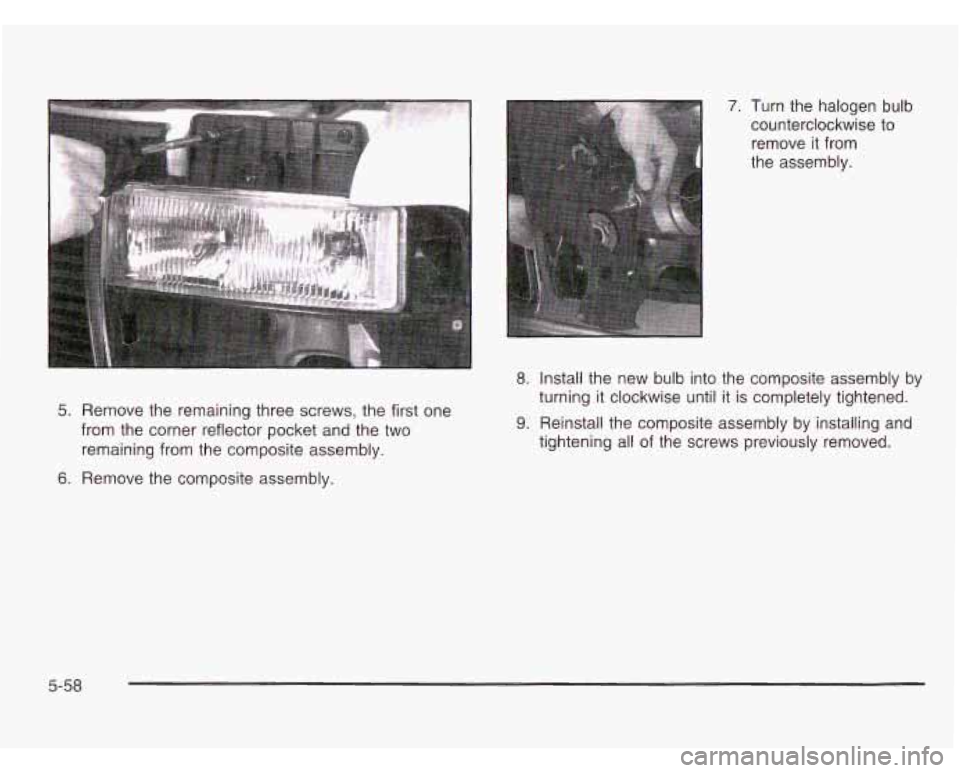

5. Remove the remaining three screws, the first one
from the corner reflector pocket and the two
remaining from the composite assembly.
6. Remove the composite assembly.
7. Turn the halogen bulb
counterclockwise to
remove it from
the assem bly.
8. Install the new bulb into the composite assembly by
turning it clockwise until it is completely tightened.
9. Reinstall the composite assembly by installing and
tightening all of the screws previously removed.
5-58

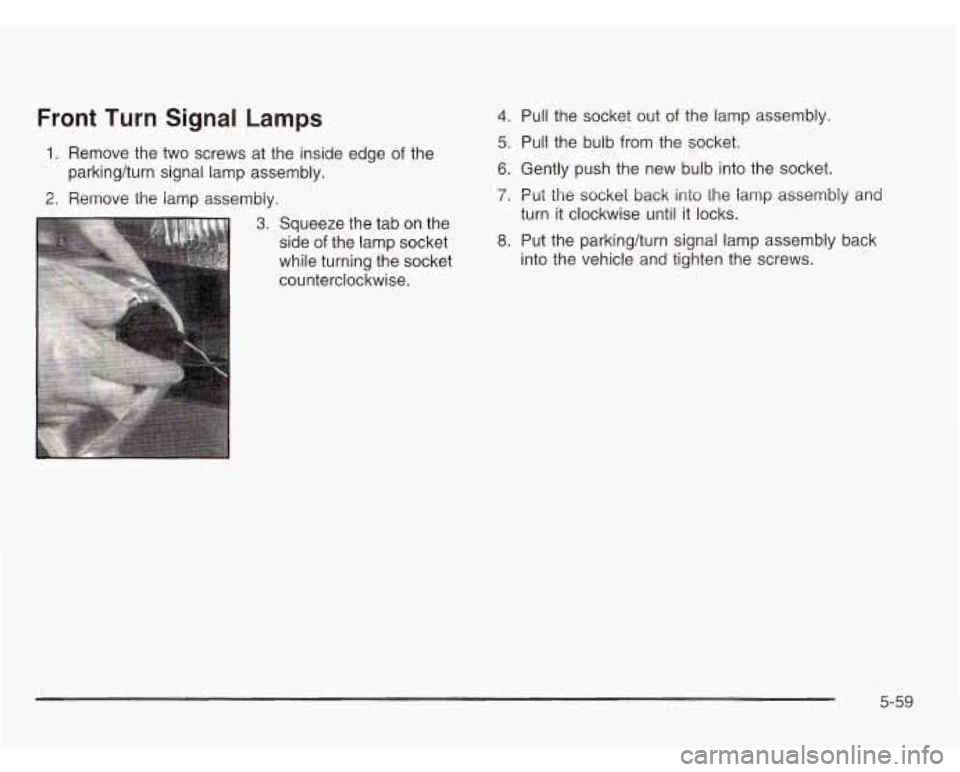

Front Turn Signal Lamps
1. Remove the two screws at the inside edge of the
2. Remove the lamp assembiy.
parkinghurn signal
lamp assembly.
3. Squeeze the tab on the
side
of the lamp socket
while turning the socket
counterclockwise.
4. Pull the socket out of the lamp assembly.
5. Pull the bulb from the socket.
6. Gently push the new bulb into the socket.
7. Put the socket back into the lamp assembiy and
turn it clockwise until it locks.
8. Put the parkinghurn signal lamp assembly back
into the vehicle and tighten the screws.
5-59

Taillamps
1. Open the rear door.
2. Remove the two
screws from behind
the door.
3. Pull out the taillamp assembly so you can see the
socket.
5-60

4. Press the tab and
turn the socket
counterclockwise to
remove the socket from
the bezel: If the socket
does not have a
tab, turn the socket
counterclockwise
to remove the socket
from the bezel.
5. Remove the old bulb from the socket and replace it
6. Reverse Steps 1 through 4 to reinstall the taillamp.
with a new one.
Replacement Bulbs
Exterior Lamp I Bulb Number
I
Halogen
Headlamps
Sealed Beam 1 H6054
I Halogen Headlamps Composite I9006 (Low Beam) I
5-6 1

Windshield Wiper Blade Replacement To replace your windshield
wiper blade inserts, do the
following:
Windshield wiper blades should be inspected at least
twice a year for wear and cracking. See "Wiper
Blade Check in
At Least Twice a Year on page 6-26 for
more information.
1. Lift the wiper arm away from the windshield.
2. Pinch the two tabs on the wiper arm and slide the
insert out of the blade.
3. Slide the new one in place.
Make sure the tabs are locked into position. See
Normal
Maintenance Replacement Parts
on page 5- 10 I for
the proper type of replacement blade.
5-62

Tires
Your new vehicle comes with high-quality tires made by
a leading tire manufacturer.
If you ever have questions
about your tire warranty
and where to obtain service,
see your GMC Warranty booklet for details.
Poorl! lail -Jned anc. ..nproy-. ly used tires
are dangerous.
Overloading your tires can cause
overheating as a result of too much
friction. You could have an air-out and a
serious accident. See “Loading Your
Vehicle” in the Index.
CAUTION: (Continued)
0 Underinflated tires pose the same danger
as overloaded tires. The resulting accident
could cause serious injury. Check
all tires
frequently to maintain the recommended pressure. Tire pressure should be checked
when your tires are cold.
Overinflated tires are more likely to be
cut, punctured or broken by
a sudden
impact
- such as when you hit a pothole.
Keep tires at the recommended pressure.
Worn, old tires can cause accidents.
If your tread
is badly worn, or if your tires
have been damaged, replace them.
5-63
