Page 63 of 166
63

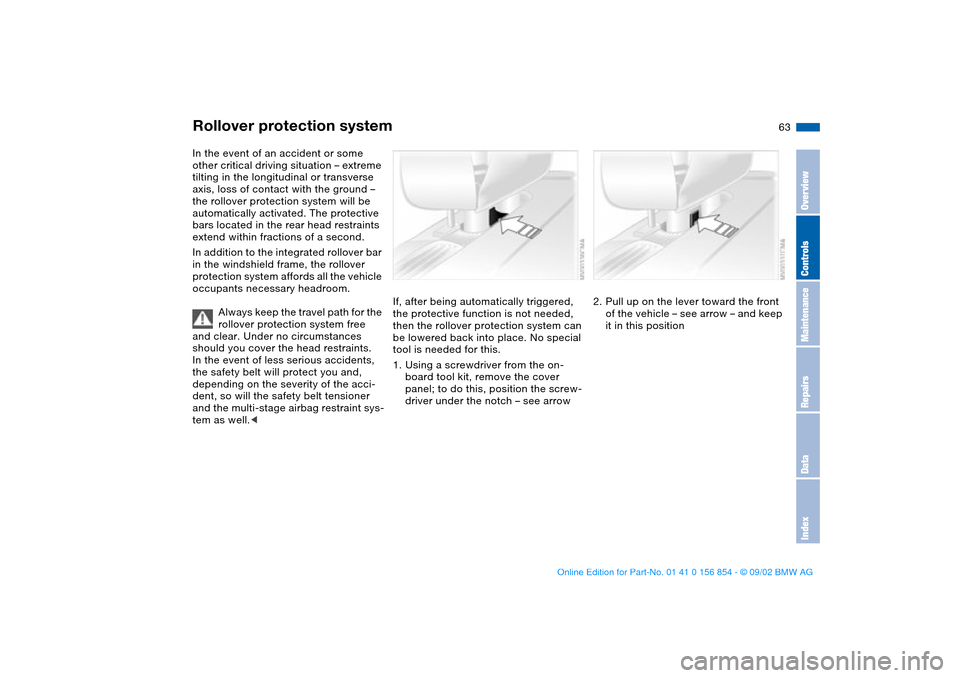

Rollover protection system In the event of an accident or some
other critical driving situation – extreme
tilting in the longitudinal or transverse
axis, loss of contact with the ground –
the rollover protection system will be
automatically activated. The protective
bars located in the rear head restraints
extend within fractions of a second.
In addition to the integrated rollover bar
in the windshield frame, the rollover
protection system affords all the vehicle
occupants necessary headroom.
Always keep the travel path for the
rollover protection system free
and clear. Under no circumstances
should you cover the head restraints.
In the event of less serious accidents,
the safety belt will protect you and,
depending on the severity of the acci-
dent, so will the safety belt tensioner
and the multi-stage airbag restraint sys-
tem as well.<
If, after being automatically triggered,
the protective function is not needed,
then the rollover protection system can
be lowered back into place. No special
tool is needed for this.
1. Using a screwdriver from the on-
board tool kit, remove the cover
panel; to do this, position the screw-
driver under the notch – see arrow
2. Pull up on the lever toward the front
of the vehicle – see arrow – and keep
it in this position
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 63 Tuesday, July 30, 2002 9:28 AM
Page 86 of 166
86Technology for safety and driving convenience
Park Distance Control (PDC)*The conceptPDC assists you when you back into a
parking space. Acoustic signals alert
you to the momentary distance to an
object behind your vehicle. To do this,
four ultrasonic sensors in the rear
bumper measure the distance to the
nearest object. The range for the sen-
sors located at both rear corners ends
approx. 2 ft/60 cm behind the bumpers.
The range for the two middle sensors is
slightly less than 5 ft/1.50 m.
PDC is a parking aid that can
identify objects if they are
approached slowly, as is generally the
case when parking. Avoid driving
towards objects rapidly; due to underly-
ing physical principles, the system may
otherwise alert you too late for you to
take evasive steps.<
The system is activated automatically
about one second after you engage
reverse with the ignition key in
position 2.
Let this short period elapse before
driving backwards.<
PDC is deactivated when you shift back
out of Reverse.
You can have a signal set to con-
firm that the PDC has been acti-
vated.<
Acoustic signalsThe distance to the nearest object is
indicated by a tone sounding at various
intervals. As the distance between vehi-
cle and object decreases, the intervals
between the tones become shorter. A
continuous tone indicates the pres-
ence of an object less than 1 ft/30 cm
away.
The warning signal is canceled after
approx. three seconds if the distance to
the object remains constant during this
time – if you are moving parallel to
a wall, for instance.
System malfunctions will be indicated
by a continuous high-pitched tone
when the system is activated the first
time. Please have your BMW center
resolve the problem.
PDC does not remove the driver's
personal responsibility for evaluat-
ing the distance between the vehicle
and any objects. Even when sensors
are involved, there is a blind spot in
which objects cannot be detected. This
applies especially in those cases where
the system approaches the physical
limits of ultrasonic measurement, as
occurs with tow bars and trailer cou-
plings, and in the vicinity of thin or
wedge-shaped objects. Moreover, low
objects that have already been
detected – such as a curb edge – can
disappear out of the detection range of
the sensors before a continuous tone
sounds.
Loud sources of sound from outside or
inside the vehicle could drown out the
PDC signal tone.<
Keep the sensors clean and free
of ice or snow in order to ensure
that they will continue to operate effec-
tively.
Do not apply high pressure spray to the
sensors for a prolonged period of time.
Always maintain a distance of more
than 4 in/10 cm.<
handbook.book Page 86 Tuesday, July 30, 2002 9:28 AM
Page 160 of 166
Everything from A to ZReading lamps
front 94
rear 95
Rear lamps 137
Rear window defroster 99
Rear-entry assist 51
Rearview mirror 55
Recirculated-air mode 99
Refueling 24
Remote control 31
Remote key 30
Replacement key 30, 31
Reporting safety defects 6
Reserve indicator lamp 81
Restraint system 59
Reverse 70
Rims 118
Rollover protection
system 63
indicator lamp 19
lowering 63
Roof load capacity 152
Roof-mounted luggage
rack 107
S
Safe seating position 48
Safety belts 52
seat-integrated belt sys-
tem (SGS) 51
Seat
rear-entry assist 51Seat adjustment 48, 49
lumbar support 49, 50
power seats 49
Seat heating 54
Seat memory 53
Securing cargo 106
Securing child-restraint sys-
tem 61
Securing devices 107
Sequential M gearbox
SMG II 71
indicator lamp 19, 75
Service and Warranty Infor-
mation Booklet 128
SERVICE ENGINE SOON
warning lamp 19
Service interval display
82, 128
Set clock 83
Side airbags 57
Side turn signals
bulb replacement 136
Size 151
Ski bag 104
SMG gearbox 71
Snow chains 119
Socket 103
Spare key 30
Speedometer 16
Sport mode 91
Standing lamps 93
bulb replacement 135Starting problems 67
Starting the engine 67
Steering wheel lock 66
Steering wheel with multi-
function buttons 22
Steering wheel, adjusting 55
Storage compartments 101
Stroke 150
Summer tires 118
Surface ice warning 84
Switching off the engine 69
Symbols used 4
T
Tachometer 16, 80
Tail lamp assembly
replacing bulb 137
Tail lamps 137
replacing bulb 137
Tank capacity 153
Technical data 150
Technical modifications 5
Telephone hookup 102
Telephone, refer to the sep-
arate Owner's Manual
Temperature adjustment 98
Temperature display
engine coolant 81
ice warning 84
interior temperature 98
outside temperature 84
Temperature gauge 80Temperature layering 99
Thigh support area, adjust-
ing 49
Third brake lamp 138
Tilt alarm
deactivate 32, 39
Tilt alarm sensor
remote control 32
Time 83
Tire code 118
Tire damage 115
Tire inflation pressure
25, 115
checking 25
Tire pressure monitor
(TPM) 88
Tire replacement 116
Tire tread 115
Tools 134
Torque 150
Towing eyelet 146
Towing the vehicle 146
Track 151
Transmission 70
Transporting children
safely 59
Tread depth, tires 115
Tread wear indicator 115
Trip odometer 80
Trunk, see Luggage com-
partment 35, 152
