Page 73 of 166
73
Shifting gears with shift paddles on
steering wheel:
>To upshift, briefly pull the right pad-
dle +
>To downshift, briefly pull the left pad-
dle –.
Shift paddles with various widths
matched to the shape of your
hand are available from your BMW cen-
ter.<
Shifting gears with selector lever:
>To upshift, pull the selector lever
backward +
>To downshift, push the selector lever
forward toward –.
No automatic upshifting is carried out in
the sequential mode.
You accelerate from higher gears, e.g.
during passing, by manually downshift-
ing.
In the following situations the SMG II
helps you think in the sequential mode:
>Upshifts and downshifts are only exe-
cuted when the new gear will provide
a suitable combination of vehicle and
engine speed, i.e., downshifts that
would cause the engine to overrev
will not be executed
>During a stop the gearbox is auto-
matically downshifted into the first
gear so that, e.g. before a traffic light,
it is only necessary to accelerate to
continue driving
>When the speed is reduced, the
gearbox is automatically down-
shifted shortly before a gear-depen-
dent minimum speed is reached with-
out you taking any action.A – Automated modeEach time the engine is started, the
automated mode is activated as soon
as you move the selector lever into the
forward driving position.
In the automated mode all forward
gears are automatically shifted.Changeover from sequential to auto-
mated mode: tap the selector lever to
the right toward A. Watch the display in
the instrument cluster, refer to page 72.
For rapid acceleration, e.g. during
passing, depress the accelerator pedal
completely – kickdown. The gearbox
now downshifts in dependence on the
selected driving program.
Even in the automated mode, you can
help specify the shifting point: if a gear-
dependent minimum speed is
exceeded, you can upshift by slowly
reducing pressure on the accelerator
pedal. In the process, the respective
driving situation is detected by sensors
and taken into account.
Sequential M gearbox SMG II*
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 73 Tuesday, July 30, 2002 9:28 AM

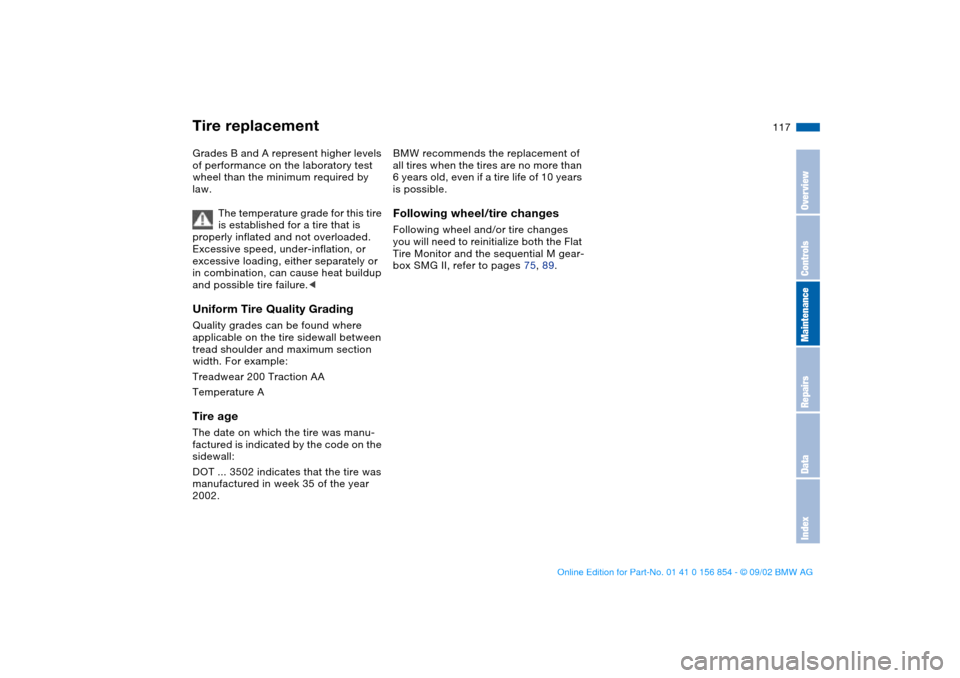

Page 117 of 166
117
Grades B and A represent higher levels
of performance on the laboratory test
wheel than the minimum required by
law.
The temperature grade for this tire
is established for a tire that is
properly inflated and not overloaded.
Excessive speed, under-inflation, or
excessive loading, either separately or
in combination, can cause heat buildup
and possible tire failure.
applicable on the tire sidewall between
tread shoulder and maximum section
width. For example:
Treadwear 200 Traction AA
Temperature ATire ageThe date on which the tire was manu-
factured is indicated by the code on the
sidewall:
DOT ... 3502 indicates that the tire was
manufactured in week 35 of the year
2002.
BMW recommends the replacement of
all tires when the tires are no more than
6 years old, even if a tire life of 10 years
is possible.Following wheel/tire changesFollowing wheel and/or tire changes
you will need to reinitialize both the Flat
Tire Monitor and the sequential M gear-
box SMG II, refer to pages 75, 89.
Tire replacement
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 117 Tuesday, July 30, 2002 9:28 AM
Page 161 of 166
Everything from A to Z
161
Trunk lid, see Luggage com-
partment lid 35
Turn signal indicator 76
indicator lamps 20
replacing bulb 136
Turning circle 151
U
Uniform Tire Quality
Grading 117
Upholstery care, refer to the
Caring for your vehicle
brochure
Used batteries 143
V
Vacuum cleaner, connect-
ing 103
Variable pre-warning
zone 80
Vehicle
break-in procedures 110
starting 67
switching off 69
Vehicle battery 143
Vehicle Memory 65
Vehicle weight 152
Ventilation 96
draft-free 99
Viscosity 125W
Warning lamp Please fasten
safety belts 18
Warning lamps 18
Warning messages 82
Warranty and Service Guide
Booklet 128
Warranty, refer also to sepa-
rate booklet 6
Washer fluid
adding 124, 153
indicator lamp 19
Washer/wiper system 77
Washing vehicle, refer to the
Caring for your vehicle
brochure
Water on roadways
deep water 111
Wear indicator for tires 115
Weights 152
Wheelbase 151
Wheels and tires 118
Wheelslip control, see
DSC 87
Width 151
Wind deflector 46
Window condensation,
removing 98
Windows
convenience operation 33
defrosting 98Windshield washer reservoir
filling 124, 153
Windshield wiper blades,
replacing 134
Windshield wipers 77
Winter tires 118
Wiper blades, replacing 134
Work in the engine compart-
ment 120
X
Xenon lamps 135
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 161 Tuesday, July 30, 2002 9:28 AM
