2003 ASTON MARTIN DB AR1 Q Owners Guide

A - Before Driving
1-A-21
Some models may have additional safety labels elsewhere, easily visible to the
vehicle occupants. Ensure that you have read and complied with the instructions
on these labels prior to driving the vehicle.
Do not change or modify or tamper with the steering wheel, passenger side
fascia or any other part of the airbag system. Such actions could disable the
system or cause inadvertent inflation.
The airbags are designed to deploy only in a serious frontal collision. Their
purpose is to provide additional protection for the front seat occupants if
thrown forwards in an accident. The system is designed so that it will not
deploy in the event of trivial frontal impacts such as minor contacts when
parking. The airbag system is not designed to protect against side or rear
impacts.
WARNINGS:
No objects whatsoever should be attached to the centre cover of the steering
wheel or the passenger fascia panel. Such objects could cause harm if the vehicle
is in a crash severe enough to cause the airbags to deploy.
All occupants, including the driver, should always wear seat belts, whether or not
an airbag is provided , to decrease the risk of injury or death in the event of a crash
CHILD SEATS AND PASSENGER AIRBAGS
DO NOT install a rearward facing child seat in the front passenger seat position.
If a front seat position must be employed, use only a forward facing child seat
with the passenger seat set as far rearwards as practical.
Any work on the airbag system must only be done by an Aston Martin Dealer.

A - Before Driving
1-A-22
Interior Storage
Door Storage
Open storage pockets are provided below the arm rests in both doors.
Front Armrest Storage
The front armrest lid is lockable.
The boot release switch and the
accessory socket are fitted in the
front armrest storage box.
Rear Storage
A rear storage area is provided
behind the driver and passenger
seats. Tie down straps enable
items to be secured.

A - Before Driving
1-A-23

A - Before Driving
1-A-24

B - Controls
1-B-1
Contents
Introduction....................................................................................... 1-B-2
Information/Warning Lights................................................................. 1-B-4
Instrument Panel Illumination............................................................. 1-B-9
Instruments ......................................................................................1-B-10
Steering Column Controls - Left Hand Stalk ...................................... 1-B-12
Steering Column Controls - Right Hand Stalk .................................... 1-B-14
Steering Wheel ................................................................................. 1-B-15
Console Mounted Controls............................................................... 1-B-16
Bonnet (Hood) and Boot (Trunk) ....................................................... 1-B-23
Accessory Socket .............................................................................. 1-B-26
Interior Lights ................................................................................... 1-B-27

B - Controls
1-B-2

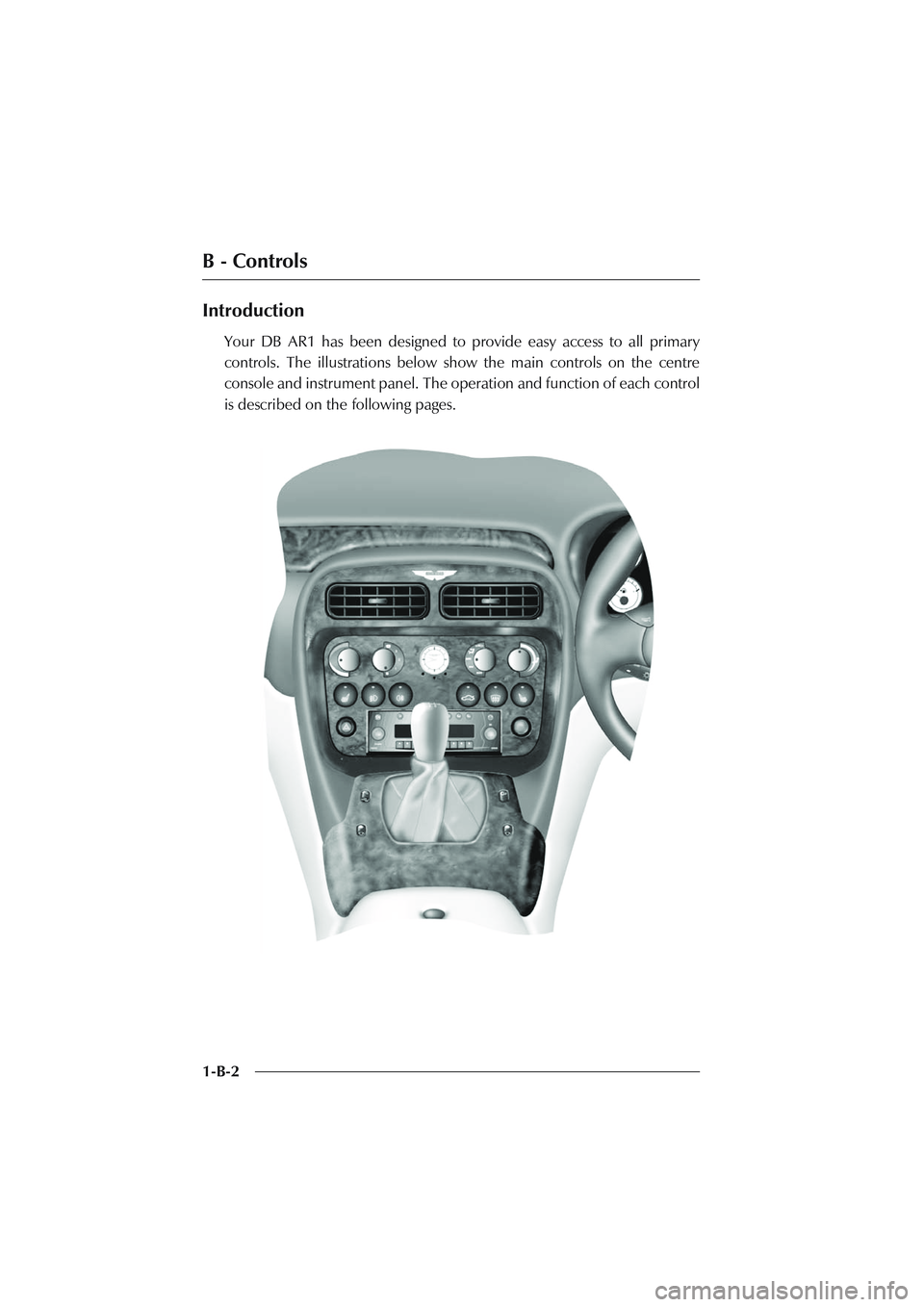

Introduction
Your DB AR1 has been designed to provide easy access to all primary
controls. The illustrations below show the main controls on the centre
console and instrument panel. The operation and function of each control
is described on the following pages.

B - Controls
1-B-3 Take a moment to familiarise yourself with those controls which you will
require most frequently and with the additional functions which may be
required in an emergency.

B - Controls
1-B-4
Information/Warning Lights
The Instrument Panel contains a number of information and warning lights
mounted above the instruments.
The information/warning light colours are significant and have the following
uses:
RED is used to warn drivers of concerns which may endanger them (e.g. Seat
Belt Warning, Brake System Warning, etc.) or to indicate potentially serious
problems with the car (e.g. Low Oil Pressure, Low Engine Coolant, etc.)
