2002 MERCEDES-BENZ M-Class display

49
IntroductionAudioTelephone Navigation Index
System settings
Single CD player
1Main CD menu for single CD player
2Icon for inserted CD in single CD player
3Scan function, scanning tracks, page 56
4Repeat function, page 56
5Random play, page 57
6Main sound settings menu,
Adjust sound settings, page 153
7Pause function, page 58
8Select time display, page 59CD changer
9Main CD menu for CD changer
10Icon for connected and loaded CD changer
11Number of selected CD
12Scan function, scanning tracks, page 56
13Repeat function, page 56
14Random play, page 57
15Main sound settings menu,
Adjust sound settings, page 153
16Select time display, page 59
17Pause function, page 58
CD operation

52
IntroductionAudioTelephone Navigation Index
System settings
Following screen massages can appear after is
pressed:
• “NO CD” - there is no CD inserted, insert a CD.
• “CD ERROR” - the inserted CD can not be read,
maybe the CD is inserted wrong, is damaged or is
not an audio CD.

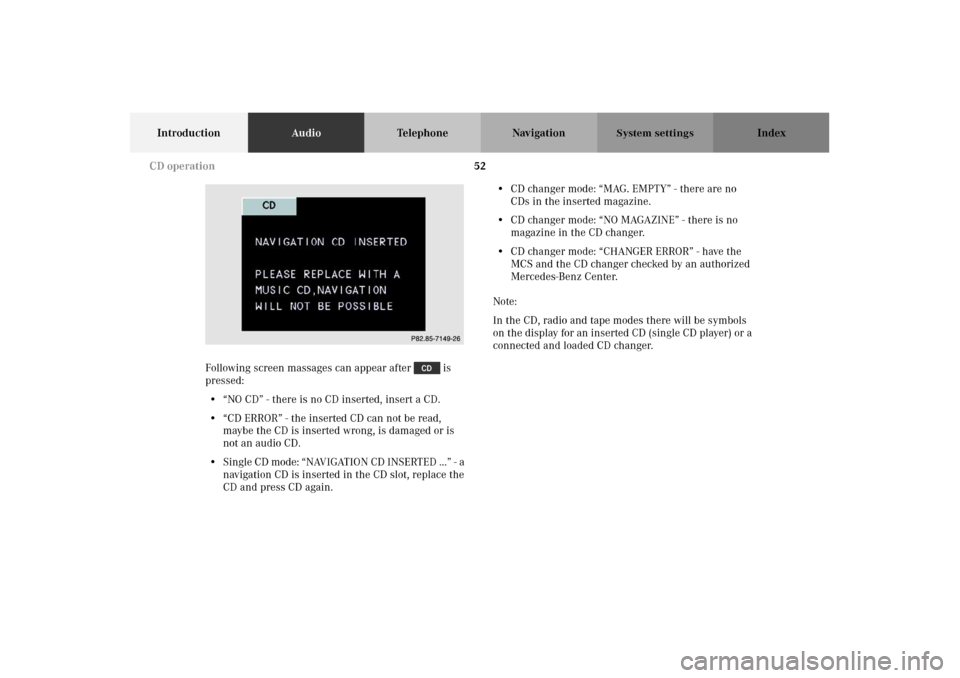

• Single CD mode: “NAVIGATION CD INSERTED ...” - a
navigation CD is inserted in the CD slot, replace the
CD and press CD again.• CD changer mode: “MAG. EMPTY” - there are no
CDs in the inserted magazine.
• CD changer mode: “NO MAGAZINE” - there is no
magazine in the CD changer.
•CD changer mode: “CHANGER ERROR” - have the
MCS and the CD changer checked by an authorized
Mercedes-Benz Center.
Note:
In the CD, radio and tape modes there will be symbols
on the display for an inserted CD (single CD player) or a
connected and loaded CD changer.P82.85-7149-26
CD operation

53
IntroductionAudioTelephone Navigation Index
System settings
Selecting CDs
(MCS with CD changer)
Selecting a CD with the number keypad:
Press a number key, e.g. , to select the correspond-
ing CD.
Note:
You can only select CD’s by pressing a number key from
to .The screen as shown above will appear for 4 seconds on
the display. The selected CD will be highlighted. If the
selected magazine slot is empty, the message “NO CD”
and the number of the selected slot will appear on the
screen. Then the next CD inserted will be selected.
The playback will begin with track 1 of the selected CD.
Note:
After the last track of the current CD has been played,
the next CD inserted in the magazine is selected and the
playback will continue with track 1.
P82.85-7148-26
P82.85-7150-26
CD operation

55
IntroductionAudioTelephone Navigation Index
System settings
Note:
To enter a single digit track number you can enter zero
(0) followed by the track number, e.g. 01or wait 4 sec-
onds to start automatically. When entering a two digit
number you must enter the second digit within 4 sec-
onds. Otherwise, the function will switch off and the
screen will return to the previous display.
If you enter a track number which is higher than the
last track on the disk “INVALID TRACK” will appear on
the display. The current track will keep playing without
interruption.Music seek
Push joystick to :
The CD will seek forward as long as you push the joy-
stick.
Push joystick to :
The CD will seek backward as long as you push the joy-
stick.
Note:
When the end /beginning of the CD is reached, the
music seek function stops.
P82.85-7148-26
CD operation

57
IntroductionAudioTelephone Navigation Index
System settings
To start the function:
Press the softkey “RPT”. The activated repeat
function is shown by a highlighted “RPT” on the display.
To stop the function:
Press the highlighted softkey “RPT”.
Note:
You can not activate the repeat function and the random
function at the same time. You can only select one func-
tion at a time.Play CD tracks in random order
Select the random function to play back the tracks on
the CD currently selected in random order.
To select the next track in the random list push the joy-
stick to or .
P82.85-7135-26
CD operation

58
IntroductionAudioTelephone Navigation Index
System settings
To start the function:
Press the softkey “RDM”. The activated random
function is shown as a highlighted “RDM“ on the dis-
play.
To stop the function:
Press the highlighted softkey “RDM”.
Note:
You can not activate the repeat function and the random
function at the same time. You can only select one func-
tion at a time.Pause
Press the softkey “II”. The CD will stop playing.
On the display “PAUSE” will appear. The CD will also
stop playing if you send or receive a phone call.
To c a n c e l PAU S E :
Press the softkey “PLAY”.
P82.85-7136-26
CD operation

59
IntroductionAudioTelephone Navigation Index
System settings
Select time displayThe CD main menu displays the current track and the
elapsed time. By pressing the softkey “TIME” the
total numbers of tracks and the total playing time will
be displayed.
This display disappears after 4 seconds automatically or
by pressing the softkey “TIME” again.
P82.85-7137-26
CD operation

60
Introduction AudioTe l e p h o n eNavigation Index
System settings
Before you use the telephone............................................61
Operating and display elements - telephone ................. 63
Menu overview - Telephone ............................................. 64
Switching telephone on and off ....................................... 66
Incoming calls .................................................................... 68
Outgoing calls..................................................................... 70
Dialing a telephone number ............................................ 70
Dialing a number from the phone book ......................... 72
Redial ....................................................................................74
Speed-dialing ...................................................................... 75
Quick-dialing .......................................................................76
Emergency call ....................................................................76
Requesting and displaying Info Services ....................... 79 Contents - Telephone
