2002 MAZDA MODEL MPV Owners Manual (in English)

2-9
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K

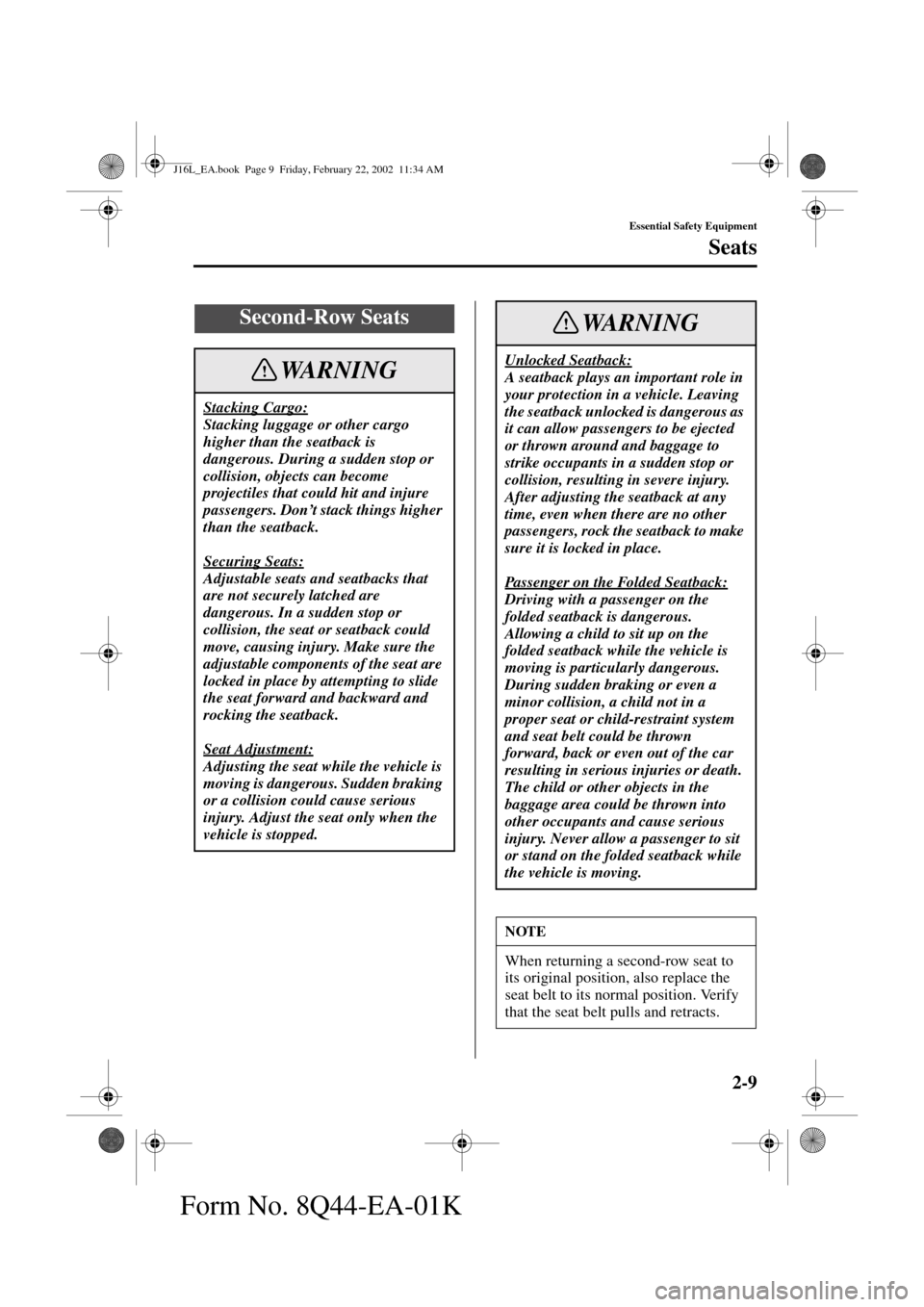

Second-Row Seats
Stacking Cargo:
Stacking luggage or other cargo
higher than the seatback is
dangerous. During a sudden stop or
collision, objects can become
projectiles that could hit and injure
passengers. Don’t stack things higher
than the seatback.
Securing Seats:
Adjustable seats and seatbacks that
are not securely latched are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat are
locked in place by attempting to slide
the seat forward and backward and
rocking the seatback.
Seat Adjustment:
Adjusting the seat while the vehicle is
moving is dangerous. Sudden braking
or a collision could cause serious
injury. Adjust the seat only when the
vehicle is stopped.
WARNINGUnlocked Seatback:
A seatback plays an important role in
your protection in a vehicle. Leaving
the seatback unlocked is dangerous as
it can allow passengers to be ejected
or thrown around and baggage to
strike occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to make
sure it is locked in place.
Passenger on the Folded Seatback:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous.
During sudden braking or even a
minor collision, a child not in a
proper seat or child-restraint system
and seat belt could be thrown
forward, back or even out of the car
resulting in serious injuries or death.
The child or other objects in the
baggage area could be thrown into
other occupants and cause serious
injury. Never allow a passenger to sit
or stand on the folded seatback while
the vehicle is moving.
NOTE
When returning a second-row seat to
its original position, also replace the
seat belt to its normal position. Verify
that the seat belt pulls and retracts.
WARNING
J16L_EA.book Page 9 Friday, February 22, 2002 11:34 AM

2-10
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K

Seat Slide
To move the seat forward or backward,
raise the lever and slide the seat to the
desired position.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.

Side-Sliding Seat (right side)
The second-row seats can be put together
and used as a bench seat. Raise the side
seat-slide lever and slide the seat
sideways.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it from side to side.

Seat Recline
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Lever
Side seat-slide lever
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
Reclining the Rear Seatback:
Reclining the rear seatback when the
third-row seat is occupied is
dangerous. The rear seatback may hit
and injure the occupants in the third-
row seat. Don’t recline the rear
seatback when the third-row seat is
occupied.
WARNING
Lever
J16L_EA.book Page 10 Friday, February 22, 2002 11:34 AM

2-11
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K

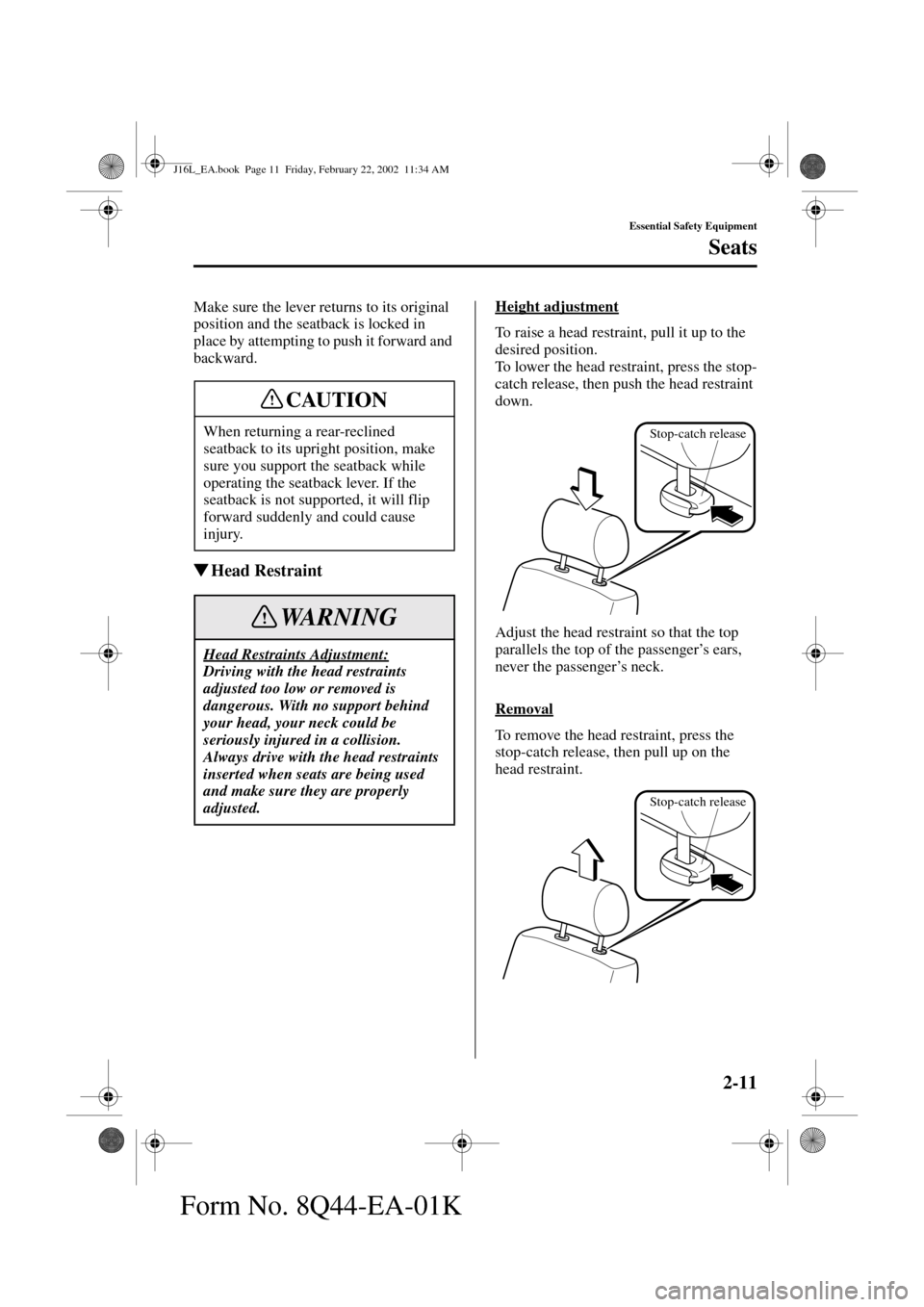

Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.

Head Restraint
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top
parallels the top of the passenger’s ears,
never the passenger’s neck.
Removal
To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint. When returning a rear-reclined
seatback to its upright position, make
sure you support the seatback while
operating the seatback lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Always drive with the head restraints
inserted when seats are being used
and make sure they are properly
adjusted.
CAUTION
WARNING
Stop-catch release
Stop-catch release
J16L_EA.book Page 11 Friday, February 22, 2002 11:34 AM

2-12
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K

Armrest
The armrest can be used or placed
upright.

Third-Row Seat Access
Access to the third-row seat via the
sliding door
When the second-row seats are together,
move along the path between the sliding
door and the side sliding seat.
When the second-row seats are separated,
pass between them and move to the rear of
the vehicle.Type AArmrest
ArmrestType B
J16L_EA.book Page 12 Friday, February 22, 2002 11:34 AM

2-13
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K

Folding the Second-Row Seats
The second-row seatbacks can be folded
down and used as tables when the vehicle
is not moving.
To fold the seatback
1. Put the buckle in the pocket of the seat
bottom.2. Raise the reclining lever and lower the
seatback forward. Make sure the
seatback is locked.
To return the seatback to the upright
position
Raise the reclining lever and lift the
seatback upright. Attempt to move the
seatback forward and backward to make
sure it is locked.
Using Folded Seatback as a Table
While the Vehicle is Moving:
Using the folded seatback as a table
while driving is dangerous. During
sudden braking or a collision, objects
placed on the folded seatback could
become projectiles that could hit and
injure someone. Never use the folded
seat as a table while the vehicle is
moving.
Lowering the seatback without
stowing the seat belt buckle could
damage the seatback.
WARNING
CAUTION
J16L_EA.book Page 13 Friday, February 22, 2002 11:34 AM

2-14
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K

Removal of Second-Row Seats
The second-row seats can be removed to
create a more comfortable space between
the third-row and front seats. Additional
cargo space is available with the removal
of the second-row seats and stowing of the
third-row seat.
To r e m o v e t h e s e a t
1. Put the buckle in the pocket of the seat
bottom.
2. Lower the head restraint all the way
down.
3. Slide the seat all the way back.
Seat Removal or Installation While
Vehicle is Moving or on a Slope:
Removing or installing the second-
row seats while the vehicle is moving
or on a slope is dangerous. The seats
are heavier than they appear and
could suddenly detach causing
serious injury. Remove or install the
seats with the vehicle parked on a
level surface.
Riding on The Floor Space:
Riding on the floor space created by
the removal of the second-row seat is
dangerous. Sudden braking or a
collision could cause serious injury.
Do not sit or lie in the floor space for
the second-row seat while the vehicle
is moving. Never ride in a vehicle
where you can’t sit in the seat and
wear the seat belt.
Pinching Fingers or Hands:
Placing your hands around the seat
anchors when removing or installing
the second-row seats is dangerous.
You could pinch your hands or
fingers between the seat anchor and
the seat. Hold the edge of the seat
when lowering it into place. Never
place your hands between the seat
anchor and the seat.
WARNING
Lifting the Seat-Anchor Bar:
Lifting the seat-anchor bar without
firmly supporting the seat with your
hand is dangerous. Lifting the seat
unlocks the front clamps
automatically and could cause the
seat to fall. Support the seat firmly
while lifting the seat-anchor bar.
Lowering the seatback without
stowing the seat belt buckle could
damage the seatback.
WARNING
CAUTION
J16L_EA.book Page 14 Friday, February 22, 2002 11:34 AM

2-15
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
4. Raise the reclining lever and lower the
seatback forward.
Make sure the seatback is locked.
5. Work only on one seat at a time to
avoid one seat falling while working on
another.
6. Lift and hold the seat-anchor bar and
raise the entire seat up and forward.7. The seat is heavier than it looks,
carefully pull up and detach the seat.
Get assistance to lift it out of the
vehicle.
To install the seat
1. First identify which seat fits which
position by verifying that the seat belt
buckles point to the center (inboard) of
the vehicle.
2. Align the clamps on the front underside
of the seat with the forward loop
anchors on the floor and support the
seat so that it doesn’t fall (the rear
portion of the seat cannot be mounted
first). The clamps on the front of the
seat automatically lock into the floor
loop anchors after lowering the seat.
Seat-anchor bar
Loops Clamp
Loops
Clamp
J16L_EA.book Page 15 Friday, February 22, 2002 11:34 AM

2-16
Essential Safety Equipment
Seats
Form No. 8Q44-EA-01K
3. Supporting the seat with your hands,
slowly lower the seat rearwards to lock
it in place.
4. Raise the reclining lever and lift the
seatback upright. Attempt to move the
seatback forward and backward to
make sure it is locked.
5. Buckle the seat belts once just to
confirm the seat belt buckles are
inboard which means each seat is on
the correct side of the vehicle.
Unsecured Seat:
Driving with the seat unsecured is
dangerous. The seat may become
detached while the vehicle is moving
causing serious injury. After
installing the seat, push it forward
and backward to make sure it is
securely locked.
Do not move the side seat-slide lever
with the seat removed. The lever could
be damaged resulting in loss of
functionality.
WARNING
CAUTION
Third-Row Seat
Stacking Cargo:
Stacking luggage or other cargo
higher than the seatback is
dangerous. During a sudden stop or
collision, objects can become
projectiles that could hit and injure
passengers. Don’t stack things higher
than the seatback.
Securing Seats:
Adjustable seats and seatbacks that
are not securely latched are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat are
locked in place by attempting to rock
the seatback.
Unlocked Seatback:
A seatback plays an important role in
your protection in a vehicle. Leaving
the seatback unlocked is dangerous as
it can allow passengers to be ejected
or thrown around and baggage to
strike occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to make
sure it is locked in place.
WARNING
J16L_EA.book Page 16 Friday, February 22, 2002 11:34 AM
