Uniform Tire Quality Grading System (UTQGS)
This information relates to the tire grading system developed by the U.S. National
Highway Traffic Safety Administration for grading tires by tread wear, traction, and
temperature performance.

Tre a d We a r
The tread wear grade is a comparative rating based on the wear rate of the tire when tested
under controlled conditions on a specified government test course.
For example, a tire graded 150 would wear one-and-a-half times as well on the government
course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of their use, however,
and may depart significantly from the norm because of variations in driving habits, service
practices and differences in road characteristics and climate.

Traction-AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B, and C. These grades represent
the tire’s ability to stop on wet pavement as measured under controlled conditions on
specified government test surfaces of asphalt and concrete. A tire marked C may have poor
traction performance.

Temperature-A, B, C
The temperature grades are A (the highest), B, and C, represent the tire’s resistance to the
generation of heat and its ability to dissipate heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate and reduce tire
life, and excessive temperatures can lead to sudden tire failure.
Grade C corresponds to a level of performance which all passenger vehicle tires must meet
under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory test wheel than the minimum required by
law.
Uniform Tire Quality Grading System (UTQGS)
The traction grade assigned to this tire is based on braking (straight ahead) traction
tests and does not include acceleration cornering (turning), hydroplaning, or peak
traction characteristics.
WARNING
J16L_EA.book Page 13 Friday, February 22, 2002 11:34 AM

9-14
Customer Information
Uniform Tire Quality Grading System (UTQGS)
Form No. 8Q44-EA-01K
These grades will be added to the sidewalls of passenger vehicle tires over the next several
years according to a schedule established by the NHTSA and the tire manufacturers.
The grade of tires available as standard or optional equipment on Mazda vehicle may vary
with respect to grade.
ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND
TO ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.

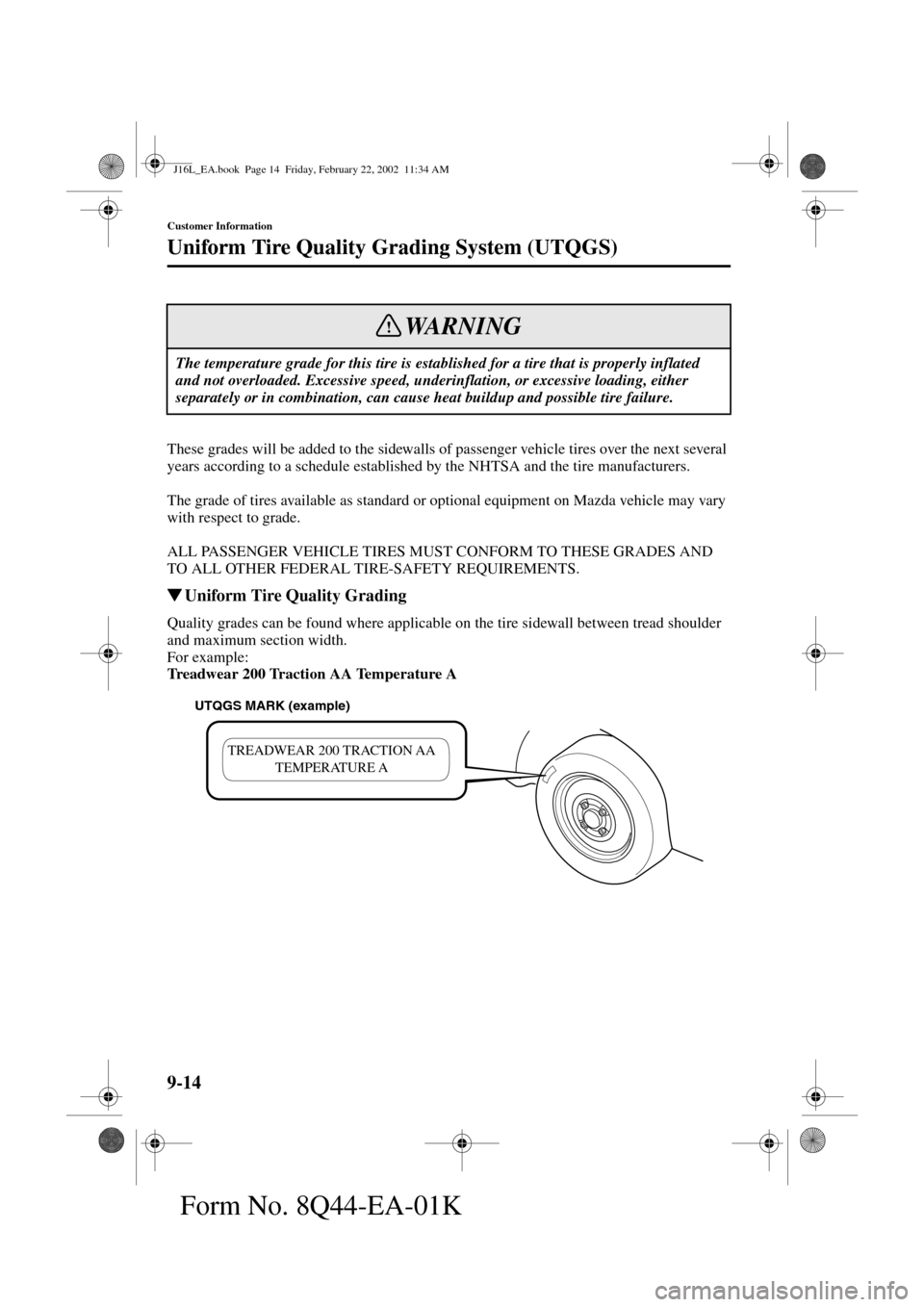

Uniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example:
Treadwear 200 Traction AA Temperature A
The temperature grade for this tire is established for a tire that is properly inflated
and not overloaded. Excessive speed, underinflation, or excessive loading, either
separately or in combination, can cause heat buildup and possible tire failure.
WARNING
UTQGS MARK (example)
TREADWEAR 200 TRACTION AA
TEMPERATURE A
J16L_EA.book Page 14 Friday, February 22, 2002 11:34 AM

9-15
Customer Information
Form No. 8Q44-EA-01K
Reporting Safety Defects
If you believe that your vehicle has a defect which could cause a crash or could cause
injury or death, you should immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying Mazda Motor Corporation (Your Mazda
Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your
dealer, or Mazda Motor Corporation (Your Mazda Importer/Distributor).
To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1 (800) 424-
9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Department of
Transportation. Washington, D.C. 20590. You can also obtain other information about
motor vehicle safety from the Hotline.
Reporting Safety Defects
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:
Mazda North American Operations
7755, Irvine Center Drive
Irvine, California 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown
(page 9-7) in this booklet.
J16L_EA.book Page 15 Friday, February 22, 2002 11:34 AM

9-16
Customer Information
Form No. 8Q44-EA-01K
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they don’t have what you need in stock, they can order it for you.

WORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.

WIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.

OW N E R’S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician’s manual.
Service Publications
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999 95 038B 02 2002 WORKSHOP MANUAL (English)
9999 95 024G 02 2002 WIRING DIAGRAM (English)
9999 95 029C 02 (U.S.A. only) 2002 OWNER’S MANUAL
9999 EC 029C 02 (Canada only) 2002 OWNER’S MANUAL
J16L_EA.book Page 16 Friday, February 22, 2002 11:34 AM

10-1
Form No. 8Q44-EA-01K
10Specifications
Technical information about your Mazda.
Identification Numbers
............................................................. 10- 2
Vehicle Information Labels ................................................... 10- 2
Specifications
............................................................................. 10- 4
Specifications ........................................................................ 10- 4
J16L_EA.book Page 1 Friday, February 22, 2002 11:34 AM

10-2
Form No. 8Q44-EA-01K
Identification Numbers

Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.

Motor Vehicle Safety Standard
Label
Chassis Number

Vehicle Emission Control
Information Label

Tire Pressure Label
Vehicle Information Labels
J16L_EA.book Page 2 Friday, February 22, 2002 11:34 AM

10-3
Identification Numbers
Form No. 8Q44-EA-01K

Engine Number
Front
J16L_EA.book Page 3 Friday, February 22, 2002 11:34 AM

10-4
Form No. 8Q44-EA-01K
Specifications

Engine

Electrical System

Lubricant Quality
* Refer to the recommended SAE viscosity numbers on page 8-9.
Specifications
Item Classification
Type DOHC-24V 60°
V, 6-cylinder
Bore × Stroke 89.0 × 79.5 mm (3.50 × 3.13 in)
Displacement 2,967 ml (2,967 cc, 181.0 cu in)
Compression ratio 10.0
Item Classification
Battery12V-48AH/5HR MF
12V-55AH/5HR MF
Alternator 12 V - 110 A
Starter 12 V - 1.4 kW
Spark-plug numberAGSF 32W
AGSF 32WM
Spark-plug gap 1.3—1.4 mm (0.051—0.057 in)
LubricantClassification
API Service ILSAC
Engine oil* SL GF-III
Lubricant Classification
Automatic transaxle fluid ATF M-III or equivalent (e.g. Dexron® III)
Power steering fluid ATF M-III or equivalent (e.g. Dexron® III)
Brake fluid SAE J1703, or FMVSS116 DOT-3
J16L_EA.book Page 4 Friday, February 22, 2002 11:34 AM
