2002 MAZDA MODEL MPV Owners Manual (in English)

5-33
Driving Your Mazda
Switches and Controls
Form No. 8Q44-EA-01K

Daytime Running Lights
(Canada Model)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.

Tu r n S i g n a l
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change—until the
indicator flashes—and hold it there. It
will return to the off position when
released.
NOTE
The running lights go off when the
parking brake is applied.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Left turn Right lane
change
Left lane
changeOFF
J16L_EA.book Page 33 Friday, February 22, 2002 11:34 AM

5-34
Driving Your Mazda
Switches and Controls
Form No. 8Q44-EA-01K
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn on the fog lights, first turn on the
headlight switch. Then press the fog light
switch.
To turn the fog lights off, press the fog
light switch again or turn the headlight
switch off.The ignition switch must be in the ON
position.
Fog LightsWindshield Wipers and
Washer
Frozen Washer Fluid:
Using windshield washer fluid in
freezing temperatures is dangerous.
The washer fluid could freeze on the
windshield and block your vision.
You could have an accident. Don’t use
the washer without first warming the
windshield.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected by a circuit breaker. This
mechanism will automatically stop
operation of the blades, but only for
about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don’t resume functioning, consult
an Authorized Mazda Dealer as soon
as possible.
WARNING
J16L_EA.book Page 34 Friday, February 22, 2002 11:34 AM

5-35
Driving Your Mazda
Switches and Controls
Form No. 8Q44-EA-01K

Windshield Wipers
Turn the wipers on by pulling the lever
down.
INT
— Intermittent
1
— Normal
2
— Fast
Variable-speed intermittent wipers
Set the lever to INT and choose the
interval timing by rotating the ring.One-touch wipers
For a single wiping cycle, push the lever
up to MIST.

Windshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
If the washer doesn’t work, inspect the
fluid level (page 8-16). If it’s OK, consult
an Authorized Mazda Dealer.
OFF
INT
1
2
OFF
INT
INT ring
NOTE
In the OFF or INT position, the wipers
will be activated until the lever is
released.
OFF MIST
J16L_EA.book Page 35 Friday, February 22, 2002 11:34 AM

5-36
Driving Your Mazda
Switches and Controls
Form No. 8Q44-EA-01K
The ignition switch must be in the ON
position.

Rear Window Wiper
Turn the wiper on by turning the knob.
ON
— Normal
INT
— Intermittent

Rear Window Washer
To spray washer fluid, turn the knob to the
position. After the knob is released, the
washer will stop.
If the washer doesn’t work, inspect the
fluid level (page 8-16). If it’s OK and the
washer still doesn’t work, consult an
Authorized Mazda Dealer.The rear defroster clears frost, fog, and
thin ice from the rear window.
The ignition switch must be in the ON
position.
Push the switch to turn on the rear
window defroster; the indicator light will
come on.
Push the switch again to turn it off.
Rear Window Wiper and
Washer
NOTE
There are two washer positions: up and
down. In the down washer position, the
wiper will not be activated.
ON
INT
OFF
Washer Washer
Rear Window Defroster
Don’t use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, brush it off before using the
defroster.
CAUTION
J16L_EA.book Page 36 Friday, February 22, 2002 11:34 AM

5-37
Driving Your Mazda
Switches and Controls
Form No. 8Q44-EA-01K

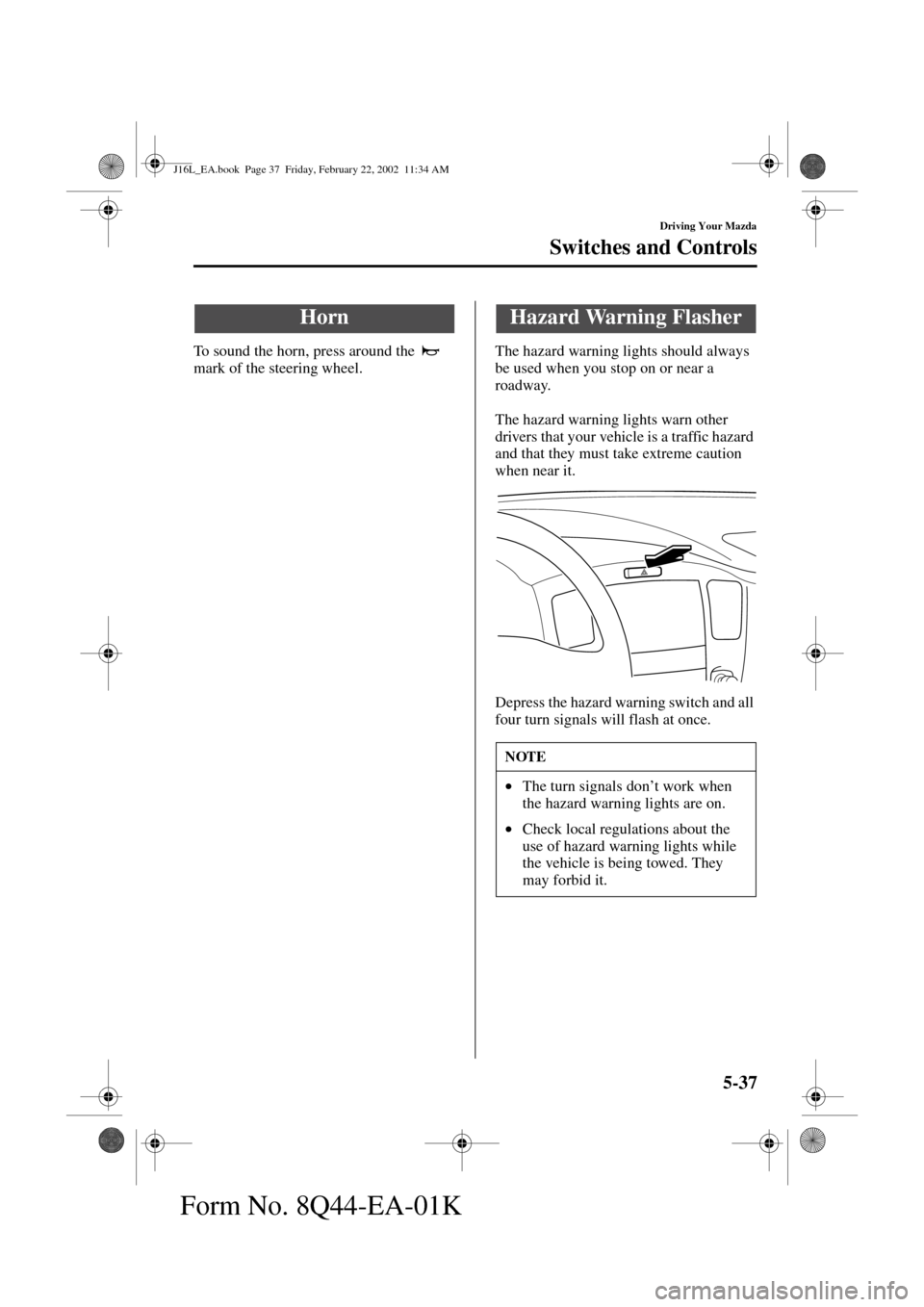

To sound the horn, press around the
mark of the steering wheel.The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning switch and all
four turn signals will flash at once.
HornHazard Warning Flasher
NOTE
•The turn signals don’t work when
the hazard warning lights are on.
•Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
J16L_EA.book Page 37 Friday, February 22, 2002 11:34 AM

5-38
Form No. 8Q44-EA-01K
J16L_EA.book Page 38 Friday, February 22, 2002 11:34 AM

6-1
Form No. 8Q44-EA-01K
6Interior Comfort
Use of various features for drive comfort, including climate control and audio
system.
Climate Control System
.............................................................. 6- 2
Operating Tips ......................................................................... 6- 2
Vent Operation (Front) ............................................................ 6- 3
Control Panel (Front) ............................................................... 6- 5
Vent Operation (Rear) ............................................................. 6-10
Control Panel (Rear) ................................................................ 6-12
Audio System
............................................................................... 6-14
Antenna ................................................................................... 6-14
Operating Tips for Audio System ............................................ 6-14
Audio Set ................................................................................. 6-21
Audio Control Switch Operation ............................................. 6-38
Safety Certification .................................................................. 6-40
Interior Equipment
..................................................................... 6-41
Sunvisors ................................................................................. 6-41
Interior Lights .......................................................................... 6-41
Lighter ..................................................................................... 6-44
Ashtrays ................................................................................... 6-44
Cup Holders ............................................................................. 6-46
Storage Compartments ............................................................ 6-48
Accessory Sockets ................................................................... 6-51
J16L_EA.book Page 1 Friday, February 22, 2002 11:34 AM

6-2
Interior Comfort
Form No. 8Q44-EA-01K
Climate Control System

Operating the Climate Control
System
Operate the climate control system with
the engine running.

Clearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowling grille to improve the system
efficiency.

Foggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the air
conditioner to dehumidify the air.

Outside/Recirculated Air
Position
Use the outside air position in normal
conditions. The recirculated air position
can be used temporarily when driving on
dusty roads or for quick cooling of the
interior.

Parking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.

Not Using for a Long Period
Run the air conditioner at least once a
month to keep internal parts lubricated.

Check the Refrigerant before
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The optional air conditioner is filled with
R134a, a refrigerant that will not damage
the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.

Replacement of the Cabin Air
Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
Operating Tips
J16L_EA.book Page 2 Friday, February 22, 2002 11:34 AM
