2002 MAZDA MODEL MPV Owners Manual (in English)

7-15
In Case of an Emergency
Form No. 8Q44-EA-01K
Overheating
If the temperature gauge indicates
overheating, you experience power loss,
or you hear a loud knocking or pinging
noise, the engine is probably too hot.
If this happens:
1. Drive safely to the side of the road and
park off the right-of-way.
2. Shift into park (P).
Apply the parking brake.
3. Turn off the air conditioner.4. Check whether coolant or steam is
escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Don’t go near the front of the vehicle.
Stop the engine. Then turn the ignition
switch to the ON position without
starting the engine.
The radiator cooling fans will start to
cool the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools. If this doesn’t lower the
temperature, stop the engine and let it
cool.
5. Check the coolant level.
If it’s low, look for leaks in the radiator
hoses and connections, heater hoses
and connections, radiator, and water
pump.
If you find a leak or other damage, or if
coolant is still leaking, stop the engine
and call an Authorized Mazda Dealer.
If you find no problems, the engine is
cool, and no leaks are obvious, carefully
add coolant as required (page 8-11).
Overheating
Steam from Overheated Engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you. Open the hood
ONLY after steam is no longer
escaping from the engine.
WARNING
F
L
Cooling
system cap
Coolant reservoir
J16L_EA.book Page 15 Friday, February 22, 2002 11:34 AM

7-16
In Case of an Emergency
Overheating
Form No. 8Q44-EA-01K
Cooling System Cap:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury. Don’t remove the
cooling system cap when the engine
and radiator are hot.
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made.
WARNING
CAUTION
J16L_EA.book Page 16 Friday, February 22, 2002 11:34 AM

7-17
In Case of an Emergency
Form No. 8Q44-EA-01K
Emergency Starting
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. Depress the accelerator all the way and
hold it there.
2. Turn the ignition switch to the START
position and hold it there—for up to 10
seconds. If the engine starts, release the
key and accelerator immediately
because the engine will suddenly rev
up.
3. If the engine fails to start, crank it
without using the accelerator—for up
to 10 seconds.Jump-starting is dangerous if done
incorrectly. So follow the procedure
carefully. If you feel unsure about jump-
starting, we strongly recommend that you
have a competent service technician do
the work.
1. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
Starting a Flooded EngineJump-Starting
Battery-Related Explosion:
Flames and sparks near open battery
cells are dangerous. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
injuries. Keep all flames, including
cigarettes, and sparks away from
open battery cells.
Low Fluid Level or Frozen Battery:
Jump-starting a frozen battery or one
with a low fluid level is dangerous. It
may rupture or explode, causing
serious injury.
Don’t jump-start a frozen battery or
one with a low fluid level.
Use only a 12 V booster system. You
can damage a 12 V starter, ignition
system, and other electrical parts
beyond repair with a 24 V power
supply (two 12 V batteries in series or
a 24 V motor generator set).
WARNING
CAUTION
J16L_EA.book Page 17 Friday, February 22, 2002 11:34 AM

7-18
In Case of an Emergency
Emergency Starting
Form No. 8Q44-EA-01K
2. If the booster battery is in another
vehicle, don’t allow the vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
3. Connect the jumper cables in the exact
sequence as in the illustration.
•Connect one end of a cable to the
positive terminal on the discharged
battery (1).
•Attach the other end to the positive
terminal on the booster battery (2).
•Connect one end of the other cable
to the negative terminal of the
booster battery (3).
•Connect the other end to a solid,
stationary, exposed metallic point
(for example, the engine hanger)
away from the discharged battery
(4).
4. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
5. When finished, carefully disconnect
the cables in the reverse order
described in Step 3.
Jumper
cables
Discharged
battery
Connect cables in
numerical order and
disconnect in reverse
order.Booster battery
Connecting to Negative Terminal:
Connecting the end of the second
cable to the negative ( ) terminal of
the discharged battery is dangerous.
A spark could cause the gas around
the battery to explode and injure
someone. Connect the cable to a point
away from the battery.
Connecting Jumper Cable to a
Moving Part:
Connecting a jumper cable near or to
a moving parts (cooling fans, belts) is
dangerous. The cable could get
caught when the engine starts and
cause serious injury. Never connect a
jumper cable to or near any part that
moves.
WARNING
J16L_EA.book Page 18 Friday, February 22, 2002 11:34 AM

7-19
In Case of an Emergency
Emergency Starting
Form No. 8Q44-EA-01K
You can’t start a vehicle with an automatic
transaxle by pushing it.
Push-Starting
J16L_EA.book Page 19 Friday, February 22, 2002 11:34 AM

7-20
In Case of an Emergency
Form No. 8Q44-EA-01K
Emergency Towing
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
front wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
When towing with the rear wheels on the
ground, release the parking brake.
Towing Description
Wheel dollies
Don’t tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
Don’t tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
CAUTION
CAUTION
J16L_EA.book Page 20 Friday, February 22, 2002 11:34 AM

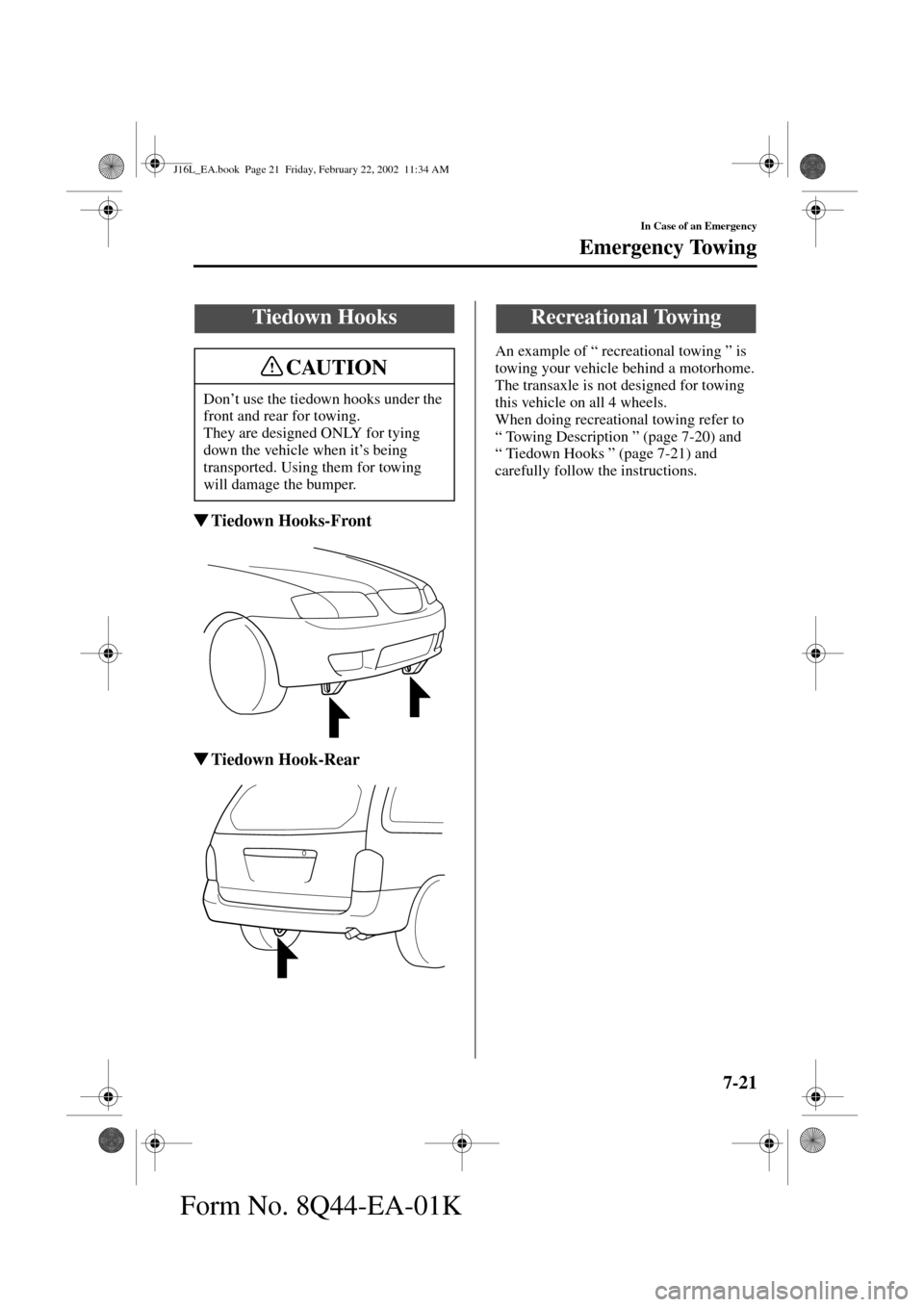

7-21
In Case of an Emergency
Emergency Towing
Form No. 8Q44-EA-01K

Tiedown Hooks-Front

Tiedown Hook-Rear
An example of “ recreational towing ” is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ” (page 7-20) and
“ Tiedown Hooks ” (page 7-21) and
carefully follow the instructions.
Tiedown Hooks
Don’t use the tiedown hooks under the
front and rear for towing.
They are designed ONLY for tying
down the vehicle when it’s being
transported. Using them for towing
will damage the bumper.
CAUTION
Recreational Towing
J16L_EA.book Page 21 Friday, February 22, 2002 11:34 AM

7-22
