2002 ISUZU AXIOM sensor

7A1±22
TRANSMISSION CONTROL SYSTEM (4L30±E)

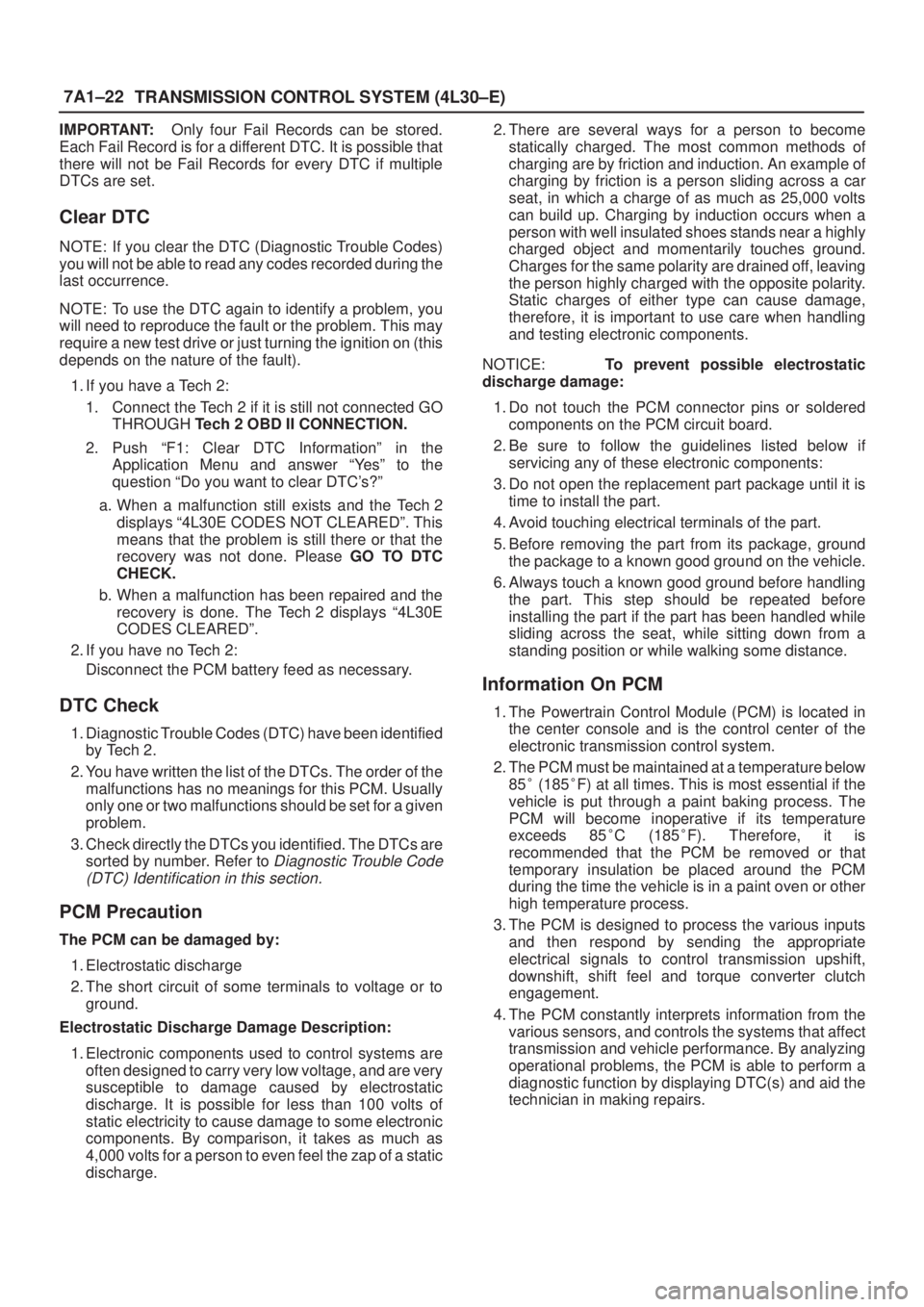

IMPORTANT:Only four Fail Records can be stored.
Each Fail Record is for a different DTC. It is possible that
there will not be Fail Records for every DTC if multiple
DTCs are set.
Clear DTC
NOTE: If you clear the DTC (Diagnostic Trouble Codes)
you will not be able to read any codes recorded during the
last occurrence.
NOTE: To use the DTC again to identify a problem, you
will need to reproduce the fault or the problem. This may
require a new test drive or just turning the ignition on (this
depends on the nature of the fault).
1. If you have a Tech 2:
1. Connect the Tech 2 if it is still not connected GO
THROUGH Tech 2 OBD II CONNECTION.
2. Push ªF1: Clear DTC Informationº in the
Application Menu and answer ªYesº to the
question ªDo you want to clear DTC's?º
a. When a malfunction still exists and the Tech 2
displays ª4L30E CODES NOT CLEAREDº. This
means that the problem is still there or that the
recovery was not done. Please GO TO DTC
CHECK.
b. When a malfunction has been repaired and the
recovery is done. The Tech 2 displays ª4L30E
CODES CLEAREDº.
2. If you have no Tech 2:
Disconnect the PCM battery feed as necessary.
DTC Check
1. Diagnostic Trouble Codes (DTC) have been identified
by Tech 2.
2. You have written the list of the DTCs. The order of the
malfunctions has no meanings for this PCM. Usually
only one or two malfunctions should be set for a given
problem.
3. Check directly the DTCs you identified. The DTCs are
sorted by number. Refer to
Diagnostic Trouble Code
(DTC) Identification in this section.
PCM Precaution
The PCM can be damaged by:
1. Electrostatic discharge
2. The short circuit of some terminals to voltage or to
ground.
Electrostatic Discharge Damage Description:
1. Electronic components used to control systems are
often designed to carry very low voltage, and are very
susceptible to damage caused by electrostatic
discharge. It is possible for less than 100 volts of
static electricity to cause damage to some electronic
components. By comparison, it takes as much as
4,000 volts for a person to even feel the zap of a static
discharge.2. There are several ways for a person to become
statically charged. The most common methods of
charging are by friction and induction. An example of
charging by friction is a person sliding across a car
seat, in which a charge of as much as 25,000 volts
can build up. Charging by induction occurs when a
person with well insulated shoes stands near a highly
charged object and momentarily touches ground.
Charges for the same polarity are drained off, leaving
the person highly charged with the opposite polarity.
Static charges of either type can cause damage,
therefore, it is important to use care when handling
and testing electronic components.
NOTICE: To prevent possible electrostatic
discharge damage:
1. Do not touch the PCM connector pins or soldered
components on the PCM circuit board.
2. Be sure to follow the guidelines listed below if
servicing any of these electronic components:
3. Do not open the replacement part package until it is
time to install the part.
4. Avoid touching electrical terminals of the part.
5. Before removing the part from its package, ground
the package to a known good ground on the vehicle.
6. Always touch a known good ground before handling
the part. This step should be repeated before
installing the part if the part has been handled while
sliding across the seat, while sitting down from a
standing position or while walking some distance.
Information On PCM
1. The Powertrain Control Module (PCM) is located in
the center console and is the control center of the
electronic transmission control system.
2. The PCM must be maintained at a temperature below
85
(185
F) at all times. This is most essential if the
vehicle is put through a paint baking process. The
PCM will become inoperative if its temperature
exceeds 85
C (185
F). Therefore, it is
recommended that the PCM be removed or that
temporary insulation be placed around the PCM
during the time the vehicle is in a paint oven or other
high temperature process.
3. The PCM is designed to process the various inputs
and then respond by sending the appropriate
electrical signals to control transmission upshift,
downshift, shift feel and torque converter clutch
engagement.
4. The PCM constantly interprets information from the
various sensors, and controls the systems that affect
transmission and vehicle performance. By analyzing
operational problems, the PCM is able to perform a
diagnostic function by displaying DTC(s) and aid the
technician in making repairs.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±23

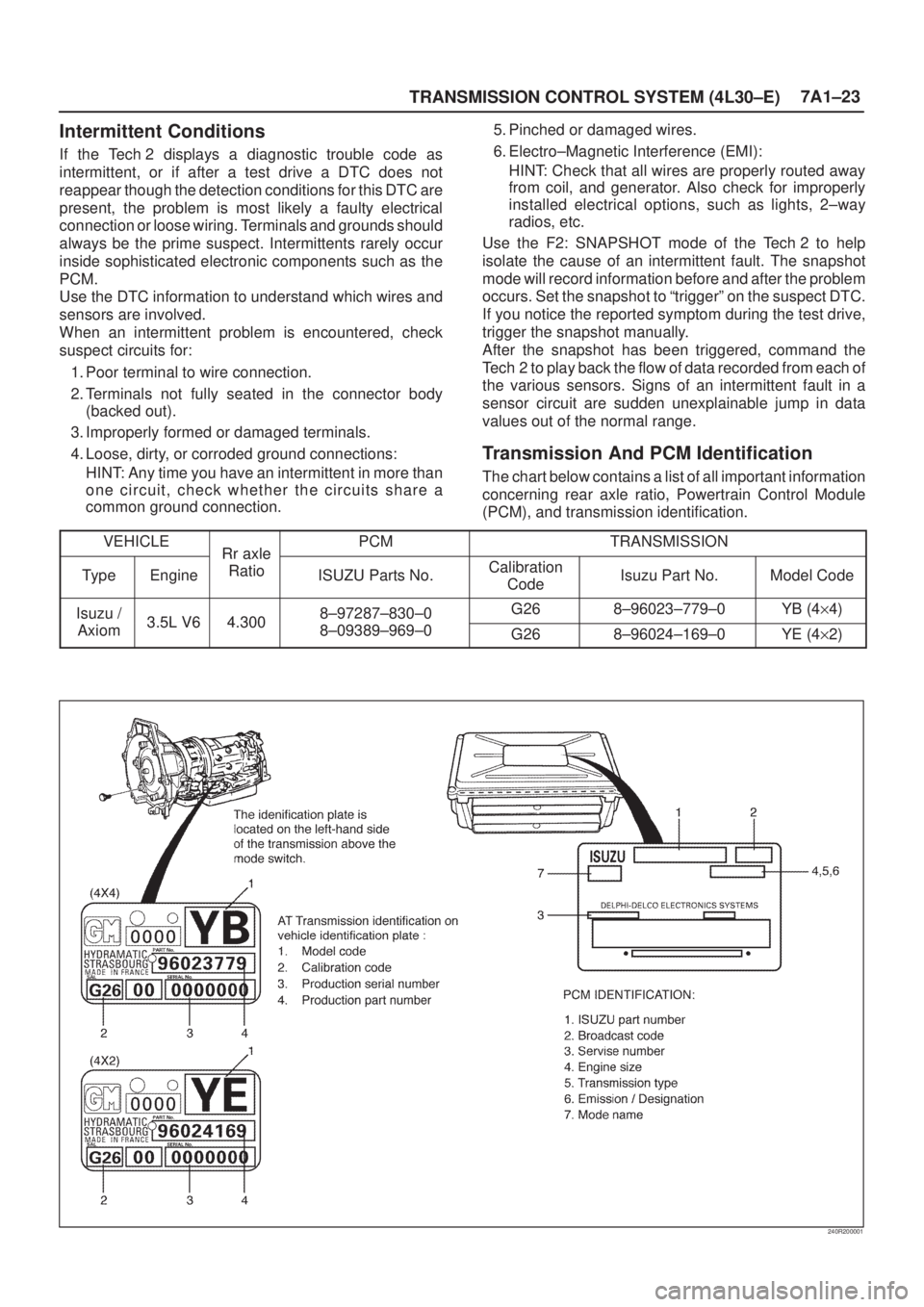

Intermittent Conditions
If the Tech 2 displays a diagnostic trouble code as
intermittent, or if after a test drive a DTC does not
reappear though the detection conditions for this DTC are
present, the problem is most likely a faulty electrical
connection or loose wiring. Terminals and grounds should
always be the prime suspect. Intermittents rarely occur
inside sophisticated electronic components such as the
PCM.
Use the DTC information to understand which wires and
sensors are involved.
When an intermittent problem is encountered, check
suspect circuits for:
1. Poor terminal to wire connection.
2. Terminals not fully seated in the connector body
(backed out).
3. Improperly formed or damaged terminals.
4. Loose, dirty, or corroded ground connections:
HINT: Any time you have an intermittent in more than
one circuit, check whether the circuits share a
common ground connection.5. Pinched or damaged wires.
6. Electro±Magnetic Interference (EMI):
HINT: Check that all wires are properly routed away
from coil, and generator. Also check for improperly
installed electrical options, such as lights, 2±way
radios, etc.
Use the F2: SNAPSHOT mode of the Tech 2 to help
isolate the cause of an intermittent fault. The snapshot
mode will record information before and after the problem
occurs. Set the snapshot to ªtriggerº on the suspect DTC.
If you notice the reported symptom during the test drive,
trigger the snapshot manually.
After the snapshot has been triggered, command the
Tech 2 to play back the flow of data recorded from each of
the various sensors. Signs of an intermittent fault in a
sensor circuit are sudden unexplainable jump in data
values out of the normal range.
Transmission And PCM Identification
The chart below contains a list of all important information
concerning rear axle ratio, Powertrain Control Module
(PCM), and transmission identification.
VEHICLE
Rr axlePCMTRANSMISSION
TypeEngine
Rr axle
RatioISUZU Parts No.Calibration
CodeIsuzu Part No.Model Code
Isuzu /35LV64 3008±97287±830±0G268±96023±779±0YB (4y4)
Axiom3.5L V64.3008±09389±969±0G268±96024±169±0YE (4y2)
240R200001

7A1±24
TRANSMISSION CONTROL SYSTEM (4L30±E)

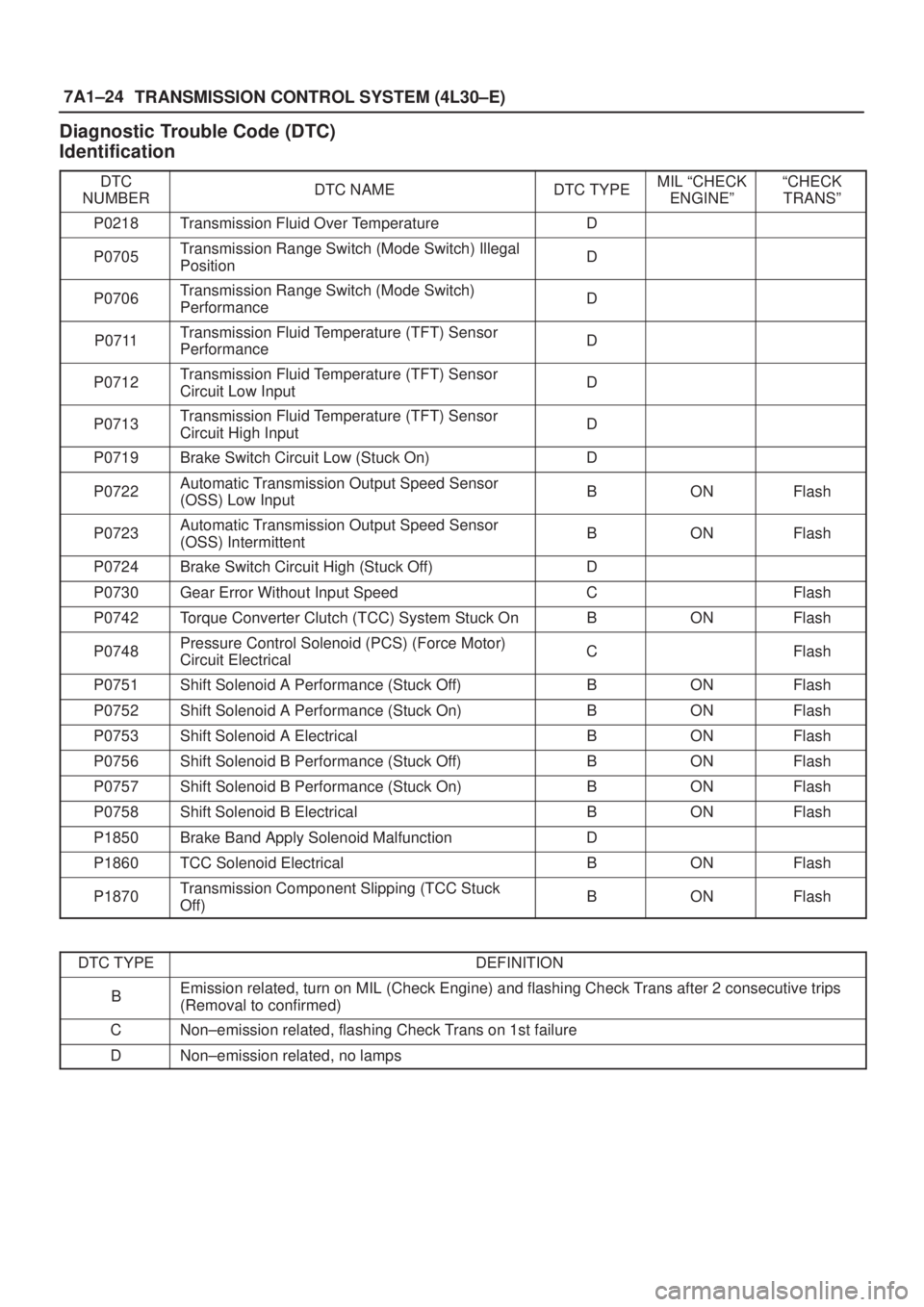

Diagnostic Trouble Code (DTC)
Identification
DTC
NUMBERDTC NAMEDTC TYPEMIL ªCHECK
ENGINEºªCHECK
TRANSº
P0218Transmission Fluid Over TemperatureD
P0705Transmission Range Switch (Mode Switch) Illegal
PositionD
P0706Transmission Range Switch (Mode Switch)
PerformanceD
P0711Transmission Fluid Temperature (TFT) Sensor
PerformanceD
P0712Transmission Fluid Temperature (TFT) Sensor
Circuit Low InputD
P0713Transmission Fluid Temperature (TFT) Sensor
Circuit High InputD
P0719Brake Switch Circuit Low (Stuck On)D
P0722Automatic Transmission Output Speed Sensor
(OSS) Low InputBONFlash
P0723Automatic Transmission Output Speed Sensor
(OSS) IntermittentBONFlash
P0724Brake Switch Circuit High (Stuck Off)D
P0730Gear Error Without Input SpeedCFlash
P0742Torque Converter Clutch (TCC) System Stuck OnBONFlash
P0748Pressure Control Solenoid (PCS) (Force Motor)
Circuit ElectricalCFlash
P0751Shift Solenoid A Performance (Stuck Off)BONFlash
P0752Shift Solenoid A Performance (Stuck On)BONFlash
P0753Shift Solenoid A ElectricalBONFlash
P0756Shift Solenoid B Performance (Stuck Off)BONFlash
P0757Shift Solenoid B Performance (Stuck On)BONFlash
P0758Shift Solenoid B ElectricalBONFlash
P1850Brake Band Apply Solenoid MalfunctionD
P1860TCC Solenoid ElectricalBONFlash
P1870Transmission Component Slipping (TCC Stuck
Off)BONFlash
DTC TYPEDEFINITION
BEmission related, turn on MIL (Check Engine) and flashing Check Trans after 2 consecutive trips
(Removal to confirmed)
CNon±emission related, flashing Check Trans on 1st failure
DNon±emission related, no lamps

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±25

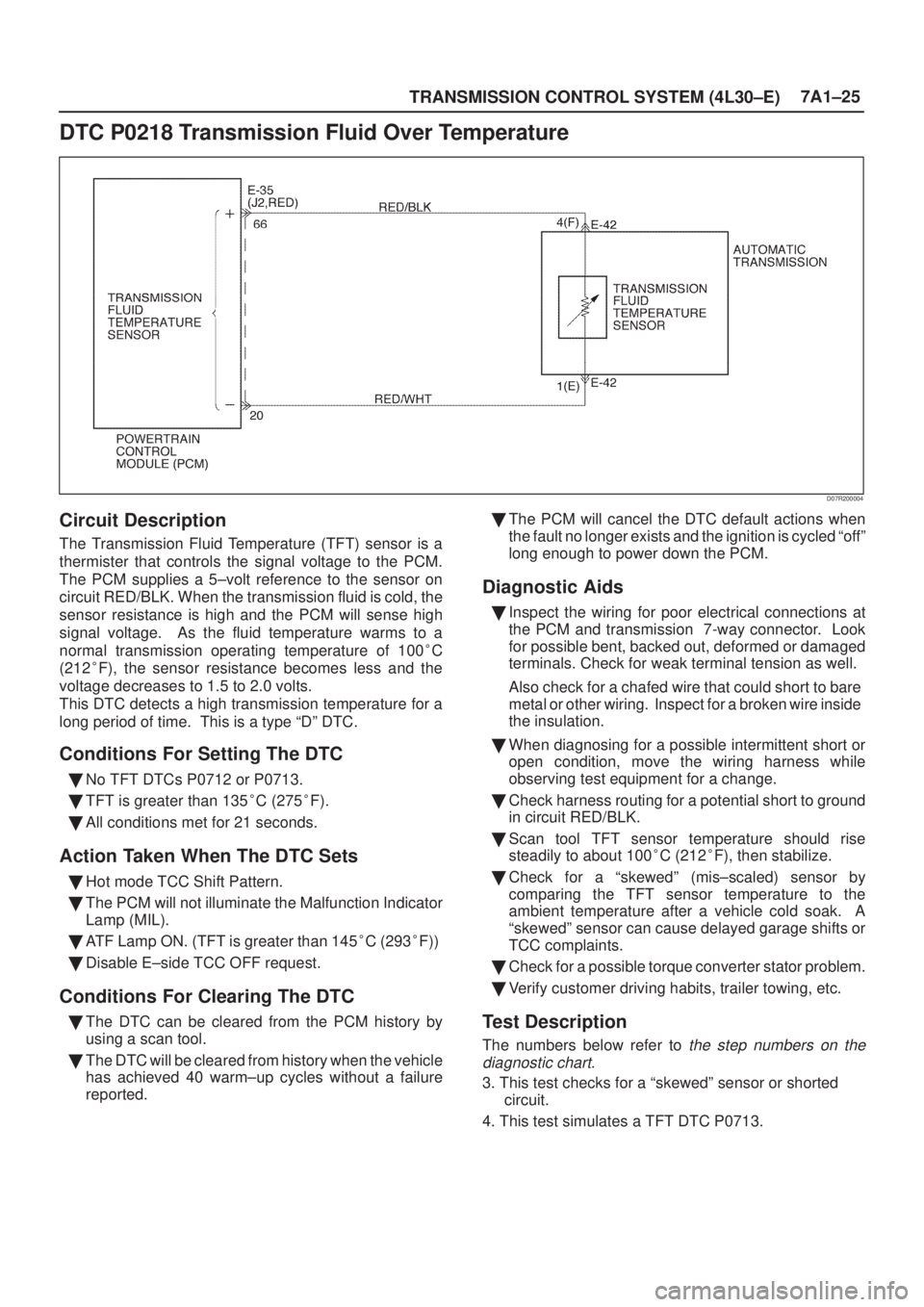

DTC P0218 Transmission Fluid Over Temperature
D07R200004
Circuit Description
The Transmission Fluid Temperature (TFT) sensor is a
thermister that controls the signal voltage to the PCM.
The PCM supplies a 5±volt reference to the sensor on
circuit RED/BLK. When the transmission fluid is cold, the
sensor resistance is high and the PCM will sense high
signal voltage. As the fluid temperature warms to a
normal transmission operating temperature of 100
C
(212
F), the sensor resistance becomes less and the
voltage decreases to 1.5 to 2.0 volts.
This DTC detects a high transmission temperature for a
long period of time. This is a type ªDº DTC.
Conditions For Setting The DTC

No TFT DTCs P0712 or P0713.

TFT is greater than 135
C (275
F).

All conditions met for 21 seconds.
Action Taken When The DTC Sets

Hot mode TCC Shift Pattern.

The PCM will not illuminate the Malfunction Indicator
Lamp (MIL).

ATF Lamp ON. (TFT is greater than 145
C (293
F))

Disable E±side TCC OFF request.
Conditions For Clearing The DTC

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warm±up cycles without a failure
reported.
The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Inspect the wiring for poor electrical connections at
the PCM and transmission 7-way connector. Look
for possible bent, backed out, deformed or damaged
terminals. Check for weak terminal tension as well.
Also check for a chafed wire that could short to bare
metal or other wiring. Inspect for a broken wire inside
the insulation.

When diagnosing for a possible intermittent short or
open condition, move the wiring harness while
observing test equipment for a change.

Check harness routing for a potential short to ground
in circuit RED/BLK.

Scan tool TFT sensor temperature should rise
steadily to about 100
C (212
F), then stabilize.

Check for a ªskewedº (mis±scaled) sensor by
comparing the TFT sensor temperature to the
ambient temperature after a vehicle cold soak. A
ªskewedº sensor can cause delayed garage shifts or
TCC complaints.

Check for a possible torque converter stator problem.

Verify customer driving habits, trailer towing, etc.
Test Description
The numbers below refer to the step numbers on the
diagnostic chart.
3. This test checks for a ªskewedº sensor or shorted
circuit.
4. This test simulates a TFT DTC P0713.

7A1±26
TRANSMISSION CONTROL SYSTEM (4L30±E)

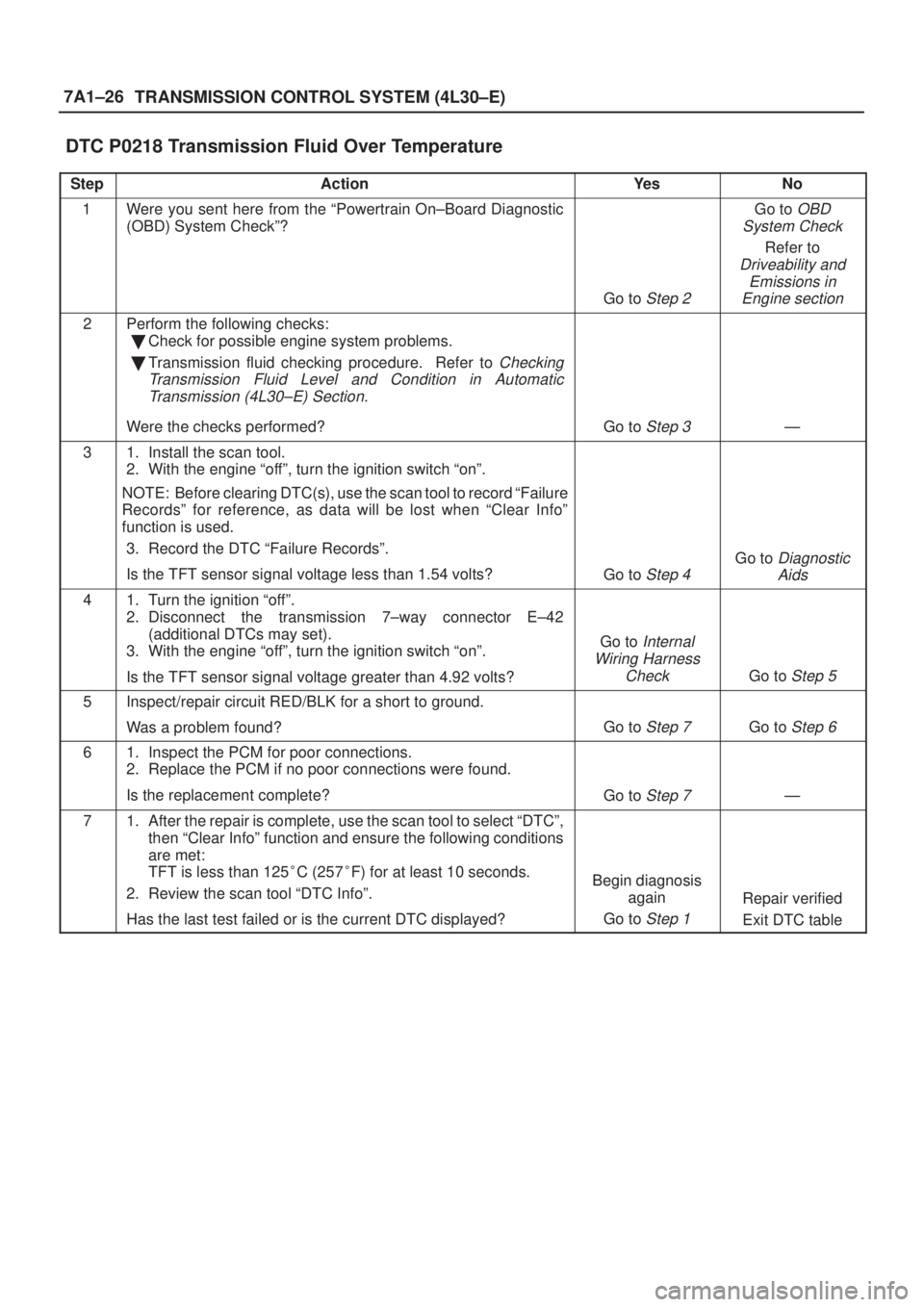

DTC P0218 Transmission Fluid Over Temperature
StepActionYe sNo
1Were you sent here from the ªPowertrain On±Board Diagnostic
(OBD) System Checkº?
Go to Step 2
Go to OBD
System Check
Refer to
Driveability and
Emissions in
Engine section
2Perform the following checks:

Check for possible engine system problems.

Transmission fluid checking procedure. Refer to
Checking
Transmission Fluid Level and Condition in Automatic
Transmission (4L30±E) Section.
Were the checks performed?Go to Step 3Ð
31. Install the scan tool.
2. With the engine ªoffº, turn the ignition switch ªonº.
NOTE: Before clearing DTC(s), use the scan tool to record ªFailure
Recordsº for reference, as data will be lost when ªClear Infoº
function is used.
3. Record the DTC ªFailure Recordsº.
Is the TFT sensor signal voltage less than 1.54 volts?
Go to Step 4
Go to Diagnostic
Aids
41. Turn the ignition ªoffº.
2. Disconnect the transmission 7±way connector E±42
(additional DTCs may set).
3. With the engine ªoffº, turn the ignition switch ªonº.
Is the TFT sensor signal voltage greater than 4.92 volts?
Go to Internal
Wiring Harness
Check
Go to Step 5
5Inspect/repair circuit RED/BLK for a short to ground.
Was a problem found?
Go to Step 7Go to Step 6
61. Inspect the PCM for poor connections.
2. Replace the PCM if no poor connections were found.
Is the replacement complete?
Go to Step 7Ð
71. After the repair is complete, use the scan tool to select ªDTCº,
then ªClear Infoº function and ensure the following conditions
are met:
TFT is less than 125
C (257
F) for at least 10 seconds.
2. Review the scan tool ªDTC Infoº.
Has the last test failed or is the current DTC displayed?
Begin diagnosis
again
Go to
Step 1
Repair verified
Exit DTC table

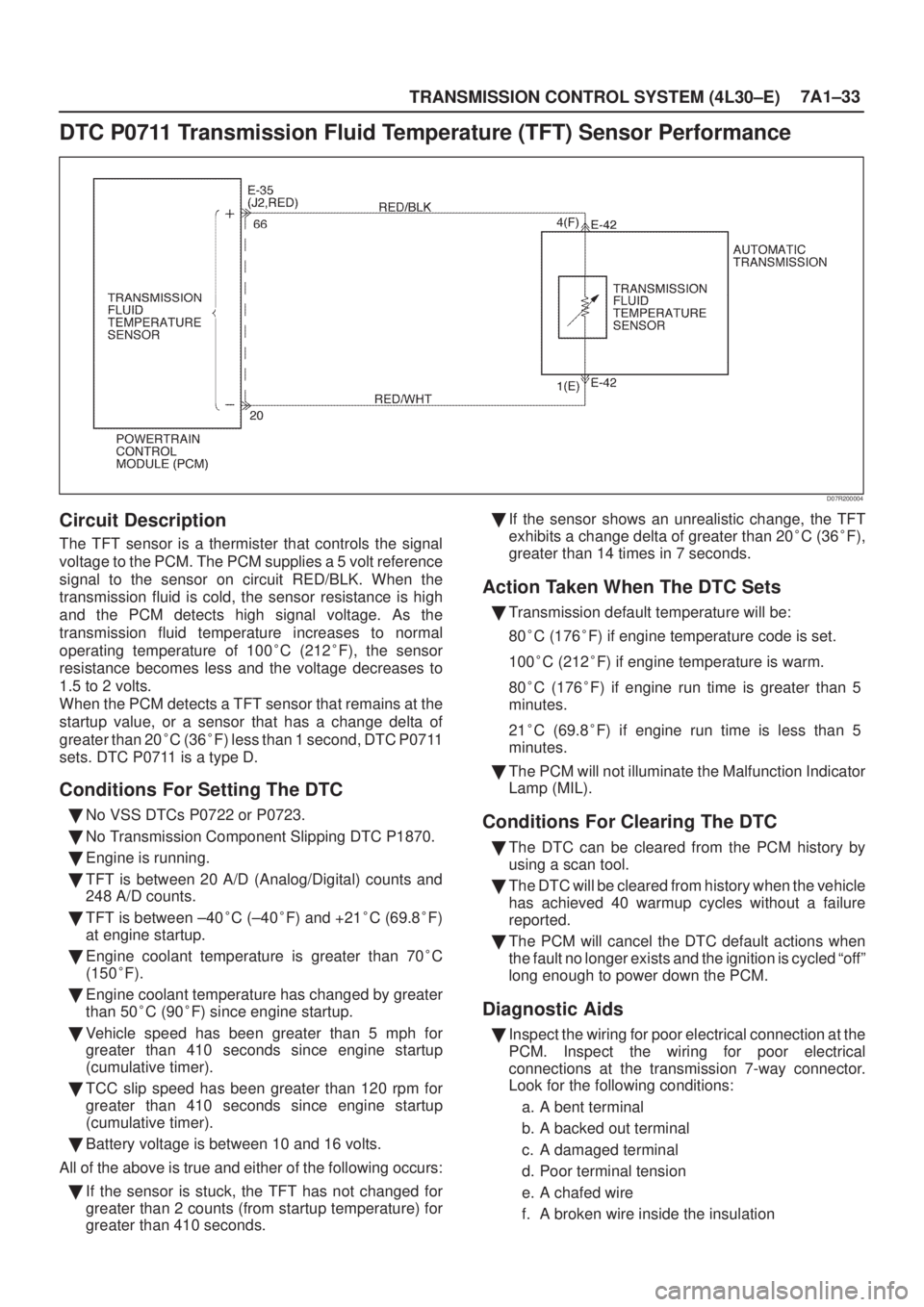

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±33
DTC P0711 Transmission Fluid Temperature (TFT) Sensor Performance
D07R200004
Circuit Description
The TFT sensor is a thermister that controls the signal
voltage to the PCM. The PCM supplies a 5 volt reference
signal to the sensor on circuit RED/BLK. When the
transmission fluid is cold, the sensor resistance is high
and the PCM detects high signal voltage. As the
transmission fluid temperature increases to normal
operating temperature of 100
C (212
F), the sensor
resistance becomes less and the voltage decreases to
1.5 to 2 volts.
When the PCM detects a TFT sensor that remains at the
startup value, or a sensor that has a change delta of
greater than 20
C (36
F) less than 1 second, DTC P0711
sets. DTC P0711 is a type D.
Conditions For Setting The DTC

No VSS DTCs P0722 or P0723.

No Transmission Component Slipping DTC P1870.

Engine is running.

TFT is between 20 A/D (Analog/Digital) counts and
248 A/D counts.

TFT is between ±40
C (±40
F) and +21
C (69.8
F)
at engine startup.

Engine coolant temperature is greater than 70
C
(150
F).

Engine coolant temperature has changed by greater
than 50
C (90
F) since engine startup.

Vehicle speed has been greater than 5 mph for
greater than 410 seconds since engine startup
(cumulative timer).

TCC slip speed has been greater than 120 rpm for
greater than 410 seconds since engine startup
(cumulative timer).

Battery voltage is between 10 and 16 volts.
All of the above is true and either of the following occurs:

If the sensor is stuck, the TFT has not changed for
greater than 2 counts (from startup temperature) for
greater than 410 seconds.
If the sensor shows an unrealistic change, the TFT
exhibits a change delta of greater than 20
C (36
F),
greater than 14 times in 7 seconds.
Action Taken When The DTC Sets

Transmission default temperature will be:
80
C (176
F) if engine temperature code is set.
100
C (212
F) if engine temperature is warm.
80
C (176
F) if engine run time is greater than 5
minutes.
21
C (69.8
F) if engine run time is less than 5
minutes.

The PCM will not illuminate the Malfunction Indicator
Lamp (MIL).
Conditions For Clearing The DTC

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Inspect the wiring for poor electrical connection at the
PCM. Inspect the wiring for poor electrical
connections at the transmission 7-way connector.
Look for the following conditions:
a. A bent terminal
b. A backed out terminal
c. A damaged terminal
d. Poor terminal tension
e. A chafed wire
f. A broken wire inside the insulation

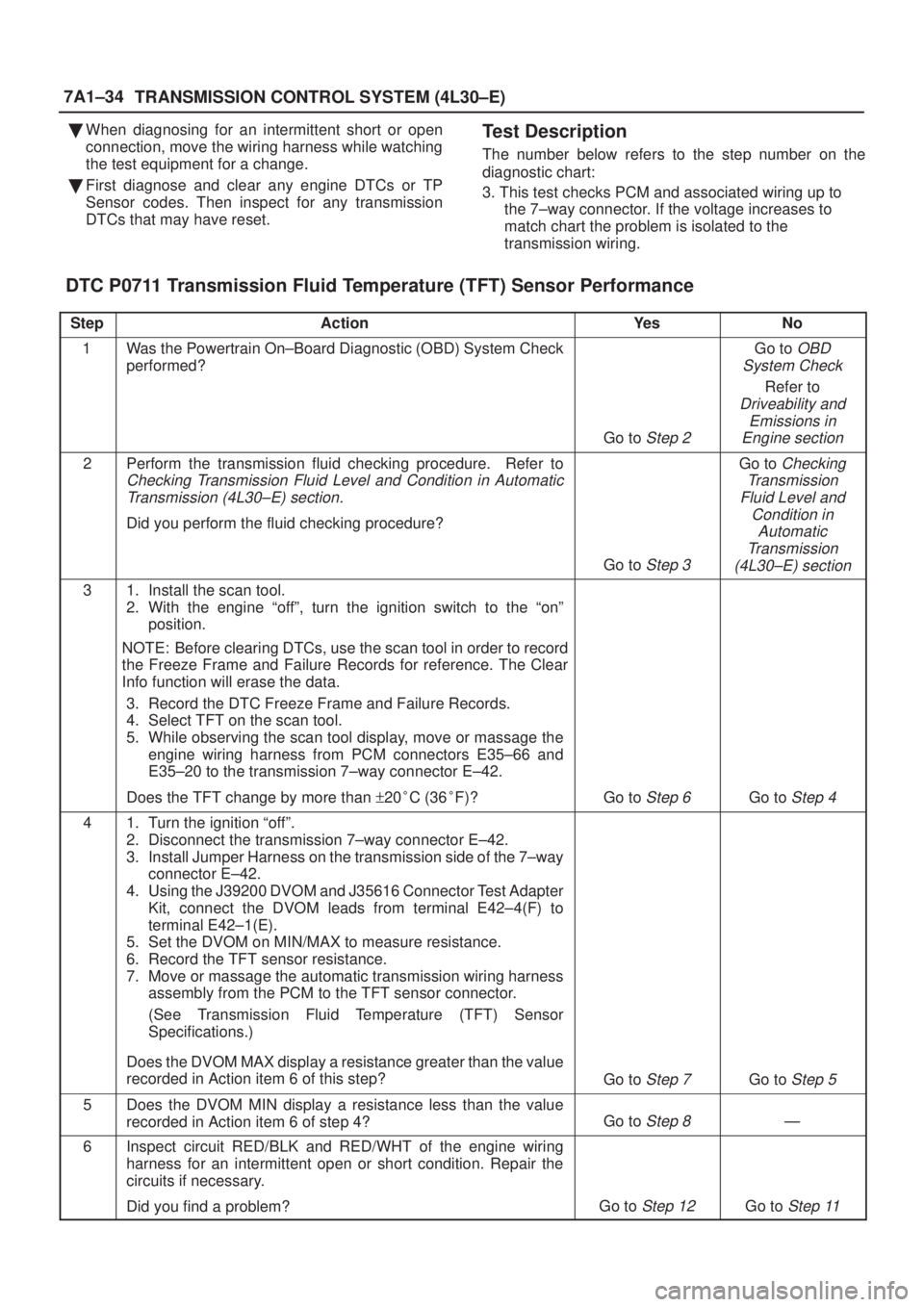

7A1±34
TRANSMISSION CONTROL SYSTEM (4L30±E)

When diagnosing for an intermittent short or open
connection, move the wiring harness while watching
the test equipment for a change.

First diagnose and clear any engine DTCs or TP
Sensor codes. Then inspect for any transmission
DTCs that may have reset.Test Description
The number below refers to the step number on the
diagnostic chart:
3. This test checks PCM and associated wiring up to
the 7±way connector. If the voltage increases to
match chart the problem is isolated to the
transmission wiring.
DTC P0711 Transmission Fluid Temperature (TFT) Sensor Performance
StepActionYe sNo
1Was the Powertrain On±Board Diagnostic (OBD) System Check
performed?
Go to Step 2
Go to OBD
System Check
Refer to
Driveability and
Emissions in
Engine section
2Perform the transmission fluid checking procedure. Refer to
Checking Transmission Fluid Level and Condition in Automatic
Transmission (4L30±E) section.
Did you perform the fluid checking procedure?
Go to Step 3
Go to Checking
Transmission
Fluid Level and
Condition in
Automatic
Transmission
(4L30±E) section
31. Install the scan tool.
2. With the engine ªoffº, turn the ignition switch to the ªonº
position.
NOTE: Before clearing DTCs, use the scan tool in order to record
the Freeze Frame and Failure Records for reference. The Clear
Info function will erase the data.
3. Record the DTC Freeze Frame and Failure Records.
4. Select TFT on the scan tool.
5. While observing the scan tool display, move or massage the
engine wiring harness from PCM connectors E35±66 and
E35±20 to the transmission 7±way connector E±42.
Does the TFT change by more than +20
C (36
F)?
Go to Step 6Go to Step 4
41. Turn the ignition ªoffº.
2. Disconnect the transmission 7±way connector E±42.
3. Install Jumper Harness on the transmission side of the 7±way
connector E±42.
4. Using the J39200 DVOM and J35616 Connector Test Adapter
Kit, connect the DVOM leads from terminal E42±4(F) to
terminal E42±1(E).
5. Set the DVOM on MIN/MAX to measure resistance.
6. Record the TFT sensor resistance.
7. Move or massage the automatic transmission wiring harness
assembly from the PCM to the TFT sensor connector.
(See Transmission Fluid Temperature (TFT) Sensor
Specifications.)
Does the DVOM MAX display a resistance greater than the value
recorded in Action item 6 of this step?
Go to Step 7Go to Step 5
5Does the DVOM MIN display a resistance less than the value
recorded in Action item 6 of step 4?
Go to Step 8Ð
6Inspect circuit RED/BLK and RED/WHT of the engine wiring
harness for an intermittent open or short condition. Repair the
circuits if necessary.
Did you find a problem?
Go to Step 12Go to Step 11

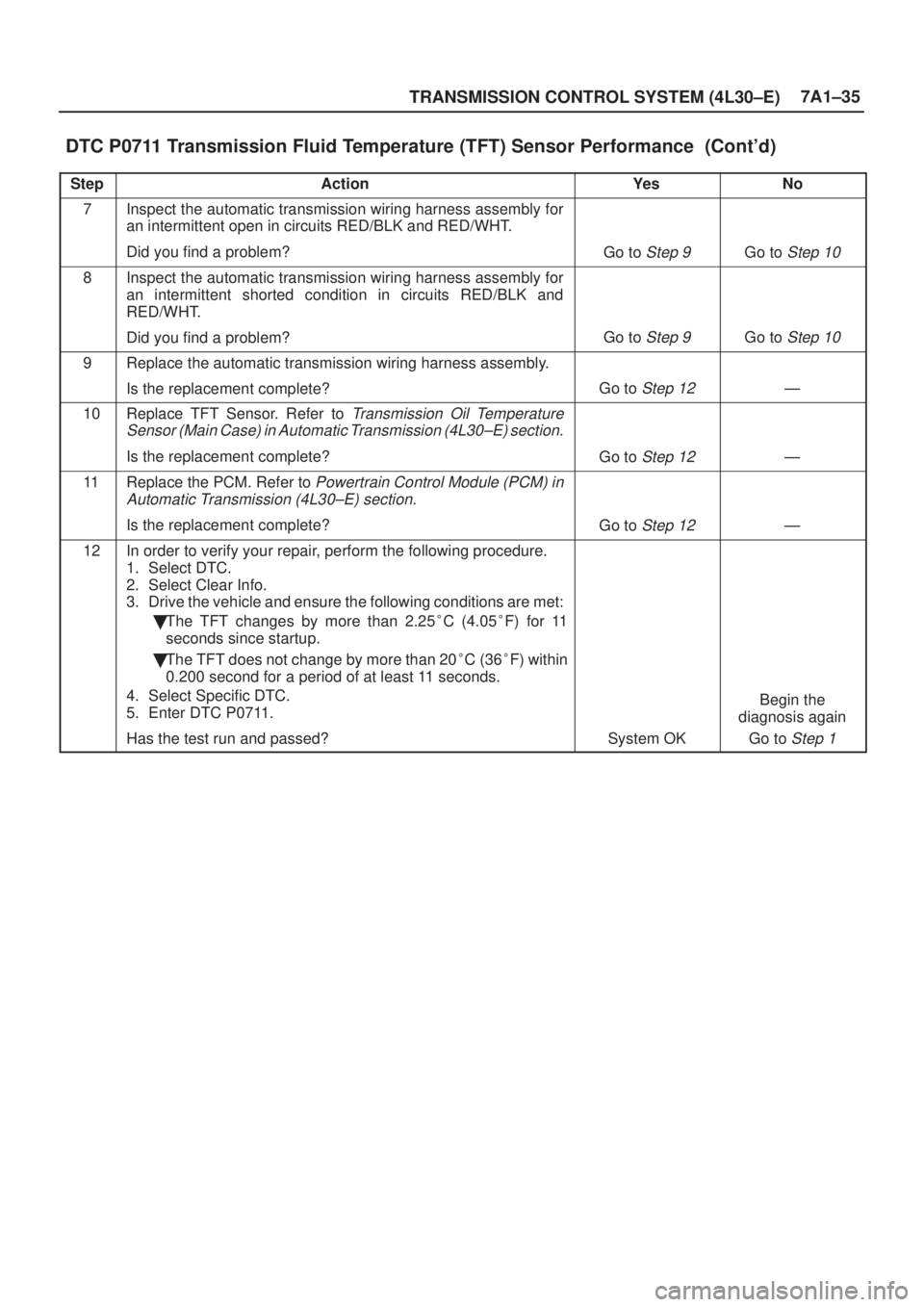

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±35
DTC P0711 Transmission Fluid Temperature (TFT) Sensor Performance (Cont'd)
StepNo Ye s Action
7Inspect the automatic transmission wiring harness assembly for
an intermittent open in circuits RED/BLK and RED/WHT.
Did you find a problem?
Go to Step 9Go to Step 10
8Inspect the automatic transmission wiring harness assembly for
an intermittent shorted condition in circuits RED/BLK and
RED/WHT.
Did you find a problem?
Go to Step 9Go to Step 10
9Replace the automatic transmission wiring harness assembly.
Is the replacement complete?
Go to Step 12Ð
10Replace TFT Sensor. Refer to Transmission Oil Temperature
Sensor (Main Case) in Automatic Transmission (4L30±E) section.
Is the replacement complete?Go to Step 12Ð
11Replace the PCM. Refer to Powertrain Control Module (PCM) in
Automatic Transmission (4L30±E) section.
Is the replacement complete?Go to Step 12Ð
12In order to verify your repair, perform the following procedure.
1. Select DTC.
2. Select Clear Info.
3. Drive the vehicle and ensure the following conditions are met:

The TFT changes by more than 2.25
C (4.05
F) for 11
seconds since startup.

The TFT does not change by more than 20
C (36
F) within
0.200 second for a period of at least 11 seconds.
4. Select Specific DTC.
5. Enter DTC P0711.
Has the test run and passed?
System OK
Begin the
diagnosis again
Go to
Step 1
