7A±65 AUTOMATIC TRANSMISSION (4L30±E)

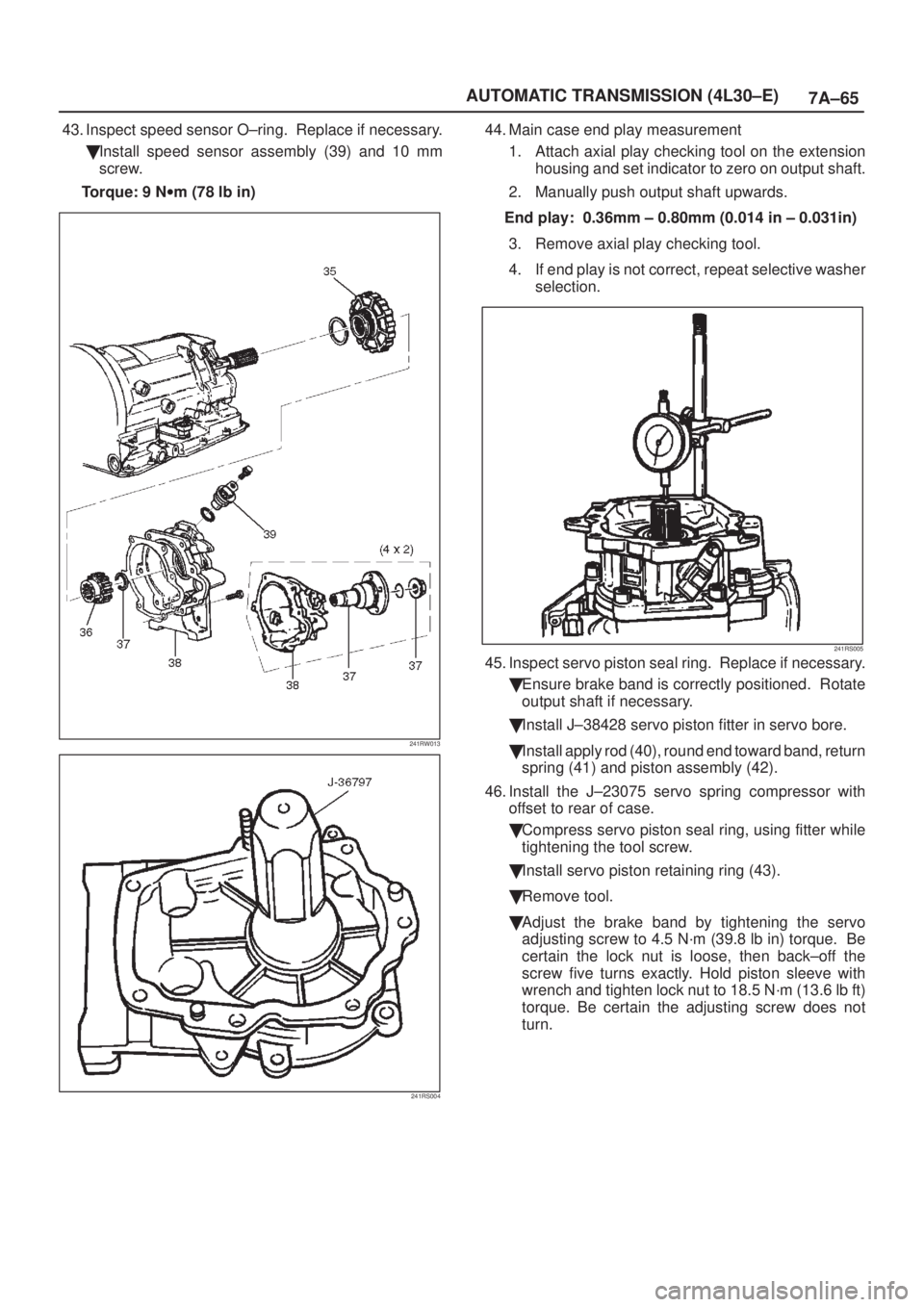

43. Inspect speed sensor O±ring. Replace if necessary.

Install speed sensor assembly (39) and 10 mm
screw.
Torque: 9 Nwm (78 lb in)
241RW013
241RS004
44. Main case end play measurement
1. Attach axial play checking tool on the extension
housing and set indicator to zero on output shaft.
2. Manually push output shaft upwards.
End play: 0.36mm ± 0.80mm (0.014 in ± 0.031in)
3. Remove axial play checking tool.
4. If end play is not correct, repeat selective washer
selection.
241RS005
45. Inspect servo piston seal ring. Replace if necessary.

Ensure brake band is correctly positioned. Rotate
output shaft if necessary.

Install J±38428 servo piston fitter in servo bore.

Install apply rod (40), round end toward band, return
spring (41) and piston assembly (42).
46. Install the J±23075 servo spring compressor with
offset to rear of case.

Compress servo piston seal ring, using fitter while
tightening the tool screw.

Install servo piston retaining ring (43).

Remove tool.

Adjust the brake band by tightening the servo
adjusting screw to 4.5 N´m (39.8 lb in) torque. Be
certain the lock nut is loose, then back±off the
screw five turns exactly. Hold piston sleeve with
wrench and tighten lock nut to 18.5 N´m (13.6 lb ft)
torque. Be certain the adjusting screw does not
turn.

7A±97 AUTOMATIC TRANSMISSION (4L30±E)

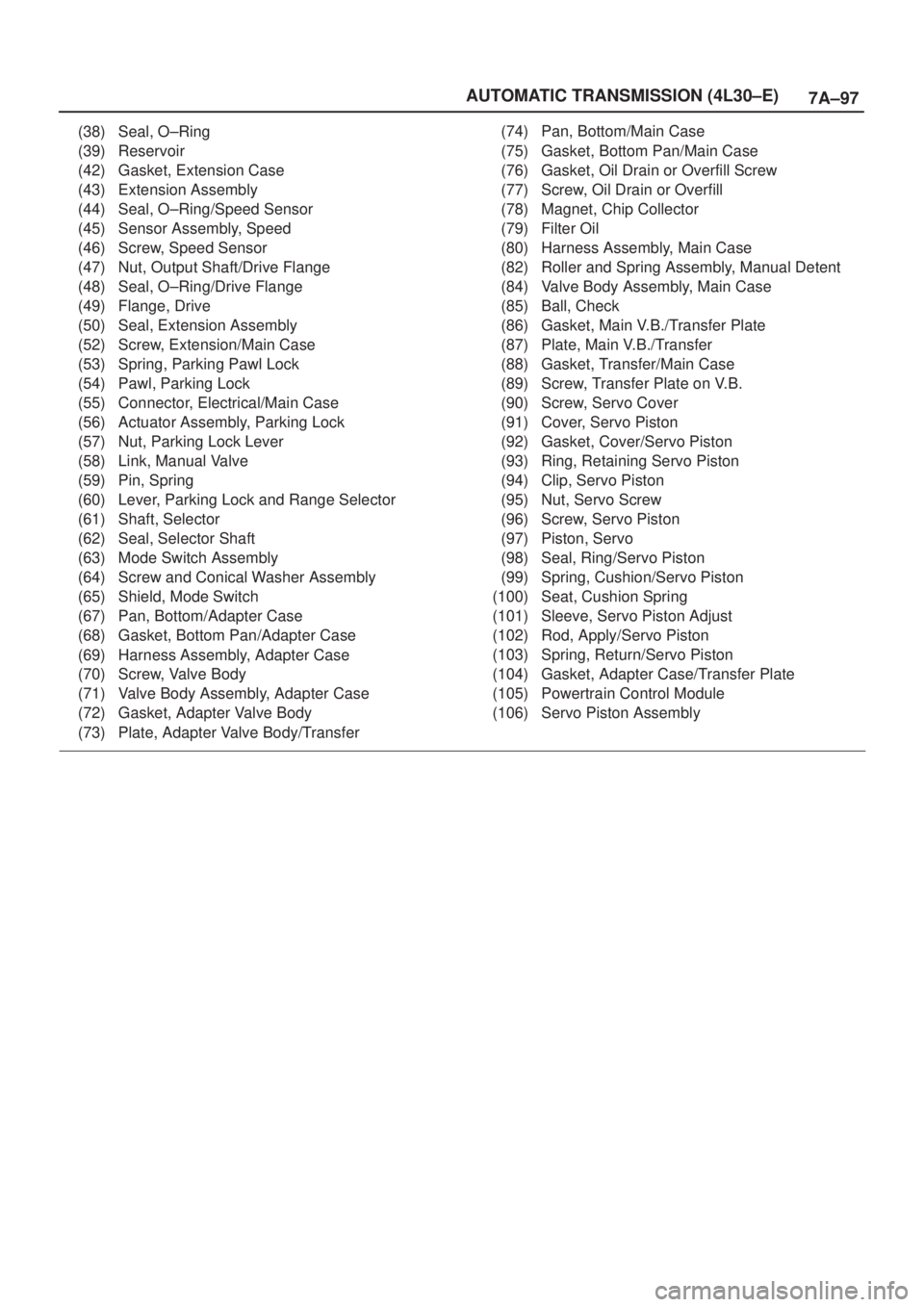

(38) Seal, O±Ring
(39) Reservoir
(42) Gasket, Extension Case
(43) Extension Assembly
(44) Seal, O±Ring/Speed Sensor
(45) Sensor Assembly, Speed
(46) Screw, Speed Sensor
(47) Nut, Output Shaft/Drive Flange
(48) Seal, O±Ring/Drive Flange
(49) Flange, Drive
(50) Seal, Extension Assembly
(52) Screw, Extension/Main Case
(53) Spring, Parking Pawl Lock
(54) Pawl, Parking Lock
(55) Connector, Electrical/Main Case
(56) Actuator Assembly, Parking Lock
(57) Nut, Parking Lock Lever
(58) Link, Manual Valve
(59) Pin, Spring
(60) Lever, Parking Lock and Range Selector
(61) Shaft, Selector
(62) Seal, Selector Shaft
(63) Mode Switch Assembly
(64) Screw and Conical Washer Assembly
(65) Shield, Mode Switch
(67) Pan, Bottom/Adapter Case
(68) Gasket, Bottom Pan/Adapter Case
(69) Harness Assembly, Adapter Case
(70) Screw, Valve Body
(71) Valve Body Assembly, Adapter Case
(72) Gasket, Adapter Valve Body
(73) Plate, Adapter Valve Body/Transfer(74) Pan, Bottom/Main Case
(75) Gasket, Bottom Pan/Main Case
(76) Gasket, Oil Drain or Overfill Screw
(77) Screw, Oil Drain or Overfill
(78) Magnet, Chip Collector
(79) Filter Oil
(80) Harness Assembly, Main Case
(82) Roller and Spring Assembly, Manual Detent
(84) Valve Body Assembly, Main Case
(85) Ball, Check
(86) Gasket, Main V.B./Transfer Plate
(87) Plate, Main V.B./Transfer
(88) Gasket, Transfer/Main Case
(89) Screw, Transfer Plate on V.B.
(90) Screw, Servo Cover
(91) Cover, Servo Piston
(92) Gasket, Cover/Servo Piston
(93) Ring, Retaining Servo Piston
(94) Clip, Servo Piston
(95) Nut, Servo Screw
(96) Screw, Servo Piston
(97) Piston, Servo
(98) Seal, Ring/Servo Piston
(99) Spring, Cushion/Servo Piston
(100) Seat, Cushion Spring
(101) Sleeve, Servo Piston Adjust
(102) Rod, Apply/Servo Piston
(103) Spring, Return/Servo Piston
(104) Gasket, Adapter Case/Transfer Plate
(105) Powertrain Control Module
(106) Servo Piston Assembly

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±1
AXIOM
TRANSMISSION
TRANSMISSION CONTROL SYSTEM (4L30±E)

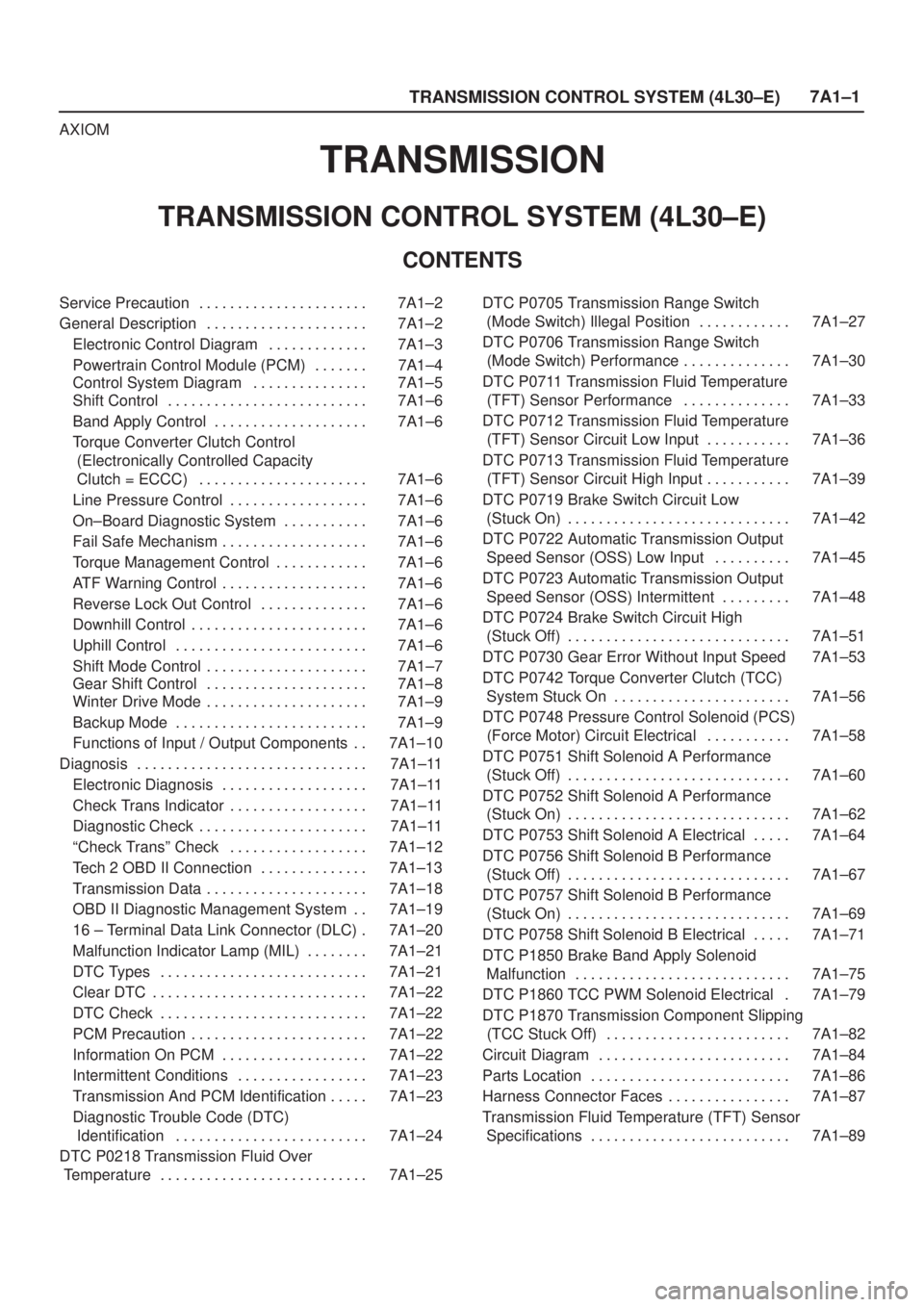

CONTENTS
Service Precaution 7A1±2. . . . . . . . . . . . . . . . . . . . . .
General Description 7A1±2. . . . . . . . . . . . . . . . . . . . .
Electronic Control Diagram 7A1±3. . . . . . . . . . . . .
Powertrain Control Module (PCM) 7A1±4. . . . . . .
Control System Diagram 7A1±5. . . . . . . . . . . . . . .
Shift Control 7A1±6. . . . . . . . . . . . . . . . . . . . . . . . . .
Band Apply Control 7A1±6. . . . . . . . . . . . . . . . . . . .
Torque Converter Clutch Control
(Electronically Controlled Capacity
Clutch = ECCC) 7A1±6. . . . . . . . . . . . . . . . . . . . . .
Line Pressure Control 7A1±6. . . . . . . . . . . . . . . . . .
On±Board Diagnostic System 7A1±6. . . . . . . . . . .
Fail Safe Mechanism 7A1±6. . . . . . . . . . . . . . . . . . .
Torque Management Control 7A1±6. . . . . . . . . . . .
ATF Warning Control 7A1±6. . . . . . . . . . . . . . . . . . .
Reverse Lock Out Control 7A1±6. . . . . . . . . . . . . .
Downhill Control 7A1±6. . . . . . . . . . . . . . . . . . . . . . .
Uphill Control 7A1±6. . . . . . . . . . . . . . . . . . . . . . . . .
Shift Mode Control 7A1±7. . . . . . . . . . . . . . . . . . . . .
Gear Shift Control 7A1±8. . . . . . . . . . . . . . . . . . . . .
Winter Drive Mode 7A1±9. . . . . . . . . . . . . . . . . . . . .
Backup Mode 7A1±9. . . . . . . . . . . . . . . . . . . . . . . . .
Functions of Input / Output Components 7A1±10. .
Diagnosis 7A1±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electronic Diagnosis 7A1±11. . . . . . . . . . . . . . . . . . .
Check Trans Indicator 7A1±11. . . . . . . . . . . . . . . . . .
Diagnostic Check 7A1±11. . . . . . . . . . . . . . . . . . . . . .
ªCheck Transº Check 7A1±12. . . . . . . . . . . . . . . . . .
Tech 2 OBD II Connection 7A1±13. . . . . . . . . . . . . .
Transmission Data 7A1±18. . . . . . . . . . . . . . . . . . . . .
OBD II Diagnostic Management System 7A1±19. .
16 ± Terminal Data Link Connector (DLC) 7A1±20.
Malfunction Indicator Lamp (MIL) 7A1±21. . . . . . . .
DTC Types 7A1±21. . . . . . . . . . . . . . . . . . . . . . . . . . .
Clear DTC 7A1±22. . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC Check 7A1±22. . . . . . . . . . . . . . . . . . . . . . . . . . .
PCM Precaution 7A1±22. . . . . . . . . . . . . . . . . . . . . . .
Information On PCM 7A1±22. . . . . . . . . . . . . . . . . . .
Intermittent Conditions 7A1±23. . . . . . . . . . . . . . . . .
Transmission And PCM Identification 7A1±23. . . . .
Diagnostic Trouble Code (DTC)
Identification 7A1±24. . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0218 Transmission Fluid Over
Temperature 7A1±25. . . . . . . . . . . . . . . . . . . . . . . . . . . DTC P0705 Transmission Range Switch
(Mode Switch) Illegal Position 7A1±27. . . . . . . . . . . .
DTC P0706 Transmission Range Switch
(Mode Switch) Performance 7A1±30. . . . . . . . . . . . . .
DTC P0711 Transmission Fluid Temperature
(TFT) Sensor Performance 7A1±33. . . . . . . . . . . . . .
DTC P0712 Transmission Fluid Temperature
(TFT) Sensor Circuit Low Input 7A1±36. . . . . . . . . . .
DTC P0713 Transmission Fluid Temperature
(TFT) Sensor Circuit High Input 7A1±39. . . . . . . . . . .
DTC P0719 Brake Switch Circuit Low
(Stuck On) 7A1±42. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0722 Automatic Transmission Output
Speed Sensor (OSS) Low Input 7A1±45. . . . . . . . . .
DTC P0723 Automatic Transmission Output
Speed Sensor (OSS) Intermittent 7A1±48. . . . . . . . .
DTC P0724 Brake Switch Circuit High
(Stuck Off) 7A1±51. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0730 Gear Error Without Input Speed 7A1±53
DTC P0742 Torque Converter Clutch (TCC)
System Stuck On 7A1±56. . . . . . . . . . . . . . . . . . . . . . .
DTC P0748 Pressure Control Solenoid (PCS)
(Force Motor) Circuit Electrical 7A1±58. . . . . . . . . . .
DTC P0751 Shift Solenoid A Performance
(Stuck Off) 7A1±60. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0752 Shift Solenoid A Performance
(Stuck On) 7A1±62. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0753 Shift Solenoid A Electrical 7A1±64. . . . .
DTC P0756 Shift Solenoid B Performance
(Stuck Off) 7A1±67. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0757 Shift Solenoid B Performance
(Stuck On) 7A1±69. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0758 Shift Solenoid B Electrical 7A1±71. . . . .
DTC P1850 Brake Band Apply Solenoid
Malfunction 7A1±75. . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P1860 TCC PWM Solenoid Electrical 7A1±79.
DTC P1870 Transmission Component Slipping
(TCC Stuck Off) 7A1±82. . . . . . . . . . . . . . . . . . . . . . . .
Circuit Diagram 7A1±84. . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 7A1±86. . . . . . . . . . . . . . . . . . . . . . . . . .
Harness Connector Faces 7A1±87. . . . . . . . . . . . . . . .
Transmission Fluid Temperature (TFT) Sensor
Specifications 7A1±89. . . . . . . . . . . . . . . . . . . . . . . . . .

7A1±2
TRANSMISSION CONTROL SYSTEM (4L30±E)

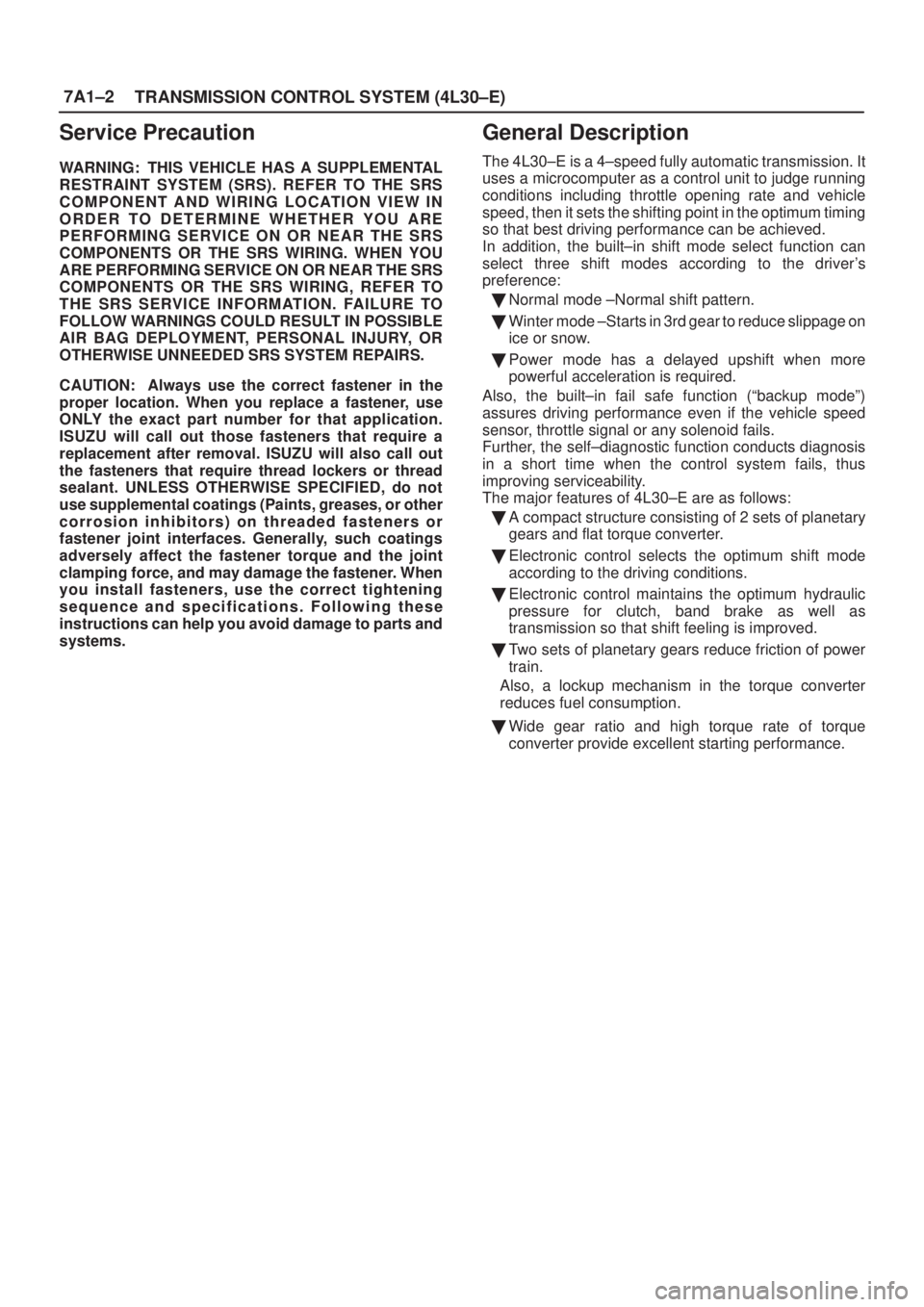

Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
General Description
The 4L30±E is a 4±speed fully automatic transmission. It
uses a microcomputer as a control unit to judge running
conditions including throttle opening rate and vehicle
speed, then it sets the shifting point in the optimum timing
so that best driving performance can be achieved.
In addition, the built±in shift mode select function can
select three shift modes according to the driver's
preference:

Normal mode ±Normal shift pattern.

Winter mode ±Starts in 3rd gear to reduce slippage on
ice or snow.

Power mode has a delayed upshift when more
powerful acceleration is required.
Also, the built±in fail safe function (ªbackup modeº)
assures driving performance even if the vehicle speed
sensor, throttle signal or any solenoid fails.
Further, the self±diagnostic function conducts diagnosis
in a short time when the control system fails, thus
improving serviceability.
The major features of 4L30±E are as follows:

A compact structure consisting of 2 sets of planetary
gears and flat torque converter.

Electronic control selects the optimum shift mode
according to the driving conditions.

Electronic control maintains the optimum hydraulic
pressure for clutch, band brake as well as
transmission so that shift feeling is improved.

Two sets of planetary gears reduce friction of power
train.
Also, a lockup mechanism in the torque converter
reduces fuel consumption.

Wide gear ratio and high torque rate of torque
converter provide excellent starting performance.

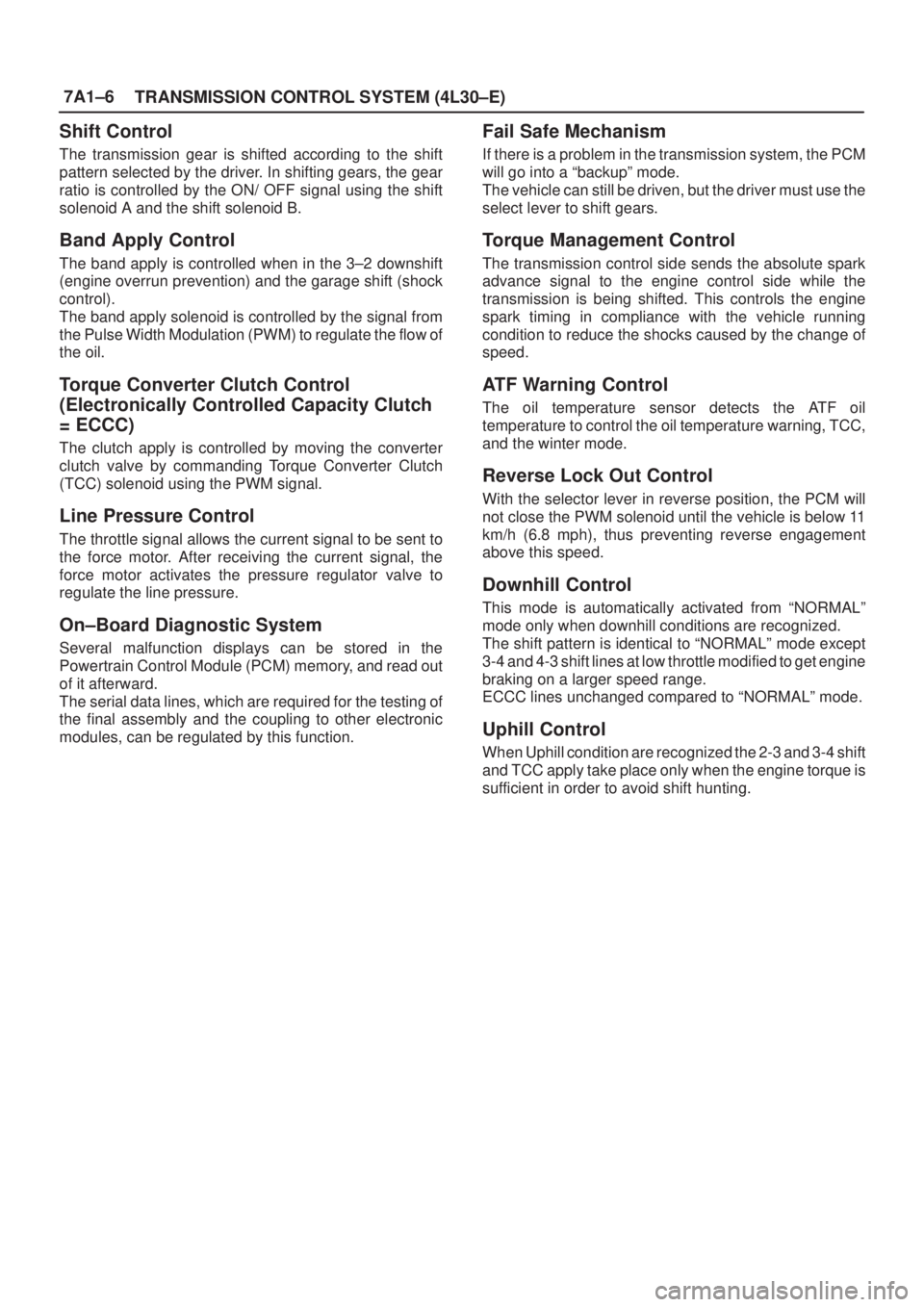

7A1±6
TRANSMISSION CONTROL SYSTEM (4L30±E)
Shift Control
The transmission gear is shifted according to the shift
pattern selected by the driver. In shifting gears, the gear
ratio is controlled by the ON/ OFF signal using the shift
solenoid A and the shift solenoid B.
Band Apply Control
The band apply is controlled when in the 3±2 downshift
(engine overrun prevention) and the garage shift (shock
control).
The band apply solenoid is controlled by the signal from
the Pulse Width Modulation (PWM) to regulate the flow of
the oil.
Torque Converter Clutch Control
(Electronically Controlled Capacity Clutch
= ECCC)
The clutch apply is controlled by moving the converter
clutch valve by commanding Torque Converter Clutch
(TCC) solenoid using the PWM signal.
Line Pressure Control
The throttle signal allows the current signal to be sent to
the force motor. After receiving the current signal, the
force motor activates the pressure regulator valve to
regulate the line pressure.
On±Board Diagnostic System
Several malfunction displays can be stored in the
Powertrain Control Module (PCM) memory, and read out
of it afterward.
The serial data lines, which are required for the testing of
the final assembly and the coupling to other electronic
modules, can be regulated by this function.
Fail Safe Mechanism
If there is a problem in the transmission system, the PCM
will go into a ªbackupº mode.
The vehicle can still be driven, but the driver must use the
select lever to shift gears.
Torque Management Control
The transmission control side sends the absolute spark
advance signal to the engine control side while the
transmission is being shifted. This controls the engine
spark timing in compliance with the vehicle running
condition to reduce the shocks caused by the change of
speed.
ATF Warning Control
The oil temperature sensor detects the ATF oil
temperature to control the oil temperature warning, TCC,
and the winter mode.
Reverse Lock Out Control
With the selector lever in reverse position, the PCM will
not close the PWM solenoid until the vehicle is below 11
km/h (6.8 mph), thus preventing reverse engagement
above this speed.
Downhill Control
This mode is automatically activated from ªNORMALº
mode only when downhill conditions are recognized.
The shift pattern is identical to ªNORMALº mode except
3-4 and 4-3 shift lines at low throttle modified to get engine
braking on a larger speed range.
ECCC lines unchanged compared to ªNORMALº mode.
Uphill Control
When Uphill condition are recognized the 2-3 and 3-4 shift
and TCC apply take place only when the engine torque is
sufficient in order to avoid shift hunting.

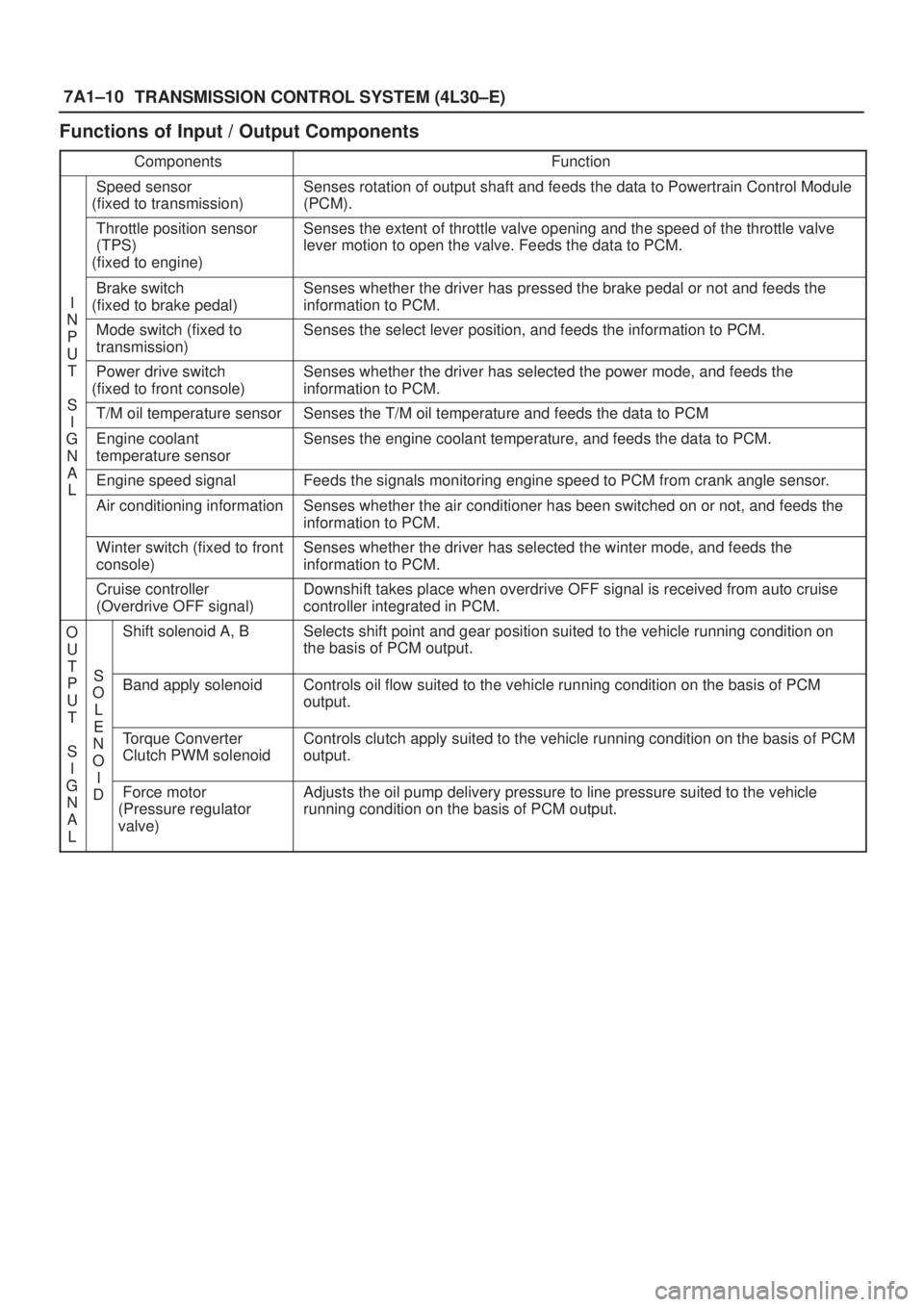

7A1±10
TRANSMISSION CONTROL SYSTEM (4L30±E)
Functions of Input / Output Components
ComponentsFunction
Speed sensor
(fixed to transmission)Senses rotation of output shaft and feeds the data to Powertrain Control Module
(PCM).
Throttle position sensor
(TPS)
(fixed to engine)Senses the extent of throttle valve opening and the speed of the throttle valve
lever motion to open the valve. Feeds the data to PCM.
I
N
Brake switch
(fixed to brake pedal)Senses whether the driver has pressed the brake pedal or not and feeds the
information to PCM.
N
P
UMode switch (fixed to
transmission)Senses the select lever position, and feeds the information to PCM.
U
T

S
Power drive switch
(fixed to front console)Senses whether the driver has selected the power mode, and feeds the
information to PCM.
S
IT/M oil temperature sensorSenses the T/M oil temperature and feeds the data to PCMI
G
N
A
Engine coolant
temperature sensorSenses the engine coolant temperature, and feeds the data to PCM.
A
LEngine speed signalFeeds the signals monitoring engine speed to PCM from crank angle sensor.L
Air conditioning informationSenses whether the air conditioner has been switched on or not, and feeds the
information to PCM.
Winter switch (fixed to front
console)Senses whether the driver has selected the winter mode, and feeds the
information to PCM.
Cruise controller
(Overdrive OFF signal)Downshift takes place when overdrive OFF signal is received from auto cruise
controller integrated in PCM.
O
U
T
S
Shift solenoid A, BSelects shift point and gear position suited to the vehicle running condition on
the basis of PCM output.
P
U
TS
O
L
E
Band apply solenoidControls oil flow suited to the vehicle running condition on the basis of PCM
output.

S
I
G
E
N
O
I
Torque Converter
Clutch PWM solenoidControls clutch apply suited to the vehicle running condition on the basis of PCM
output.
G
N
A
LI
DForce motor
(Pressure regulator
valve)Adjusts the oil pump delivery pressure to line pressure suited to the vehicle
running condition on the basis of PCM output.

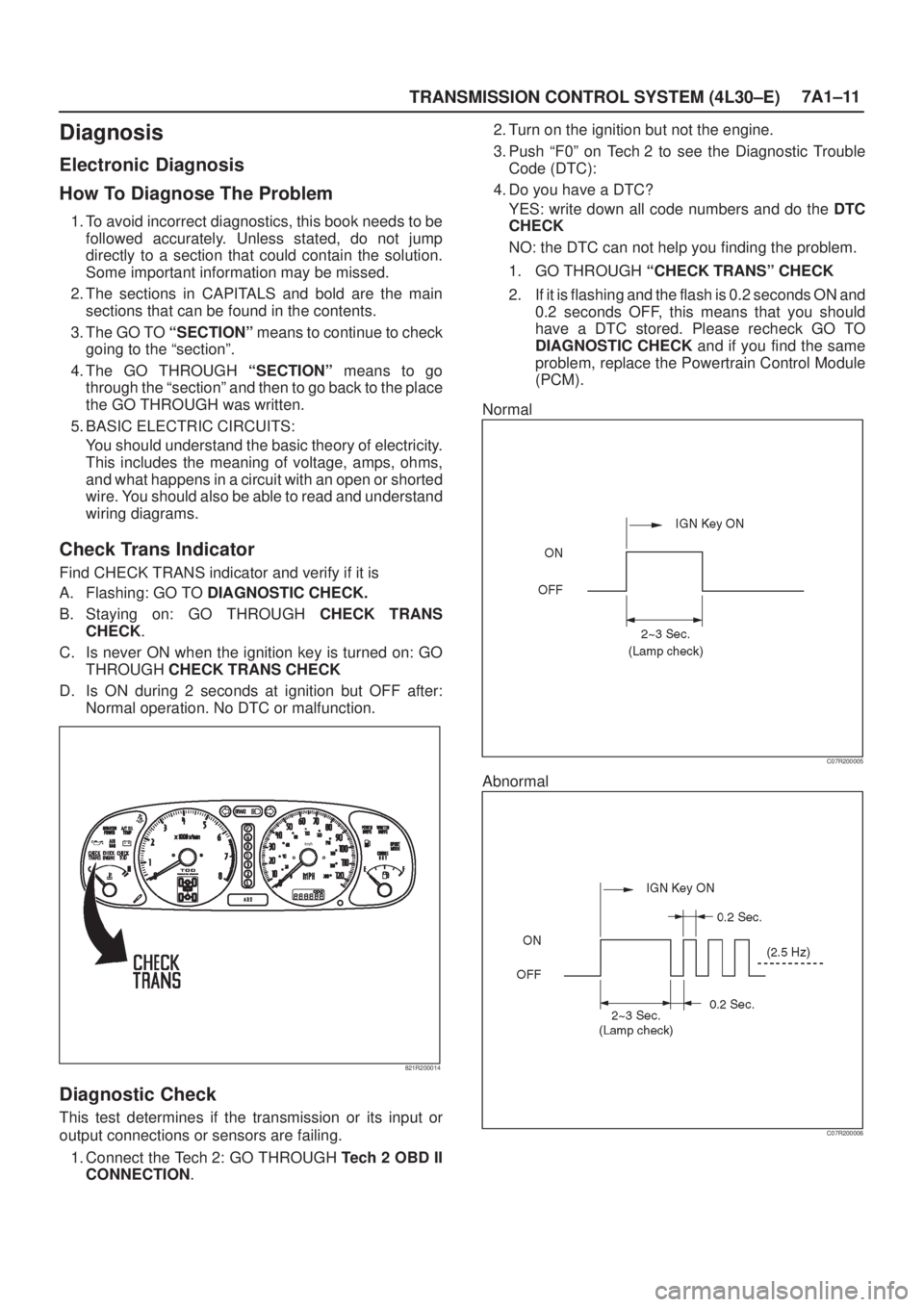

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±11
Diagnosis
Electronic Diagnosis
How To Diagnose The Problem
1. To avoid incorrect diagnostics, this book needs to be
followed accurately. Unless stated, do not jump
directly to a section that could contain the solution.
Some important information may be missed.
2. The sections in CAPITALS and bold are the main
sections that can be found in the contents.
3. The GO TO ªSECTIONº means to continue to check
going to the ªsectionº.
4. The GO THROUGH ªSECTIONº means to go
through the ªsectionº and then to go back to the place
the GO THROUGH was written.
5. BASIC ELECTRIC CIRCUITS:
You should understand the basic theory of electricity.
This includes the meaning of voltage, amps, ohms,
and what happens in a circuit with an open or shorted
wire. You should also be able to read and understand
wiring diagrams.
Check Trans Indicator
Find CHECK TRANS indicator and verify if it is
A. Flashing: GO TO DIAGNOSTIC CHECK.
B. Staying on: GO THROUGH CHECK TRANS
CHECK.
C. Is never ON when the ignition key is turned on: GO
THROUGH CHECK TRANS CHECK
D. Is ON during 2 seconds at ignition but OFF after:
Normal operation. No DTC or malfunction.
821R200014
Diagnostic Check
This test determines if the transmission or its input or
output connections or sensors are failing.
1. Connect the Tech 2: GO THROUGH Tech 2 OBD II
CONNECTION.2. Turn on the ignition but not the engine.
3. Push ªF0º on Tech 2 to see the Diagnostic Trouble
Code (DTC):
4. Do you have a DTC?
YES: write down all code numbers and do the DTC
CHECK
NO: the DTC can not help you finding the problem.
1. GO THROUGH ªCHECK TRANSº CHECK
2. If it is flashing and the flash is 0.2 seconds ON and
0.2 seconds OFF, this means that you should
have a DTC stored. Please recheck GO TO
DIAGNOSTIC CHECK and if you find the same
problem, replace the Powertrain Control Module
(PCM).
Normal
C07R200005
Abnormal
C07R200006

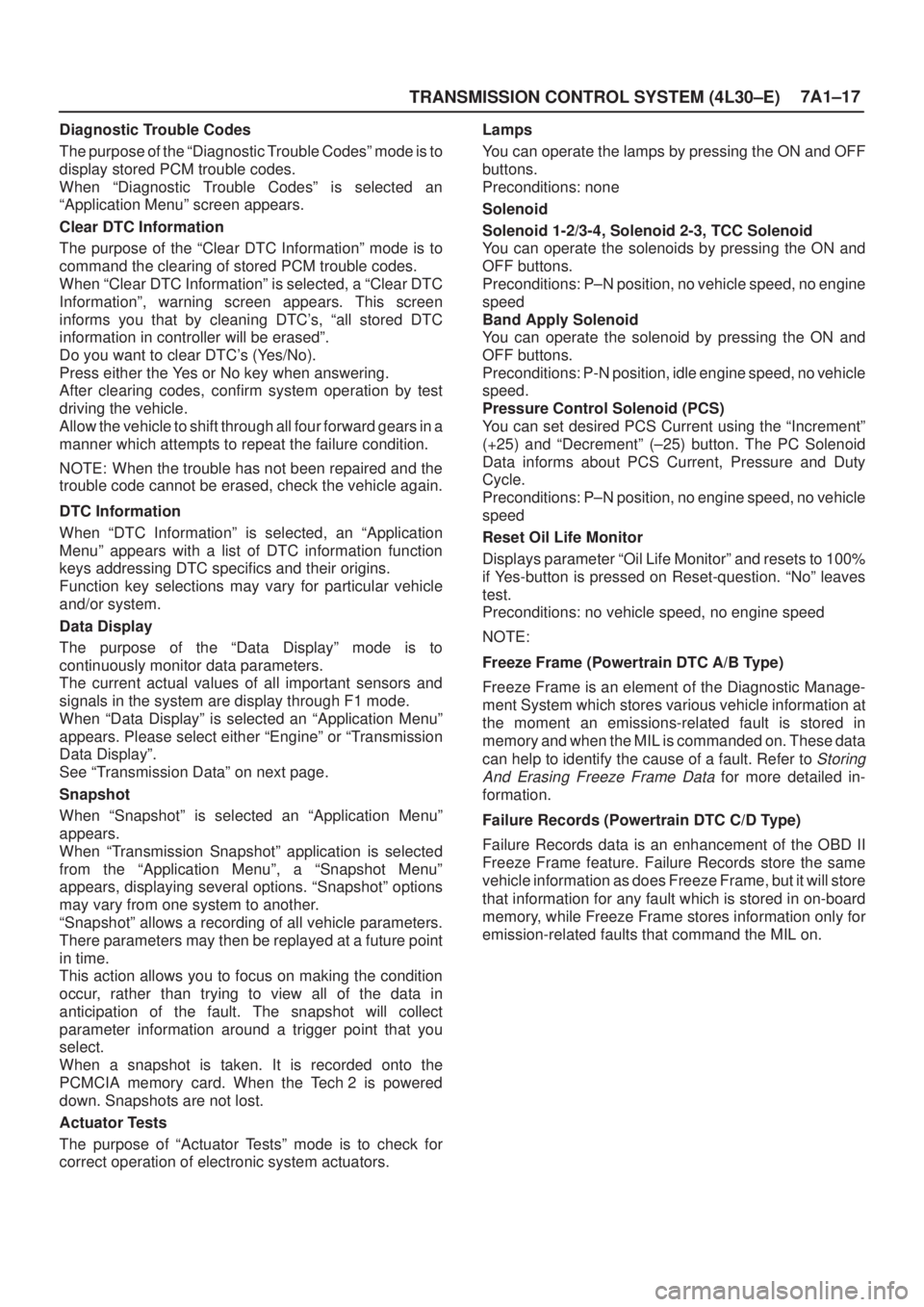

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±17
Diagnostic Trouble Codes
The purpose of the ªDiagnostic Trouble Codesº mode is to
display stored PCM trouble codes.
When ªDiagnostic Trouble Codesº is selected an
ªApplication Menuº screen appears.
Clear DTC Information
The purpose of the ªClear DTC Informationº mode is to
command the clearing of stored PCM trouble codes.
When ªClear DTC Informationº is selected, a ªClear DTC
Informationº, warning screen appears. This screen
informs you that by cleaning DTC's, ªall stored DTC
information in controller will be erasedº.
Do you want to clear DTC's (Yes/No).
Press either the Yes or No key when answering.
After clearing codes, confirm system operation by test
driving the vehicle.
Allow the vehicle to shift through all four forward gears in a
manner which attempts to repeat the failure condition.
NOTE: When the trouble has not been repaired and the
trouble code cannot be erased, check the vehicle again.
DTC Information
When ªDTC Informationº is selected, an ªApplication
Menuº appears with a list of DTC information function
keys addressing DTC specifics and their origins.
Function key selections may vary for particular vehicle
and/or system.
Data Display
The purpose of the ªData Displayº mode is to
continuously monitor data parameters.
The current actual values of all important sensors and
signals in the system are display through F1 mode.
When ªData Displayº is selected an ªApplication Menuº
appears. Please select either ªEngineº or ªTransmission
Data Displayº.
See ªTransmission Dataº on next page.
Snapshot
When ªSnapshotº is selected an ªApplication Menuº
appears.
When ªTransmission Snapshotº application is selected
from the ªApplication Menuº, a ªSnapshot Menuº
appears, displaying several options. ªSnapshotº options
may vary from one system to another.
ªSnapshotº allows a recording of all vehicle parameters.
There parameters may then be replayed at a future point
in time.
This action allows you to focus on making the condition
occur, rather than trying to view all of the data in
anticipation of the fault. The snapshot will collect
parameter information around a trigger point that you
select.
When a snapshot is taken. It is recorded onto the
PCMCIA memory card. When the Tech 2 is powered
down. Snapshots are not lost.
Actuator Tests
The purpose of ªActuator Testsº mode is to check for
correct operation of electronic system actuators.Lamps
You can operate the lamps by pressing the ON and OFF
buttons.
Preconditions: none
Solenoid
Solenoid 1-2/3-4, Solenoid 2-3, TCC Solenoid
You can operate the solenoids by pressing the ON and
OFF buttons.
Preconditions: P±N position, no vehicle speed, no engine
speed
Band Apply Solenoid
You can operate the solenoid by pressing the ON and
OFF buttons.
Preconditions: P-N position, idle engine speed, no vehicle
speed.
Pressure Control Solenoid (PCS)
You can set desired PCS Current using the ªIncrementº
(+25) and ªDecrementº (±25) button. The PC Solenoid
Data informs about PCS Current, Pressure and Duty
Cycle.
Preconditions: P±N position, no engine speed, no vehicle
speed
Reset Oil Life Monitor
Displays parameter ªOil Life Monitorº and resets to 100%
if Yes-button is pressed on Reset-question. ªNoº leaves
test.
Preconditions: no vehicle speed, no engine speed
NOTE:
Freeze Frame (Powertrain DTC A/B Type)
Freeze Frame is an element of the Diagnostic Manage-
ment System which stores various vehicle information at
the moment an emissions-related fault is stored in
memory and when the MIL is commanded on. These data
can help to identify the cause of a fault. Refer to
Storing
And Erasing Freeze Frame Data
for more detailed in-
formation.
Failure Records (Powertrain DTC C/D Type)
Failure Records data is an enhancement of the OBD II
Freeze Frame feature. Failure Records store the same
vehicle information as does Freeze Frame, but it will store
that information for any fault which is stored in on-board
memory, while Freeze Frame stores information only for
emission-related faults that command the MIL on.
