2002 CHEVROLET MALIBU Owners Manual

3-14
When a traffic announcement comes on the current radio
station, you will hear it, even if the volume is muted or a
compact disc is playing. The traffic symbol and
TRAFFIC will appear on the display while the traffic
announcement plays. If the compact disc player was
being used, the compact disc will stay in the player and
resume play at the point where it stopped.
Radio Messages
CAL ERR (Calibration Error): This message is
displayed when the radio has not been calibrated
properly for the vehicle. You must return to the
dealership for service.
LOCKED: This message is displayed when the
THEFTLOCK

system has locked up. You must return
to the dealership for service.
If any error occurs repeatedly or if an error can't be
corrected, contact your dealer.
Playing a Compact Disc
Insert a disc partway into the slot, label side up. The
player will pull it in and the disc should begin playing.
The display will show the CD symbol. If you want to
insert a compact disc with the ignition off, first press
DISP or EJT.
If an error appears on the display, see ªCompact Disc
Messagesº later in this section.1 PREV (Previous): Press this pushbutton to go to the
previous track if the current track has been playing for
less than eight seconds. If this pushbutton is pressed and
the current track has been playing for more than eight
seconds, it will go to the beginning of the current track.
TRACK and the track number will appear on the
display. If you hold this pushbutton or press it more than
once, the player will continue moving back through the
disc. The sound will mute while seeking.
2 NEXT: Press this pushbutton to go to the next track.
TRACK and the track number will appear on the
display. If you hold this pushbutton or press it more than
once, the player will continue moving forward through
the disc. The sound will mute while seeking.
3 REV (Reverse): Press and hold this pushbutton to
reverse quickly within a track. Press and hold this
pushbutton for less than two seconds to reverse at six
times the normal playing speed. Press and hold it for
more than two seconds to reverse at 17 times the normal
playing speed. Release it to play the track. The display
will show ET and the elapsed time.

3-15
4 FWD (Forward): Press and hold this pushbutton to
advance quickly within a track. Press and hold this
pushbutton for less than two seconds to advance at six
times the normal playing speed. Press and hold it for
more than two seconds to advance at 17 times the
normal playing speed. Release it to play the track. The
display will show ET and the elapsed time.
6 RDM (Random): Press this pushbutton to hear the
tracks in random, rather than sequential, order. RDM
ON will appear on the display. RDM T and the track
number will appear on the display when each track starts
to play. Press RDM again to turn off random play.
RDM OFF will appear on the display.
 SEEK
: Press the left arrow to go to the start of the
current or previous track. Press the right arrow to go to
the start of the next track. If either of the arrows is held
or pressed more then once, the player will continue
moving backward or forward through the CD.
DISP (Display): Press this knob to see how long the
current track has been playing. ET and the elapsed time
will appear on the display. To change what is normally
shown on the display (track or elapsed time), press the
knob until you see the display you want, then hold the
knob for two seconds. The radio will produce one beep.
BAND: Press this button to listen to the radio when a CD
is playing. The CD will stop but remain in the player.CD AUX (Auxiliary): Press this button to play a CD
when listening to the radio. The inactive CD will remain
safely inside the radio for future listening.
EJT (Eject): Press this button to stop a CD when
it is playing or to eject a CD when it is not playing.
Eject may be activated with either the ignition or radio
off. CDs may be loaded with the radio and ignition off if
this button is pressed first.
Compact Disc Messages
If the disc comes out, it could be for one of the
following reasons:
If you're driving on a very rough road. When the
road becomes smooth the disc should play.
If it's very hot. When the temperature returns to
normal, the disc should play.
The disc is upside down.
It is dirty, scratched or wet.
The air is very humid. (If so, wait about an hour and
try again.)
If the CD is not playing correctly, for any other
reason, try a known good CD.
If any error occurs repeatedly or if an error can't be
corrected, contact your dealer.

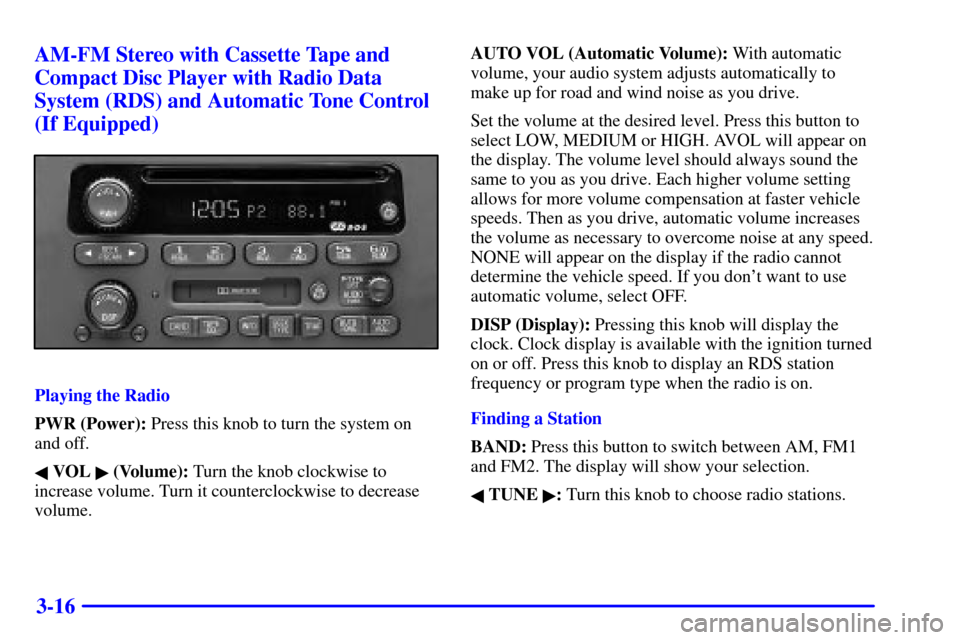

3-16 AM-FM Stereo with Cassette Tape and
Compact Disc Player with Radio Data
System (RDS) and Automatic Tone Control
(If Equipped)
Playing the Radio
PWR (Power): Press this knob to turn the system on
and off.
 VOL
(Volume): Turn the knob clockwise to
increase volume. Turn it counterclockwise to decrease
volume.AUTO VOL (Automatic Volume): With automatic
volume, your audio system adjusts automatically to
make up for road and wind noise as you drive.
Set the volume at the desired level. Press this button to
select LOW, MEDIUM or HIGH. AVOL will appear on
the display. The volume level should always sound the
same to you as you drive. Each higher volume setting
allows for more volume compensation at faster vehicle
speeds. Then as you drive, automatic volume increases
the volume as necessary to overcome noise at any speed.
NONE will appear on the display if the radio cannot
determine the vehicle speed. If you don't want to use
automatic volume, select OFF.
DISP (Display): Pressing this knob will display the
clock. Clock display is available with the ignition turned
on or off. Press this knob to display an RDS station
frequency or program type when the radio is on.
Finding a Station
BAND: Press this button to switch between AM, FM1
and FM2. The display will show your selection.
 TUNE
: Turn this knob to choose radio stations.

3-17
 SEEK
: Press the right or left arrow to seek to the
next or previous station and stay there. The radio will
seek to stations with a strong signal only. The sound will
mute while seeking.
 PSCAN
(Preset Scan): Press and hold one of the
arrows for more than two seconds. The radio will produce
one beep. The radio will scan through each of the preset
stations stored on your pushbuttons, play for a few
seconds, then go on to the next preset station. Press one of
the arrows or one of the pushbuttons again to stop
scanning. SCAN will be displayed whenever the tuner is
in the preset scan mode. The channel number (P1 through
P6) will appear with the frequency. In FM mode, this
function will scan through the current band such as FM1
or FM2. The radio will scan preset stations with a strong
signal only. The sound will mute while scanning.
Setting Preset Stations
The six numbered pushbuttons let you return to
your favorite stations. You can set up to 18 stations
(six AM, six FM1 and six FM2) by performing the
following steps:
1. Turn the radio on.
2. Press BAND to select AM, FM1 or FM2.
3. Tune in the desired station.4. Press AUTO TONE to choose the bass and treble
equalization that best suits the type of station you are
listening to.
5. Press and hold one of the six numbered pushbuttons.
The radio will produce one beep. Whenever you
press that numbered pushbutton, the station you set
will return and the bass and treble equalization that
you selected will also be automatically selected for
that pushbutton.
6. Repeat the steps for each pushbutton.
Setting the Tone (Bass/Treble)
AUDIO: Push and release the AUDIO knob until
BASS or TREB appears on the display. Turn the knob
clockwise or counterclockwise to increase or decrease.
The display will show the bass or treble level. If a
station is weak or noisy, you may want to decrease
the treble.
To adjust bass and treble to the middle position, push
and hold the AUDIO knob. The radio will produce one
beep and adjust the display level to the middle position.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker control is displayed. The radio will produce
one beep and display ALL with the level display in the
middle position.

3-18
AUTO TONE (Automatic): This feature allows you
to choose bass and treble equalization settings designed
for country/western, jazz, talk, pop, rock and
classical stations.
Each time you press the AUTO TONE button, this
feature will change to one of the preset equalization
settings previously listed.
To return the bass and treble to the manual mode, push
and release the AUDIO knob until MANUAL is
displayed.
Adjusting the Speakers (Balance/Fade)
AUDIO: To adjust the balance between the right and
left speakers, push and release the AUDIO knob until
BAL appears on the display. Turn the knob clockwise to
move the sound to the right speakers and
counterclockwise to move the sound to the left speakers.
To adjust the fade between the front and rear speakers,
push and release the AUDIO knob until FADE appears
on the display. Turn the knob clockwise to move the
sound to the front speakers and counterclockwise to
move the sound to the rear speakers.The middle position balances the sound between the
speakers. To adjust the balance and fade to the middle
position, push the AUDIO knob then push it again and
hold it until you hear one beep. The balance and fade
will be adjusted to the middle position and the display
will show the speaker balance.
To adjust all tone and speaker controls to the middle
position, push and hold the AUDIO knob when no tone
or speaker control is displayed. The radio will produce
one beep and display ALL with the level display in the
middle position.
Using RDS
Your audio system is equipped with a Radio Data
System (RDS). RDS is a system that receives data along
with the audio of the FM station you are currently tuned
to. You can use RDS to display program information
and to control your radio. With RDS, the radio can do
the following:

Seek only to stations with the types of programs you
want to listen to,

seek to stations with traffic announcements,

receive announcements concerning local and
national emergencies, and

receive and display messages from radio stations.

3-19
RDS features are only available on FM stations that
broadcast RDS information. The RDS features of your
radio rely on receiving specific RDS information from
these stations. These features will only work when the
RDS information is available. In rare cases, a radio
station may broadcast incorrect information that will
cause the radio features to work improperly. If this
happens, contact the radio station.
When you are tuned to an RDS station, the station name
will appear on the display, instead of the frequency.
Most RDS stations provide their station name, the time
of day and a Program Type (PTY) for their current
programming. Some stations also provide the name of
the current program.
Finding RDS Stations
To find RDS stations perform the following steps:
1. Push the SEEK TYPE button or turn the P
-TYPE
LIST knob to display the program type list.
2. Turn the P
-TYPE LIST knob either clockwise or
counterclockwise to select a program type. The list is
alphabetical. If you select ANY TYPE your radio
will seek to the first PTY available.
3. Push the SEEK TYPE button to activate search.
 VOL
(Volume): Turn this knob clockwise
to increase volume when RDS interrupts regular play.
Turn it counterclockwise to decrease volume.
DISP (Display): Press this knob to change what appears
on the display while using RDS. Pressing this knob will
also display an RDS station frequency or program type
when the radio is on. The display options are station
name, station frequency, PTY and the name of the
program (if available). Pressing and holding this knob
will activate the RDS default display.
Finding a PTY Station
P
-TYPE LIST (Program Type): Turn this knob
clockwise or counterclockwise to select the Program
Type (PTY) you want to listen to. TYPE and a PTY will
appear on the display. Press the SEEK TYPE button and
the radio will seek to the first RDS broadcaster of the
selected program type. If the radio cannot find the
desired program type, NONE will appear on the display
and the radio will return to the last station you were
listening to.

3-20
BAND (Alternate Frequency): Alternate frequency
allows the radio to switch to a stronger station with the
same program type. Press and hold BAND for two
seconds to turn alternate frequency on. AF ON will appear
on the display. The radio may switch to stronger stations.
Press and hold BAND again for two seconds to turn
alternate frequency off. AF OFF will appear on the
display. The radio will not switch to other stations. When
you turn the ignition off and then on again, the alternate
frequency feature will automatically be turned on.
SEEK TYPE: Press this button to go to a station with
the last selected PTY; TYPE and the last selected PTY
will appear on the display, if it is not already showing.
Press SEEK TYPE a second time to seek. If a station
with the selected PTY is not found, the radio will return
to the original station and display NONE.
RDS Messages
ALERT!: Alert warns of national or local emergencies.
You will not be able to turn off alert announcements.
ALERT! appears on the display when an alert
announcement plays. When an alert announcement
comes on the current radio station, you will hear it, even
if the volume is muted or a cassette tape or compact disc
is playing. If the cassette tape or compact disc player is
playing, play will stop for the announcement and resume
when the announcement is finished.This function will only work during actual emergency
broadcasts, and will not work during tests of the
emergency broadcast system. This feature is not
supported by all RDS stations.
INFO (Information): If the current station has a
message, the information symbol will appear on the
display. These text messages are from the RDS
broadcaster to the listening public and may be general
information such as artist and song title, call in phone
numbers, etc. Press this button to see the message. If the
whole message does not appear on the display, parts of
the message will appear every three seconds until the
message is completed. To scroll through the message at
your own speed, press the INFO button again for less
than one second. A new group of words will appear on
the display. Once the complete message has been
displayed, the information symbol will disappear from
the display until another new message is received. The
old message can be displayed by pressing the INFO
button until a new message is received or a different
station is tuned to. When a message is not available
from an FM station, NO INFO will be displayed.

3-21
TRAF (Traffic): Press this button to receive traffic
announcements. If the current station does not broadcast
traffic announcements, the radio will seek to a station
that does. The traffic symbol will flash on the display.
When the radio finds a station that broadcasts traffic
announcements, it will stop. If no station is found,
NO TRAF will appear on the display.
Your radio can be programmed to interrupt the playback
of a cassette tape, CD or FM radio by enabling the
traffic interrupt feature. Press the TRAF button once to
seek to an RDS station that supports the traffic interrupt
feature if the current station does not. The traffic symbol
will flash on the display when seeking for a station that
supports traffic interrupt. When the traffic interrupt
feature is on, TRAF will appear on the display.
When a traffic announcement comes on the current radio
station, you will hear it, even if the volume is muted or a
cassette tape or compact disc is playing. The traffic
symbol and TRAFFIC will appear on the display while
the traffic announcement plays. If the cassette tape or
compact disc player was being used, the tape or compact
disc will stay in the player and resume play at the point
where it stopped.Radio Messages
CAL ERR (Calibration Error): This message is
displayed when the radio has not been calibrated
properly for the vehicle. You must return to the
dealership for service.
LOCKED: This message is displayed when the
THEFTLOCK

system has locked up. You must
return to the dealership for service.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes longer
than that are so thin they may not work well in this
player. The longer side with the tape visible should face
to the right. If the ignition is on, but the radio is off,
the tape can be inserted and will begin playing. A tape
symbol is shown on the display whenever a tape is
inserted. If you hear nothing but a garbled sound, the
tape may not be in squarely. Press EJT to remove the
tape and start over.
While the tape is playing, use the VOL, AUDIO and
SEEK controls just as you do for the radio. The display
will show TAPE and an arrow showing which side of
the tape is playing.
