2002 CHEVROLET MALIBU Owners Manual

2-2

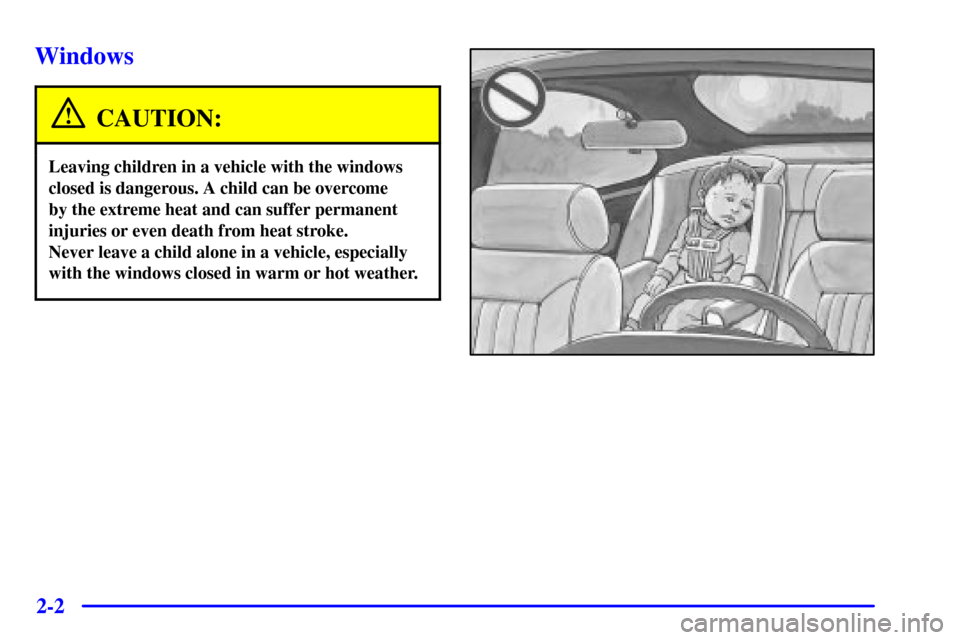

Windows
CAUTION:
Leaving children in a vehicle with the windows
closed is dangerous. A child can be overcome
by the extreme heat and can suffer permanent
injuries or even death from heat stroke.
Never leave a child alone in a vehicle, especially
with the windows closed in warm or hot weather.

2-3 Manual Windows
On a vehicle with manual windows, use the window
crank to open and close each window.
Power Windows (If Equipped)
The power window switches are located on the armrest
on the driver's door. In addition, each passenger door
has a switch for its own window.Auto
-Down Switch
The driver's window also has an auto
-down feature.
This switch is labeled AUTO. Press the rear of the
switch partway, and the driver's window will open a
small amount. If the rear of the switch is pressed all
the way down, the window will go all the way down.
To stop the window while it is lowering, press the front
of the switch. To raise the window, press and hold the
front of the switch.
Lock Out Button
The driver's power window controls also include a lock
out button. Press the LOCK OUT button to stop the
front and rear passengers from using their window
switches. The driver can still operate all the windows
with the lock on. Press the LOCK OUT button again
to return to normal window operation.

2-4

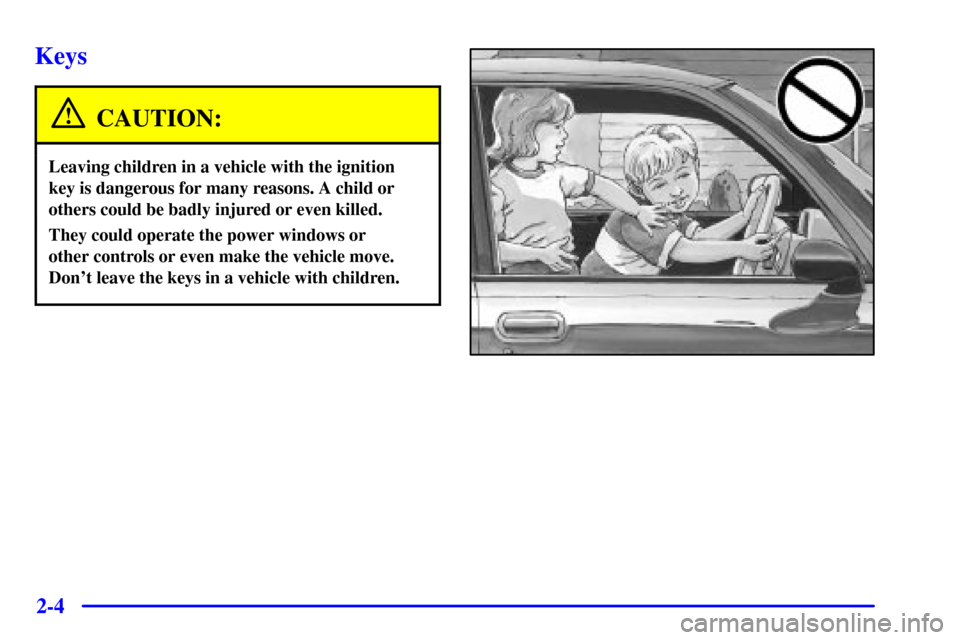

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
Don't leave the keys in a vehicle with children.

2-5
One key is used for the
ignition and all other locks.
When a new vehicle is delivered, the key has a bar
-coded
key tag. This tag may be removed by your dealer before
it is delivered.Each tag has a key code on it that tells your dealer or a
qualified locksmith how to make extra keys. Keep the
tag in a safe place. If you lose your keys, you'll be able
to have one made easily using this tag.
If you need a new key, go to your dealer for the correct
key code. See ªRoadside Assistanceº in the Index for
more information.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft, therefore you can have
a lot of trouble getting into your vehicle if you
ever lock your keys inside. You may even have
to damage your vehicle to get in. So be sure you
have extra keys.

2-6

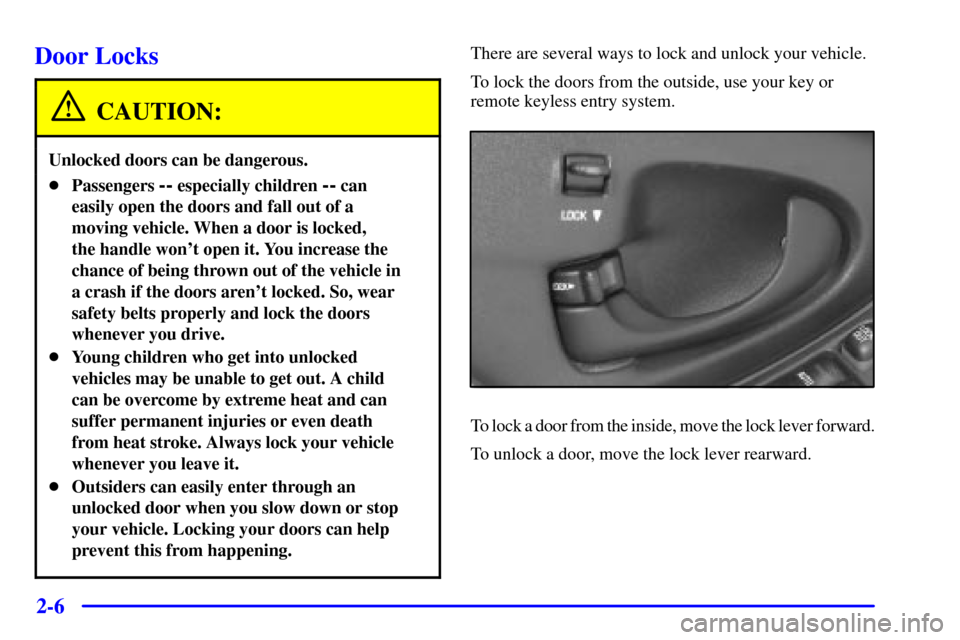

Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
To lock the doors from the outside, use your key or
remote keyless entry system.
To lock a door from the inside, move the lock lever forward.
To unlock a door, move the lock lever rearward.

2-7 Power Door Locks
With the power door locks,
you can unlock or lock all
the doors on your vehicle
using either the driver's
or front passenger's door
lock switch.
Pull up on the switch to unlock all the doors. Push down
on it to lock all the doors.
Door Ajar Reminder
If one of the doors on your vehicle is not closed
properly, while the ignition is on and the shift lever
is moved from PARK (P) or NEUTRAL (N),
you will hear a chime. Also, the door ajar light on
the instrument panel will come on and stay on until
the doors are closed.
Programmable Automatic Door Locks
With this feature, when you close all the doors, turn on
the ignition and shift out of PARK (P), all of the doors
will lock. If someone needs to get out while the vehicle
is running, have that person use either the manual lock
lever or the power door lock switch. When the door
is closed again, it will lock automatically when the
vehicle reaches about 5 mph (8 km/h). All doors will
automatically unlock when the shift lever is moved
to PARK (P) and the key is turned to OFF.

2-8
Customizing the Automatic Door Locks
One of four operating modes may be selected and
programmed by the driver:

Mode 1: All doors automatically lock when the
transaxle is shifted out of PARK (P). The doors will
remain locked unless manually unlocked or the lock
button is pressed. All doors will unlock when the
transaxle is shifted into PARK (P) and the key is
turned to OFF.

Mode 2: This mode is only available with the remote
keyless entry system (if equipped). All doors
automatically lock when the transaxle is shifted out
of PARK (P). Automatic driver's door only unlock
when the transaxle is shifted into PARK(P) and the
key is turned to OFF.

Mode 3: All doors automatically lock when the
transaxle is shifted out of PARK (P). No automatic
door unlock.

Mode 4: No automatic door lock or unlock.Before your vehicle was shipped from the factory it was
programmed in Mode 1. To determine the current
mode of the vehicle or to change to a different mode,
do the following:
1. Ensure the shift lever is in PARK (P) and all doors
are fully closed throughout this procedure. Turn the
ignition to ON.
2. Press and hold LOCK on either power door lock
switch for 10 seconds. Release the switch when you
hear the chime.
3. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is in.
You can change the mode by pressing and holding
LOCK on the power door lock switch (two chimes
for Mode 2, three chimes for Mode 3 and four
chimes for Mode 4).
4. Repeat Step 2 until you hear the number of chimes
that matches the mode you want.
The mode you selected is now set.

2-9 Delayed Locking
This feature will allow the driver to delay the actual
locking of the vehicle. This feature will not operate if
the key is left in the ignition. See ªAnti
-Lockout
Protectionº later in this section.
When LOCK on the driver's power door lock switch
is pressed, with the key removed from the ignition
and the driver's door open, three chimes will be heard.
The doors will not lock. Seven seconds after the driver's
door has been closed, all of the doors will lock and the
parking lamps will flash twice. The horn will also chirp
if the horn chirp feature is enabled. See ªProgrammable
Horn Chirpº in the Index for more information.
If the driver opens another door before the seven
seconds, the doors will not lock until seven seconds
after the last door is closed.
If the power door lock switch is pressed to LOCK twice
when leaving the vehicle, or the lock symbol button on
the remote keyless entry transmitter is pressed, the doors
will lock immediately.
If the power door lock switch is pressed to unlock,
the doors will unlock immediately and not lock
automatically after the doors are closed.
Rear Door Security Locks
Your vehicle is equipped with rear door security locks
that help prevent passengers from opening the rear doors
of your vehicle from the inside.
The switch for this
feature is located on the
inside of the rear door.
To use the security locks, do the following:
1. Move the switch up.
2. Close the door.
3. Do the same thing to the other rear door.
