2002 CHEVROLET MALIBU Owners Manual

3-22
If you want to insert a tape when the ignition is off, first
press EJT or DISP.
If an error appears on the display, see ªCassette Tape
Messagesº later in this section.
1 PREV (Previous): Press this pushbutton to go to the
previous selection on the tape if the selection has been
playing for less than three seconds. If this pushbutton is
pressed and the current selection has been playing for
more than 13 seconds, it will go to the beginning of the
current selection. If this pushbutton is pressed and the
current selection has been playing from 3 to 13 seconds,
it will go to the beginning of the previous selection or
the beginning of the current selection, depending upon
the position on the tape. SEEK and a
-1 will appear on
the display while the cassette player is in the previous
mode. If this pushbutton is pressed additional times or
held, the radio will go to the displayed number of
previous selections up to 9. SEEK and a negative
number will appear on the display. Your tape must
have at least three seconds of silence between each
selection for previous to work. The sound will mute
while seeking.2 NEXT: Press this pushbutton to go to the next
selection on the tape. If you press the pushbutton more
than once, the player will continue moving forward
through the tape. SEEK and a positive number will
appear on the display. Your tape must have at least three
seconds of silence between each selection for next to
work. The sound will mute while seeking.
3 REV (Reverse): Press this pushbutton to reverse the
tape rapidly. Press it again to return to playing speed.
The radio will play the last selected station while the
tape reverses. The station frequency and REV will
appear on the display. You may select stations during
reverse operation by using TUNE, SEEK or PSCAN.
4 FWD (Forward): Press this pushbutton to advance
quickly to another part of the tape. Press this pushbutton
again to return to playing speed. The radio will play the
last selected station while the tape advances. The station
frequency and FWD will appear on the display. You
may select stations during forward operation by using
TUNE, SEEK or PSCAN.
5 SIDE: Press this pushbutton to play the other side of
the tape.

3-23
6
(Dolby): Press this pushbutton to reduce
background noise. NR ON will appear on the display.
Press it again to turn Dolby B off. NR OFF will appear
on the display.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double
-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
 SEEK
: The right arrow is the same as the NEXT
pushbutton, and the left arrow is the same as the PREV
pushbutton. If the arrows are held or pressed more than
once, the player will continue moving forward or
backward through the tape. SEEK and a positive or
negative number will appear on the display.
BAND: Press this button to listen to the radio when a tape
is playing. The tape will stop but remain in the player.
TAPE CD: Press this button to play a tape when listening
to the radio. Press TAPE CD to switch between the tape
and compact disc if both are loaded. The inactive tape or
CD will remain safely inside the radio for future listening.
EJT (Eject): Press this button, located to the right
of the cassette tape slot, to stop a tape when it is playing
or to eject a tape when it is not playing. Eject may be
activated with the radio off. Cassette tapes may be
loaded with the radio off if this button is pressed first.Cassette Tape Messages
CHK TAPE (Check Tape): If this message appears on
the radio display, the tape won't play because of one of
the following errors.
The tape is tight and the player can't turn the tape
hubs. Remove the tape. Hold the tape with the open
end down and try to turn the right hub
counterclockwise with a pencil. Turn the tape over
and repeat. If the hubs do not turn easily, your tape
may be damaged and should not be used in the
player. Try a new tape to make sure your player is
working properly.
The tape is broken. Try a new tape.
The tape is wrapped around the tape head. Attempt
to get the cassette out. Try a new tape.
CLEAN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index.
If any error occurs repeatedly or if an error can't be
corrected, contact your dealer.

3-24
CD Adapter Kits
It is possible to use a portable CD player adapter kit
with your cassette tape player after disabling the
tight/loose tape sensing feature on your tape player.
To disable the feature, use the following steps:
1. Turn the ignition to ON or ACCESSORY.
2. Turn the radio off.
3. Press and hold the TAPE CD button. The radio will
display READY and flash the cassette icon.
4. Insert the adapter into the cassette slot. It will power
up the radio and begin playing.
This override routine will remain active until EJT
is pressed.
Playing a Compact Disc
Insert a disc partway into the slot, label side up. The
player will pull it in and the disc should begin playing.
The display will show the CD symbol. If you want to
insert a compact disc with the ignition off, first press
DISP or EJT.
If an error appears on the display, see ªCompact Disc
Messagesº later in this section.1 PREV (Previous): Press this pushbutton to go to the
previous track if the current track has been playing for
less than eight seconds. If this pushbutton is pressed and
the current track has been playing for more than eight
seconds, it will go to the beginning of the current track.
TRACK and the track number will appear on the
display. If you hold this pushbutton or press it more than
once, the player will continue moving back through the
disc. The sound will mute while seeking.
2 NEXT: Press this pushbutton to go to the next track.
TRACK and the track number will appear on the
display. If you hold this pushbutton or press it more than
once, the player will continue moving forward through
the disc. The sound will mute while seeking.
3 REV (Reverse): Press and hold this pushbutton to
reverse quickly within a track. Press and hold this
pushbutton for less than two seconds to reverse at six
times the normal playing speed. Press and hold it for
more than two seconds to reverse at 17 times the normal
playing speed. Release it to play the passage. The
display will show ET and the elapsed time.

3-25
4 FWD (Forward): Press and hold this pushbutton to
advance quickly within a track. Press and hold this
pushbutton for less than two seconds to advance at six
times the normal playing speed. Press and hold it for
more than two seconds to advance at 17 times the
normal playing speed. Release it to play the passage.
The display will show ET and the elapsed time.
6 RDM (Random): Press this pushbutton to hear the
tracks in random, rather than sequential, order. RDM
ON will appear on the display. RDM T and the track
number will appear on the display when each track starts
to play. Press it again to turn off random play. RDM
OFF will appear on the display.
 SEEK
: The right arrow is the same as the NEXT
pushbutton, and the left arrow is the same as the PREV
pushbutton. If either of the SEEK arrows is held or
pressed more then once, the player will continue moving
backward or forward through the CD.
DISP (Display): Press this knob to see how long the
current track has been playing. ET and the elapsed time
will appear on the display. To change what is normally
shown on the display (track or elapsed time), press this
knob until you see the display you want, then hold this
knob for two seconds. The radio will produce one beep.
BAND: Press this button to listen to the radio when a disc
is playing. The disc will stop but remain in the player.TAPE CD: Press this button to play a CD when listening
to the radio. Press TAPE CD to switch between the tape
and compact disc if both are loaded. The inactive tape or
CD will remain safely inside the radio for future listening.
EJT (Eject): Press this button, located to the right
of the CD slot, to eject a CD. Eject may be activated with
either the ignition or radio off. CDs may be loaded with
the radio and ignition off if this button is pressed first.
Compact Disc Messages
CHECK CD: If this message appears on the display
and/or the disc comes out, it could be for one of the
following reasons:
If you're driving on a very rough road. When the
road becomes smooth the disc should play.
If it's very hot. When the temperature returns to
normal, the disc should play.
The disc is upside down.
It is dirty, scratched or wet.
It is very humid. (If so, wait about an hour and
try again.)
If the CD is not playing correctly, for any other
reason, try a known good CD.
If any error occurs repeatedly or if an error can't be
corrected, contact your dealer.

3-26 Theft-Deterrent Feature
THEFTLOCK
is designed to discourage theft of
your radio. The feature works automatically by learning
a portion of the Vehicle Identification Number (VIN).
If the radio is moved to a different vehicle, it will not
operate and LOCKED will be displayed.
When the ignition is off and RAP is not active, the
blinking red light indicates that THEFTLOCK is armed.
With THEFTLOCK activated, your radio will not
operate if stolen.
Understanding Radio Reception
AM
The range for most AM stations is greater than for
FM, especially at night. The longer range, however, can
cause stations to interfere with each other. AM can pick
up noise from things like storms and power lines. Try
reducing the treble to reduce this noise if you ever get it.FM Stereo
FM stereo will give you the best sound, but FM signals
will reach only about 10 to 40 miles (16 to 65 km). Tall
buildings or hills can interfere with FM signals, causing
the sound to come and go.
Tips About Your Audio System
Hearing damage from loud noise is almost undetectable
until it is too late. Your hearing can adapt to higher
volumes of sound. Sound that seems normal can be loud
and harmful to your hearing. Take precautions by
adjusting the volume control on your radio to a safe
sound level before your hearing adapts to it.
To help avoid hearing loss or damage do the following:
1. Adjust the volume knob to the lowest setting.
2. Increase volume slowly until you hear comfortably
and clearly.

3-27

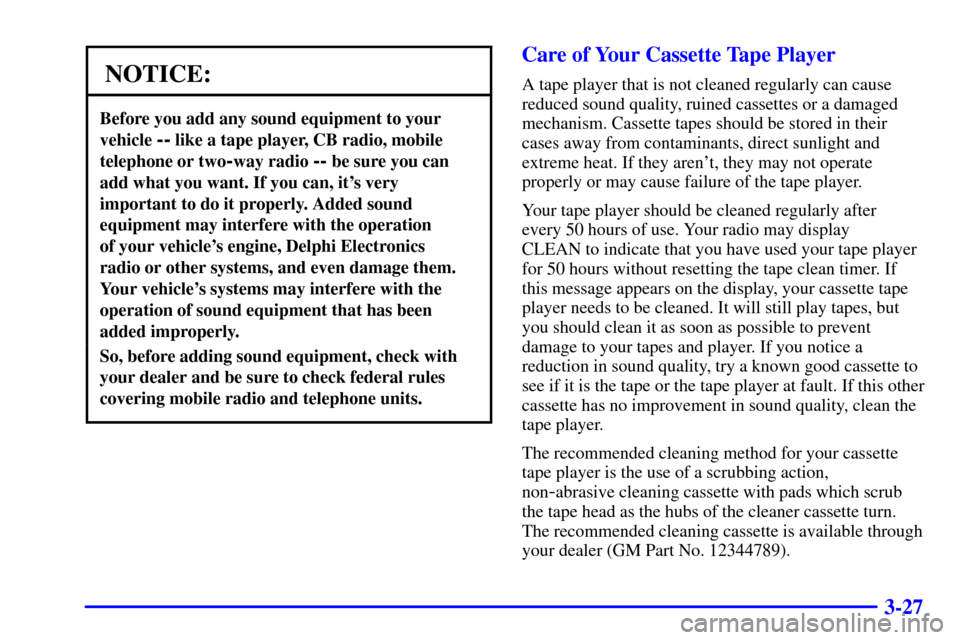

NOTICE:
Before you add any sound equipment to your
vehicle
-- like a tape player, CB radio, mobile
telephone or two
-way radio -- be sure you can
add what you want. If you can, it's very
important to do it properly. Added sound
equipment may interfere with the operation
of your vehicle's engine, Delphi Electronics
radio or other systems, and even damage them.
Your vehicle's systems may interfere with the
operation of sound equipment that has been
added improperly.
So, before adding sound equipment, check with
your dealer and be sure to check federal rules
covering mobile radio and telephone units.
Care of Your Cassette Tape Player
A tape player that is not cleaned regularly can cause
reduced sound quality, ruined cassettes or a damaged
mechanism. Cassette tapes should be stored in their
cases away from contaminants, direct sunlight and
extreme heat. If they aren't, they may not operate
properly or may cause failure of the tape player.
Your tape player should be cleaned regularly after
every 50 hours of use. Your radio may display
CLEAN to indicate that you have used your tape player
for 50 hours without resetting the tape clean timer. If
this message appears on the display, your cassette tape
player needs to be cleaned. It will still play tapes, but
you should clean it as soon as possible to prevent
damage to your tapes and player. If you notice a
reduction in sound quality, try a known good cassette to
see if it is the tape or the tape player at fault. If this other
cassette has no improvement in sound quality, clean the
tape player.
The recommended cleaning method for your cassette
tape player is the use of a scrubbing action,
non
-abrasive cleaning cassette with pads which scrub
the tape head as the hubs of the cleaner cassette turn.
The recommended cleaning cassette is available through
your dealer (GM Part No. 12344789).

3-28
When cleaning the cassette tape player with the
recommended non
-abrasive cleaning cassette, it is
possible that the cassette may eject, because the cut tape
detection feature on your radio may recognize it as a
broken tape. To prevent the cleaning cassette from being
ejected, use the following steps:
1. Turn the ignition to ON or ACCESSORY.
2. Turn the radio off.
3. Press and hold the TAPE CD or the TAPE AUX
button for five seconds. READY will appear on
the display and a cassette symbol will flash for
five seconds.
4. Insert the scrubbing action cleaning cassette.
5. Eject the cleaning cassette after the manufacturer's
recommended cleaning time.When the cleaning cassette has been ejected, the broken
tape detection feature is active again.
You may also choose a non
-scrubbing action, wet-type
cleaner which uses a cassette with a fabric belt to clean
the tape head. This type of cleaning cassette will not
eject on its own. A non
-scrubbing action cleaner may
not clean as thoroughly as the scrubbing type cleaner.
The use of a non
-scrubbing action, dry-type cleaning
cassette is not recommended.
After you clean the player, press and hold the EJT
button for five seconds to reset the CLEAN indicator.
The radio will display CLEANED to show the indicator
was reset.
Cassettes are subject to wear and the sound quality
may degrade over time. Always make sure the cassette
tape is in good condition before you have your tape
player serviced.

3-29 Care of Your Compact Discs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a disc is soiled, dampen a
clean, soft cloth in a mild, neutral detergent solution
and clean it, wiping from the center to the edge.
Be sure never to touch the side without writing when
handling discs. Pick up discs by grasping the outer edges
or the edge of the hole and the outer edge.
Care of Your Compact Disc Player
The use of CD lens cleaner discs is not advised, due to
the risk of contaminating the lens of the CD optics with
lubricants internal to the CD mechanism.
Fixed Mast Antenna
The fixed mast antenna can withstand most car washes
without being damaged. If the mast should ever become
slightly bent, you can straighten it out by hand. If the
mast is badly bent, as it might be by vandals, you should
replace it.
Check every once in a while to be sure the mast is still
tightened to the fender. If tightening is required, tighten
by hand, then with a wrench one quarter turn.
Chime Level Adjustment
Chime level adjustment is only available on RDS radios.
The radio is the vehicle chime producer. The chime is
produced from the driver's side front door speakers. To
change the volume level, press and hold pushbutton 6 with
the ignition on and the radio power off. The chime volume
level will change from the normal level to loud, and
LOUD will be displayed on the radio. To change back to
the default or normal setting, press and hold pushbutton
6 again. The chime level will change from the loud level
to normal, and NORMAL will be displayed. Each time the
chime volume is changed, three chimes will sound as an
example of the new volume selected. Removing the radio
and not replacing it with a factory radio or chime module
will disable vehicle chimes.
