2001 PONTIAC BONNEVILLE Owners Manual

2-14
To change to another mode, do the following:
1. Keep all doors closed, the vehicle in PARK (P) and
the ignition on throughout this procedure.
2. Press and hold the driver's power door lock switch in
LOCK through Step 4.
3. Press the button with the trunk symbol on the
transmitter. The transmitter will remain in its current
mode and the horn will chirp as feedback.
4. Press the button with the trunk symbol again.
Each time the transmitter's trunk button is pressed,
the mode will advance by one, going from Mode 2 to
3 to 4, etc. and the horn will chirp as feedback.
5. Release the power door lock switch. The security
feedback will remain in the most recent mode selected.
This procedure changes the mode for only the
transmitter used to change this setting. The procedure
will need to be repeated for the second transmitter.
To verify the mode selected, remove the key from the
ignition and close all of the doors after you've exited the
vehicle. Press the lock button on the transmitter to be
verified and confirm the appropriate feedback.
Repeat with the unlock button.If your vehicle is equipped with the Driver Information
Center (DIC), you must program this feature through the
DIC. See ªDriver Information Center Personalization
Programmingº in the Index.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to prevent
another transmitter from unlocking your vehicle. If a
transmitter is lost or stolen, a replacement can be purchased
through your dealer. Remember to bring any remaining
transmitters with you when you go to your dealer. When the
dealer matches the replacement transmitter to your vehicle,
any remaining transmitters must also be matched. Once your
dealer has coded the new transmitter, the lost transmitter will
not unlock your vehicle. Each vehicle can have only
four transmitters matched to it.
See your dealer to match additional transmitters to
your vehicle.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.

2-15
NOTICE:
When replacing the battery, use care not to touch any
of the circuitry. Static from your body transferred
to these surfaces may damage the transmitter.
For battery replacement, use one Duracell
battery, type
DL
-2032, or a similar type.To replace the battery:
1. Insert a thin coin into the notch near the key ring.
Turn the coin counterclockwise to separate the
two halves of the transmitter.
2. Once the transmitter is separated, use a pencil eraser
to remove the old battery. Do not use a metal object.
3. Remove and replace the battery. Replace it as the
instructions inside the cover indicate.
4. Snap the transmitter back together tightly to be sure
no moisture can enter.
5. Check the operation of the transmitter.

2-16

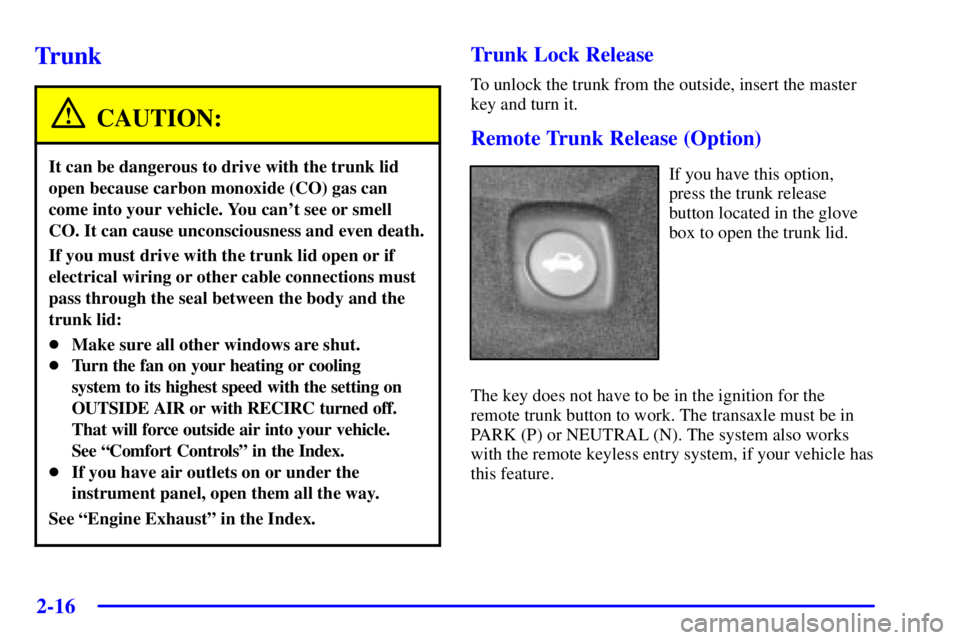

Trunk
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting on
OUTSIDE AIR or with RECIRC turned off.
That will force outside air into your vehicle.
See ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Trunk Lock Release
To unlock the trunk from the outside, insert the master
key and turn it.
Remote Trunk Release (Option)
If you have this option,
press the trunk release
button located in the glove
box to open the trunk lid.
The key does not have to be in the ignition for the
remote trunk button to work. The transaxle must be in
PARK (P) or NEUTRAL (N). The system also works
with the remote keyless entry system, if your vehicle has
this feature.

2-17 Remote Trunk Release Lockout (Option)
To secure items in the trunk, lock the glove box with the
master key and take your key and remote keyless entry
transmitter with you. The valet key cannot open the
trunk or the glovebox.
Trunk Security Override (Option)
Pressing the trunk symbol on the remote keyless entry
transmitter opens the trunk even if the glove box
is locked.
Trunk Release Handle (If Equipped)
There is a glow-in-the-dark trunk release handle located
in the trunk near the trunk latch. This handle will glow
following exposure to light. Pull the release handle up to
open the trunk from the inside.

2-18
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make it
impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
With the ignition off and the driver's door open, you'll
hear a tone reminding you to remove your key from the
ignition and take it with you. Always do this. Your
steering wheel will be locked, and so will your ignition
and transaxle. And remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
Even if you park in a lot where someone will be
watching your vehicle, it's still best to lock it up and
take your keys. But what if you have to leave your
ignition key?

If possible, park in a busy, well
-lit area.

Put your valuables in a storage area, like your
trunk or glove box. Be sure to close and lock the
storage area.

Close all windows.

Lock the glove box.

Lock all doors except the driver's.

Give the valet key to the valet. Then take the master
key with you.

2-19
Universal Theft-Deterrent
(If Equipped)
If your vehicle has this feature, it has a theft-deterrent
alarm system. With this system, the SECURITY light will
flash as you open the door (if your ignition is in OFF).
This light on the instrument
panel cluster reminds you to
activate the theft
-deterrent
system when leaving
your vehicle.
To activate the system, do the following:
1. Open the door.
2. Lock the door with the power door lock switch while
the door is open, or use the remote keyless entry
transmitter (if equipped). The SECURITY light
should come on and stay on.
3. Close all doors. The SECURITY light should go off
after about 30 seconds and the system will then
be armed.If the SECURITY light comes on for one minute and then
shuts off while the ignition is on, the security system has
detected a problem. See your dealer for service.
If a door is opened without the key or remote keyless
entry transmitter, or if the door key cylinders are
damaged, the alarm will go off. The exterior lamps will
flash and the horn will sound for 30 seconds, then will
go off in order to save battery power.
Remember, the theft-deterrent system won't activate if
you lock the doors with a key or manual door lock. It
activates only if you use a power door lock switch while
the door is open, or the remote keyless entry transmitter.
Avoid setting off the alarm by accident.
Always unlock a door with a key, or use the remote
keyless entry transmitter. Unlocking a door any other
way will set off the alarm.
If you set off the alarm by accident, unlock any door
with your key. You can also turn off the alarm by
pressing the button with the unlock symbol on the
remote keyless entry transmitter. The alarm won't stop if
you try to unlock a door any other way.

2-20
Testing the Alarm
1. From inside the vehicle, roll down the window.
2. Activate the system by locking the doors with the
power door lock switch while the door is open, or
with the remote keyless entry transmitter.
3. Get out of the vehicle, close the door and wait for the
SECURITY light to go out.
4. Then, reach in through the window, unlock the door
with the manual door lock and open the door.
This should set off the alarm.
If the alarm does not sound when it should, check to
see if the horn works. The horn fuse may be blown.
To replace the fuse, see ªFuses and Circuit Breakersº in
the Index.
If the alarm does not sound, or the exterior lamps do not
flash, see your dealer.
PASS-Key
III
Your vehicle is equipped
with the PASS
-Key III
(Personalized Automotive
Security System)
theft
-deterrent system.
PASS
-Key III is a passive
theft
-deterrent system.
This means you don't have to do anything different to
arm or disarm the system. It works when you insert or
remove the key from the ignition.
Your PASS
-Key III system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.

2-21
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
PASS
-Key III uses a radio frequency transponder in the
key that matches a decoder in your vehicle.
When the PASS
-Key III system senses that someone is
using the wrong key, it shuts down the vehicle's starter
and fuel systems. The starter will not work and fuel will
stop being delivered to the engine. Anyone using a
trial
-and-error method to start the vehicle will be
discouraged because of the high number of electrical
key codes.When trying to start the vehicle, if the engine does not
start and the SECURITY light comes on, the key may
have a damaged transponder. Turn the ignition off and
try again.
If the engine still does not start, and the key appears to
be undamaged, try another ignition key. At this time,
you may also want to check the fuse (see ªFuses and
Circuit Breakersº in the Index). If the engine still does
not start with the other key, your vehicle needs service.
If your vehicle does start, the first key may be faulty.
See your dealer who can service the PASS
-Key III to
have a new key made.
It is possible for the PASS
-Key III decoder to learn
the transponder value of a new or replacement key.
Up to 10 keys may be programmed for the vehicle.
This procedure is for learning additional keys only.
Canadian Owners: If you lose or damage your keys,
only a GM dealer can service PASS
-Key III to have new
keys made. To program additional keys you will need
two current driver's keys (black in color). You must add
a step to the following procedure. After Step 2, repeat
Steps 1 and 2 with the second current driver's key.
Then continue with Step 3.
